Page 3241 of 3787

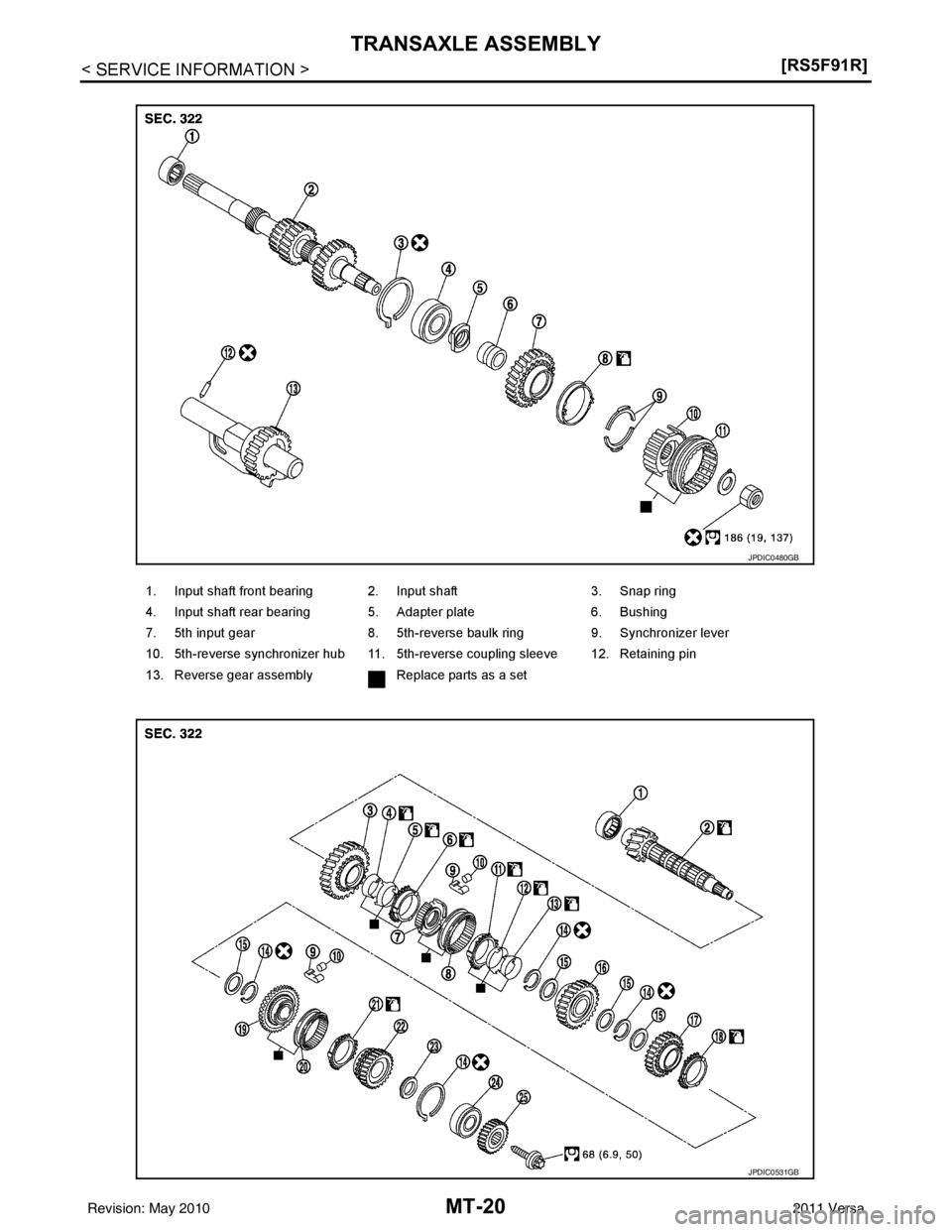

NISSAN LATIO 2011 Service Repair Manual MT-20 < SERVICE INFORMATION >[RS5F91R] TRANSAXLE ASSEMBLY 1. Input shaft front bearing 2. Input shaft 3. Snap ring 4. Input shaft rear bearing 5. Adapter plate 6. Bushing 7. 5th input gear 8. 5th-reve

Page 3242 of 3787

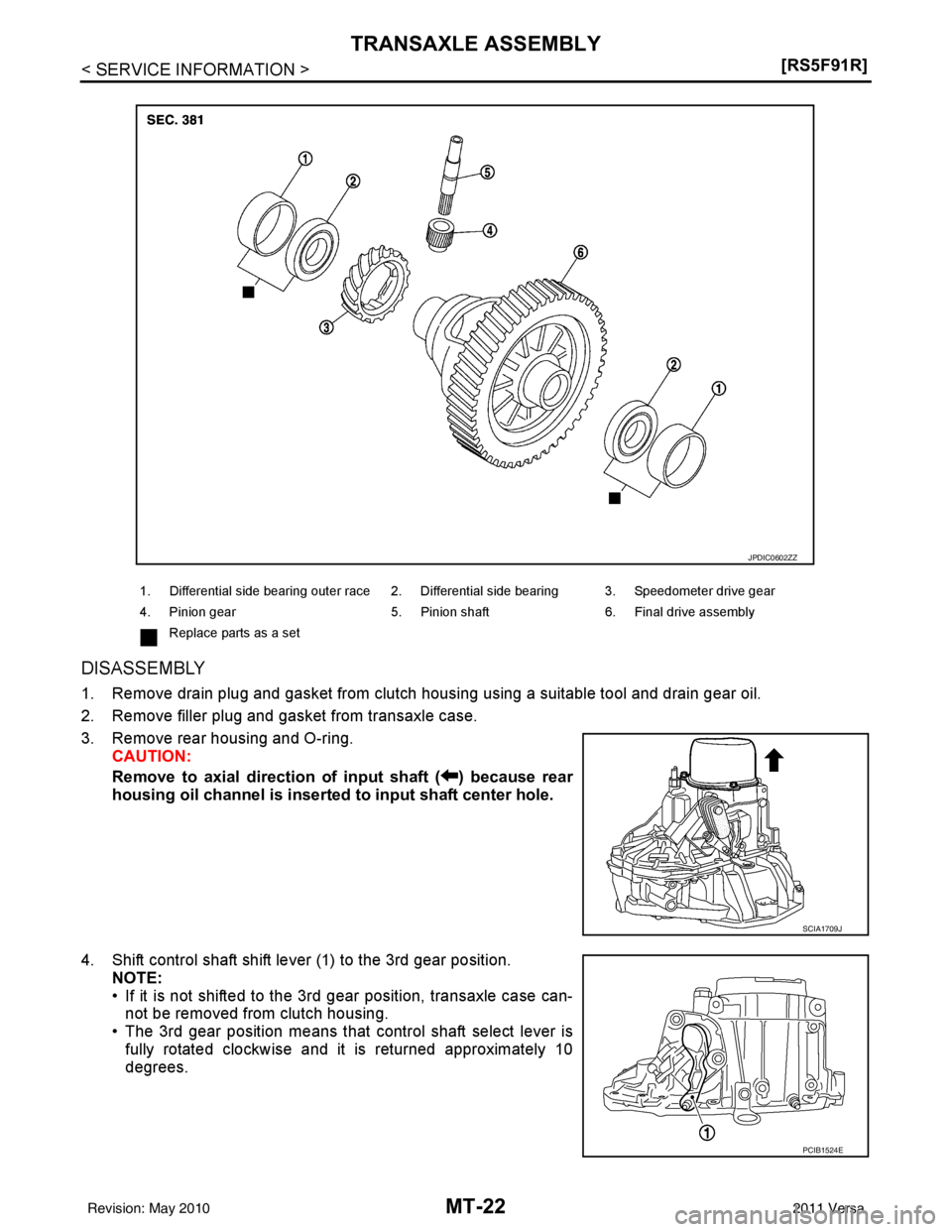

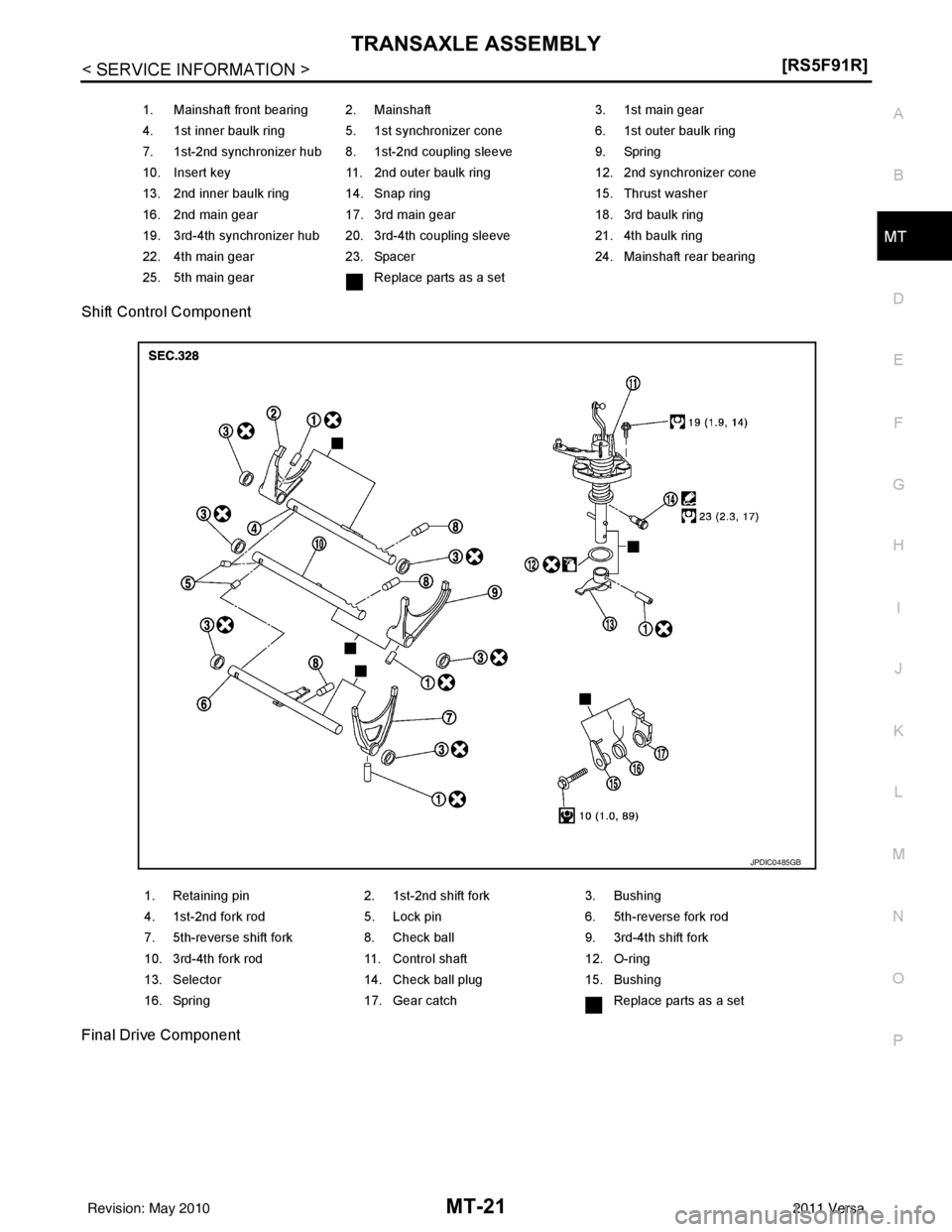

NISSAN LATIO 2011 Service Repair Manual TRANSAXLE ASSEMBLYMT-21 < SERVICE INFORMATION > [RS5F91R] D E F G H I J K L M A B MT N O P Shift Control Component Final Drive Component 1. Mainshaft front bearing 2. Mainshaft 3. 1st main gear 4. 1st

Page 3243 of 3787

NISSAN LATIO 2011 Service Repair Manual MT-22 < SERVICE INFORMATION >[RS5F91R] TRANSAXLE ASSEMBLY DISASSEMBLY 1. Remove drain plug and gasket from clutch housing using a suitable tool and drain gear oil. 2. Remove filler plug and gasket fro

Page 3244 of 3787

NISSAN LATIO 2011 Service Repair Manual TRANSAXLE ASSEMBLYMT-23 < SERVICE INFORMATION > [RS5F91R] D E F G H I J K L M A B MT N O P 5. Remove 5th-reverse shift fork (1) and 5th-reverse coupling sleeve according to the following procedures.

Page 3245 of 3787

NISSAN LATIO 2011 Service Repair Manual MT-24 < SERVICE INFORMATION >[RS5F91R] TRANSAXLE ASSEMBLY 10. Remove transaxle case bolts ( ). 11. Remove transaxle case from clutch housing. 12. Remove spacer (1) and 4th main gear (2) from mainshaft

Page 3246 of 3787

NISSAN LATIO 2011 Service Repair Manual TRANSAXLE ASSEMBLYMT-25 < SERVICE INFORMATION > [RS5F91R] D E F G H I J K L M A B MT N O P 18. Remove 1st-2nd fork rod assembly (1) and mainshaft assembly (2) from clutch housing at the same time. 19.

Page 3247 of 3787

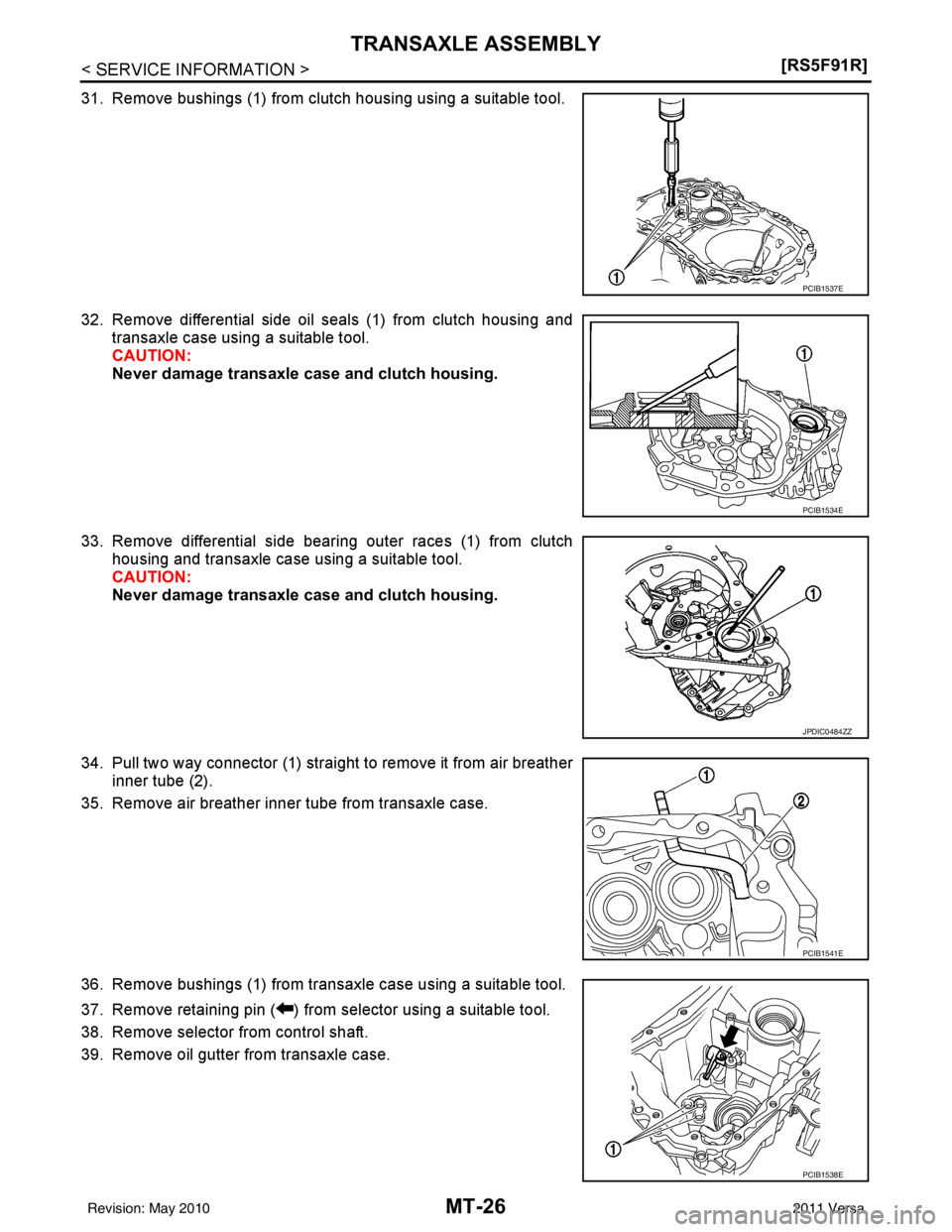

NISSAN LATIO 2011 Service Repair Manual MT-26 < SERVICE INFORMATION >[RS5F91R] TRANSAXLE ASSEMBLY 31. Remove bushings (1) from clutch housing using a suitable tool. 32. Remove differential side oil seals (1) from clutch housing and transaxl

Page 3248 of 3787

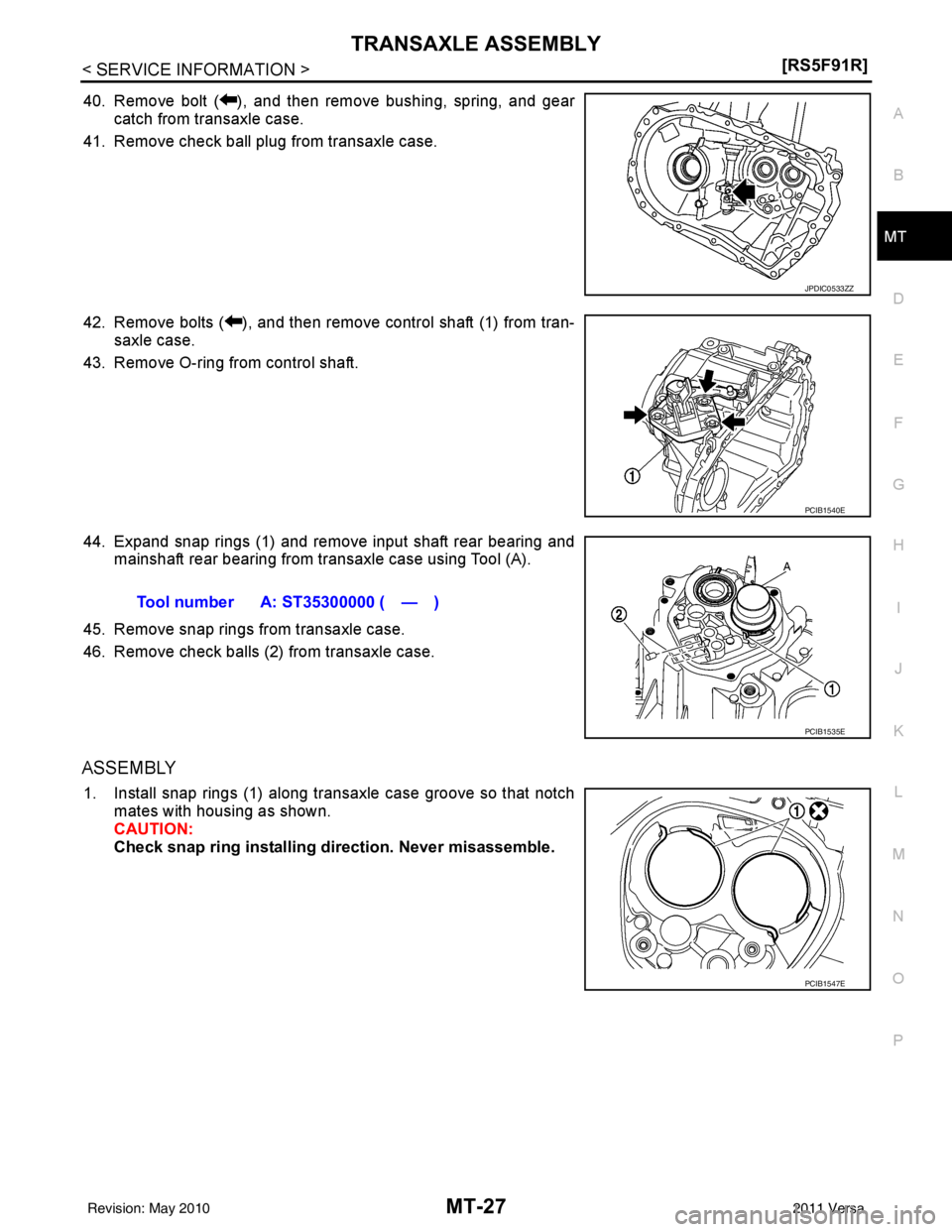

NISSAN LATIO 2011 Service Repair Manual TRANSAXLE ASSEMBLYMT-27 < SERVICE INFORMATION > [RS5F91R] D E F G H I J K L M A B MT N O P 40. Remove bolt ( ), and then remove bushing, spring, and gear catch from transaxle case. 41. Remove check ba
