Page 1865 of 3787

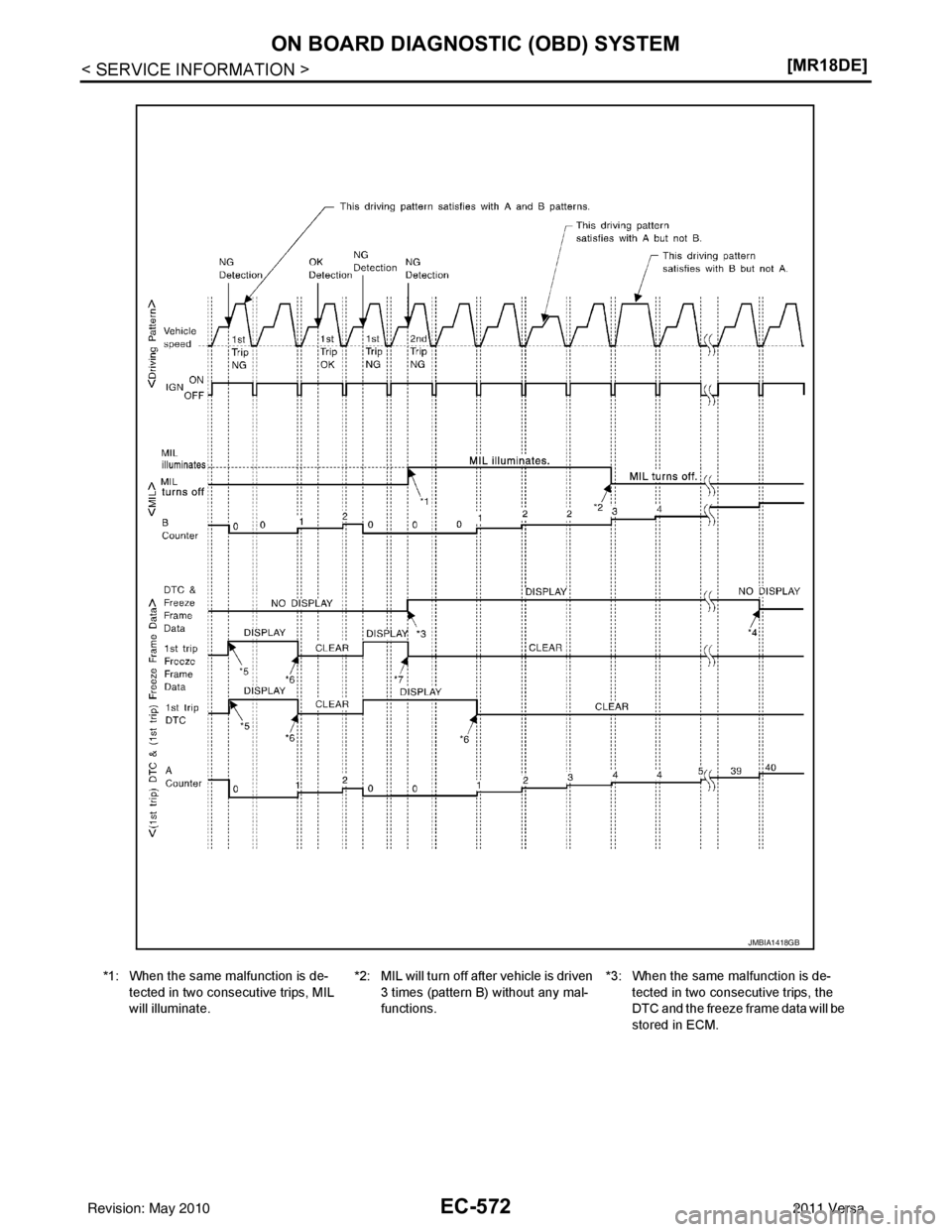

NISSAN LATIO 2011 Service Repair Manual ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-571 < SERVICE INFORMATION > [MR18DE] C D E F G H I J K L M A EC NP O All components and systems should be monitored at least once by the OBD system. • The B counte

Page 1866 of 3787

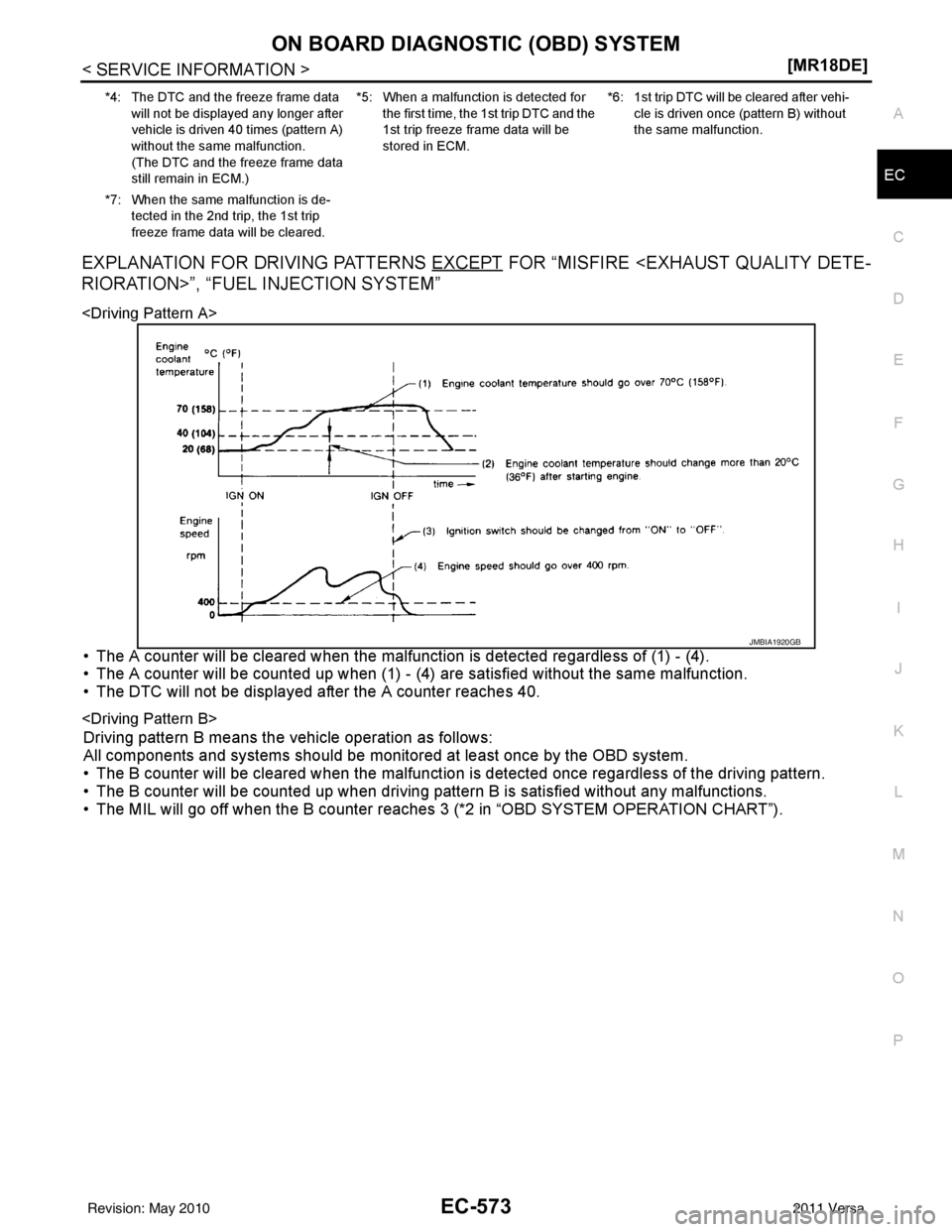

NISSAN LATIO 2011 Service Repair Manual EC-572 < SERVICE INFORMATION >[MR18DE] ON BOARD DIAGNOSTIC (OBD) SYSTEM *1: When the same malfunction is de- tected in two consecutive trips, MIL will illuminate. *2: MIL will turn off after vehicle

Page 1867 of 3787

NISSAN LATIO 2011 Service Repair Manual ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-573 < SERVICE INFORMATION > [MR18DE] C D E F G H I J K L M A EC NP O EXPLANATION FOR DRIVING PATTERNS EXCEPT FOR “MISFIRE <EXHAUST QUALITY DETE- RIORATION>”, “

Page 1868 of 3787

NISSAN LATIO 2011 Service Repair Manual EC-574 < SERVICE INFORMATION >[MR18DE] BASIC SERVICE PROCEDURE BASIC SERVICE PROCEDURE Basic InspectionINFOID:0000000006341722 1.INSPECTION START 1. Check service records for any recent repairs that m

Page 1869 of 3787

NISSAN LATIO 2011 Service Repair Manual BASIC SERVICE PROCEDUREEC-575 < SERVICE INFORMATION > [MR18DE] C D E F G H I J K L M A EC NP O 2. Rev engine (2,000 to 3,000 rpm) two or three times under no load, then run engine at idle speed for ab

Page 1870 of 3787

NISSAN LATIO 2011 Service Repair Manual EC-576 < SERVICE INFORMATION >[MR18DE] BASIC SERVICE PROCEDURE OK or NG OK >> GO TO 10. NG >> GO TO 8. 8.DETECT MALFUNCTIONING PART Check the following. • Check crankshaft position sensor (POS) and

Page 1871 of 3787

NISSAN LATIO 2011 Service Repair Manual BASIC SERVICE PROCEDUREEC-577 < SERVICE INFORMATION > [MR18DE] C D E F G H I J K L M A EC NP O Yes >> GO TO 14. No >> 1. Follow the instruction of Idle Air Volume Learning. 2. GO TO 4. 14.CHECK TARGET

Page 1872 of 3787

NISSAN LATIO 2011 Service Repair Manual EC-578 < SERVICE INFORMATION >[MR18DE] BASIC SERVICE PROCEDURE 1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but this is a rare case.) 2. Perform in
