Page 249 of 3787
AT-232
< SERVICE INFORMATION >
AIR BREATHER HOSE
AIR BREATHER HOSE
Removal and InstallationINFOID:0000000005928283
COMPONENTS
REMOVAL
1. Remove air duct (front), air duct (inlet) and air cleaner case. Refer to EM-135.
2. Remove air breather hose.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Make sure air breather hose is not collapsed or bl ocked due to folding or bending when installed.
NOTE:
• Install the air breather hose (1) to the air breather tube (2) so that
the paint mark (A) faces upward. Also make sure the air breather
hose end laps with air breather tube 17 mm (0.67 in) or more.
• When installing air breather hose (1) to air duct and air cleaner
case, make sure to fully insert the hose clips.
1. Air cleaner case 2. Air duct (inlet) 3. Air breather hose
4. Clip 5. Air breather tube 6. A/T
WCIA0642E
WCIA0641E
Revision: May 2010 2011 Versa
Page 250 of 3787
TRANSAXLE ASSEMBLYAT-233
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
TRANSAXLE ASSEMBLY
Removal and InstallationINFOID:0000000005928284

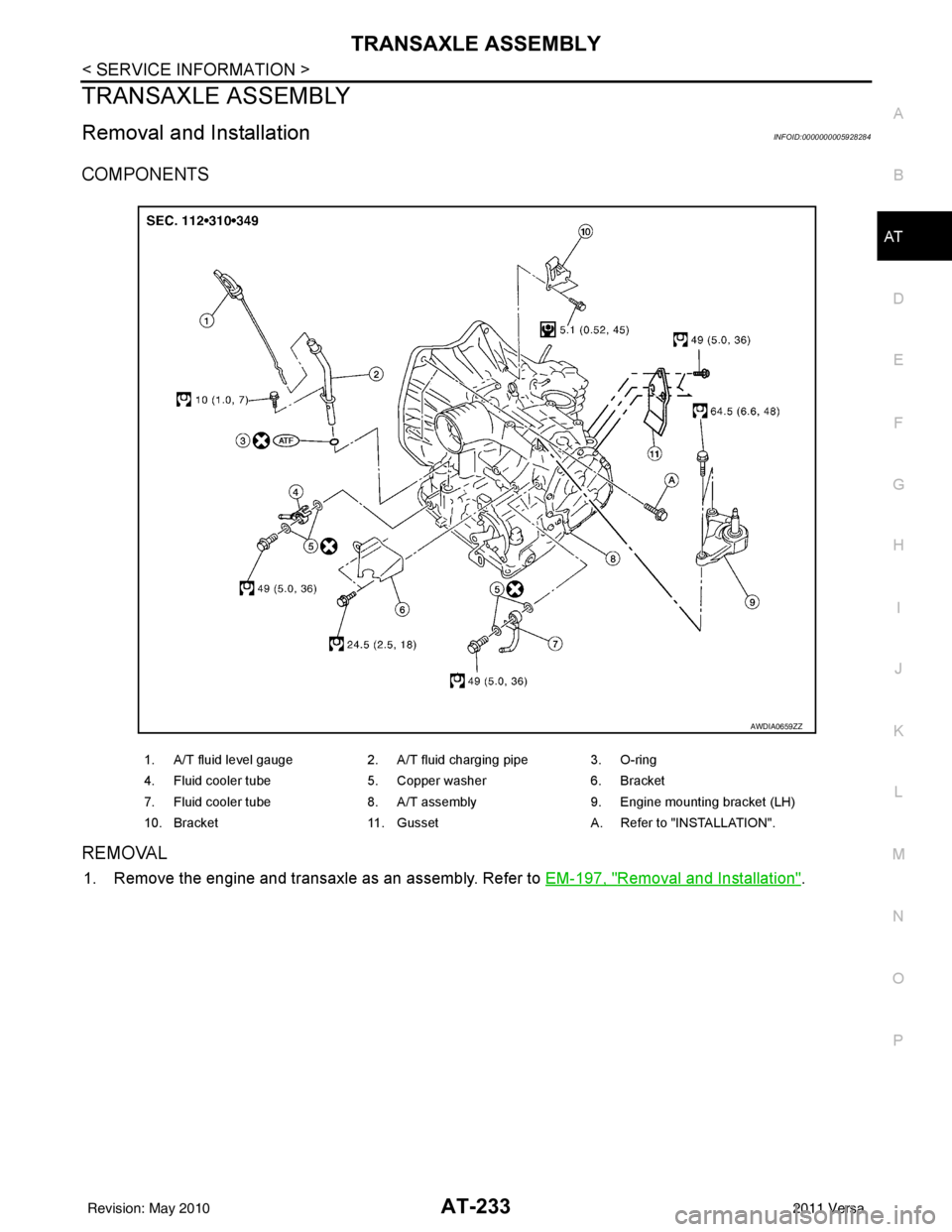

COMPONENTS
REMOVAL
1. Remove the engine and transaxle as an assembly. Refer to EM-197, "Removal and Installation".
1. A/T fluid level gauge2. A/T fluid charging pipe 3. O-ring
4. Fluid cooler tube 5. Copper washer 6. Bracket
7. Fluid cooler tube 8. A/T assembly9. Engine mounting bracket (LH)
10. Bracket 11. Gusset A. Refer to "INSTALLATION".
AWDIA0659ZZ
Revision: May 2010 2011 Versa
Page 251 of 3787

AT-234
< SERVICE INFORMATION >
TRANSAXLE ASSEMBLY
2. Disconnect the following connectors and remove the wire har-ness.
• Input speed sensor harness connector (1)
• Terminal cord assembly harness connector (2)
• Transmission range switch connector (3)
• output speed sensor harness connector (4)
3. Remove the four drive plate to torque converter bolts. NOTE:
Rotate the crankshaft clockwise as viewed from front of engine
for access to drive plate to torque converter bolts.
4. Put matching marks on the drive plate and torque converter. CAUTION:
For matching marks, use paint. Never dama ge the drive plate or torque converter.
5. Remove the transaxle to engine and engine to transaxle bolts.
6. Separate the transaxle from the engine. CAUTION:
Secure torque converter to prevent it from dropping.
7. If necessary, remove the following from the transaxle: • output speed sensor
• Input speed sensor
• Fluid cooler tubes (1) and copper washers
• A/T fluid level gauge (2) and charging pipe (3)
• Transmission range switch
• Air breather hose
• Engine mounting bracket (LH)
• Any necessary brackets
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
WCIA0647E
WCIA0616E
WCIA0648E
Revision: May 2010 2011 Versa
Page 252 of 3787

TRANSAXLE ASSEMBLYAT-235
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
• When replacing an engine or transmission you must make sure any dowels are installed correctly during re-assembly.
• Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of drive
train components.
• Do not reuse O-rings and copper washers. Refer to "COMPONENTS".
• When turning crankshaft, turn it clockwise as viewed from the front of the engine.
• When tightening the bolts for th e torque converter while securing the crankshaft pulley bolt, be sure
to confirm the tightening torque of the crankshaft pulley bolt. Refer to EM-159
.
• After converter is installed to drive plate, ro tate crankshaft several turns to check that transaxle
rotates freely without binding.
• When installing the torque converter to the transaxle measure dis- tance A.
• Check the fitting of the dowel pins when installing the transaxle assembly and the engine assembly.
: Dowel pin
• When installing the transaxle to the engine, align the matching mark on the drive plate with the matching mark on the torque converter.
• When securing the transaxle to the engine, attach the bolts in accordance with the following standard.
HR16DE engine models
(A): A/T to engine
(B): Engine to A/T
• When installing the transaxle to the engine, align the matching mark on the drive plate with the matching mark on the torque converter.
• When securing the transaxle to the engine, attach the bolts in accordance with the following standard. Dimension A: 14.4 mm (0.567 in) or more
SAT430D
SCIA7698E
Bolt No.
1 2 34
Number of bolts 2 2 13
Bolt length (L) [mm (in)] 40 (1.5 7) 44 (1.73) 69 (2.72) 49 (1.93)
Tightening torque
[N·m (kg-m, ft-lb)] 48 (4.9, 35)
SCIA7096E
Revision: May 2010
2011 Versa
Page 253 of 3787
AT-236
< SERVICE INFORMATION >
TRANSAXLE ASSEMBLY
MR18DE engine models
(A): A/T to engine
(B): Engine to A/T
• Align the positions for the bolts on drive plate with those of the torque converter, and temporarily tighten bolts. Then, tighten bolts
to the specified torque.
• After completing installation, check for A/T fluid leakage, A/T fluid level and A/T positions. Refer to AT-17, "
Checking A/T Fluid" and
AT-217, "
Checking of A/T Position".
Bolt No. 12
Number of bolts 27
Bolt length “L”
[mm (in)] 55 (2.17)
50 (1.97)
Tightening torque
[N·m (kg-m, ft-lb)] 62 (6.3, 46)
SCIA7685E
Converter nuts : 51 N·m (5.2 kg-m, 38 ft-lb)
WCIA0616E
Revision: May 2010
2011 Versa
Page 254 of 3787
OVERHAULAT-237
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
OVERHAUL

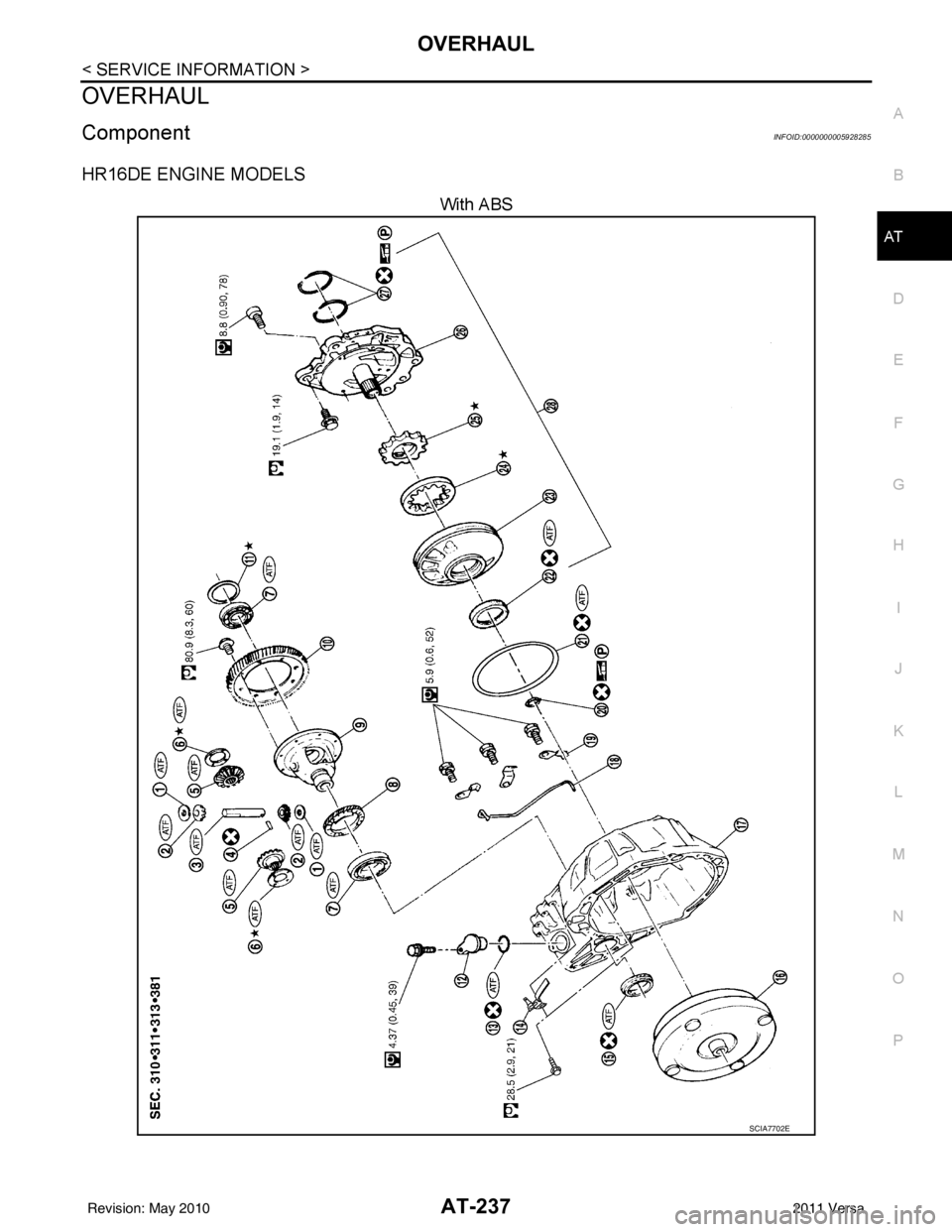

ComponentINFOID:0000000005928285
HR16DE ENGINE MODELS
With ABS
SCIA7702E
Revision: May 2010 2011 Versa
Page 255 of 3787
AT-238
< SERVICE INFORMATION >
OVERHAUL
1. Pinion mate gear thrust washer 2. Pinion mate gear3. Pinion mate shaft
4. Lock pin 5. Side gear 6. Side gear thrust washer
7. Differential side bearing 8. Speedometer drive gear 9. Differential case
10. Final gear 11. Differential side bearing adjusting shim 12. Plug
13. O-ring 14. Bracket 15. RH differential side oil seal
16. Torque converter 17. Converter housing 18. Differential lubricant tube
19. Clip 20. O-ring 21. O-ring
22. Oil pump housing oil seal 23. Oil pump housing 24. Outer gear
25. Inner gear 26. Oil pump cover 27. Seal ring
28. Oil pump assembly
Revision: May 2010 2011 Versa
Page 256 of 3787
OVERHAULAT-239
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

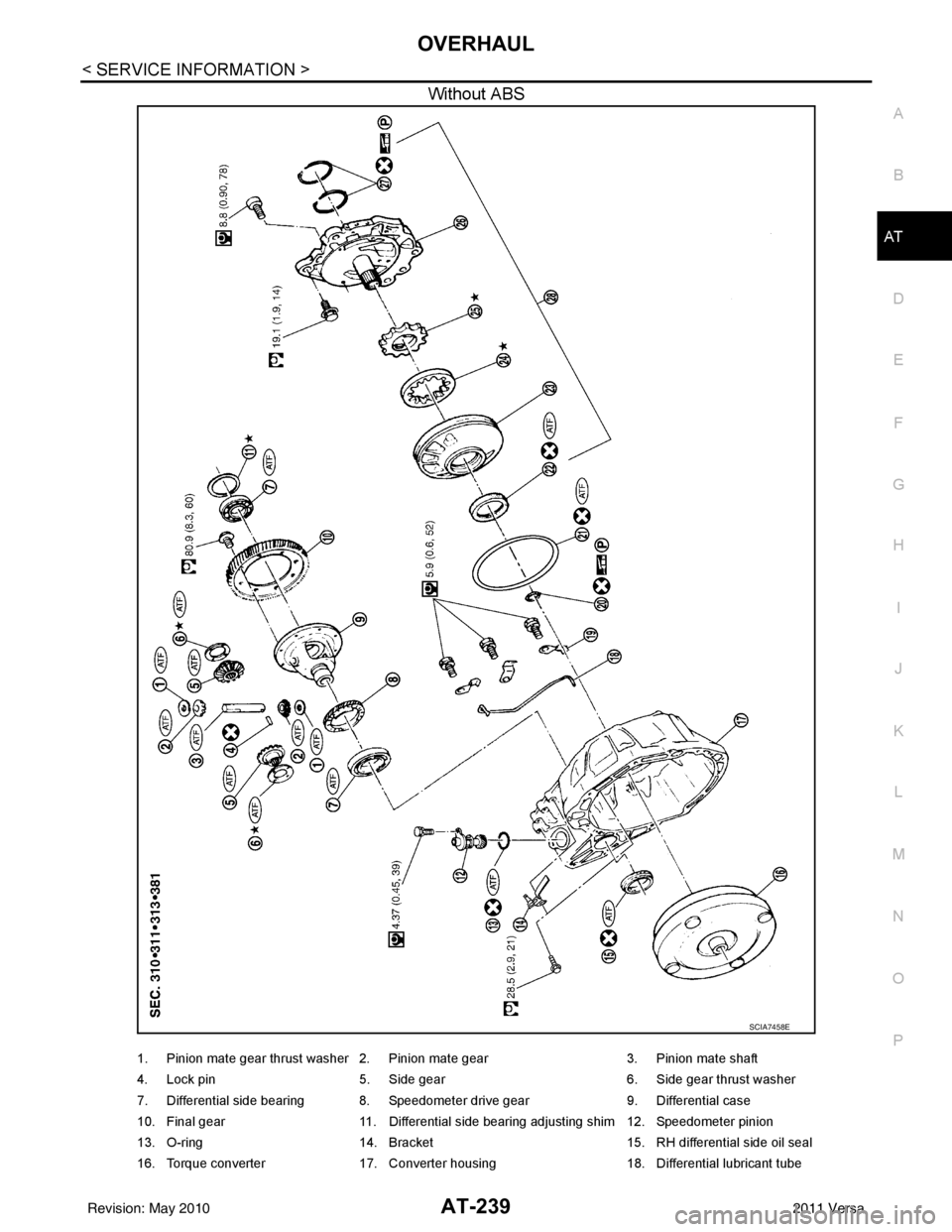

Without ABS
SCIA7458E
1. Pinion mate gear thrust washer 2. Pinion mate gear 3. Pinion mate shaft
4. Lock pin 5. Side gear 6. Side gear thrust washer
7. Differential side bearing 8. Speedometer drive gear 9. Differential case
10. Final gear 11. Differential side bearing adjusting shim 12. Speedometer pinion
13. O-ring 14. Bracket 15. RH differential side oil seal
16. Torque converter 17. Converter housing 18. Differential lubricant tube
Revision: May 2010 2011 Versa
