NISSAN LATIO 2011 Service Repair Manual AV-68
< SERVICE INFORMATION >[AUDIO WITH NAVIGATION]
AUDIO
NOTE:
Noise resulting from variations in field strength, such
as fading noise and multi-path noise, or external noise
from trains and other

AV-68
< SERVICE INFORMATION >[AUDIO WITH NAVIGATION]
AUDIO
NOTE:
Noise resulting from variations in field strength, such
as fading noise and multi-path noise, or external noise
from trains and other sources, is not a malfunction.
• Fading noise: This noise occurs because of variations in the field strength in a narrow range due to moun- tains or buildings blocking the signal.
• Multi-path noise: This noise results from a time di fference between the broadcast waves directly from the
station arriving at the antenna and the waves reflected by mountains or buildings.
MALFUNCTION WITH USB
NOTE:
Check that there is no malfunction of USB equi pment main body before performing a diagnosis.
MALFUNCTION WITH AUXILIARY INPUT
NOTE:
Check that there is no malfunction of AUX equipment main body before performing a diagnosis.
MALFUNCTION WITH STEERING SWITCH
No sound can be heard from rear speakers. • Audio signal circuit between AV control unit and rear speakers. Refer to
AV- 7 2.
• Rear speaker. Refer to AV- 7 3
.
• AV control unit. Refer to AV- 7 3
.
No sound can be heard from radio or noise is heard. • Antenna feeder. Refer to AV- 9 1
.
• Roof antenna. Refer to AV- 9 1
.
• AV control unit. Refer to AV- 7 3
.
Speed dependent volume system does not function. • Vehicle speed signal circuit between combination meter and AV control
unit. Refer to DI-16
.
• AV control unit. Refer to AV- 7 3
.
• Combination meter. Refer to DI-20
.
There is no sound from the iPod
® or Aux jack. •iPod
® sound signal circuit between AV control unit and Auxiliary jack as-
sembly. Refer to AV- 6 9
.
• AV control unit. Refer to AV- 7 3
.
Symptom
Probable malfunction location
SymptomsCheck itemsProbable malfunction location / Action to
take
iPod
® or USB memory can not be
recognized. With iPod
® or USB
memory Connected,
check “USB Device” in
“SERVICE STATUS”,
“SERVICE MENU”. iPod
® or USB memory
name is displayed for
“USB Device”. • USB interface and AUX jack harness
• USB interface and AUX jack. Refer to
AV- 9 0
.
• AV control unit. Refer to AV- 7 3
.
“Removed” is displayed
for “USB Device”. • USB interface and AUX jack harness
• USB interface and AUX jack. Refer to
AV- 9 0
.
—— Generation of iPod
® not supported
SymptomsCheck items Probable malfunction location
No voice sound is heard when
AUX mode is selected. Voice sound is heard when other modes
are selected. • USB interface and AUX jack harness
• USB interface and AUX jack. Refer to
AV- 9 0
.
Symptoms Possible malfunction location / Action to take
All steering switches are not operated.
Steering switch. Refer to AV- 6 9
.
Only specified switch cannot be operated.
“SEEK UP”, “VOL UP” and “SOURCE” switches are not
operated.
“SOURCE”, “SEEK DOWN” and “VOL DOWN” switches
are not operated.
Revision: May 2010
2011 Versa

Page 466 of 3787

NISSAN LATIO 2011 Service Repair Manual AUDIOAV-69
< SERVICE INFORMATION > [AUDIO WITH NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
AV Control Unit Power and Groun d Supply Circuit InspectionINFOID:0000000006216709
1.CHECK FUSE
Check that t

Page 467 of 3787

NISSAN LATIO 2011 Service Repair Manual AV-70
< SERVICE INFORMATION >[AUDIO WITH NAVIGATION]
AUDIO
4. Check continuity between audio unit and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
2.SPIRAL CABLE CHECK
1. Disconnect combinati

Page 468 of 3787

NISSAN LATIO 2011 Service Repair Manual AUDIOAV-71
< SERVICE INFORMATION > [AUDIO WITH NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
1. Disconnect AV control unit connector and front door speaker and front tweeter connector (LH or RH).
2. C

Page 469 of 3787

NISSAN LATIO 2011 Service Repair Manual AV-72
< SERVICE INFORMATION >[AUDIO WITH NAVIGATION]
AUDIO
4. Check the signal between AV control unit connector terminals
with CONSULT-III or oscilloscope.
OK or NG
OK >> Replace front speaker. Refer

Page 470 of 3787

NISSAN LATIO 2011 Service Repair Manual AUDIOAV-73
< SERVICE INFORMATION > [AUDIO WITH NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
1. Connect AV control unit connector and rear speaker connector.
2. Turn ignition switch to ACC.
3. Push “

Page 471 of 3787

NISSAN LATIO 2011 Service Repair Manual AV-74
< SERVICE INFORMATION >[AUDIO WITH NAVIGATION]
AUDIO

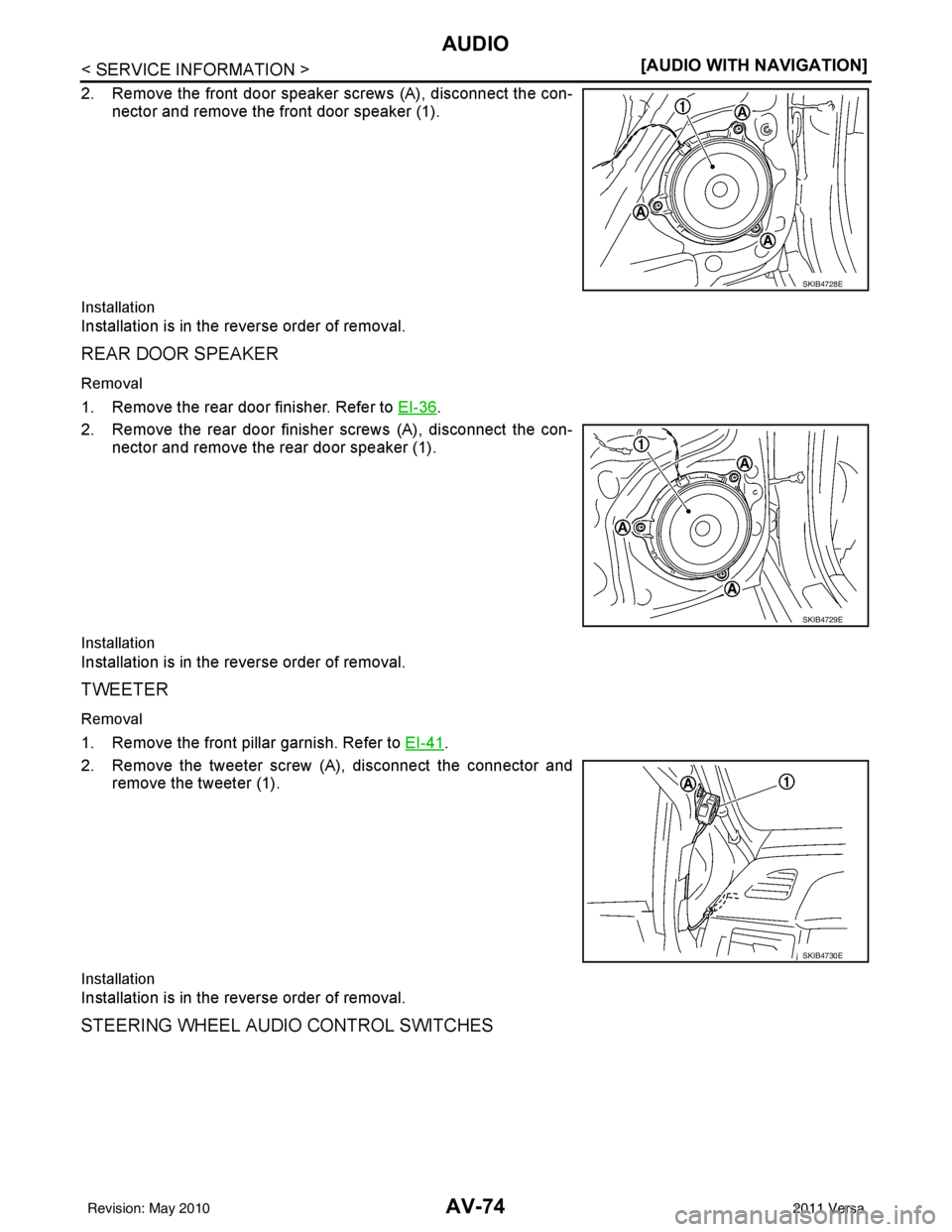

2. Remove the front door speaker screws (A), disconnect the con-
nector and remove the front door speaker (1).
Installation
Installation is i

Page 472 of 3787

NISSAN LATIO 2011 Service Repair Manual AUDIOAV-75
< SERVICE INFORMATION > [AUDIO WITH NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P

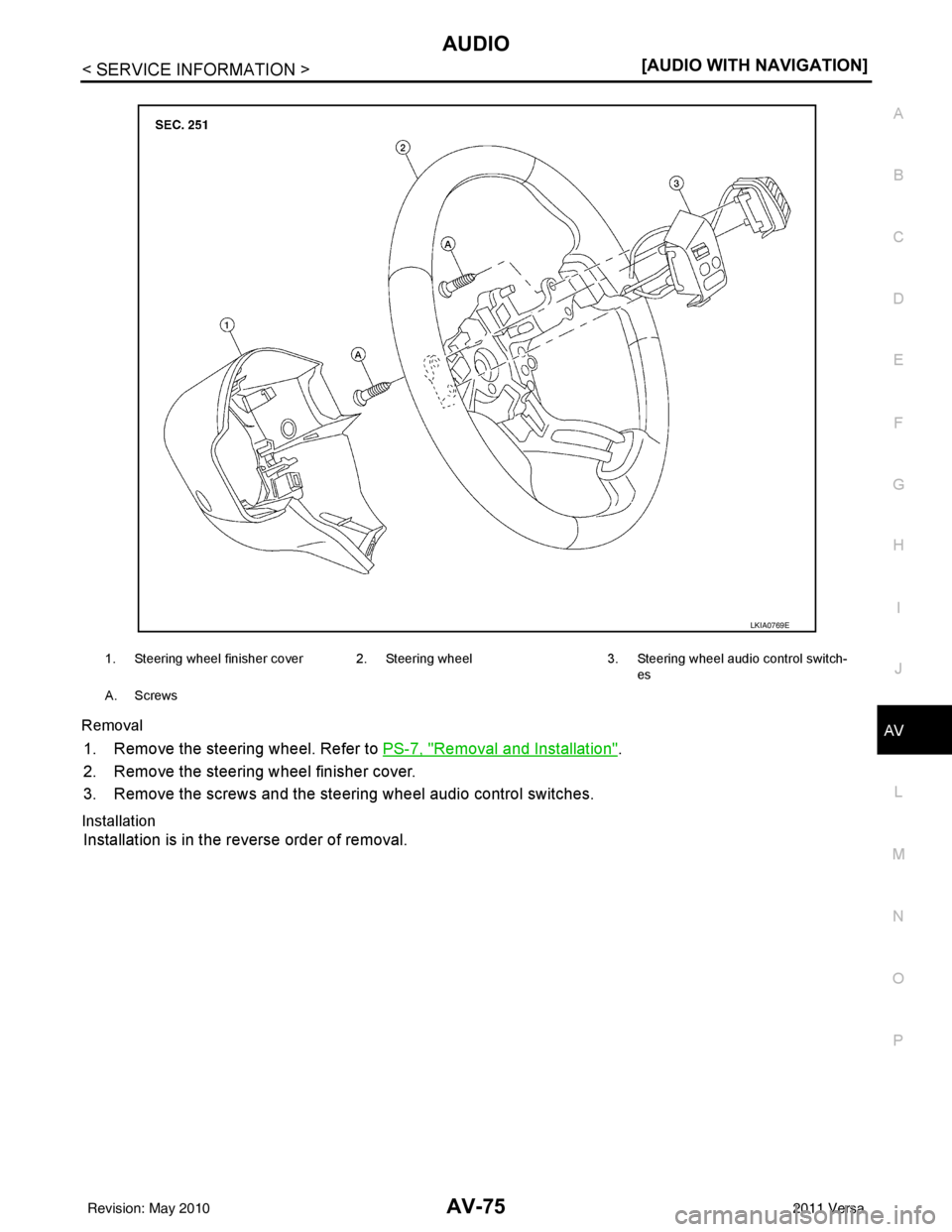

Removal
1. Remove the steering wheel. Refer to
PS-7, "Removal and Installation".
2. Remove the steering whe
