DTC U1001 CAN COMMUNICATION LINEEC-643
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC U1001 CAN COMMUNICATION LINE
DescriptionINFOID:0000000006341761
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each
control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
On Board Diagnosis LogicINFOID:0000000006341762
The MIL will not light up for this self-diagnosis.
DTC Confirmation ProcedureINFOID:0000000006341763
1. Turn ignition switch ON and wait at least 3 seconds.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-644, "
Diagnosis Procedure".
DTC No.Trouble diagnosis
name DTC detecting condition
Possible cause
U1001
1001 CAN communication
line When ECM is not transmitting or receiving CAN
communication signal other than OBD (emission-
related diagnosis) for 2 seconds or more. • Harness or connectors
(CAN communication line is open or
shorted.)
Revision: May 2010 2011 Versa
Page 1938 of 3787
EC-644
< SERVICE INFORMATION >[MR18DE]
DTC U1001 CAN COMMUNICATION LINE
Wiring Diagram
INFOID:0000000006341764
Diagnosis ProcedureINFOID:0000000006341765
Go to LAN-26, "CAN System Specification Chart".
BBWA2626E
Revision: May 2010 2011 Versa
Page 1939 of 3787
DTC P0011 IVT CONTROLEC-645
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0011 IVT CONTROL
DescriptionINFOID:0000000006341766
SYSTEM DESCRIPTION
*: This signal is sent to the ECM through CAN communication line.
This mechanism hydraulically controls cam phases c
ontinuously with the fixed operating angle of the intake
valve. The ECM receives signals such as cranks haft position, camshaft position, engine speed, and engine
coolant temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing control sole-
noid valve depending on driving status. This makes it po ssible to control the shut/open timing of the intake
valve to increase engine torque in low/mid speed range and output in high-speed range.
CONSULT-III Reference Val ue in Data Monitor ModeINFOID:0000000006341767
Specification data are reference values.
Sensor Input signal to ECMECM functionActuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed and piston position
Intake valve
timing controlIntake valve timing control
solenoid valve
Engine coolant temperature sensor
Engine coolant temperature
ABS actuator and electric unit (control unit)
Vehicle speed*
Combination meter
PBIB3333E
Monitor item Condition Specification
INT/V TIM (B1) • Engine: After warming up
• Air conditioner switch: OFF
• Shift lever: P or N (A/T, CVT),
Neutral (M/T)
•No load Idle
−5 ° - 5 °CA
When revving engine up to 2,000 rpm
quickly Approx. 0
° - 40 °CA
INT/V SOL (B1) • Engine: After warming up
• Air conditioner switch: OFF
• Shift lever: P or N (A/T, CVT),
Neutral (M/T)
•No load Idle
0% - 2%
When revving engine up to 2,000 rpm
quickly Approx. 0% - 90%
Revision: May 2010
2011 Versa
Page 1940 of 3787
EC-646
< SERVICE INFORMATION >[MR18DE]
DTC P0011 IVT CONTROL
On Board Diagn osis Logic
INFOID:0000000006341768
FA I L - S A F E M O D E
ECM enters in fail-safe mode when the malfunction is detected.
DTC Confirmation ProcedureINFOID:0000000006341769
CAUTION:
Always drive at a safe speed.
NOTE:
•If DTC P0011 is displayed with DTC P0075, first perform trouble diagnosis for DTC P0075.
See EC-659
.
• If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confi rm that battery voltage is between 10 V and 16 V at
idle.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.
2. Start engine and warm it up to the normal operating temperature.
3. Maintain the following conditions for at least 6 consecutive seconds. Hold the accelerator pedal as steady as possible.
4. Let engine idle for 10 seconds.
5. If 1st trip DTC is detected, go to EC-647, "
Diagnosis Procedure".
If 1st trip DTC is not detected, go to next step.
6. Maintain the following conditions for at least 10 consecutive seconds.
7. If 1st trip DTC is detected, go to EC-647, "
Diagnosis Procedure".
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0011
0011 Intake valve timing control
performance There is a gap between angle of target and
phase-control angle degree. • Crankshaft position sensor (POS)
• Camshaft position
sensor (PHASE)
• Intake valve timing control solenoid valve
• Accumulation of debris to the signal pick-up portion of the camshaft
• Timing chain installation
• Foreign matter caught in the oil groove for in- take valve timing control
Detected items Engine operating condition in fail-safe mode
Intake valve timing control The signal is not energized to the solenoid valve and the valve control does not function
ENG SPEED1,200 - 2,000 rpm (A constant rotati on is maintained.)
COOLAN TEMP/S More than 60 °C (140 °F)
B/FUEL SCHDL More than 3.87 msec
Shift lever P or N position (A/T, CVT)
Neutral position (M/T)
ENG SPEED 1,200 - 3,175 rpm (A constant rotation is maintained.)
COOLAN TEMP/S More than 65 °C (149 °F)
Shift lever 1st or 2nd position
Driving location Driving vehicle uphill
(Increased engine load will help maintain the driving
conditions required for this test.)
Revision: May 2010
2011 Versa
Page 1941 of 3787
DTC P0011 IVT CONTROLEC-647
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
WITH GST
Follow the procedure “WITH CONSULT-III” above.
Diagnosis ProcedureINFOID:0000000006341770
1.CHECK OIL PRESSURE WARNING LAMP
1. Start engine.
2. Check oil pressure warning lamp and confirm it is not illumi- nated.
OK or NG
OK >> GO TO 2.
NG >> Go to MA-30, "
ENGINE OIL : Inspection".
2.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EC-648, "
Component Inspection".
OK or NG
OK >> GO TO 3.
NG >> Replace intake valve timing control solenoid valve.
3.CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-798, "
Component Inspection".
OK or NG
OK >> GO TO 4.
NG >> Replace crankshaft position sensor (POS).
4.CHECK CAMSHAFT POSITI ON SENSOR (PHASE)
Refer to EC-803, "
Component Inspection".
OK or NG
OK >> GO TO 5.
NG >> Replace camshaft position sensor (PHASE).
5.CHECK CAMSHAFT (INTAKE)
Check the following.
• Accumulation of debris to the signal plate of camshaft (1) rear end
• Chipping signal plate of camshaft rear end
OK or NG
OK >> GO TO 6.
NG >> Remove debris and clean the signal plate of camshaft rear end or replace camshaft.
6.CHECK TIMING CHAIN INSTALLATION
Check service records for any recent repairs that may cause timing chain misaligned.
Are there any service records that may cause timing chain misaligned?
Ye s o r N o
Yes >> Check timing chain installation. Refer to EM-160, "Removal and Installation".
No >> GO TO 7.
7.CHECK LUBRICATION CIRCUIT
PBIA8559J
PBIA9557J
Revision: May 2010 2011 Versa
Page 1942 of 3787
EC-648
< SERVICE INFORMATION >[MR18DE]
DTC P0011 IVT CONTROL
Refer to
EM-170, "Removal and Installation".
OK or NG
OK >> GO TO 8.
NG >> Clean lubrication line.
8.CHECK INTERMITTENT INCIDENT
Refer to EC-632
.
For Wiring Diagram, refer to EC-794, "
Wiring Diagram" for CKP sensor (POS) and EC-800, "Wiring Diagram"
for CMP sensor (PHASE).
>>INSPECTION END
Component InspectionINFOID:0000000006341771
INTAKE VALVE TIMING CONTROL SOLENOID VALVE
1. Disconnect intake valve timing control solenoid valve harness connector.
2. Check resistance between intake valve timing control solenoid
valve as follows.
If NG, replace intake valve timing control solenoid valve.
If OK, go to next step.
3. Remove intake valve timing control solenoid valve.
4. Provide 12 V DC between intake valve timing control solenoid valve terminals and then interrupt it. Make sure that the plunger
moves as shown in the figure.
CAUTION:
Do not apply 12 V DC continuously for 5 seconds or more.
Doing so may result in damage to the coil in intake valve
timing control solenoid valve.
If NG, replace intake valve timing control solenoid valve.
NOTE:
Always replace O-ring when intake valve timing control
solenoid valve is removed.
Removal and InstallationINFOID:0000000006341772
INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EM-170, "Removal and Installation".
Terminal Resistance
1 and 2 6.7 - 7.7 Ω [at 20°C (68 °F)]
1 or 2 and ground ∞
Ω
(Continuity should not exist.)
PBIB0574E
PBIB2388E
Revision: May 2010 2011 Versa
Page 1943 of 3787
DTC P0031, P0032 A/F SENSOR 1 HEATEREC-649
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0031, P0032 A/F SENSOR 1 HEATER
DescriptionINFOID:0000000006341773
SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the A/F
sensor 1 heater corresponding to the engine operating
condition to keep the temperature of A/F sensor 1 element at the specified range.
CONSULT-III Reference Val ue in Data Monitor ModeINFOID:0000000006341774
Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000006341775
DTC Confirmation ProcedureINFOID:0000000006341776
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following pr ocedure, confirm that battery voltage is between 10.5 V and 16 V at
idle.
1. Start engine and run it for at least 10 seconds at idle speed.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-651, "
Diagnosis Procedure".
SensorInput Signal to ECM ECM
function Actuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS) Engine speed
Air fuel ratio (A/F) sensor 1
heater control Air fuel ratio (A/F) sensor 1 heat-
er
Mass air flow sensor Amount of intake air
Monitor item ConditionSpecification
A/F S1 HTR (B1) • Engine: After warming up, idle the engine
(More than 140 seconds after starting engine.) 4 - 100%
DTC No.Trouble diagnosis
name DTC detecting condition
Possible cause
P0031
0031 Air fuel ratio (A/F)
sensor 1 heater
control circuit low The current amperage in
the air fuel ratio (A/F)
sensor 1 heater circuit is out of the normal range.
[An excessively low voltage signal is sent to ECM
through the air fuel ratio (A/F) sensor 1 heater.] • Harness or connectors
[Air fuel ratio (A/F) sensor 1 heater circuit is
open or shorted.]
• Air fuel ratio (A/F) sensor 1 heater
P0032
0032 Air fuel ratio (A/F)
sensor 1 heater
control circuit high The current amperage in
the air fuel ratio (A/F)
sensor 1 heater circuit is out of the normal range.
[An excessively high voltage signal is sent to ECM
through the air fuel ratio (A/F) sensor 1 heater.] • Harness or connectors
[Air fuel ratio (A/F) sensor 1 heater circuit is
shorted.]
• Air fuel ratio (A/F) sensor 1 heater
Revision: May 2010 2011 Versa
Page 1944 of 3787
EC-650
< SERVICE INFORMATION >[MR18DE]
DTC P0031, P0032
A/F SENSOR 1 HEATER

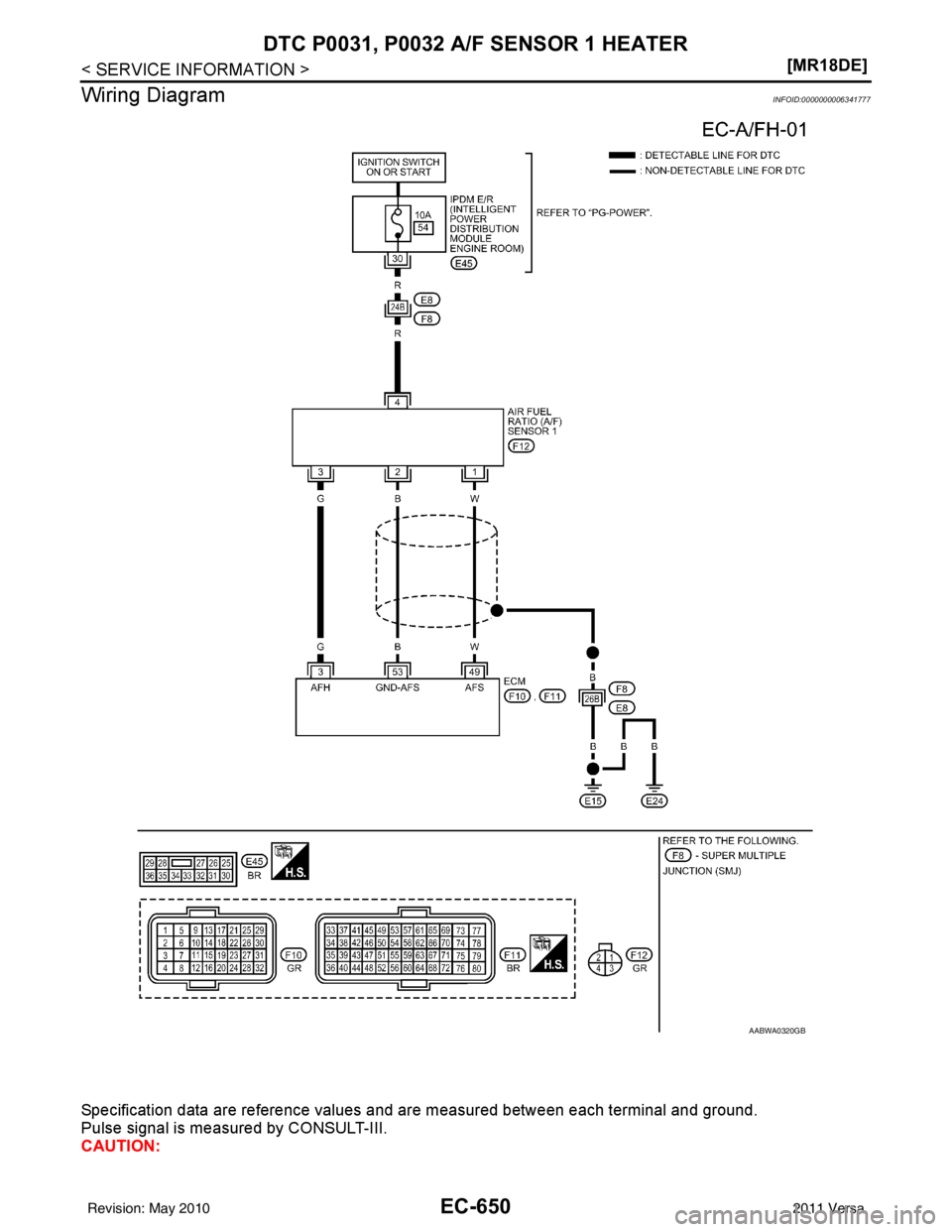

Wiring Diagram
INFOID:0000000006341777
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
AABWA0320GB
Revision: May 2010 2011 Versa
