NISSAN LATIO 2011 Service Repair Manual CAMSHAFTEM-59
< ON-VEHICLE REPAIR > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
CAMSHAFT
Exploded ViewINFOID:0000000005930954
Removal and InstallationINFOID:0000000005930955
CAUTION:
The rotation directi

Page 2450 of 3787

NISSAN LATIO 2011 Service Repair Manual EM-60
< ON-VEHICLE REPAIR >[HR16DE]
CAMSHAFT
3. Remove camshaft sprocket (EXH) bolt and camshaft sprocket
(EXH) (1).
CAUTION:
• Hold the camshaft hexagonal part (A), and then secure the
camshaft.
�

Page 2451 of 3787

NISSAN LATIO 2011 Service Repair Manual CAMSHAFTEM-61
< ON-VEHICLE REPAIR > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

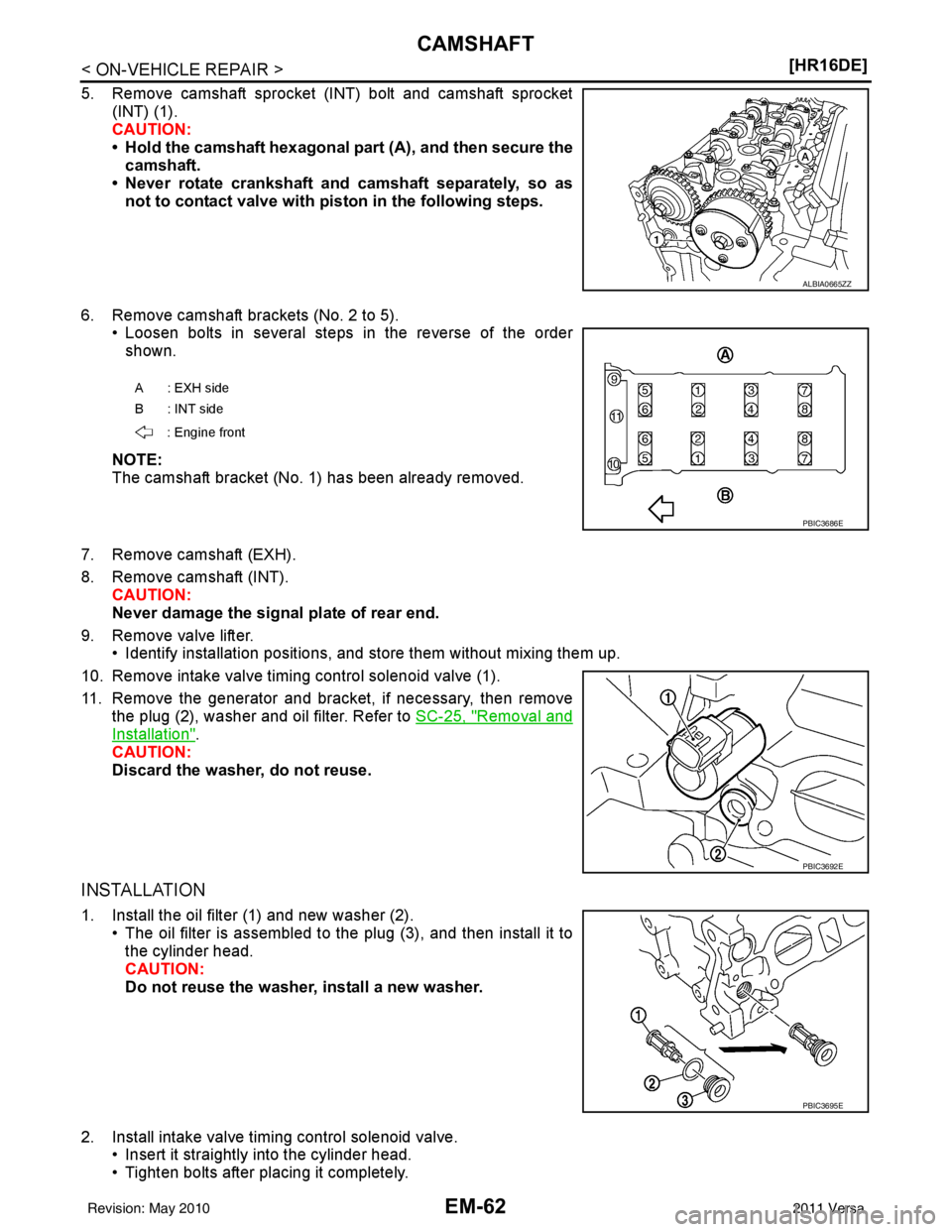

• Attach the rubber nozzle narrowed to the top of the air gun to
prevent air leakage from the oil hole. Securely apply th

CAMSHAFTEM-61
< ON-VEHICLE REPAIR > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
• Attach the rubber nozzle narrowed to the top of the air gun to
prevent air leakage from the oil hole. Securely apply the air
pressure to the oil hole (A).
CAUTION:
• There are other oil holes in the side grooves. Never use the incorrect oil holes.
• Be sure not to damage the oil path with the tip of the air
gun.
• Wipe all the oil off the air gun to prevent oil from being
blown all over along with the air, and the area around the
air gun should be wiped wi th a rag when applying air
pressure. Eye protection should be worn as needed.
NOTE:
The air pressure is used to move the lock pin into the disengage position.
c. Hold the camshaft sprocket (INT) with hands, and then apply the power counterclockwise/clockwise alter-
natively.
• Finally rotate the sprocket of the camshaft sprocket (INT) counterclockwise [the direction shown by the
arrow ( )].
• Perform the work while applying the air pressure to the oil hole.
• If the lock pin is not released by hands, tap the camshaft sprocket (INT) (1) lightly with a plastic hammer.
• If the camshaft sprocket (INT) (1) is not rotated counterclock- wise even if the above procedures are performed, check the
air pressure and the oil hole position.
d. While doing the above, once you hear a click (the sound of the internal lock pin disengaging) from inside the camshaft sprocket
(INT), start turning the camshaft sprocket (INT) in the counter-
clockwise direction in the most advanced angle position.
• Keep the air pressure on.
• If there is no click, as soon as the vane-side (camshaft side)starts moving independently of the sprocket, the lock pin has
become disengaged.
• Make sure that it is in the most advanced angle position by seeing if the stopper pin groove (A) and the stopper pin hole (B) are matched up as shown.
e. Complete the applying procedure of air pressu re and the holding procedure of camshaft (INT).
f. Insert the stopper pin (A) into the stopper pin holes in the cam- shaft sprocket (INT) (1) and lock in the most advanced angle
position.
CAUTION:
No load is exerted on the stop per pin (spring reaction, etc.).
Since it comes out easily, secure it with tape (B) to prevent
it from coming out.
NOTE:
The stopper pin shows one example of a hexagonal wrench for
2.5 mm (0.098 in) [length of inserted section: approximately 15
mm (0.59 in)].
ALBIA0662ZZ
ALBIA0663ZZ
C : Most retarded angle (lock pin engaged)
D : Most advanced angle
PBIC3684E
ALBIA0664ZZ
Revision: May 2010 2011 Versa

Page 2452 of 3787

NISSAN LATIO 2011 Service Repair Manual EM-62
< ON-VEHICLE REPAIR >[HR16DE]
CAMSHAFT

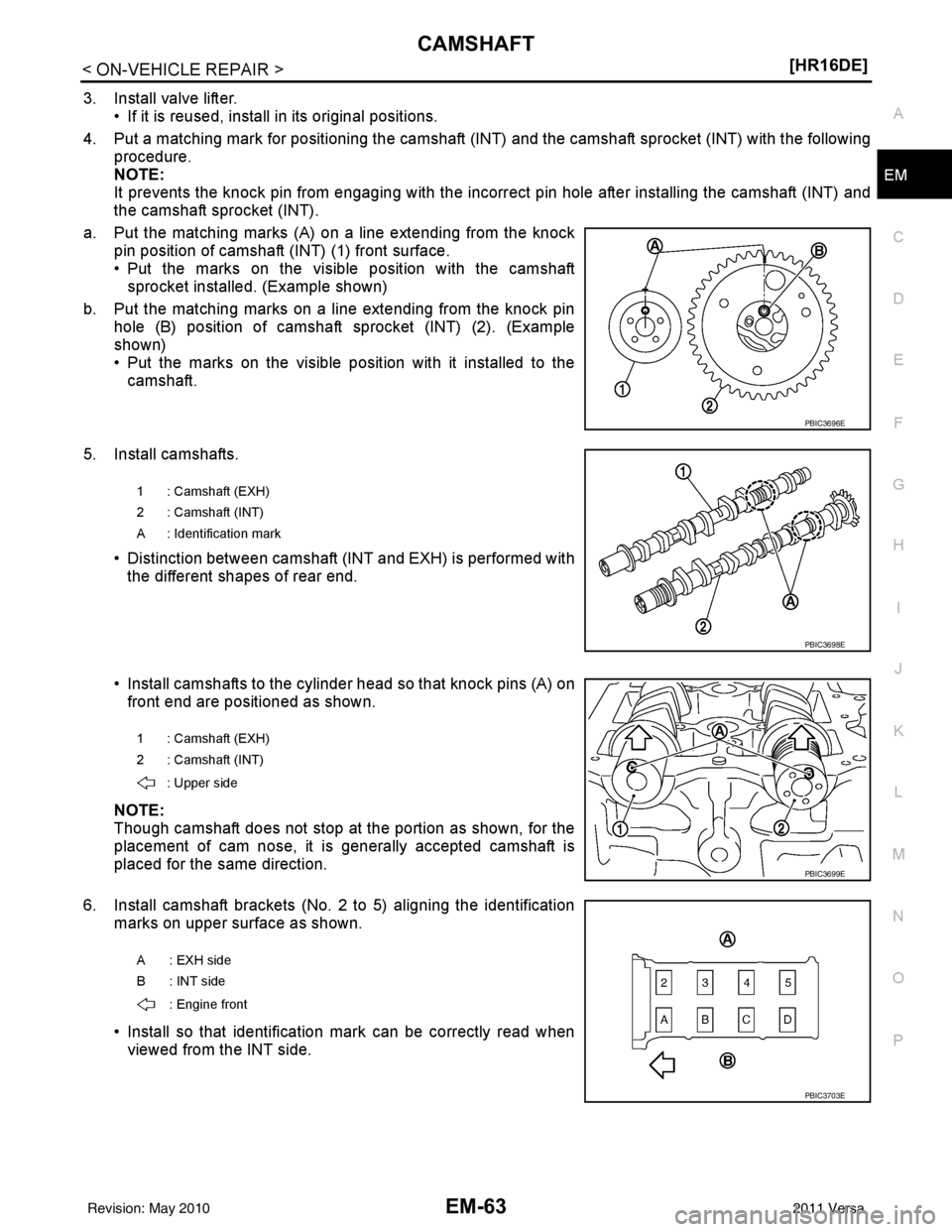

5. Remove camshaft sprocket (INT) bolt and camshaft sprocket
(INT) (1).
CAUTION:
• Hold the camshaft hexagonal part (A), and then secure the
camshaft.
�

Page 2453 of 3787

NISSAN LATIO 2011 Service Repair Manual CAMSHAFTEM-63
< ON-VEHICLE REPAIR > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
3. Install valve lifter.
• If it is reused, install in its original positions.
4. Put a matching mark for positioning the

Page 2454 of 3787

NISSAN LATIO 2011 Service Repair Manual EM-64
< ON-VEHICLE REPAIR >[HR16DE]
CAMSHAFT

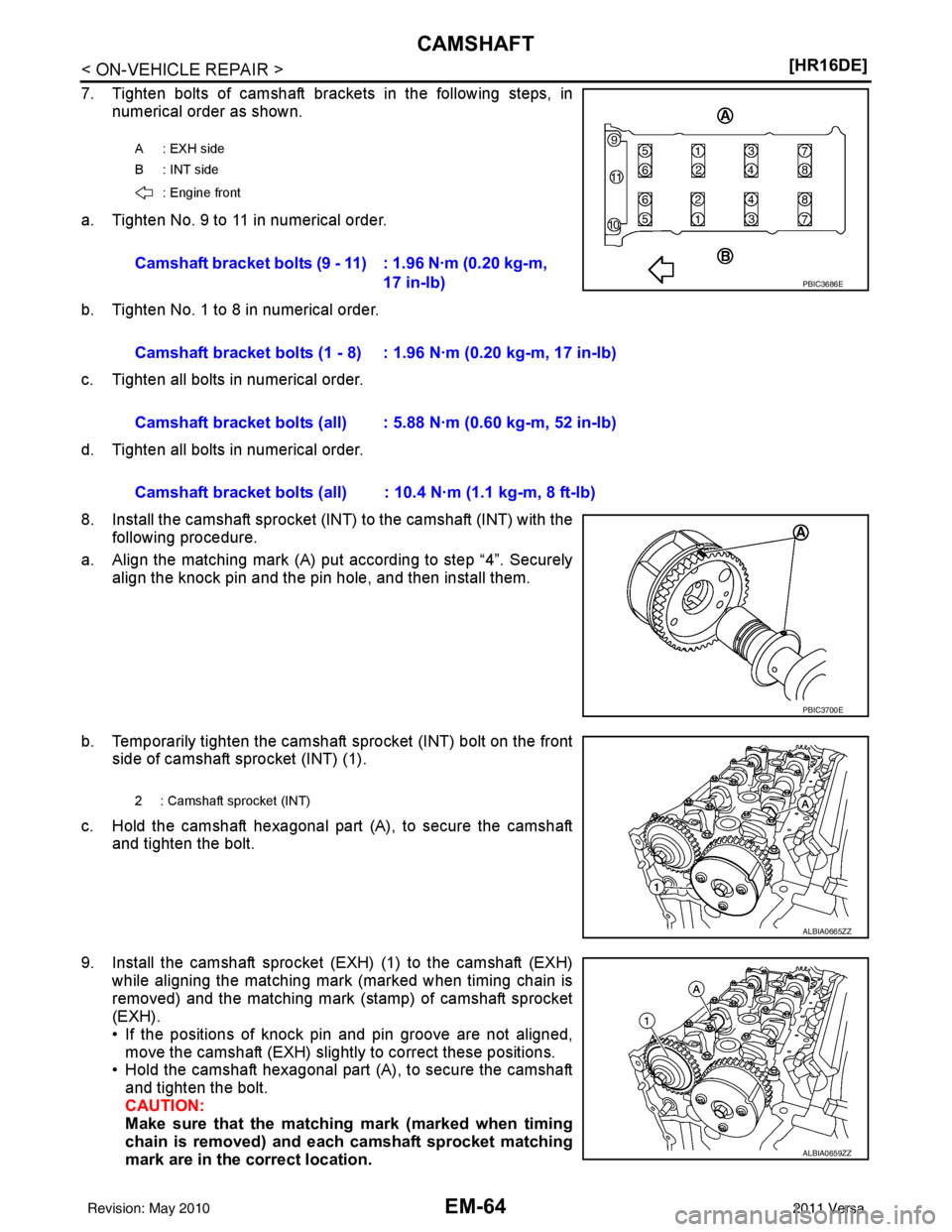

7. Tighten bolts of camshaft brackets in the following steps, in
numerical order as shown.
a. Tighten No. 9 to 11 in numerical order.
b. Tighten No. 1 to 8

Page 2455 of 3787

NISSAN LATIO 2011 Service Repair Manual CAMSHAFTEM-65
< ON-VEHICLE REPAIR > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
10. Install timing chain. Refer to
EM-49, "Removal and Installation".
11. Install the camshaft position sensor (PHASE) to

Page 2456 of 3787

NISSAN LATIO 2011 Service Repair Manual EM-66
< ON-VEHICLE REPAIR >[HR16DE]
CAMSHAFT

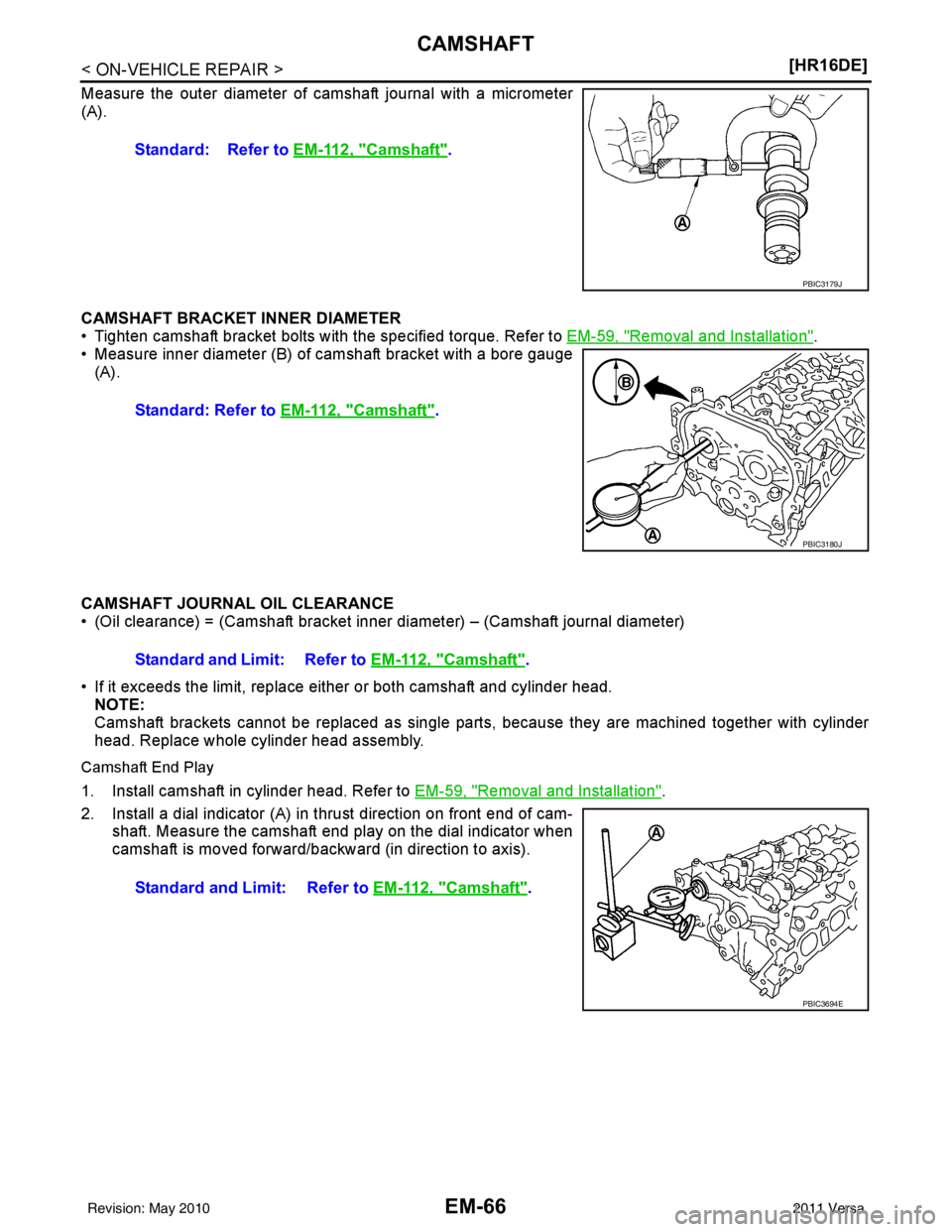

Measure the outer diameter of ca
mshaft journal with a micrometer
(A).
CAMSHAFT BRACKET INNER DIAMETER
• Tighten camshaft bracket bolts with the specifie

Load next 8 pages
