Page 1617 of 3787
P0452 EVAP CONTROL SYSTEM PRESSURE SENSOREC-323
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Is the inspection result normal?
YES >> GO TO 7.
NO >> Repair short to ground or short to power in harness or connectors.
7.CHECK COMPONENTS
Check the following.
• Crankshaft position sensor (POS) (Refer to EC-271, "
Component Inspection".)
• Refrigerant pressure sensor (Refer to EC-461, "
Diagnosis Procedure".)
Is the inspection result normal?
YES >> GO TO 8.
NO >> Replace malfunctioning component.
8.CHECK APP SENSOR
Refer to EC-405, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 10.
NO >> GO TO 9.
9.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly. Refer to ACC-4, "
Removal and Installation".
2. Perform EC-405, "
Special Repair Requirement".
>> INSPECTION END
10.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND
SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between EVAP control syst em pressure sensor harness connector and ECM har-
ness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 12.
NO >> GO TO 11.
11 .DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors B102, M13
• Harness connectors M69, E7
• Harness connectors E8, F8
• Harness for open or short between EVAP c ontrol system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
ECM Sensor
Connector Terminal NameConnector Terminal
F11 74 Refrigerant pressure sensor
E173
75 CKP sensor (POS) F151
76 EVAP control system pressure sensor B104 3
E16 102 APP sensor E125
EVAP control system pressure sensor ECM
Continuity
Connector Terminal Connector Terminal
B104 1F1151Existed
Revision: May 2010 2011 Versa
Page 1618 of 3787
EC-324
< COMPONENT DIAGNOSIS >[HR16DE]
P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
12.CHECK EVAP CONTROL SYSTEM PRESSURE SEN
SOR INPUT SIGNAL CIRCUIT FOR OPEN AND
SHORT
1. Check the continuity between EVAP control system pressure sensor harness connector and ECM har-
ness connector.
2. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 14.
NO >> GO TO 13.
13.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors B102, M13
• Harness connectors M69, E7
• Harness connectors E8, F8
• Harness for open or short between EVAP control system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
14.CHECK EVAP CONTROL SYS TEM PRESSURE SENSOR
Refer to EC-324, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 15.
NO >> Replace EVAP control system pressure sensor. Refer to FL-15, "
Exploded View".
15.CHECK INTERMITTENT INCIDENT
Refer to EC-122, "
Diagnosis Procedure".
>> INSPECTION END
Component InspectionINFOID:0000000006141083
1.CHECK EVAP CONTROL SY STEM PRESSURE SENSOR
1. Turn ignition switch OFF.
2. Remove EVAP control system pressure sensor with its harness connector connected from EVAP canister. Always replace O-ring with a new one.
3. Install a vacuum pump to EVAP control system pressure sensor.
4. Turn ignition switch ON and check output voltage between ECM harness connector and ground under the following conditions.
CAUTION:
• Always calibrate the vacuum pump gauge when using it.
• Do not apply below -93.3 kPa (-0.952 kg/cm
2, -13.53 psi) or pressure over 101.3 kPa (1.033 kg/
cm
2, 14.69 psi).
Is the inspection result normal?
EVAP control system pressure sensor ECM
Continuity
Connector Terminal Connector Terminal
B104 2F1142Existed
ECM Condition
[Applied vacuum kPa
(kg/cm
2, psi) Vo l ta g e
Connector Terminal
F11 42
(EVAP control system
pressure sensor signal) Not applied
1.8 - 4.8 V
-26.7 (-0.272, -3.87) 2.1 to 2.5 V lower
than above value
PBIB3314E
Revision: May 2010 2011 Versa
Page 1619 of 3787
P0452 EVAP CONTROL SYSTEM PRESSURE SENSOREC-325
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
YES >> INSPECTION END
NO >> Replace EVAP control system pressure sensor. Refer to
FL-15, "
Exploded View".
Revision: May 2010 2011 Versa
Page 1620 of 3787
EC-326
< COMPONENT DIAGNOSIS >[HR16DE]
P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
DescriptionINFOID:0000000006141080
The EVAP control system pressure s
ensor detects pressure in the
purge line. The sensor output voltage to the ECM increases as pres-
sure increases.
DTC LogicINFOID:0000000005929990
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Always perform test at a temperature of 5 °C (41 °F) or more.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Select “DATA MONITOR” mode with CONSULT-III.
5. Make sure that “FUEL T/TMP SE” indication is more than 0 °C (32° F).
6. Start engine and wait at least 20 seconds.
7. Check 1st trip DTC.
With GST
1. Start engine and warm it up to normal operating temperature.
PBIB3370E
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P0453 EVAP control system pres-
sure sensor high input An excessively high voltage from the sensor
is sent to ECM. • Harness or connectors
(EVAP control system pressure sensor
circuit is open or shorted.)
[Crankshaft position sensor (POS) circuit
is shorted.]
(Accelerator pedal circuit is shorted.)
(Refrigerant pressure sensor circuit is
shorted.)
• EVAP control system pressure sensor
• Crankshaft position sensor (POS)
• Accelerator pedal position sensor
• Refrigerant pressure sensor
• EVAP canister vent control valve
• EVAP canister
• Rubber hose from EVAP canister vent control valve to vehicle frame
Revision: May 2010 2011 Versa
Page 1621 of 3787
P0453 EVAP CONTROL SYSTEM PRESSURE SENSOREC-327
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
2. Set voltmeter probes to ECM harness connector and ground as
per the following.
3. Make sure that the voltage is less than 4.2 V.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Start engine and wait at least 20 seconds.
6. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-328, "Diagnosis Procedure".
NO >> INSPECTION END
ECM Ground
Connector Terminal
F11 43
(Fuel tank temperature sensor signal) Ground
SEF113U
Revision: May 2010
2011 Versa
Page 1622 of 3787
EC-328
< COMPONENT DIAGNOSIS >[HR16DE]
P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

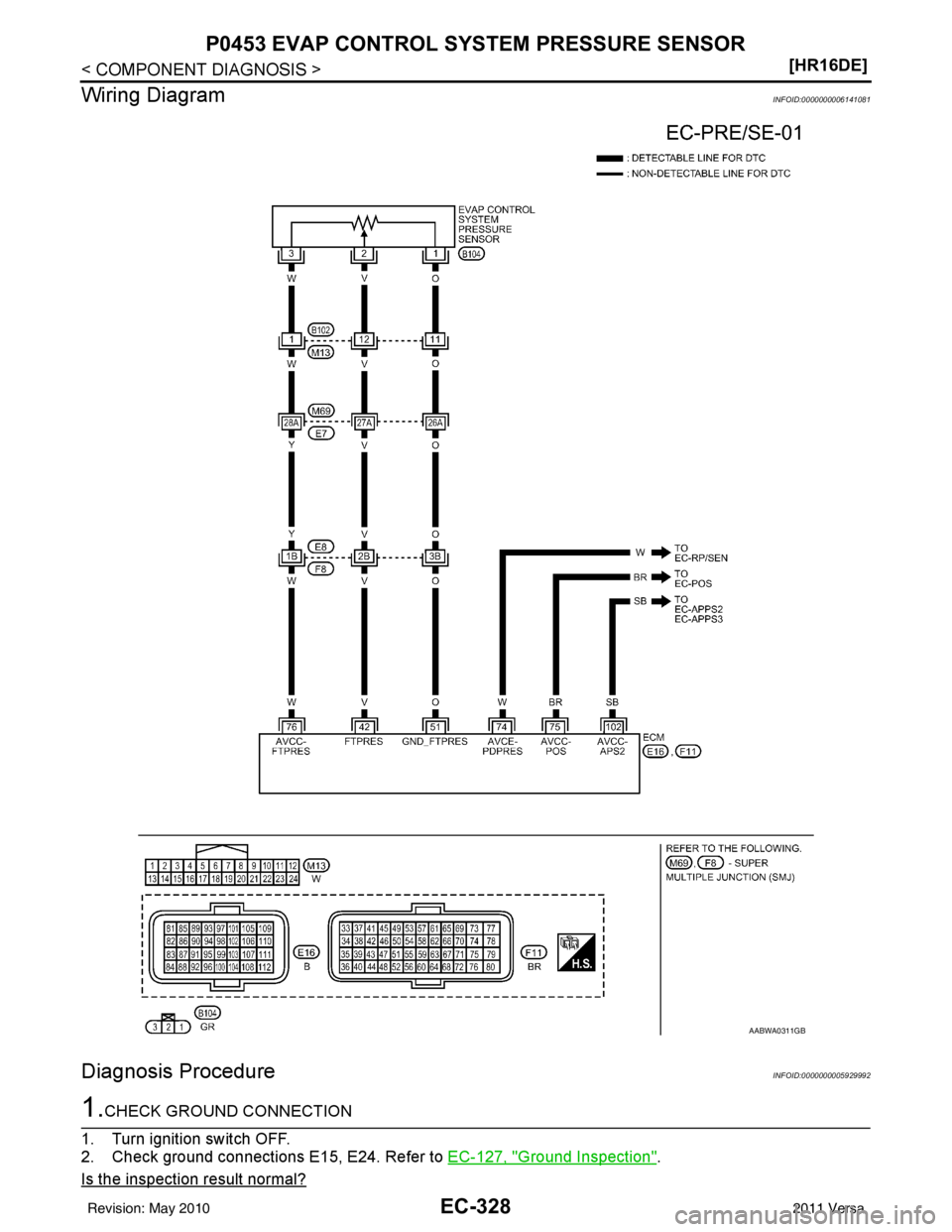

Wiring Diagram
INFOID:0000000006141081
Diagnosis ProcedureINFOID:0000000005929992
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connections E15, E24. Refer to EC-127, "
Ground Inspection".
Is the inspection result normal?
AABWA0311GB
Revision: May 2010 2011 Versa
Page 1623 of 3787
P0453 EVAP CONTROL SYSTEM PRESSURE SENSOREC-329
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK CONNECTOR
1. Disconnect EVAP control system pressure sensor harness connector.
2. Check sensor harness connector for water.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace harness connector.
3.CHECK EVAP CONTROL SYS TEM PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check the voltage between EVAP control system pressure sen- sor harness connector and ground.
Is the inspection result normal?
YES >> GO TO 10.
NO >> GO TO 4.
4.CHECK EVAP CONTROL SYS TEM PRESSURE SENSOR POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between EVAP control syst em pressure sensor harness connector and ECM har-
ness connector.
Is the inspection result normal?
YES >> GO TO 6.
NO >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors B102, M13
• Harness connectors M69, E7
• Harness connectors E8, F8
• Harness for open or short between EVAP c ontrol system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK SENSOR POWER SUPPLY CIRCUIT
Check harness for short to power and short to ground, between the following terminals.
Water should not exist.
EVAP control system pressure sensor
Ground Voltage
Connector Terminal
B104 3Ground Approx. 5 V
PBIB0138E
EVAP control system pressure sensor ECM
Continuity
Connector Terminal Connector Terminal
B104 3F1176Existed
Revision: May 2010 2011 Versa
Page 1624 of 3787
EC-330
< COMPONENT DIAGNOSIS >[HR16DE]
P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
Is the inspection result normal?
YES >> GO TO 7.
NO >> Repair short to ground or short to power in harness or connectors.
7.CHECK COMPONENTS
Check the following.
• Crankshaft position sensor (POS) (Refer to EC-271, "
Component Inspection".)
• Refrigerant pressure sensor (Refer to EC-461, "
Diagnosis Procedure".)
Is the inspection result normal?
YES >> GO TO 8.
NO >> Replace malfunctioning component.
8.CHECK APP SENSOR
Refer to EC-405, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 10.
NO >> GO TO 9.
9.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly. Refer to ACC-4, "
Removal and Installation".
2. Perform EC-405, "
Special Repair Requirement".
>> INSPECTION END
10.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND
SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between EVAP control system pressure sensor harness connector and ECM har-
ness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 12.
NO >> GO TO 11.
11 .DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors B102, M13
• Harness connectors M69, E7
• Harness connectors E8, F8
• Harness for open or short between EVAP control system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
ECM Sensor
Connector Terminal NameConnector Terminal
F11 74 Refrigerant pressure sensor
E173
75 CKP sensor (POS) F151
76 EVAP control system pressure sensor B104 3
E16 102 APP sensor E125
EVAP control system pressure sensor ECM
Continuity
Connector Terminal Connector Terminal
B104 1F1151Existed
Revision: May 2010 2011 Versa
