NISSAN LATIO 2011 Service Repair Manual BR-26 < SERVICE INFORMATION > FRONT DISC BRAKE CLZ25VF CAUTION: • Clean dust on caliper and brake pad with a vacuum dust collector. Do not blow with compressed air. • While removing brake pad or c

Page 874 of 3787

NISSAN LATIO 2011 Service Repair Manual FRONT DISC BRAKEBR-27 < SERVICE INFORMATION > C DE G H I J K L M A B BR N O P 3. Remove sliding pin bolt (lower side). 4. Hang cylinder body with a wire, and remove pad return spring, pads, shims and

Page 875 of 3787

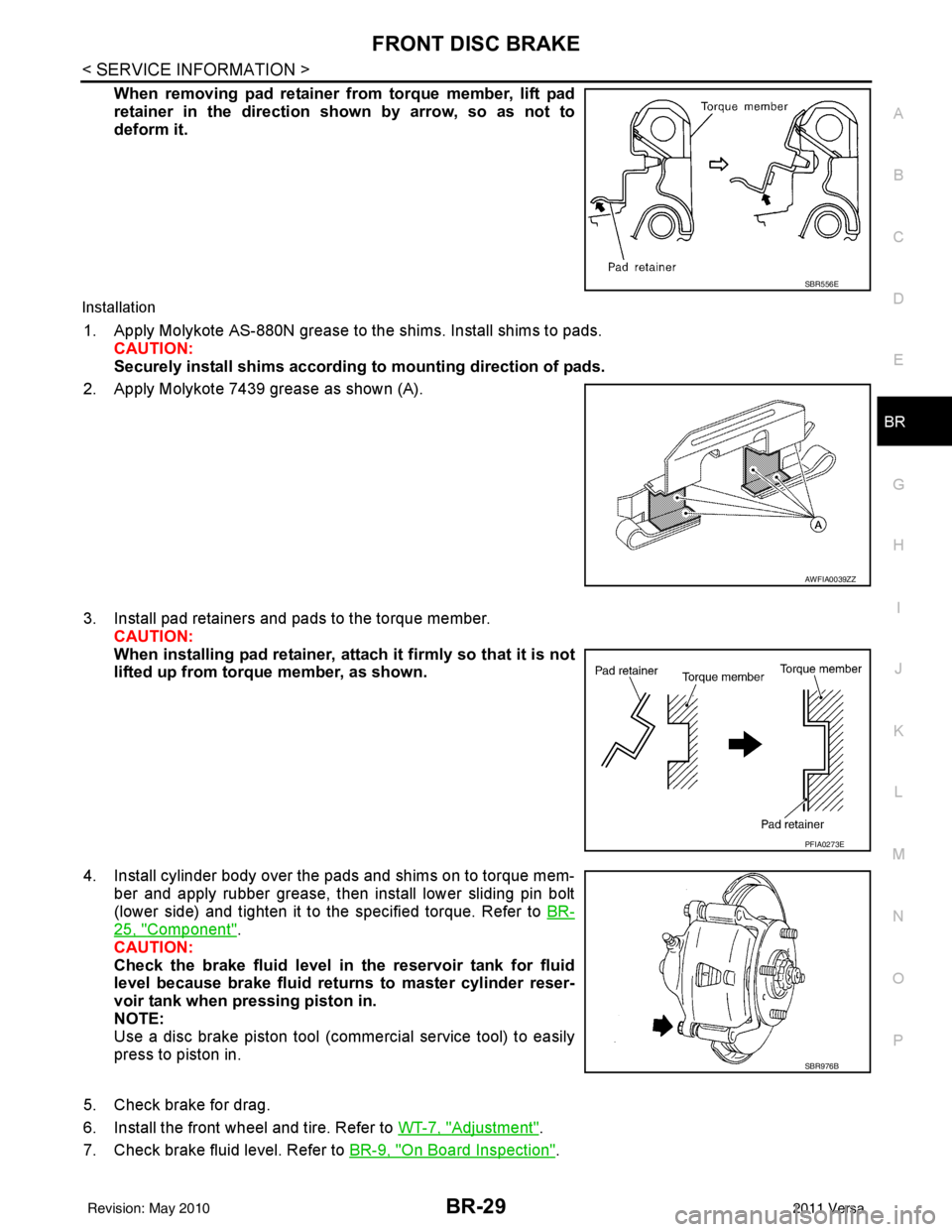

NISSAN LATIO 2011 Service Repair Manual BR-28 < SERVICE INFORMATION > FRONT DISC BRAKE • When installing pad retainer, attach it firmly so that it isnot lifted up from torque member, as shown. 4. Install cylinder body to torque member and

Page 876 of 3787

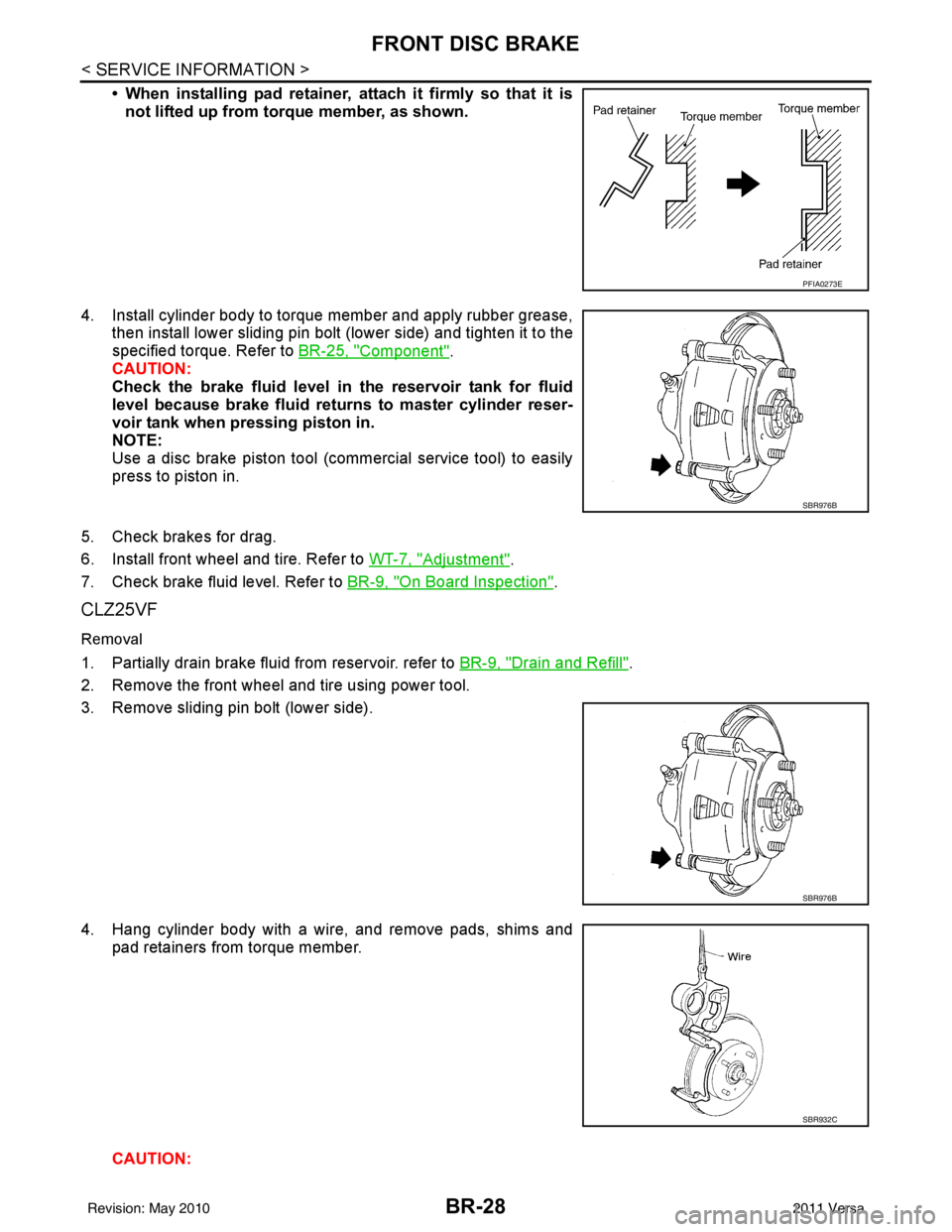

NISSAN LATIO 2011 Service Repair Manual FRONT DISC BRAKEBR-29 < SERVICE INFORMATION > C DE G H I J K L M A B BR N O P When removing pad retainer from torque member, lift pad retainer in the direction shown by arrow, so as not to deform it.

Page 877 of 3787

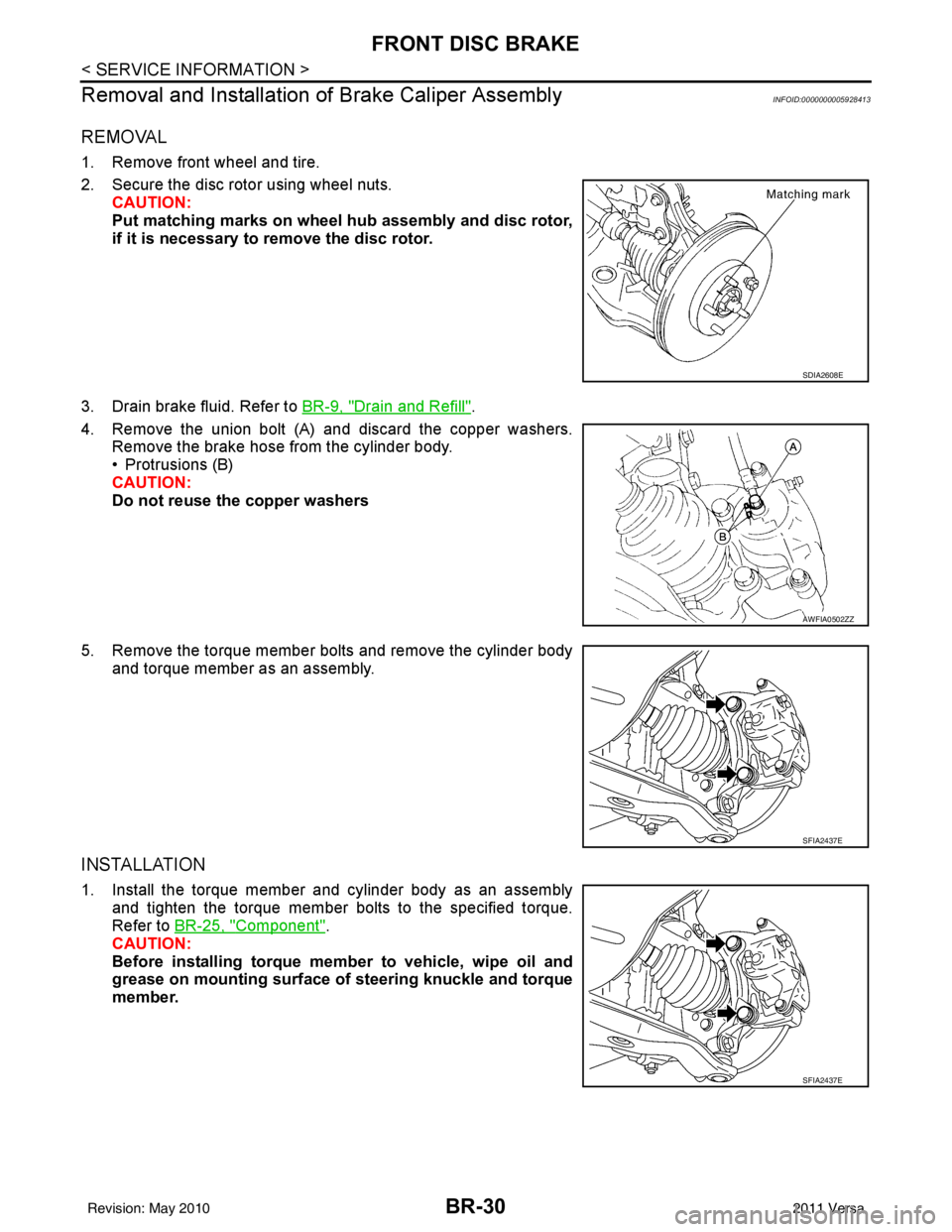

NISSAN LATIO 2011 Service Repair Manual BR-30 < SERVICE INFORMATION > FRONT DISC BRAKE Removal and Installation of Brake Caliper Assembly INFOID:0000000005928413 REMOVAL 1. Remove front wheel and tire. 2. Secure the disc rotor using wheel

Page 878 of 3787

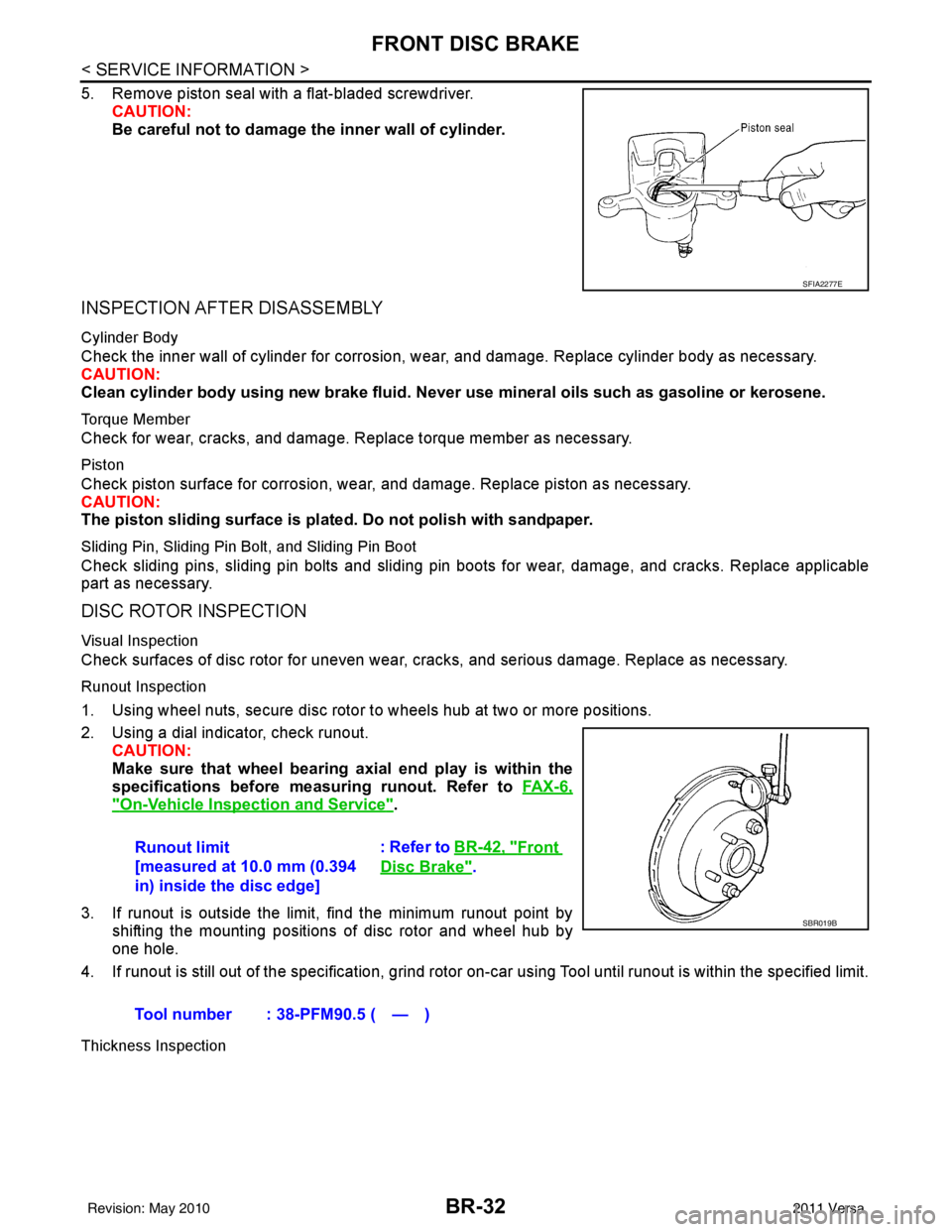

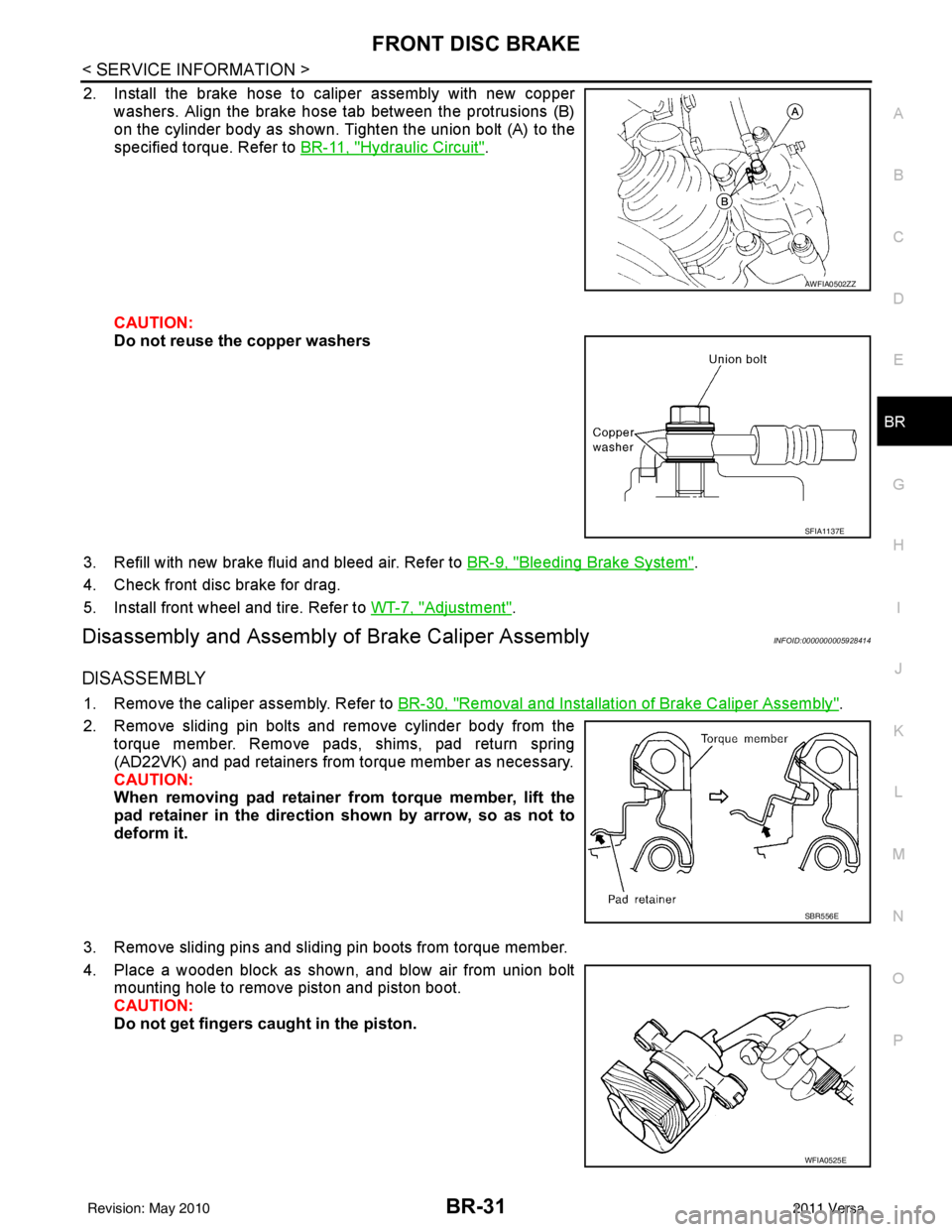

NISSAN LATIO 2011 Service Repair Manual FRONT DISC BRAKEBR-31 < SERVICE INFORMATION > C DE G H I J K L M A B BR N O P 2. Install the brake hose to caliper assembly with new copper washers. Align the brake hose tab between the protrusions (B

Page 879 of 3787

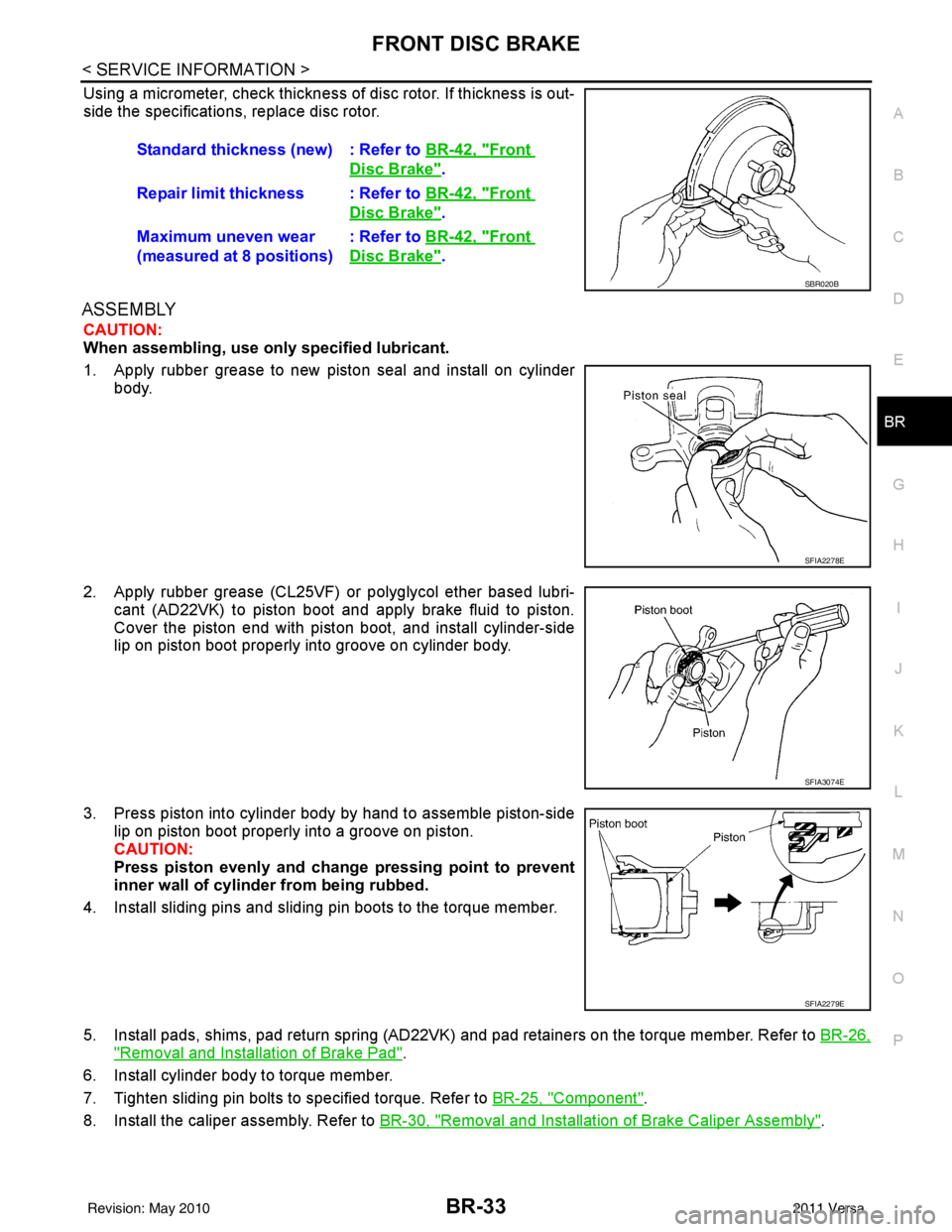

NISSAN LATIO 2011 Service Repair Manual BR-32 < SERVICE INFORMATION > FRONT DISC BRAKE 5. Remove piston seal with a flat-bladed screwdriver.CAUTION: Be careful not to damage the inner wall of cylinder. INSPECTION AFTER DISASSEMBLY Cylinder

Page 880 of 3787

NISSAN LATIO 2011 Service Repair Manual FRONT DISC BRAKEBR-33 < SERVICE INFORMATION > C DE G H I J K L M A B BR N O P Using a micrometer, check thickness of disc rotor. If thickness is out- side the specifications, replace disc rotor. ASSEM
