Page 1321 of 3787
INSPECTION AND ADJUSTMENTEC-27
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

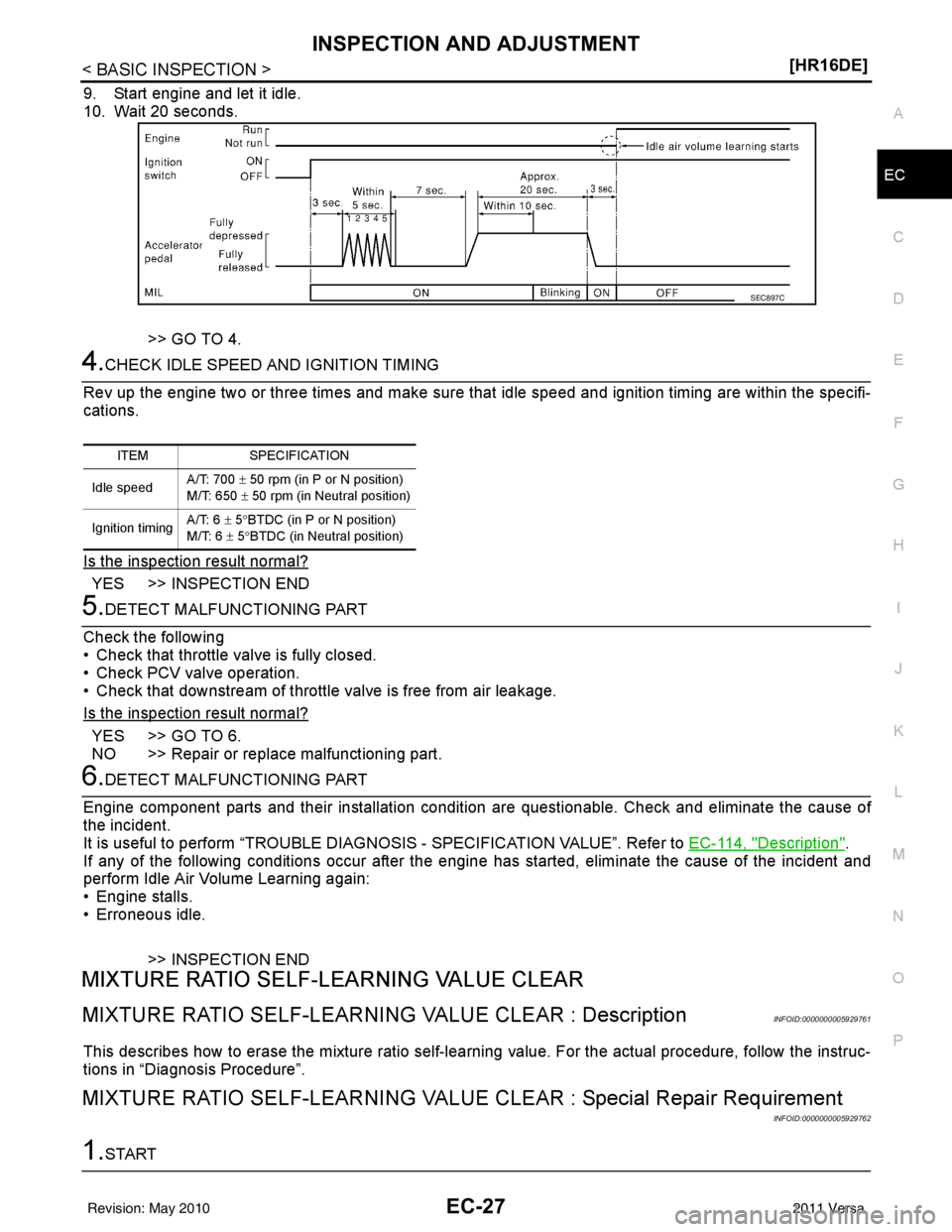

9. Start engine and let it idle.
10. Wait 20 seconds.
>> GO TO 4.
4.CHECK IDLE SPEED AND IGNITION TIMING
Rev up the engine two or three times and make sure that idle speed and ignition timing are within the specifi-
cations.
Is the inspection result normal?
YES >> INSPECTION END
5.DETECT MALFUNCTIONING PART
Check the following
• Check that throttle valve is fully closed.
• Check PCV valve operation.
• Check that downstream of throttle valve is free from air leakage.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair or replace malfunctioning part.
6.DETECT MALFUNCTIONING PART
Engine component parts and their installation conditi on are questionable. Check and eliminate the cause of
the incident.
It is useful to perform “TROUBLE DIAG NOSIS - SPECIFICATION VALUE”. Refer to EC-114, "
Description".
If any of the following conditions occur after the engi ne has started, eliminate the cause of the incident and
perform Idle Air Volume Learning again:
• Engine stalls.
• Erroneous idle.
>> INSPECTION END
MIXTURE RATIO SELF-LEARNING VALUE CLEAR
MIXTURE RATIO SELF-LEARNING VALUE CLEAR : DescriptionINFOID:0000000005929761
This describes how to erase the mixture ratio self-learning value. For the actual procedure, follow the instruc-
tions in “Diagnosis Procedure”.
MIXTURE RATIO SELF-LEARNING VALUE CLEAR : Special Repair Requirement
INFOID:0000000005929762
1.START
SEC897C
ITEMSPECIFICATION
Idle speed A/T: 700
± 50 rpm (in P or N position)
M/T: 650 ± 50 rpm (in Neutral position)
Ignition timing A/T: 6
± 5 °BTDC (in P or N position)
M/T: 6 ± 5 °BTDC (in Neutral position)
Revision: May 2010 2011 Versa
Page 1322 of 3787
EC-28
< BASIC INSPECTION >[HR16DE]
INSPECTION AND ADJUSTMENT
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CONSULT-III.
3. Clear mixture ratio self-lear ning value by touching “CLEAR”.
With GST
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF.
3. Disconnect mass air flow sensor harness connector.
4. Restart engine and let it idle for at least 5 seconds.
5. Stop engine and reconnect mass air flow sensor harness connector.
6. Select Service $03 with GST. Make sure DTC P0102 is detected.
7. Select Service $04 with GST to erase the DTC P0102.
>> END
Revision: May 2010 2011 Versa
Page 1323 of 3787
HOW TO SET SRT CODEEC-29
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
HOW TO SET SRT CODE
DescriptionINFOID:0000000006314657
OUTLINE
In order to set all SRTs, the self-diagnoses as in
the “SRT ITEM” table must have been performed at least
once. Each diagnosis may require actual driving for a long period of time under various conditions.
SRT ITEM
The table below shows required self-diagnostic items to set the SRT to “CMPLT”.
• *1: Though displayed on the CONSULT-III screen, “HO2S HTR” is not SRT item.
• *2: If completion of several SRTs is required, per form driving patterns (DTC confirmation procedure), one by
one based on the priority for models with CONSULT-III.

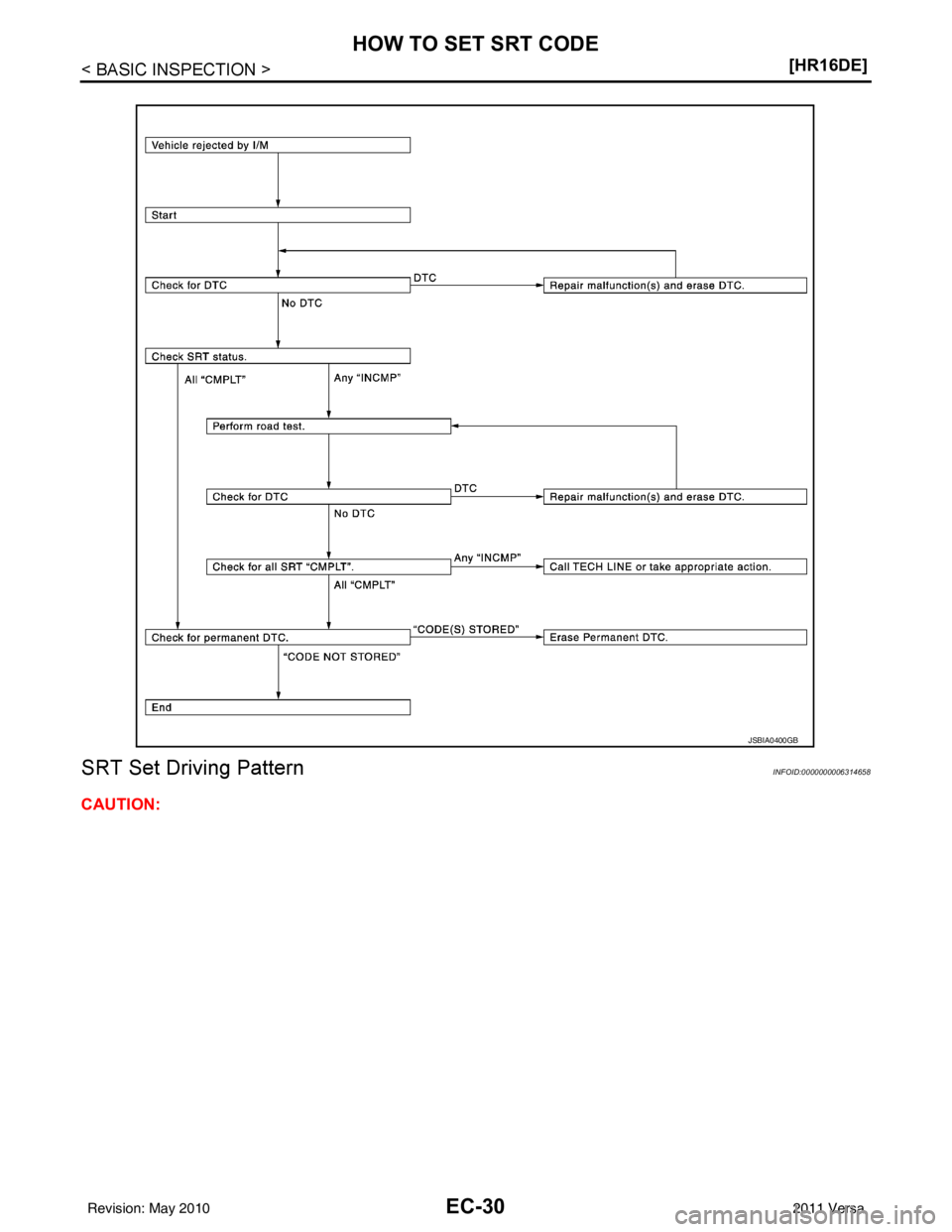

SRT SERVICE PROCEDURE
If a vehicle has failed the state emissions inspection due to one or more SRT items indicating “INCMP”, review
the flowchart diagnostic sequence, referring to the following flowchart.
SRT item*1
(CONSULT-III indication) Performance
Priority*2Required self-diagnostic items to set the SRT to “CMPLT” Corresponding
DTC No.
CATALYST 2 Three way catalyst function P0420
EVAP SYSTEM 2 EVAP control system purge flow monitoring P0441
1 EVAP control system P0442
2 EVAP control system P0456
HO2S 2 Air fuel ratio (A/F) sensor 1 P0133
Heated oxygen sensor 2 P0137
Heated oxygen sensor 2 P0138
Heated oxygen sensor 2 P0139
EGR/VVT SYSTEM 3 Intake value timing control function P0011
Revision: May 2010 2011 Versa
Page 1324 of 3787
EC-30
< BASIC INSPECTION >[HR16DE]
HOW TO SET SRT CODE

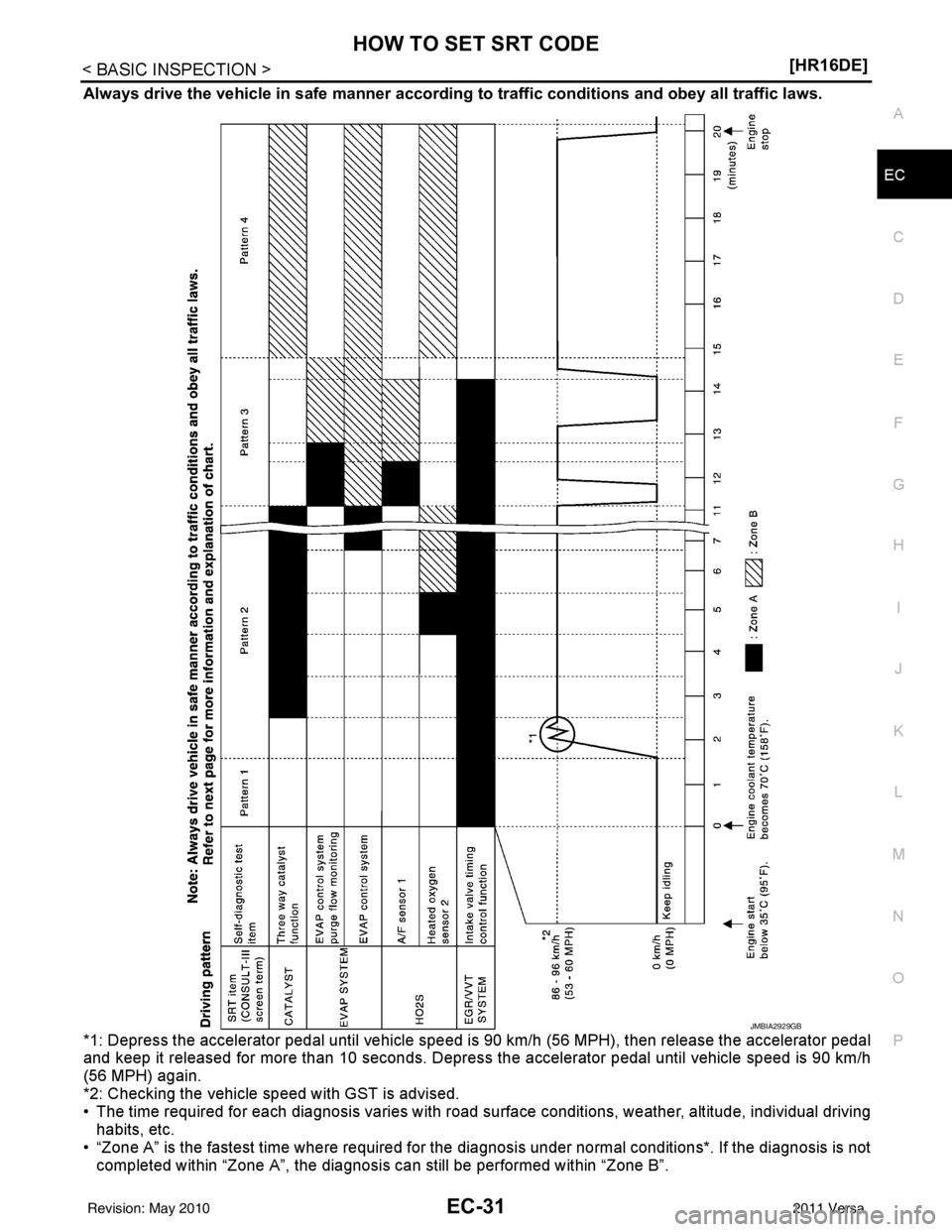

SRT Set Driving Pattern
INFOID:0000000006314658
CAUTION:
JSBIA0400GB
Revision: May 2010 2011 Versa
Page 1325 of 3787
HOW TO SET SRT CODEEC-31
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Always drive the vehicle in safe ma
nner according to traffic conditions and obey all traffic laws.
*1: Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then release the accelerator pedal
and keep it released for more than 10 seconds. Depress the accelerator pedal until vehicle speed is 90 km/h
(56 MPH) again.
*2: Checking the vehicle speed with GST is advised.
• The time required for each diagnosis varies with road su rface conditions, weather, altitude, individual driving
habits, etc.
• “Zone A” is the fastest time where required for the diagnosis under normal conditions*. If the diagnosis is not
completed within “Zone A”, the diagnosis can still be performed within “Zone B”.
JMBIA2929GB
Revision: May 2010 2011 Versa
Page 1326 of 3787
EC-32
< BASIC INSPECTION >[HR16DE]
HOW TO SET SRT CODE
*: Normal conditions- Sea level
- Flat road
- Ambient air temperature: 20 – 30
°C (68 – 86 °F)
NOTE:
Diagnosis is performed as quickly as possible under normal conditions. However, under other conditions,
diagnosis may also be performed. [For example: ambient air temperature other than 20 – 30°C (68 – 86 °F)]
Work ProcedureINFOID:0000000006314659
1.CHECK DTC
Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-478, "DTCIndex".
NO >> GO TO 2.
2.CHECK SRT STATUS
With CONSULT-III
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT-III.
Without CONSULT-III
Perform “SRT status” mode with EC-103, "
On Board Diagnosis Function".
With GST
Select Service $01 with GST.
Is SRT code(s) set?
YES >> GO TO 10.
NO-1 >> With CONSULT-III: GO TO 3.
NO-2 >> Without CONSULT-III: GO TO 4.
3.DTC CONFIRMATION PROCEDURE
1. Select “SRT WORK SUPPORT” in “DTC & SRT CONFIRMATION” mode with CONSULT-III.
2. For SRT(s) that is not set, perform the corre sponding “DTC CONFIRMATION PROCEDURE” according to
the “Performance Priority” in the “SRT ITEM” table. Refer to EC-29, "
Description".
3. Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-478, "DTCIndex".
NO >> GO TO 9.
4.PERFORM ROAD TEST
• Check the “Performance Priority” in the “SRT ITEM” table. Refer to EC-29, "
Description".
• Perform the most efficient SRT set driving pattern to set the SRT properly. Refer to EC-30, "
SRT Set Driving
Pattern".
In order to set all SRTs, the SRT set driving pattern must be performed at least once.
>> GO TO 5.
5.PATTERN 1
1. Check the vehicle condition;
- Engine coolant temperature is −10 to 35 °C (14 to 95 °F).
- Fuel tank temperature is more than 0 °C (32° F).
2. Start the engine.
3. Keep engine idling until the engine coolant temperature is greater than 70 °C (158° F)
NOTE:
ECM terminal voltage is follows;
• Engine coolant temperature
- −10 to 35 °C (14 to 95 °F): 3.0 – 4.3 V
-70 °(158° F): Less than 1.4 V
• Fuel tank temperature: Less than 4.1 V
Refer to EC-464, "
Reference Value".
Revision: May 2010 2011 Versa
Page 1327 of 3787
HOW TO SET SRT CODEEC-33
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
>> GO TO 6.
6.PATTERN 2
1. Drive the vehicle. And depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then
release the accelerator pedal and keep it released for more than 10 seconds.
2. Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH) again
NOTE:
• Checking the vehicle speed with GST is advised.
• When steady-state driving is performed again even afte r it is interrupted, each diagnosis can be conducted.
In this case, the time required for diagnosis may be extended.
>> GO TO 7.

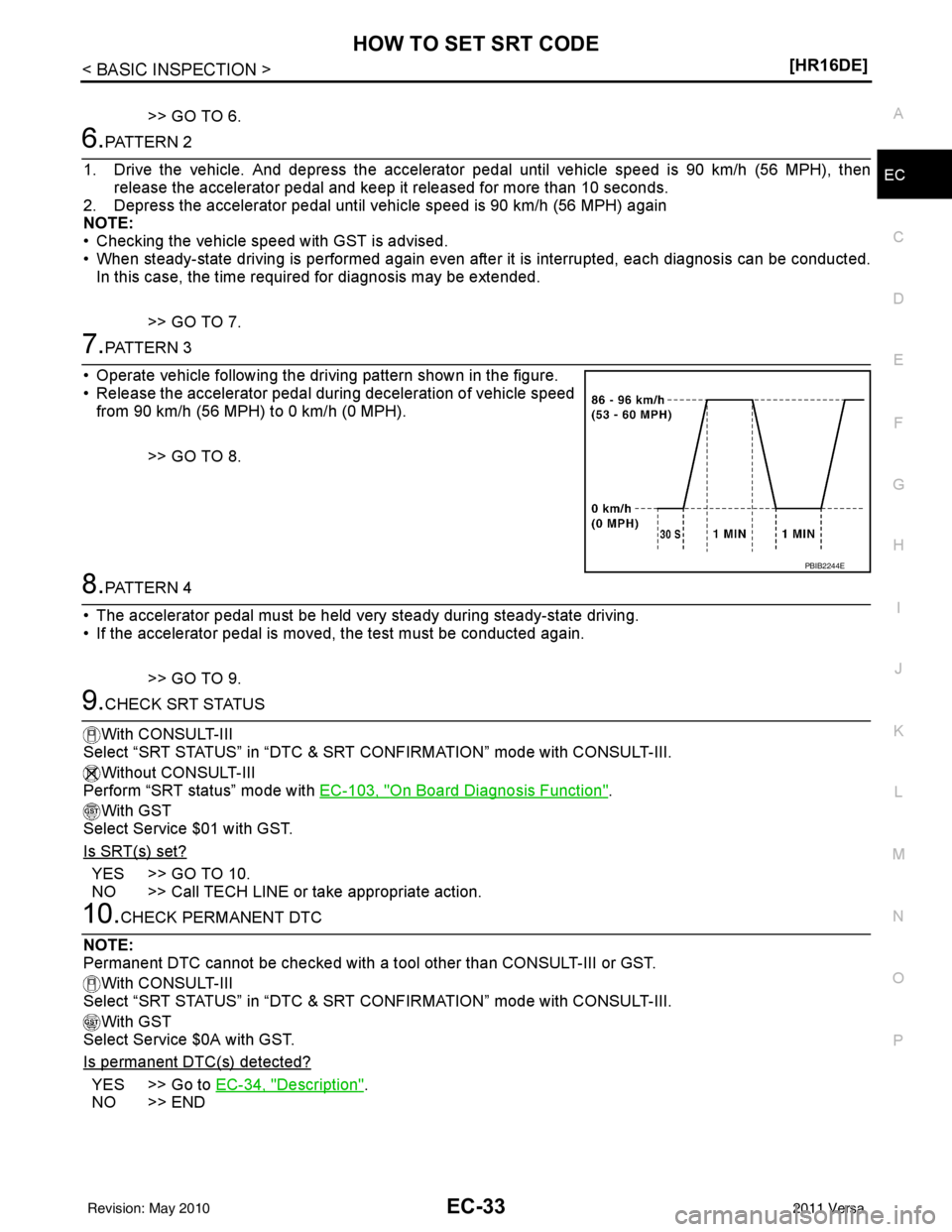

7.PATTERN 3
• Operate vehicle following the driving pattern shown in the figure.
• Release the accelerator pedal during deceleration of vehicle speed from 90 km/h (56 MPH) to 0 km/h (0 MPH).
>> GO TO 8.
8.PATTERN 4
• The accelerator pedal must be held very steady during steady-state driving.
• If the accelerator pedal is moved, the test must be conducted again.
>> GO TO 9.
9.CHECK SRT STATUS
With CONSULT-III
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT-III.
Without CONSULT-III
Perform “SRT status” mode with EC-103, "
On Board Diagnosis Function".
With GST
Select Service $01 with GST.
Is SRT(s) set?
YES >> GO TO 10.
NO >> Call TECH LINE or take appropriate action.
10.CHECK PERMANENT DTC
NOTE:
Permanent DTC cannot be checked with a t ool other than CONSULT-III or GST.
With CONSULT-III
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT-III.
With GST
Select Service $0A with GST.
Is permanent DTC(s) detected?
YES >> Go to EC-34, "Description".
NO >> END
PBIB2244E
Revision: May 2010 2011 Versa
Page 1328 of 3787
EC-34
< BASIC INSPECTION >[HR16DE]
HOW TO ERASE PERMANENT DTC

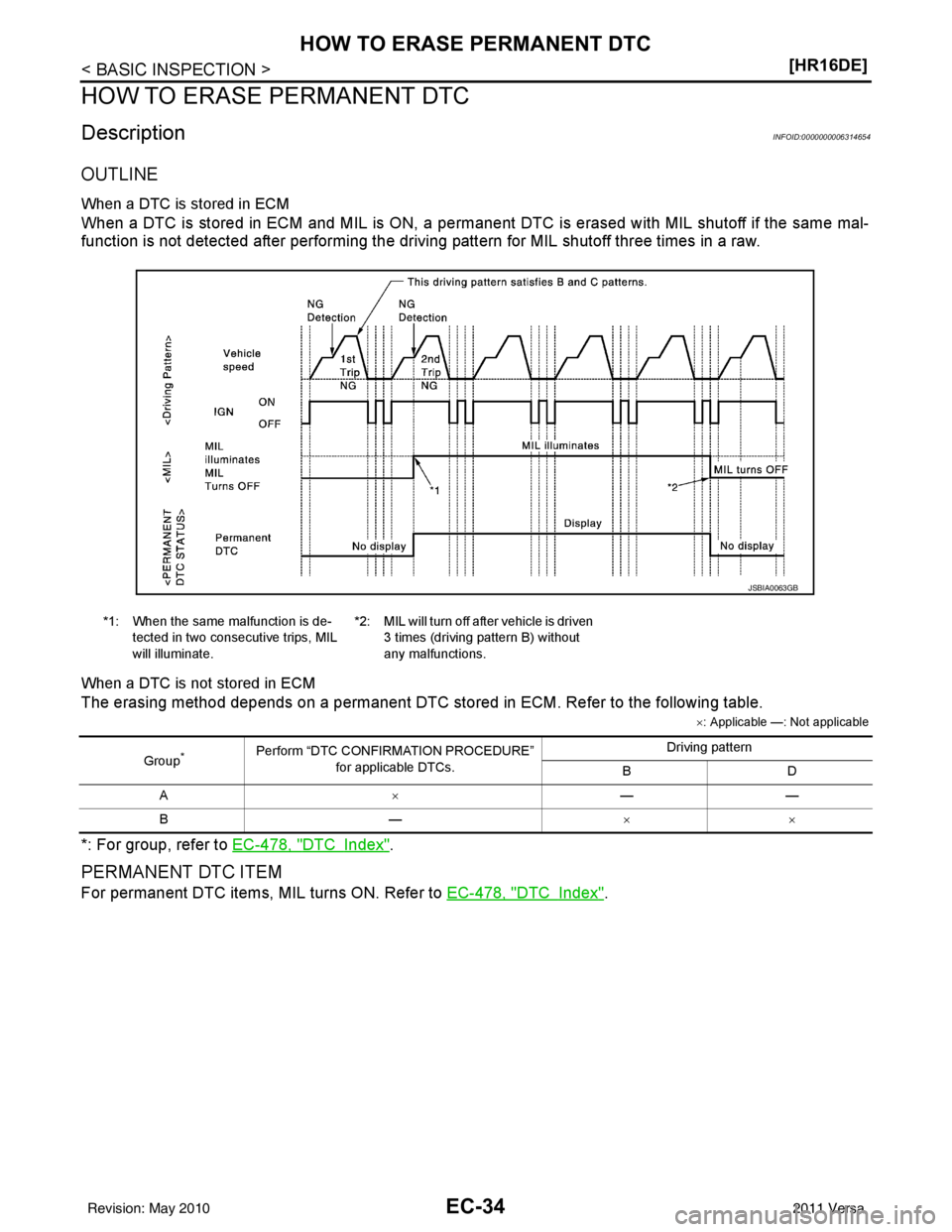

HOW TO ERASE PERMANENT DTC
DescriptionINFOID:0000000006314654
OUTLINE
When a DTC is stored in ECM
When a DTC is stored in ECM and MIL is ON, a permanent
DTC is erased with MIL shutoff if the same mal-
function is not detected after performing the driving pattern for MIL shutoff three times in a raw.
When a DTC is not stored in ECM
The erasing method depends on a permanent DTC stored in ECM. Refer to the following table.
× : Applicable —: Not applicable
*: For group, refer to EC-478, "DTCIndex".
PERMANENT DTC ITEM
For permanent DTC items, MIL turns ON. Refer to EC-478, "DTCIndex".
*1: When the same malfunction is de-
tected in two consecutive trips, MIL
will illuminate. *2: MIL will turn off after vehicle is driven
3 times (driving pattern B) without
any malfunctions.
JSBIA0063GB
Group*Perform “DTC CONFIRMATION PROCEDURE” for applicable DTCs. Driving pattern
BD
A ×——
B— ××
Revision: May 2010 2011 Versa
