Page 3105 of 3787

NISSAN LATIO 2011 Service Repair Manual BACK-UP LAMPLT-73
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
Removal and InstallationINFOID:0000000005929114
Refer to LT-88, "Removal and Installation" .
Revision: May 2010 2011 Versa

Page 3106 of 3787

NISSAN LATIO 2011 Service Repair Manual LT-74
< SERVICE INFORMATION >
PARKING, LICENSE PLATE AND TAIL LAMPS
PARKING, LICENSE PLATE AND TAIL LAMPS
Component Parts and Harness Connector LocationINFOID:0000000005929115
System DescriptionINFOID

LT-74
< SERVICE INFORMATION >
PARKING, LICENSE PLATE AND TAIL LAMPS
PARKING, LICENSE PLATE AND TAIL LAMPS
Component Parts and Harness Connector LocationINFOID:0000000005929115
System DescriptionINFOID:0000000005929116
The control of the parking, license plate and tail lamp operation is dependent upon the position of lighting
switch. When the lighting switch is placed in the 1ST position, the BCM (body cont rol module) receives input
signal requesting the parking, license plate and tail lamps to illuminate. This input signal is communicated to
the IPDM E/R (intelligent power distribution module engine room) via the CAN communication lines. The CPU
(central processing unit) located in the IPDM E/R contro ls the tail lamp relay coil. This relay, when energized,
directs power to parking, license plate and tail lamps, which then illuminate.
Power is supplied at all times
• to ignition relay located in IPDM E/R,
• to tail lamp relay located in IPDM E/R,
• through 15A fuse (No. 52, located in IPDM E/R) and
• through 20A fuse (No. 53, located in IPDM E/R)
• to the CPU located in the IPDM E/R,
• through 40A fusible link (letter g , located in fuse and fusible link block)
• to BCM terminal 70,
• through 10A fuse [No. 8, located in fuse block (J/B)],
• to BCM terminal 57.
With the ignition switch in the ON or START position, power is supplied
• through 10A fuse [No. 6, located in fuse block (J/B)]
• to BCM terminal 38,
• to ignition relay located in IPDM E/R and
• through the ignition relay
• to the CPU of the IPDM E/R.
With the ignition switch in the ACC or ON position, power is supplied
• through 10A fuse [No. 20, located in fuse block (J/B)]
• to BCM terminal 11.
Ground is supplied
• to BCM terminal 67
• through grounds M20 and M61,
• to IPDM E/R terminals 59 and 39
• through grounds E15 and E24.
OPERATION BY LIGHTING SWITCH
With the lighting switch in the 1ST or 2ND position, the BCM receives an input signal requesting parking,
license plate and tail lamps to illuminate. This input signal is communicated to the IPDM E/R via the CAN com-
munication lines. The CPU, located in the IPDM E/R, controls the tail lamp relay coil. When energized, the tail
lamp relay directs power
• through 10A fuse (No. 37, located in IPDM E/R),
• through IPDM E/R terminal 26
• to front combination lamp LH terminal 6, and
• through IPDM E/R terminal 27
1. IPDM E/R E45, E46 and E48 2. BCM M18 and M20 (view with glove
box removed)3. Combination switch (lighting and
turn signal switch) M28
WKIA5554E
Revision: May 2010 2011 Versa

Page 3107 of 3787

NISSAN LATIO 2011 Service Repair Manual PARKING, LICENSE PLATE AND TAIL LAMPS
LT-75
< SERVICE INFORMATION >
C
D E
F
G H
I
J
L
M A
B
LT
N
O P
• to front combination lamp RH terminal 6,
• through IPDM E/R terminal 28
• to rear combinati

Page 3108 of 3787

NISSAN LATIO 2011 Service Repair Manual LT-76
< SERVICE INFORMATION >
PARKING, LICENSE PLATE AND TAIL LAMPS

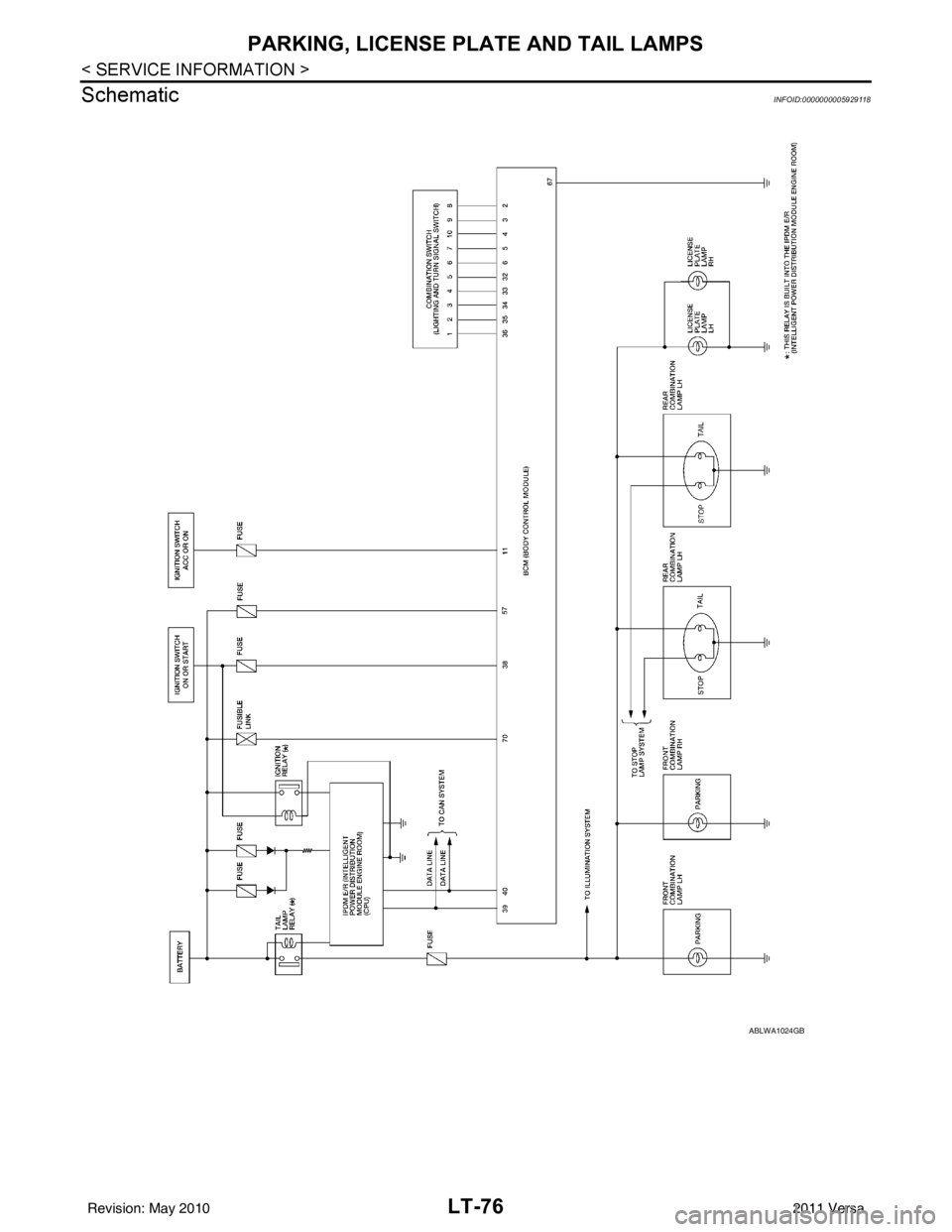

Schematic
INFOID:0000000005929118
ABLWA1024GB
Revision: May 2010 2011 Versa

Page 3109 of 3787

NISSAN LATIO 2011 Service Repair Manual PARKING, LICENSE PLATE AND TAIL LAMPS
LT-77
< SERVICE INFORMATION >
C
D E
F
G H
I
J
L
M A
B
LT
N
O P

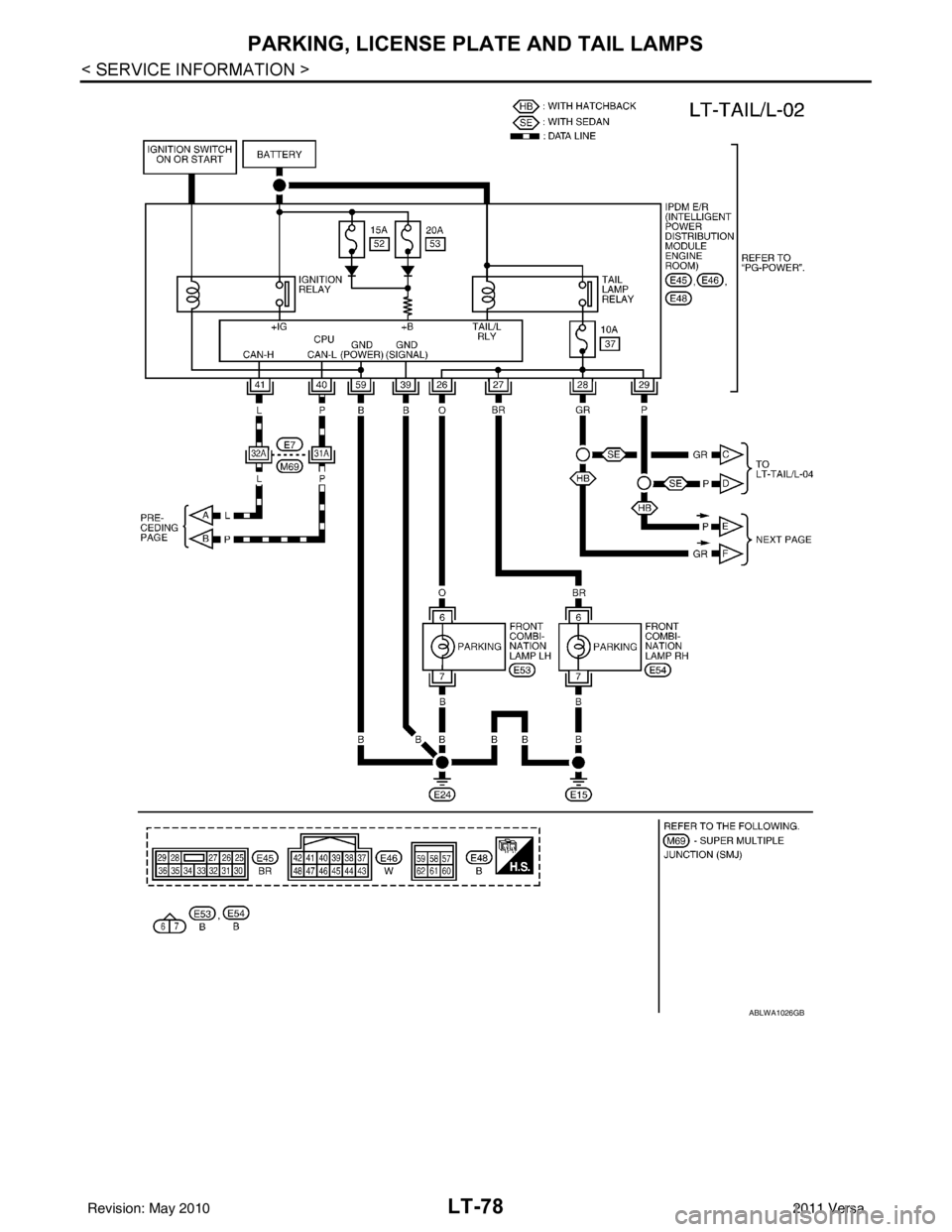

Wiring Diagram - TAIL/L -INFOID:0000000005929119
ABLWA1025GB
Revision: May 2010 2011 Versa

Page 3110 of 3787

NISSAN LATIO 2011 Service Repair Manual LT-78
< SERVICE INFORMATION >
PARKING, LICENSE PLATE AND TAIL LAMPS
ABLWA1026GB
Revision: May 20102011 Versa

Page 3111 of 3787

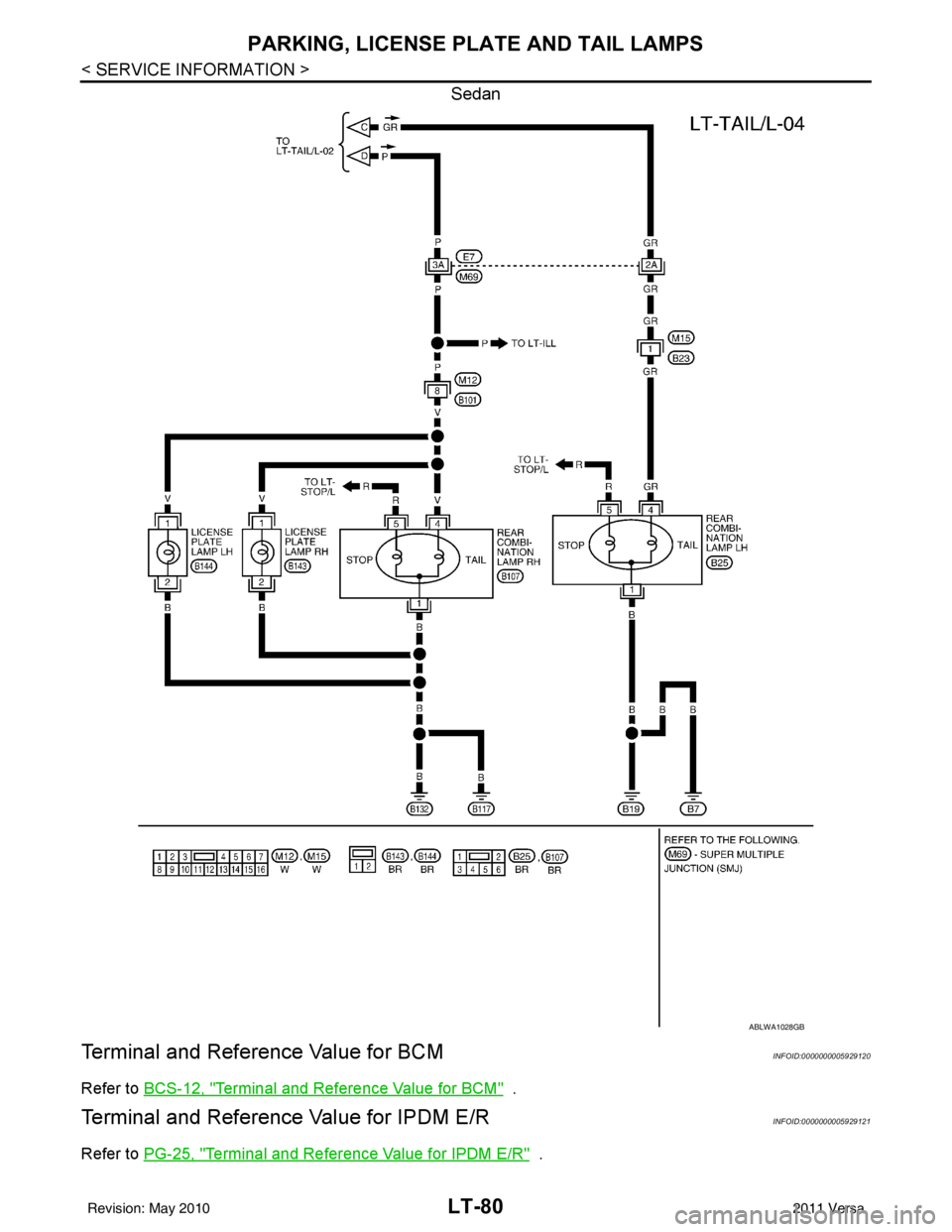

NISSAN LATIO 2011 Service Repair Manual PARKING, LICENSE PLATE AND TAIL LAMPS
LT-79
< SERVICE INFORMATION >
C
D E
F
G H
I
J
L
M A
B
LT
N
O P
Hatchback
ABLWA1027GB
Revision: May 2010 2011 Versa

Page 3112 of 3787

NISSAN LATIO 2011 Service Repair Manual LT-80
< SERVICE INFORMATION >
PARKING, LICENSE PLATE AND TAIL LAMPS
Sedan
Terminal and Reference Value for BCMINFOID:0000000005929120
Refer to BCS-12, "Terminal and Reference Value for BCM" .
Termina
