Removal and InstallationINFOID:0000000006341873
AIR FUEL RATIO SENSOR HEATER
Refer to
EM-141, "Removal and Installation".
Revision: May 2010 2011 Versa
Page 2010 of 3787
EC-716
< SERVICE INFORMATION >[MR18DE]
DTC P0132 A/F SENSOR 1
DTC P0132 A/F SENSOR 1
Component DescriptionINFOID:0000000006341874
The air fuel ratio (A/F) sensor 1 is a planar one-cell limit current sen-
sor. The sensor element of the
A/F sensor 1 is composed an elec-
trode layer, which transports ions. It has a heater in the element.
The sensor is capable of precise measurement = 1, but also in the
lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide range.
The exhaust gas components diffuse through the diffusion layer at
the sensor cell. An electrode layer is applied voltage, and this current
relative oxygen density in lean. Also this current relative hydrocar-
bon density in rich.
Therefore, the A/F sensor 1 is able to indicate air fuel ratio by this
electrode layer of current. In addition, a heater is integrated in the
sensor to ensure the required operating temperature of about 800° C
(1,472° F).
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000006341875
Specification data are reference values.
On Board Diagn osis LogicINFOID:0000000006341876
To judge the malfunction, the diagnosis c hecks that the A/F signal computed by ECM from the air fuel ratio (A/
F) sensor 1 signal is not inordinately high.
DTC Confirmation ProcedureINFOID:0000000006341877
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11 V at idle.
WITH CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Select “A/F SEN1 (B1)” in “DATA MONITOR” mode with CONSULT-III.
3. Check “A/F SEN1 (B1)” indication.
If the indication is constantly approx. 5 V, go to EC-719, "
Diagnosis Procedure".
PBIB3353E
PBIB3354E
Monitor item ConditionSpecification
A/F SEN1 (B1) • Engine: After warming upMaintaining engine speed at
2,000 rpm Fluctuates around 2.2 V
DTC No.Trouble diagnosis
name DTC detecting condition
Possible Cause
P0132
0132 Air fuel ratio (A/F) sen-
sor 1 circuit high volt-
age The A/F signal computed by ECM from the A/F
sensor 1 signal is constantly approx. 5 V. • Harness or connectors
[Air fuel ratio (A/F) sensor circuit is open
or shorted.]
• Air fuel ratio (A/F) sensor 1
Revision: May 2010 2011 Versa
Page 2011 of 3787
DTC P0132 A/F SENSOR 1EC-717
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
If the indication is not constantly approx. 5 V, go to next step.
4. Turn ignition switch OFF, wait at least 10 seconds and then restart engine.
5. Drive and accelerate vehicle to more than 40 km/h (25 MPH) within 20 seconds after restarting engine.
6. Maintain the following conditions for about 20 consecutive seconds.
NOTE:
•Keep the accelerator pedal as steady as possible during the cruising.
• If this procedure is not completed within 1 minute after restarting engine at step 4, return to step
4.
7. Check 1st trip DTC.
8. If 1st trip DTC is displayed, go to EC-719, "
Diagnosis Procedure".
WITH GST
Follow the procedure “WITH CONSULT-III” above.
ENG SPEED 1,000 - 3,200 rpm
VHCL SPEED SE More than 40 km/h (25 MPH)
B/FUEL SCHDL 1.5 - 9.0 msec
Shift lever Suitable position
Revision: May 2010 2011 Versa
Page 2012 of 3787
EC-718
< SERVICE INFORMATION >[MR18DE]
DTC P0132 A/F SENSOR 1

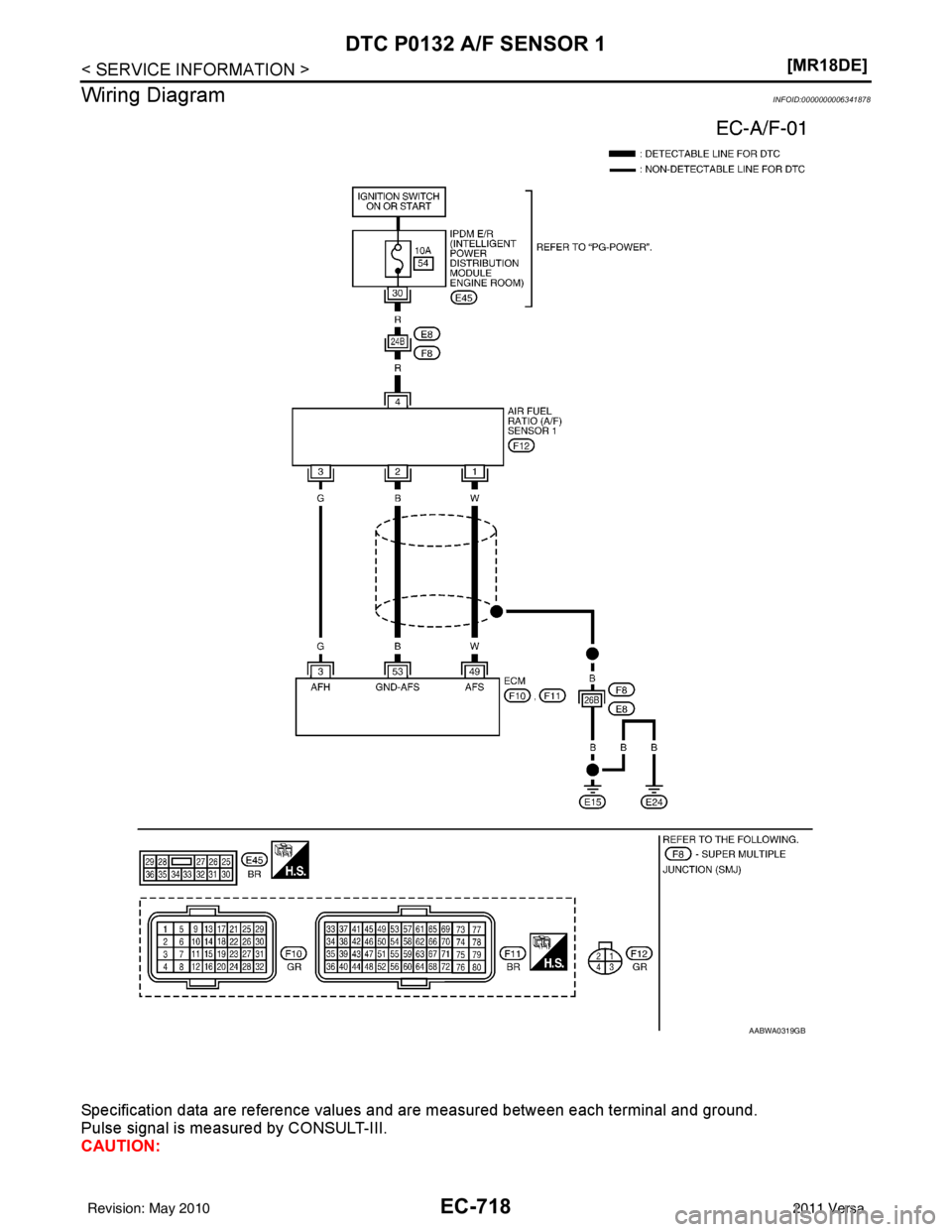

Wiring Diagram
INFOID:0000000006341878
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
AABWA0319GB
Revision: May 2010 2011 Versa
Page 2013 of 3787
DTC P0132 A/F SENSOR 1EC-719
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Do not use ECM ground terminals wh
en measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnosis ProcedureINFOID:0000000006341879
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-638, "
Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect A/F sensor 1 harness connector (1).
2. Turn ignition switch ON.
TERMI- NAL
NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
3 G A/F sensor 1 heater [Engine is running]
•
Warm-up condition
• Idle speed (More than 140 seconds after starting
engine) Approximately 2.9 - 8.8 V
49 W A/F sensor 1 [Engine is running]
•
Warm-up condition
• Engine speed: 2,000 rpm Approximately 1.8 V
Output voltage varies with air fuel
ratio.
53 B A/F sensor 1 [Ignition switch: ON] Approximately 2.2 V
PBIA8148J
:Vehicle front
1. Body ground E24 2. Engine ground F93. Engine ground F16
4. Body ground E15
BBIA0698E
BBIA0699E
Revision: May 2010 2011 Versa
Page 2014 of 3787
EC-720
< SERVICE INFORMATION >[MR18DE]
DTC P0132 A/F SENSOR 1
3. Check voltage between A/F sensor 1 terminal 4 and ground with
CONSULT-III or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E8, F8
• Harness for open or short between A/F sensor 1 and fuse
>> Repair or replace harness or connectors.
4.CHECK A/F SENSOR 1 INPUT SIGN AL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between the following terminals. Refer to Wiring Diagram.
4. Check harness continuity between ECM terminals 49, 53 or A/F sensor 1 terminals 1, 2 and ground. Refer to Wiring Diagram.
5. Also check harness for short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK INTERMITTENT INCIDENT
Perform EC-632
.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace.
6.REPLACE AIR FUEL RATIO (A/F) SENSOR 1
Replace air fuel ratio (A/F) sensor 1.
CAUTION:
• Discard any A/F sensor which has b een dropped from a height of more than 0.5 m (19.7 in) onto a
hard surface such as a concrete floor; use a new one.
• Before installing new A/F sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
>>INSPECTION END
Voltage: Battery voltage
PBIB3308E
A/F sensor 1 terminal
ECM terminal
14 9
25 3
Continuity should exist.
Continuity should not exist.
Revision: May 2010 2011 Versa
Page 2015 of 3787
DTC P0132 A/F SENSOR 1EC-721
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Removal and InstallationINFOID:0000000006341880
AIR FUEL RATIO SENSOR HEATER
Refer to
EM-141, "Removal and Installation".
Revision: May 2010 2011 Versa
Page 2016 of 3787
EC-722
< SERVICE INFORMATION >[MR18DE]
DTC P0137 HO2S2
DTC P0137 HO2S2
Component DescriptionINFOID:0000000006341881
The heated oxygen sensor 2, after three way catalyst (manifold),
monitors the oxygen level in the exhaust gas.
Even if switching characteristics of
the air fuel ratio (A/F) sensor 1
are shifted, the air/fuel ratio is controlled to stoichiometric, by the sig-
nal from the heated oxygen sensor 2.
This sensor is made of ceramic zirconia. The zirconia generates volt-
age from approximately 1 V in richer conditions to 0 V in leaner con-
ditions.
Under normal conditions the heated ox ygen sensor 2 is not used for
engine control operation.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000006341882
Specification data are reference values.
On Board Diagn osis LogicINFOID:0000000006341883
M/T MODELS AND A/T MODELS
The heated oxygen sensor 2 has a much longer switching time
between rich and lean than the air fuel ratio (A/F) sensor 1. The oxy-
gen storage capacity before the three way catalyst (manifold) causes
the longer switching time. To judge the malfunctions of heated oxy-
gen sensor 2, ECM monitors whet her the maximum voltage of the
sensor is sufficiently high during the various driving condition such
as fuel-cut.
CVT MODELS
The heated oxygen sensor 2 has a much longer switching time
between rich and lean than the air fuel ratio (A/F) sensor 1. The oxy-
gen storage capacity before the three way catalyst (manifold) causes
the longer switching time. To judge the malfunctions of heated oxy-
gen sensor 2, ECM monitors whet her the maximum voltage of the
sensor is sufficiently high during the various driving condition such
as fuel-cut.
SEF327R
Monitor item ConditionSpecification
HO2S2 (B1) • Revving engine from idle to 3,000 rpm quickly after the following
conditions are met.
- Engine: After warming up
- Keeping the engine speed between 3,500 and 4,000 rpm for 1
minute and at idle for 1 minute under no load 0 - 0.3 V ←→
Approx. 0.6 - 1.0 V
HO2S2 MNTR (B1) LEAN ←→ RICH
SEF259VA
JMBIA2105GB
