NISSAN LATIO 2011 Service Repair Manual TURN SIGNAL AND HAZARD WARNING LAMPSLT-57
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P

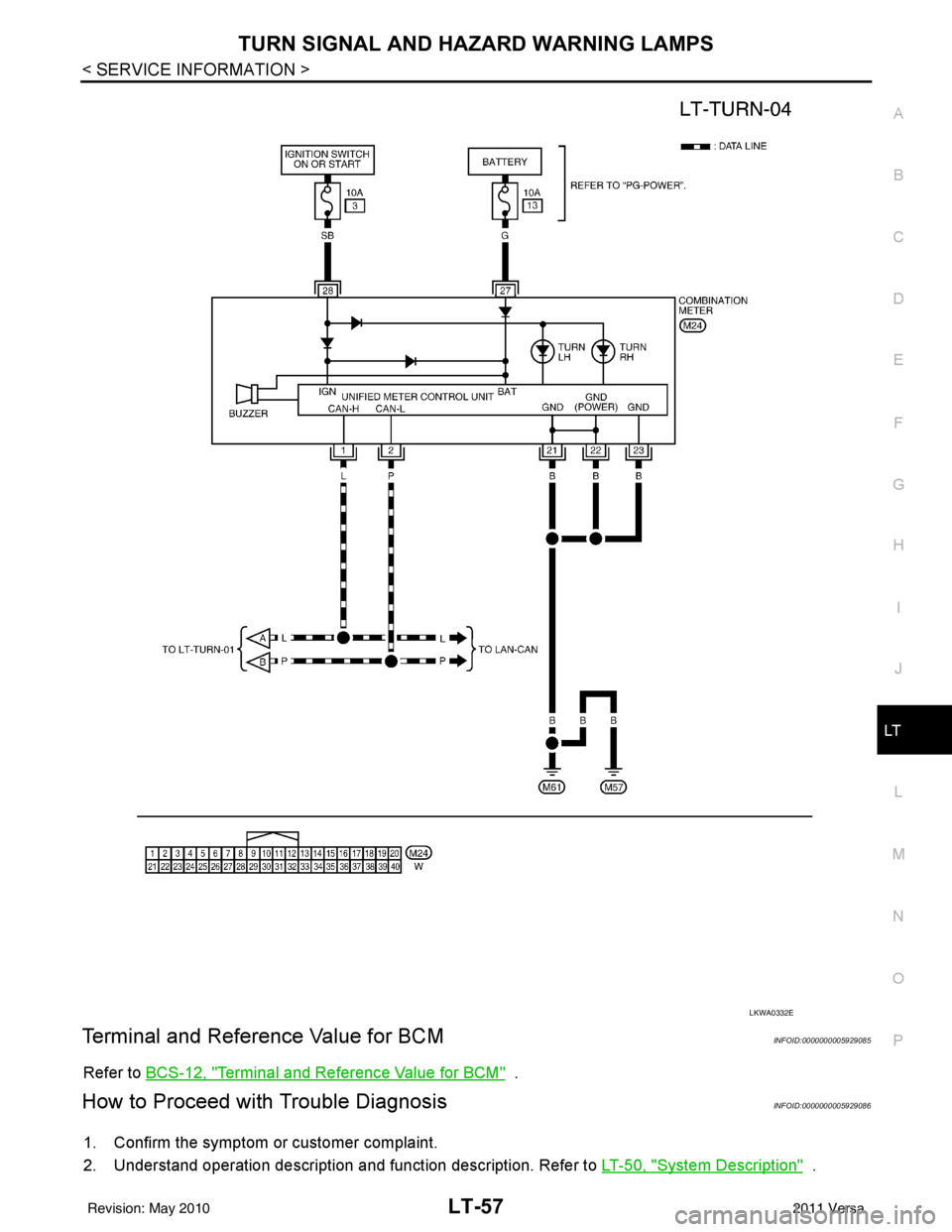

Terminal and Reference Value for BCMINFOID:0000000005929085
Refer to BCS-12, "Terminal and Reference

Page 3090 of 3787

NISSAN LATIO 2011 Service Repair Manual LT-58
< SERVICE INFORMATION >
TURN SIGNAL AND HAZARD WARNING LAMPS

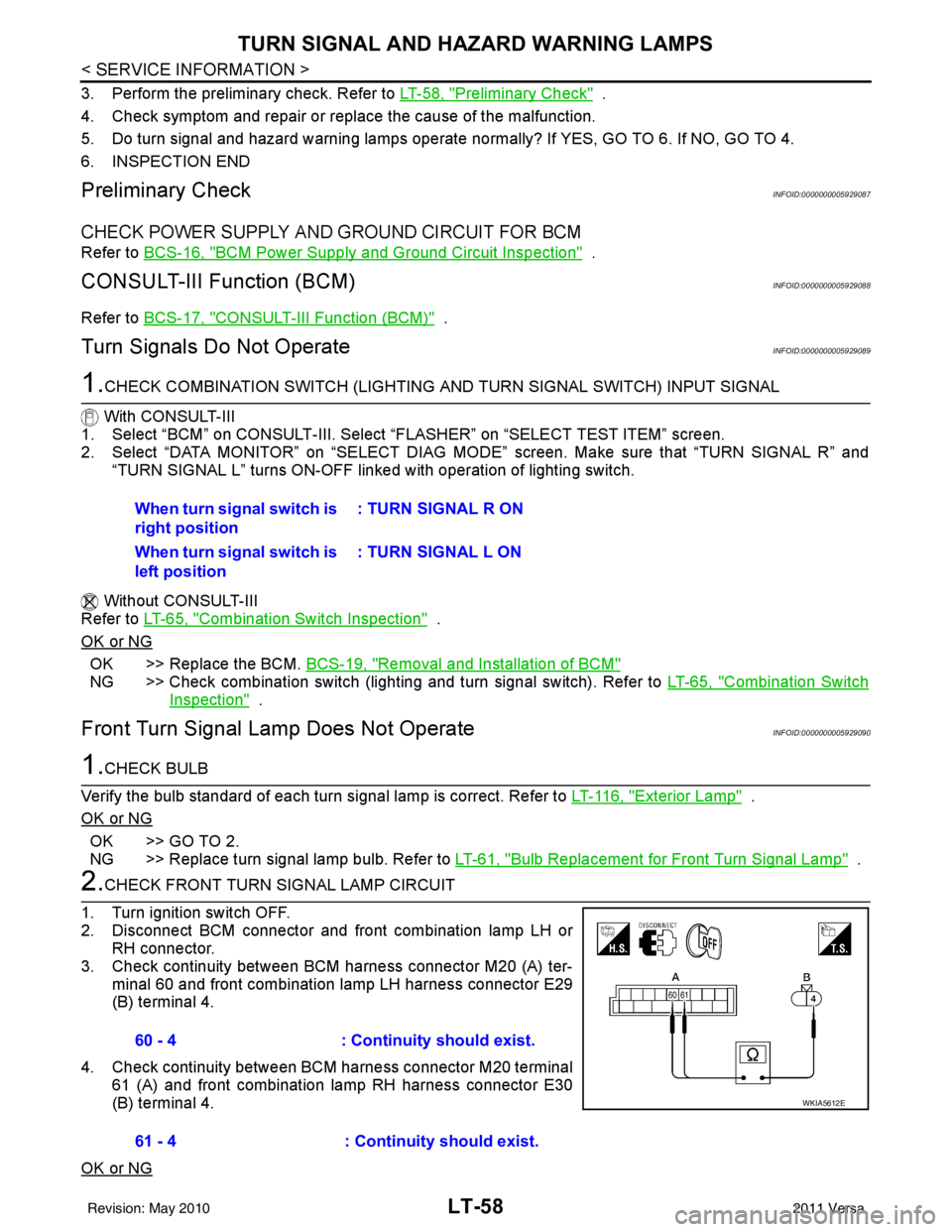

3. Perform the preliminary check. Refer to LT-58, "Preliminary Check" .
4. Check symptom and repair or replace the cause of the malf

LT-58
< SERVICE INFORMATION >
TURN SIGNAL AND HAZARD WARNING LAMPS
3. Perform the preliminary check. Refer to LT-58, "Preliminary Check" .
4. Check symptom and repair or replace the cause of the malfunction.
5. Do turn signal and hazard warning lamps operate no rmally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckINFOID:0000000005929087
CHECK POWER SUPPLY AND GROUND CIRCUIT FOR BCM
Refer to BCS-16, "BCM Power Supply and Ground Circuit Inspection" .
CONSULT-III Function (BCM)INFOID:0000000005929088
Refer to BCS-17, "CONSULT-III Function (BCM)" .
Turn Signals Do Not OperateINFOID:0000000005929089
1.CHECK COMBINATION SWITCH (LIGHTING AND TURN SIGNAL SWITCH) INPUT SIGNAL
With CONSULT-III
1. Select “BCM” on CONSULT-III. Select “FLASHER” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE ” screen. Make sure that “TURN SIGNAL R” and
“TURN SIGNAL L” turns ON-OFF linked with operation of lighting switch.
Without CONSULT-III
Refer to LT-65, "
Combination Switch Inspection" .
OK or NG
OK >> Replace the BCM. BCS-19, "Removal and Installation of BCM"
NG >> Check combination switch (lighting and turn signal switch). Refer to LT-65, "Combination Switch
Inspection" .
Front Turn Signal Lamp Does Not OperateINFOID:0000000005929090
1.CHECK BULB
Verify the bulb standard of each turn signal lamp is correct. Refer to LT-116, "
Exterior Lamp" .
OK or NG
OK >> GO TO 2.
NG >> Replace turn signal lamp bulb. Refer to LT-61, "
Bulb Replacement for Front Turn Signal Lamp" .
2.CHECK FRONT TURN SIGNAL LAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and front combination lamp LH or RH connector.
3. Check continuity between BCM harness connector M20 (A) ter- minal 60 and front combination lamp LH harness connector E29
(B) terminal 4.
4. Check continuity between BCM harness connector M20 terminal 61 (A) and front combination lamp RH harness connector E30
(B) terminal 4.
OK or NG
When turn signal switch is
right position : TURN SIGNAL R ON
When turn signal switch is
left position : TURN SIGNAL L ON
60 - 4
: Continuity should exist.
61 - 4 : Continuity should exist.
WKIA5612E
Revision: May 2010 2011 Versa

Page 3091 of 3787

NISSAN LATIO 2011 Service Repair Manual TURN SIGNAL AND HAZARD WARNING LAMPSLT-59
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P

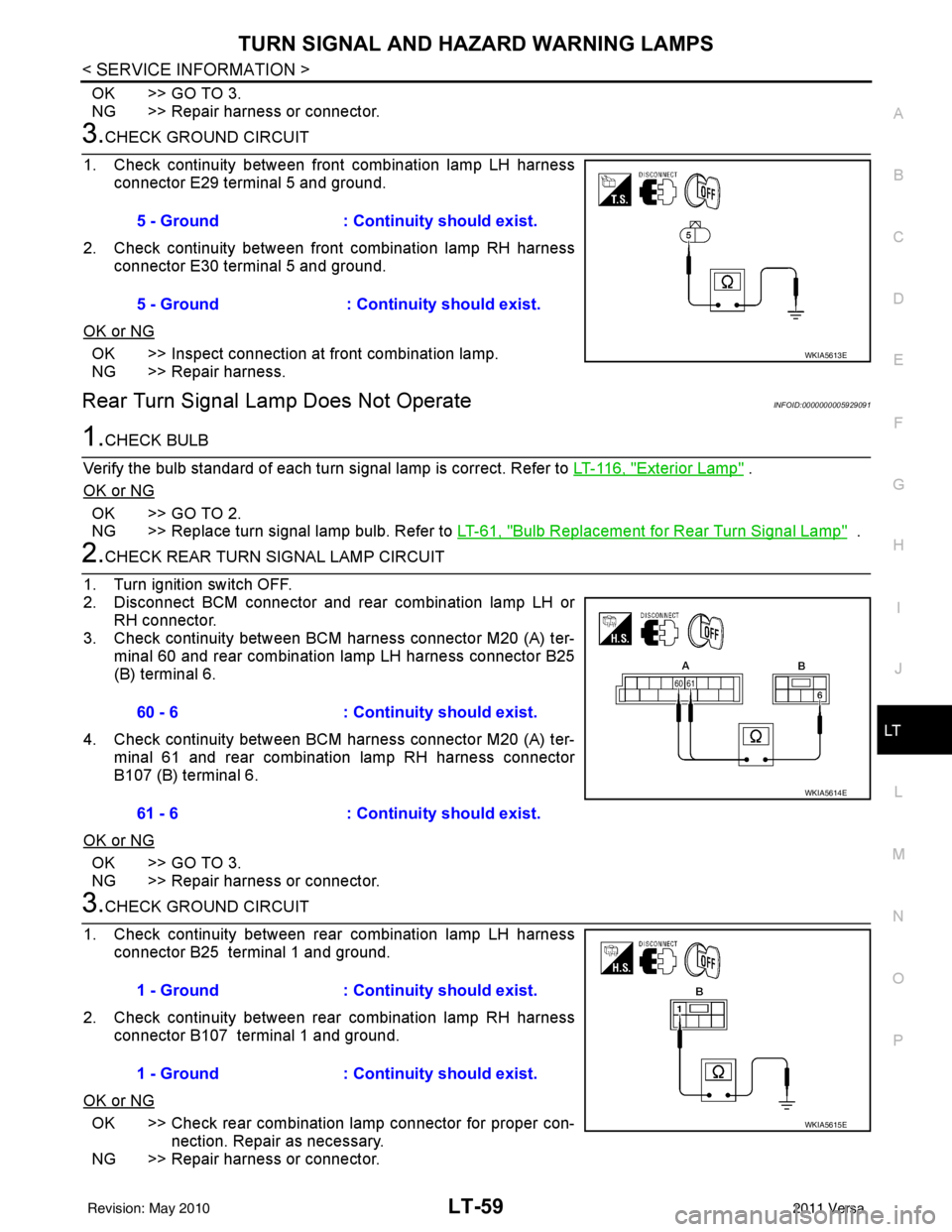

OK >> GO TO 3.
NG >> Repair harness or connector.
3.CHECK GROUND CIRCUIT
1. Check continuity between f

Page 3092 of 3787

NISSAN LATIO 2011 Service Repair Manual LT-60
< SERVICE INFORMATION >
TURN SIGNAL AND HAZARD WARNING LAMPS

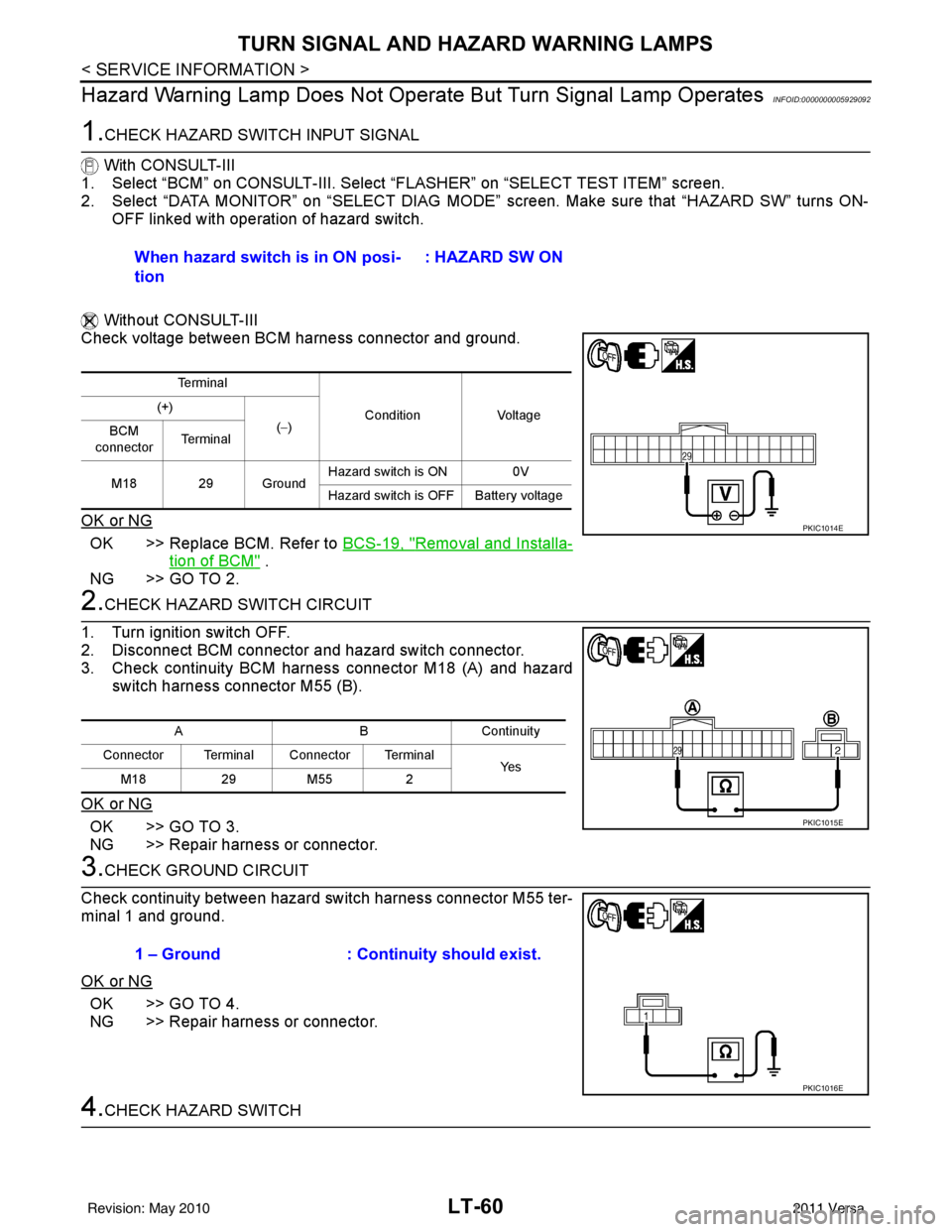

Hazard Warning Lamp Does Not Oper ate But Turn Signal Lamp Operates
INFOID:0000000005929092
1.CHECK HAZARD SWITCH INPUT SIGNAL
With

Page 3093 of 3787

NISSAN LATIO 2011 Service Repair Manual TURN SIGNAL AND HAZARD WARNING LAMPSLT-61
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P

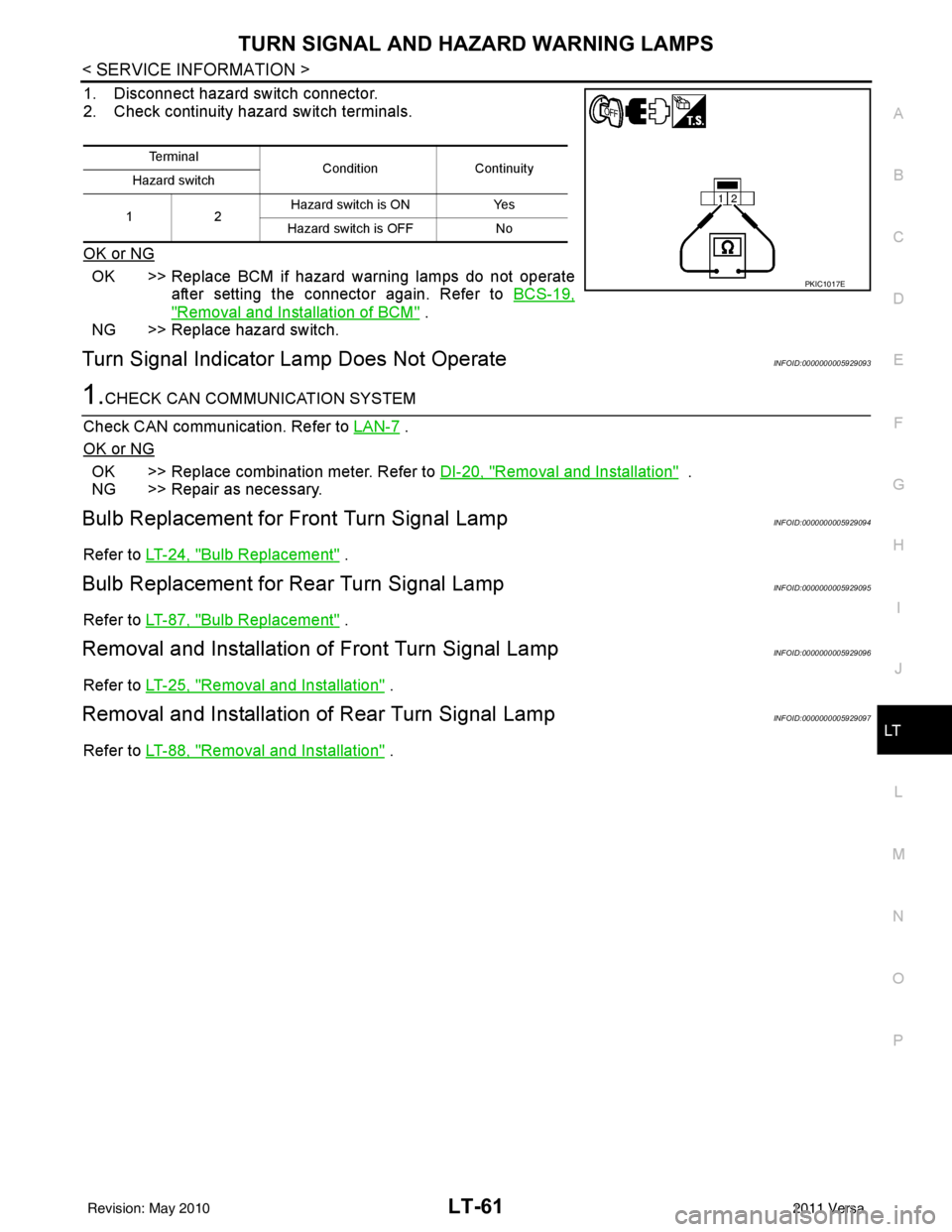

1. Disconnect hazard switch connector.
2. Check continuity hazard switch terminals.
OK or NG
OK >> Rep

Page 3094 of 3787

NISSAN LATIO 2011 Service Repair Manual LT-62
< SERVICE INFORMATION >
LIGHTING AND TURN SIGNAL SWITCH
LIGHTING AND TURN SIGNAL SWITCH
Removal and InstallationINFOID:0000000005929098
REMOVAL
1. Remove steering column cover. Refer to IP-11 .

Page 3095 of 3787

NISSAN LATIO 2011 Service Repair Manual HAZARD SWITCHLT-63
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
HAZARD SWITCH
Removal and InstallationINFOID:0000000005929099
REMOVAL
1. Remove cluster lid C. Refer to IP-11 .
2. Disconnec

Page 3096 of 3787

NISSAN LATIO 2011 Service Repair Manual LT-64
< SERVICE INFORMATION >
COMBINATION SWITCH
COMBINATION SWITCH
Wiring Diagram - COMBSW -INFOID:0000000005929100
Combination Switch Reading FunctionINFOID:0000000005929101
For details, refer to BC
