Page 1929 of 3787

NISSAN LATIO 2011 Service Repair Manual POWER SUPPLY AND GROUND CIRCUITEC-635 < SERVICE INFORMATION > [MR18DE] C D E F G H I J K L M A EC NP O OK or NG OK >> GO TO 5. NG >> Repair or replace ground connections. 5.CHECK ECM GROUND CIRCUIT FO

Page 1930 of 3787

NISSAN LATIO 2011 Service Repair Manual EC-636 < SERVICE INFORMATION >[MR18DE] POWER SUPPLY AND GROUND CIRCUIT 3. Check voltage between ECM terminal 105 and ground with CONSULT-III or tester. OK or NG OK >> GO TO 14. NG (Battery voltage doe

Page 1931 of 3787

NISSAN LATIO 2011 Service Repair Manual POWER SUPPLY AND GROUND CIRCUITEC-637 < SERVICE INFORMATION > [MR18DE] C D E F G H I J K L M A EC NP O 13.CHECK 20 A FUSE 1. Disconnect 20 A fuse from IPDM E/R. 2. Check 20 A fuse. OK or NG OK >> GO T

Page 1932 of 3787

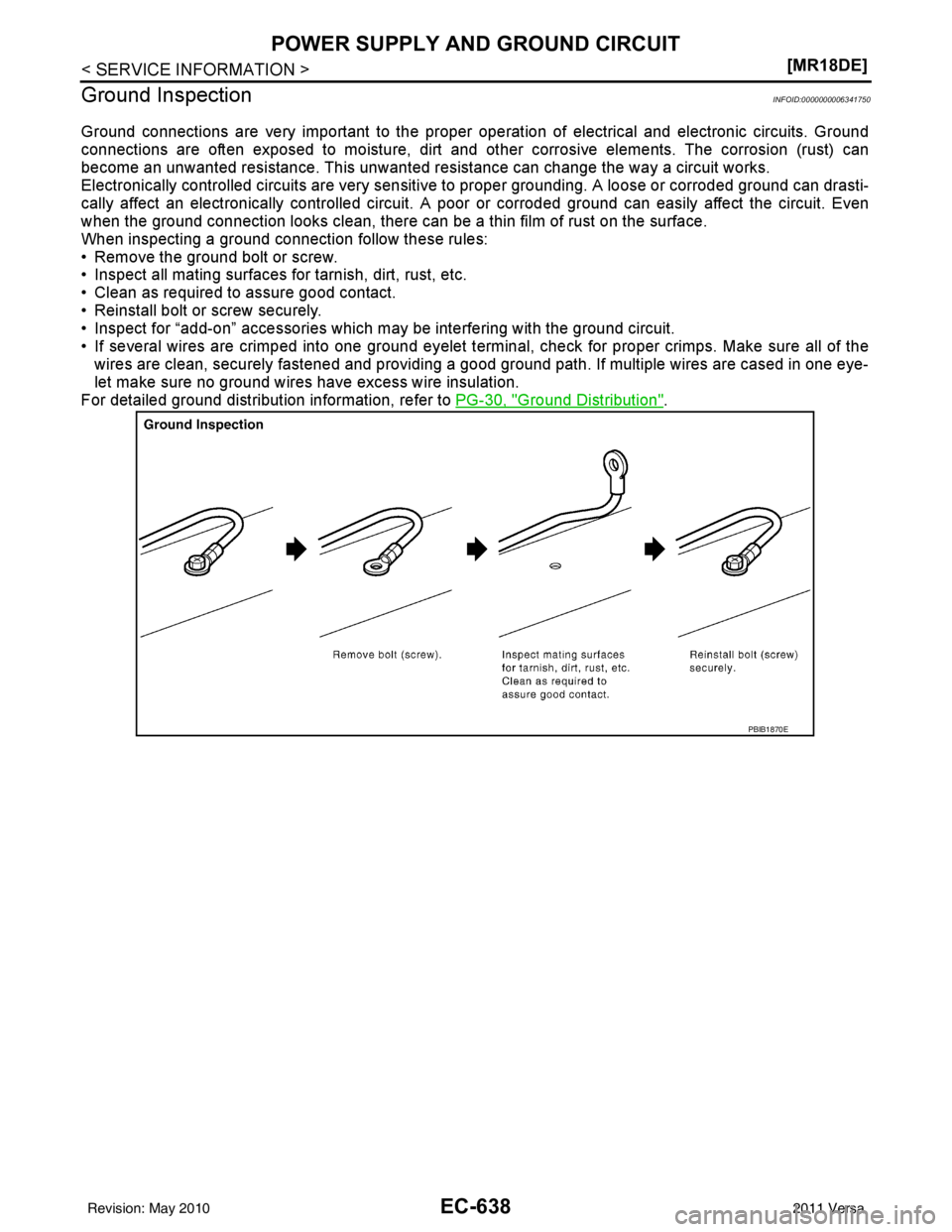

NISSAN LATIO 2011 Service Repair Manual EC-638 < SERVICE INFORMATION >[MR18DE] POWER SUPPLY AND GROUND CIRCUIT Ground Inspection INFOID:0000000006341750 Ground connections are very important to the proper operation of electrical and electro

Page 1933 of 3787

NISSAN LATIO 2011 Service Repair Manual DTC U0101 CAN COMMUNICATION LINEEC-639 < SERVICE INFORMATION > [MR18DE] C D E F G H I J K L M A EC NP O DTC U0101 CAN COMMUNICATION LINE DescriptionINFOID:0000000006341751 CAN (Controller Area Network

Page 1934 of 3787

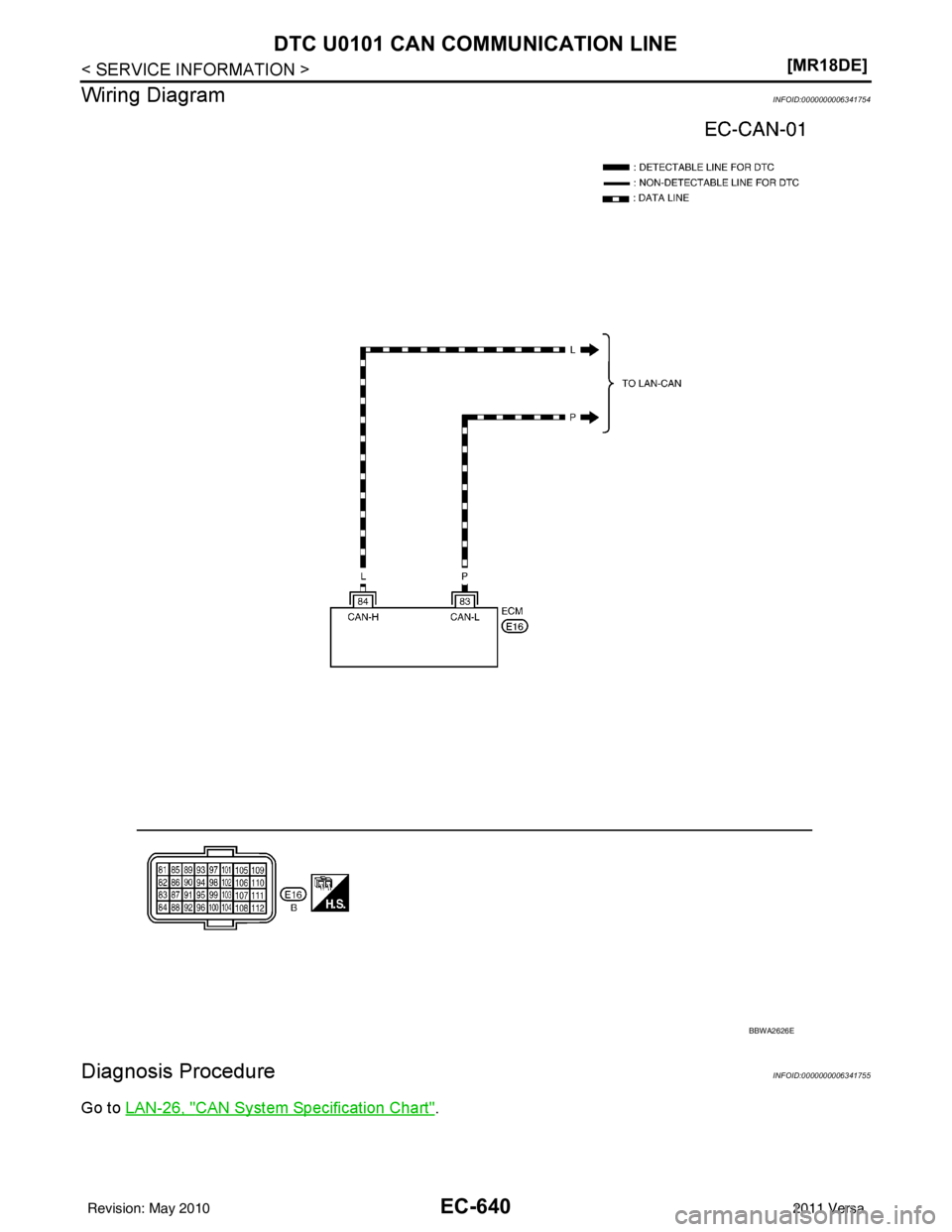

NISSAN LATIO 2011 Service Repair Manual EC-640 < SERVICE INFORMATION >[MR18DE] DTC U0101 CAN COMMUNICATION LINE Wiring Diagram INFOID:0000000006341754 Diagnosis ProcedureINFOID:0000000006341755 Go to LAN-26, "CAN System Specification Chart"

Page 1935 of 3787

NISSAN LATIO 2011 Service Repair Manual DTC U0140 CAN COMMUNICATION LINEEC-641 < SERVICE INFORMATION > [MR18DE] C D E F G H I J K L M A EC NP O DTC U0140 CAN COMMUNICATION LINE DescriptionINFOID:0000000006341756 CAN (Controller Area Network

Page 1936 of 3787

NISSAN LATIO 2011 Service Repair Manual EC-642 < SERVICE INFORMATION >[MR18DE] DTC U0140 CAN COMMUNICATION LINE Wiring Diagram INFOID:0000000006341759 Diagnosis ProcedureINFOID:0000000006341760 Go to LAN-26, "CAN System Specification Chart"
