CVT-154
< SERVICE INFORMATION >[RE0F08B]
CVT SHIFT LOCK SYSTEM
Shift Lock System Electrical Parts Location
INFOID:0000000005928958
1. Key interlock cable (Without Intelli- gent Key) 2. Key cylinder (Without Intelligent Key) 3. Ignition knob switch (With Intelligent
Key)
4. Key interlock cable (With Intelligent Key) 5. Stop lamp switch
6. Brake pedal
7. Shift lock release button 8. Park position switch 9. Shift lock solenoid
10. Key interlock cable
AWDIA0771ZZ
Revision: May 2010 2011 Versa
Page 1210 of 3787
CVT SHIFT LOCK SYSTEMCVT-155
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P

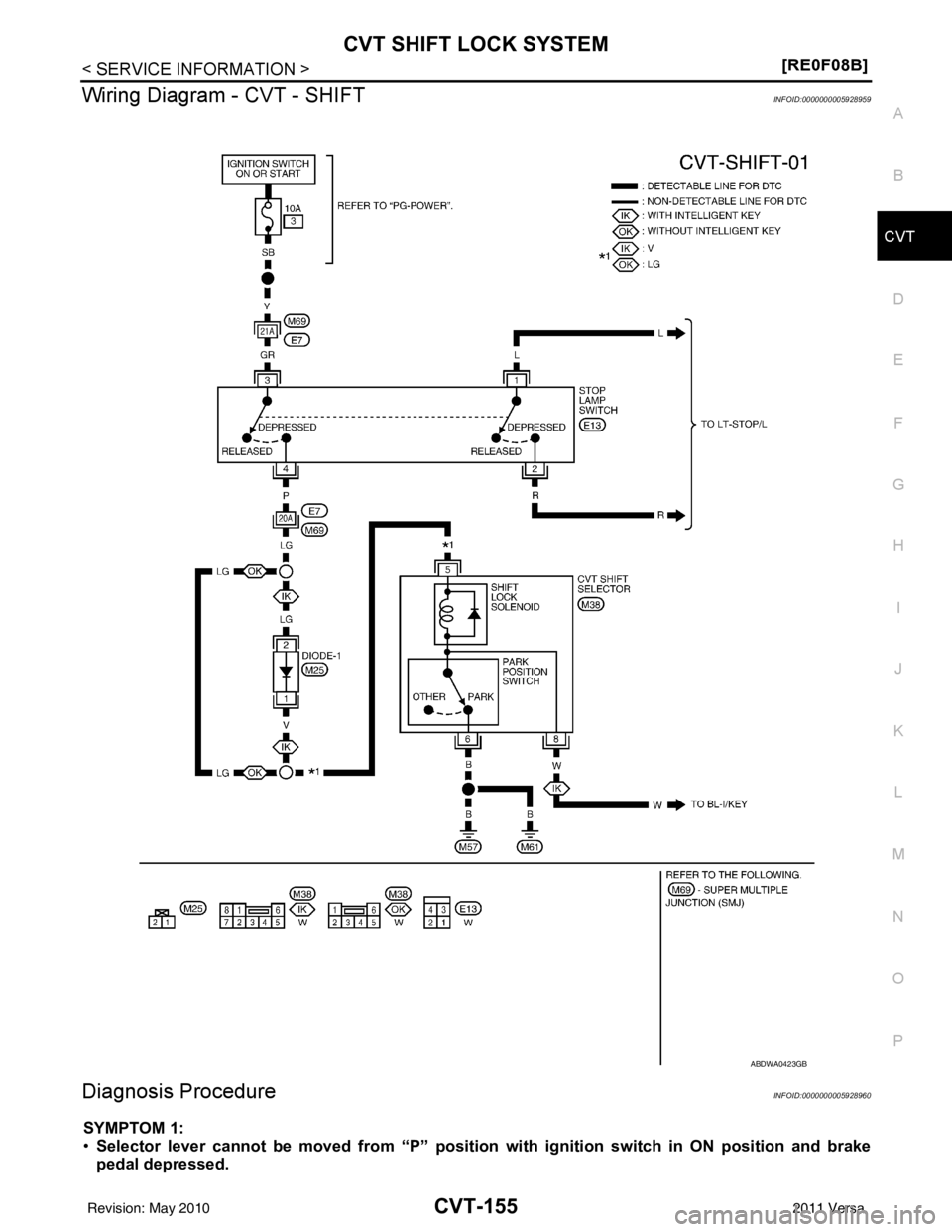

Wiring Diagram - CVT - SHIFTINFOID:0000000005928959
Diagnosis ProcedureINFOID:0000000005928960
SYMPTOM 1:
• Selector lever cannot be moved fr om “P” position with ignition switch in ON position and brake
pedal depressed.
ABDWA0423GB
Revision: May 2010 2011 Versa
Page 1211 of 3787
CVT-156
< SERVICE INFORMATION >[RE0F08B]
CVT SHIFT LOCK SYSTEM
•
Selector lever can be moved from “P” position with ignition key in ON position and brake pedal
released.
• Selector lever can be moved from “P” position when ignition switch is removed from key cylinder.
SYMPTOM 2:
• Ignition key cannot be removed when sel ector lever is set to “P” position.
• Ignition key can be removed when selector lever is set to any position except “P” position.
1.CHECK KEY INTERLOCK CABLE
Check key interlock cable for damage.
OK or NG
OK >> GO TO 2.
NG >> Repair key interlock cable. Refer to AT-219, "
Removal and Installation".
2.CHECK CVT POSITION
Check CVT position. Refer to CVT-164, "
Checking of CVT Position".
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to CVT-164, "
Adjustment of CVT Position".
3.CHECK SHIFT LOCK SOLENOID AND PARK POSITION SWITCH
1. Turn ignition switch ON. (Do not start engine.)
2. Selector lever is set in “P” position.
3. Check operation sound.
OK or NG
OK >> INSPECTION END
NG - 1 >> With intelligent key: GO TO 4.
NG - 2 >> Without intelligent key: GO TO 5.
4.CHECK POWER SOURCE
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between CVT shift selector harness connector terminal 5 and ground.
OK or NG
OK >> GO TO 8.
NG >> GO TO 6.
5.CHECK POWER SOURCE
1. Turn ignition switch ON. (Do not start engine.)
Condition Brake pedalOperation sound
When ignition switch is turned to ON position and selector lever is set in
“P” position. Depressed
Ye s
Released
Voltage:
Brake pedal depressed: Battery voltage
Brake pedal released: 0V
SCIA7934E
Revision: May 2010 2011 Versa
Page 1212 of 3787
CVT SHIFT LOCK SYSTEMCVT-157
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
2. Check voltage between CVT shift selector harness connector terminal 5 and ground.
OK or NG
OK >> GO TO 9.
NG >> GO TO 6.
6.CHECK STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check continuity between stop lamp switch terminals 3 and 4.
Check stop lamp switch after adjusting brake pedal. Refer to
BR-6
.
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7.DETECT MALFUNCTIONING ITEM
Check the following. If any items are damaged, repair or replace damaged parts.
• Harness for short or open between ignition switch and stop lamp switch harness connector
• Harness for short or open between stop lamp switch harness connector and CVT shift selector harness con-
nector
• 10A fuse [No.3, located in the fuse block (J/B)]
• Ignition switch, Refer to PG-4
.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
8.CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect CVT shift selector harness connector.
3. Check continuity between CVT shift selector harness connector terminal 6 and ground.
4. Connect CVT shift selector harness connector.
OK or NG
OK >> Replace shift lock solenoid and park position switch assembly. Refer to CVT-163, "
CVT Shift Selector Disas-
sembly and Assembly".
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9.CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect CVT shift selector harness connector. Voltage:
Brake pedal depressed: Battery voltage
Brake pedal released: 0V
SCIA7935E
Condition Continuity
When brake pedal is depressed Yes
When brake pedal is released No
AWDIA0419ZZ
Continuity should exist.
SCIA7936E
Revision: May 2010 2011 Versa
Page 1213 of 3787
CVT-158
< SERVICE INFORMATION >[RE0F08B]
CVT SHIFT LOCK SYSTEM
3. Check continuity between CVT shift selector harness connector
terminal 6 and ground.
4. Connect CVT shift selector harness connector.
OK or NG
OK >> Replace shift lock solenoid and park position switch assembly. Refer to CVT-163, "
CVT Shift Selector Disas-
sembly and Assembly".
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Continuity should exist.
SCIA7937E
Revision: May 2010
2011 Versa
Page 1214 of 3787
TCM
CVT-159
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
TCM
Removal and InstallationINFOID:0000000005928961
COMPONENTS
REMOVAL
CAUTION:
When replacing TCM and transaxle assembly as a set, replace transaxle assembly first and then
replace TCM. Refer to CVT-8, "
Service After Replacing TCM and Transaxle Assembly".
1. Disconnect the battery negative terminal.
2. Disconnect the TCM harness connector (1) from the TCM (2). • Instrument lower finisher (3)
3. Remove the TCM (2).
INSTALLATION
Installation is in the reverse order of removal.
1. TCM
SCIA6963E
SCIA7167E
Revision: May 2010 2011 Versa
Page 1215 of 3787
CVT-160
< SERVICE INFORMATION >[RE0F08B]
SHIFT CONTROL SYSTEM
SHIFT CONTROL SYSTEM
Removal and InstallationINFOID:0000000005928962
CVT SHIFT SELECTOR COMPONENTS
CONTROL CABLE COMPONENTS
Refer to the figure below for shift selector
control cable removal and installation procedure.
1. Shift selector handle2. Shift selector handle
cover 3. Shift selector handle clip
4. Overdrive control switch 5. Shift selector handle fin- isher6. Shift selector handle button
7. Shift selector button spring 8. Position indicator plate 9. Position lamp
10. Dust cover 11. Bracket12. Shift lock solenoid and park position
switch assembly
13. CVT shift selector harness con- nector 14. Plate
15. CVT shift selector assembly
WCIA0638E
Revision: May 2010 2011 Versa
Page 1216 of 3787
SHIFT CONTROL SYSTEMCVT-161
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
REMOVAL
CAUTION:
Make sure that parking brake is applie d before removal and installation.
1. Place the shift selector in the “N” position.
2. Remove the center console assembly. Refer to IP-11
.
3. Disconnect the CVT shift selector harness connector (1).
4. Remove the key interlock cable from the CVT shift selector assembly. Refer to CVT-166, "
Removal and Installation".
5. Remove the bolts (A) from the CVT shift selector assembly (1).
6. Remove exhaust front tube, center muffler and heat plates. Refer to EM-141
.
1. Shift selector handle 2. CVT shift selector assembly 3. Lock plate
4. Bracket 5. Control cable6. Bracket
7. Lock plate 8. Bracket9. Transaxle assembly
A. Floor
WCIA0639E
SCIA6965E
WCIA0609E
