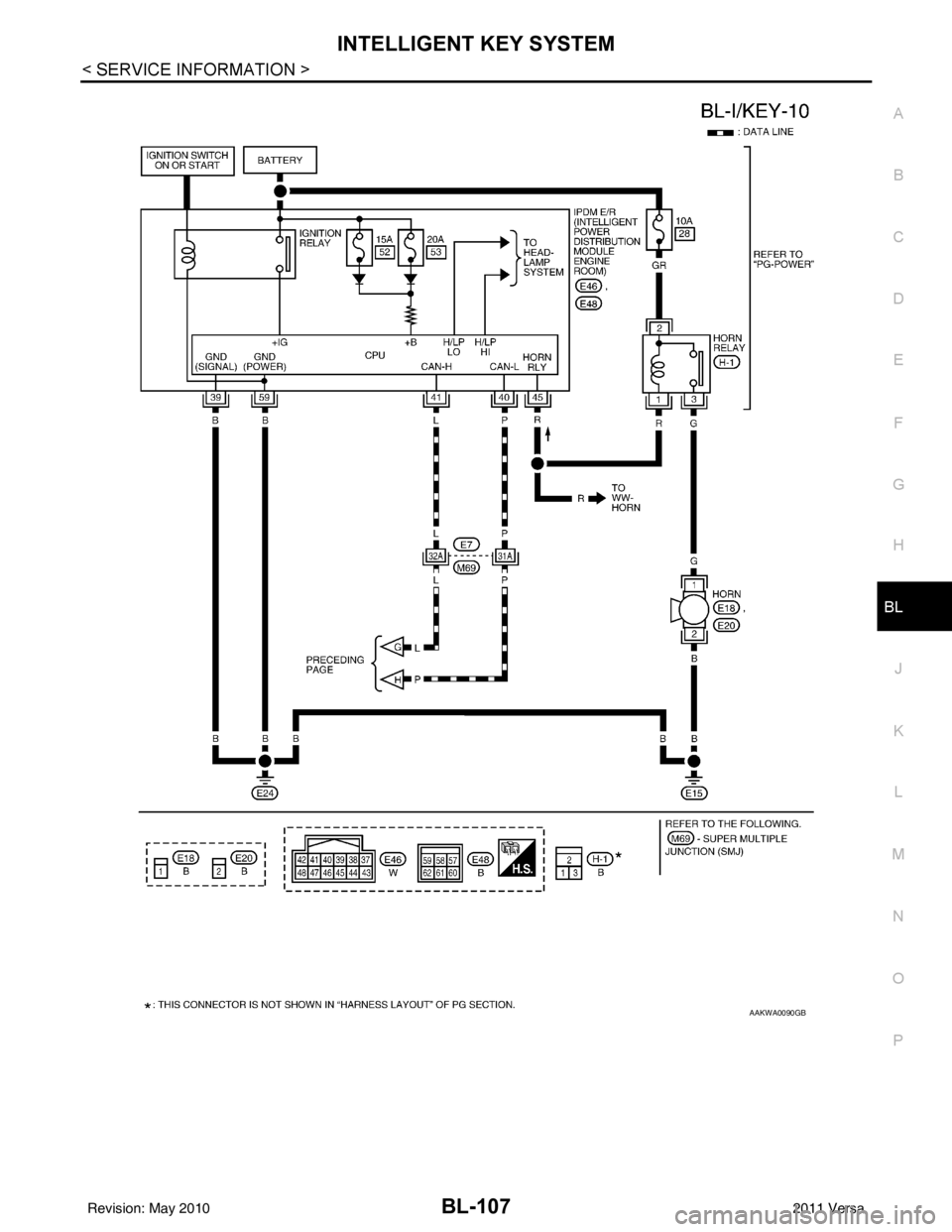

NISSAN LATIO 2011 Service Repair Manual INTELLIGENT KEY SYSTEMBL-107 < SERVICE INFORMATION > C DE F G H J K L M A B BL N O P AAKWA0090GB Revision: May 2010 2011 Versa

Page 618 of 3787

NISSAN LATIO 2011 Service Repair Manual BL-108 < SERVICE INFORMATION > INTELLIGENT KEY SYSTEM Intelligent Key Unit Harnes s Connector Terminal Layout INFOID:0000000005929332 Terminal and Reference Value for Intelligent Key UnitINFOID:000000

Page 619 of 3787

NISSAN LATIO 2011 Service Repair Manual INTELLIGENT KEY SYSTEMBL-109 < SERVICE INFORMATION > C DE F G H J K L M A B BL N O P 17 W Rear bumper antenna (+) signal LOCK Press back door request switch. 18 B Rear bumper antenna (-) signal 19 V

Page 620 of 3787

NISSAN LATIO 2011 Service Repair Manual BL-110 < SERVICE INFORMATION > INTELLIGENT KEY SYSTEM *1: With continuously variable transmission (CVT) or automatic transmission (A/T). *2: With manual transmission (M/T). Steering Lock Solenoid Harn

Page 621 of 3787

NISSAN LATIO 2011 Service Repair Manual INTELLIGENT KEY SYSTEMBL-111 < SERVICE INFORMATION > C DE F G H J K L M A B BL N O P Terminal and Reference Value for BCMINFOID:0000000006215772 Te r m i n a l Wire color Signal name Signal input/ o

Page 622 of 3787

NISSAN LATIO 2011 Service Repair Manual BL-112 < SERVICE INFORMATION > INTELLIGENT KEY SYSTEM 15 WTire pressure warning check connector Input OFF —5V 18 V Remote keyless entry receiver (ground) Output OFF —0V 19 BR Remote keyless entr

Page 623 of 3787

NISSAN LATIO 2011 Service Repair Manual INTELLIGENT KEY SYSTEMBL-113 < SERVICE INFORMATION > C DE F G H J K L M A B BL N O P 301LG Back door/trunk lid in- put Input —Back door/trunk lid opener switch ON (closed) Battery voltage ↓0 ↓

Page 624 of 3787

NISSAN LATIO 2011 Service Repair Manual BL-114 < SERVICE INFORMATION > INTELLIGENT KEY SYSTEM 426Y Trunk lamp switch Input OFFON (trunk open) 0V OFF (trunk closed) Battery voltage 43 5R Back door switch Input OFF ON (open) 0V OFF (closed) B
