Page 2217 of 3787
DTC P1226 TP SENSOREC-923
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P1226 TP SENSOR
Component DescriptionINFOID:0000000006342113
Electric throttle control actuator
consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has two sensors. These sensors are a
kind of potentiometers which transform the throttle valve position into
output voltage, and emit the voltage signal to the ECM. In addition,
these sensors detect the opening and closing speed of the throttle
valve and feed the voltage signals to the ECM. The ECM judges the
current opening angle of the throttle valve from these signals and the
ECM controls the throttle control motor to make the throttle valve
opening angle properly in response to driving condition.
On Board Diagnosis LogicINFOID:0000000006342114
The MIL will not light up for this diagnosis.
DTC Confirmation ProcedureINFOID:0000000006342115
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10 V at idle.
1. Turn ignition switch ON.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Repeat steps 3 and 4 for 32 times.
5. Check 1st trip DTC.
6. If 1st trip DTC is detected, go to EC-923, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000006342116
1.CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch OFF.
2. Remove the intake air duct.
3. Check if foreign matter is c aught between the throttle valve (1)
and the housing.
- : Vehicle front
OK or NG
OK >> GO TO 2.
NG >> Remove the foreign matter and clean the electric throttle control actuator inside.
2.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-580, "
Throttle Valve Closed Position Learning".
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1226
1226 Closed throttle position
learning performance Closed throttle position learning is not per-
formed successfully, repeatedly. • Electric throttle control actuator
(TP sensor 1 and 2)
BBIA0711E
Revision: May 2010 2011 Versa
Page 2218 of 3787
EC-924
< SERVICE INFORMATION >[MR18DE]
DTC P1226 TP SENSOR
3. Perform
EC-580, "Idle Air Volume Learning".
>> INSPECTION END
Removal and InstallationINFOID:0000000006342117
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-137, "Removal and Installation".
Revision: May 2010 2011 Versa
Page 2219 of 3787
DTC P1564 ASCD STEERING SWITCHEC-925
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P1564 ASCD STEERING SWITCH
Component DescriptionINFOID:0000000006342122
ASCD steering switch has variant values of electrical
resistance for each button. ECM reads voltage variation
of switch, and determines which button is operated.
Refer to EC-523
for the ASCD function.
CONSULT-III Reference Val ue in Data Monitor ModeINFOID:0000000006342123
Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000006342124
This self-diagnosis has the on e trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-895
.

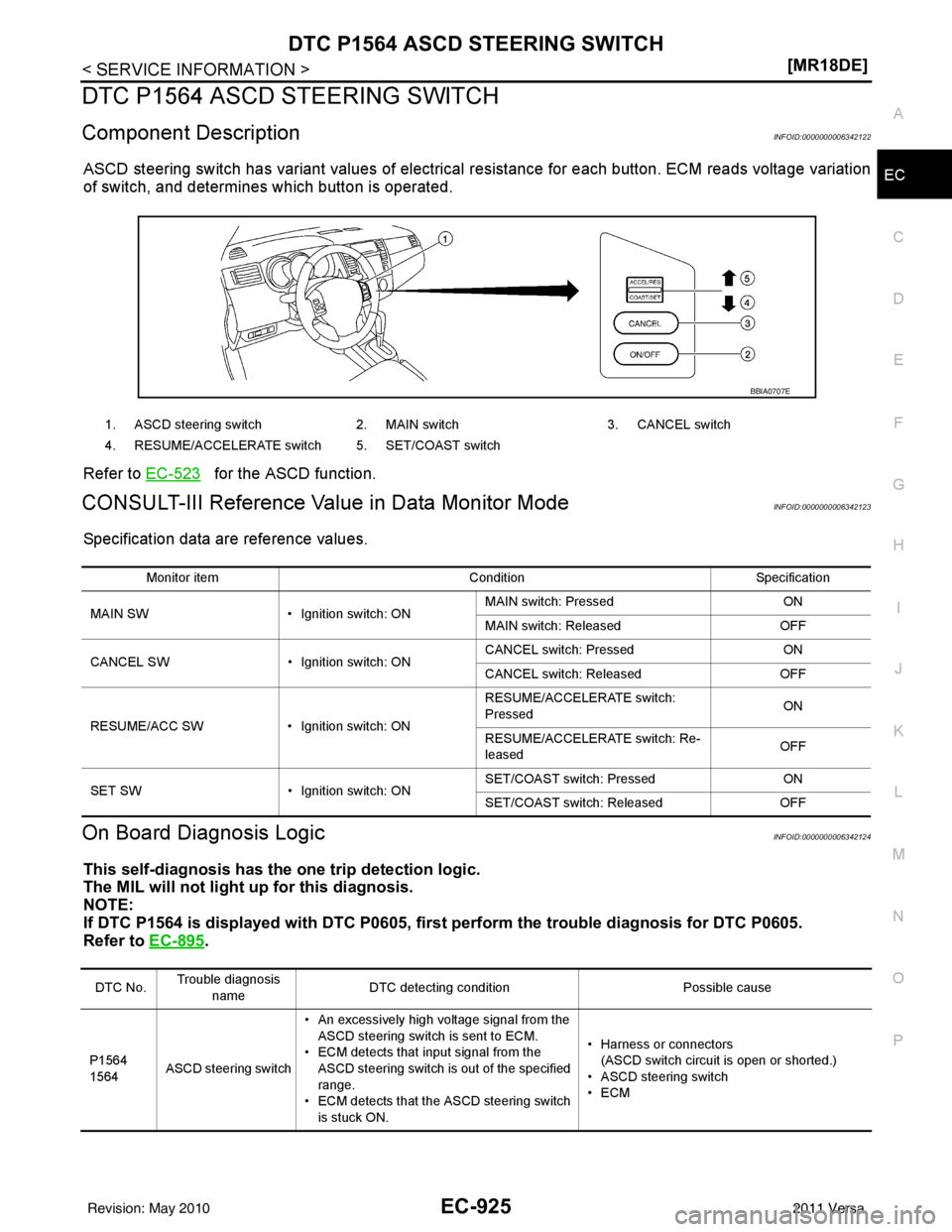

1. ASCD steering switch 2. MAIN switch3. CANCEL switch
4. RESUME/ACCELERATE switch 5. SET/COAST switch
BBIA0707E
Monitor item ConditionSpecification
MAIN SW • Ignition switch: ON MAIN switch: Pressed
ON
MAIN switch: Released OFF
CANCEL SW • Ignition switch: ONCANCEL switch: Pressed
ON
CANCEL switch: Released OFF
RESUME/ACC SW • Ignition switch: ON RESUME/ACCELERATE switch:
Pressed
ON
RESUME/ACCELERATE switch: Re-
leased OFF
SET SW • Ignition switch: ON SET/COAST switch: Pressed
ON
SET/COAST switch: Released OFF
DTC No.Trouble diagnosis
name DTC detecting condition
Possible cause
P1564
1564 ASCD steering switch • An excessively high voltage signal from the
ASCD steering switch is sent to ECM.
• ECM detects that input signal from the
ASCD steering switch is out of the specified
range.
• ECM detects that the ASCD steering switch
is stuck ON. • Harness or connectors
(ASCD switch circuit is open or shorted.)
• ASCD steering switch
•ECM
Revision: May 2010 2011 Versa
Page 2220 of 3787
EC-926
< SERVICE INFORMATION >[MR18DE]
DTC P1564 ASCD STEERING SWITCH
DTC Confirmation Procedure
INFOID:0000000006342125
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
1. Turn ignition switch ON and wait at least 10 seconds.
2. Press MAIN switch for at least 10 seconds, then release it and wait at least 10 seconds.
3. Press CANCEL switch for at least 10 seconds, then release it and wait at least 10 seconds.
4. Press RESUME/ACCELERATE switch for at least 10 seconds, then release it and wait at least 10 sec-
onds.
5. Press SET/COAST switch for at least 10 seconds , then release it and wait at least 10 seconds.
6. Check DTC.
7. If DTC is detected, go to EC-928, "
Diagnosis Procedure".
Revision: May 2010 2011 Versa
Page 2221 of 3787
DTC P1564 ASCD STEERING SWITCHEC-927
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

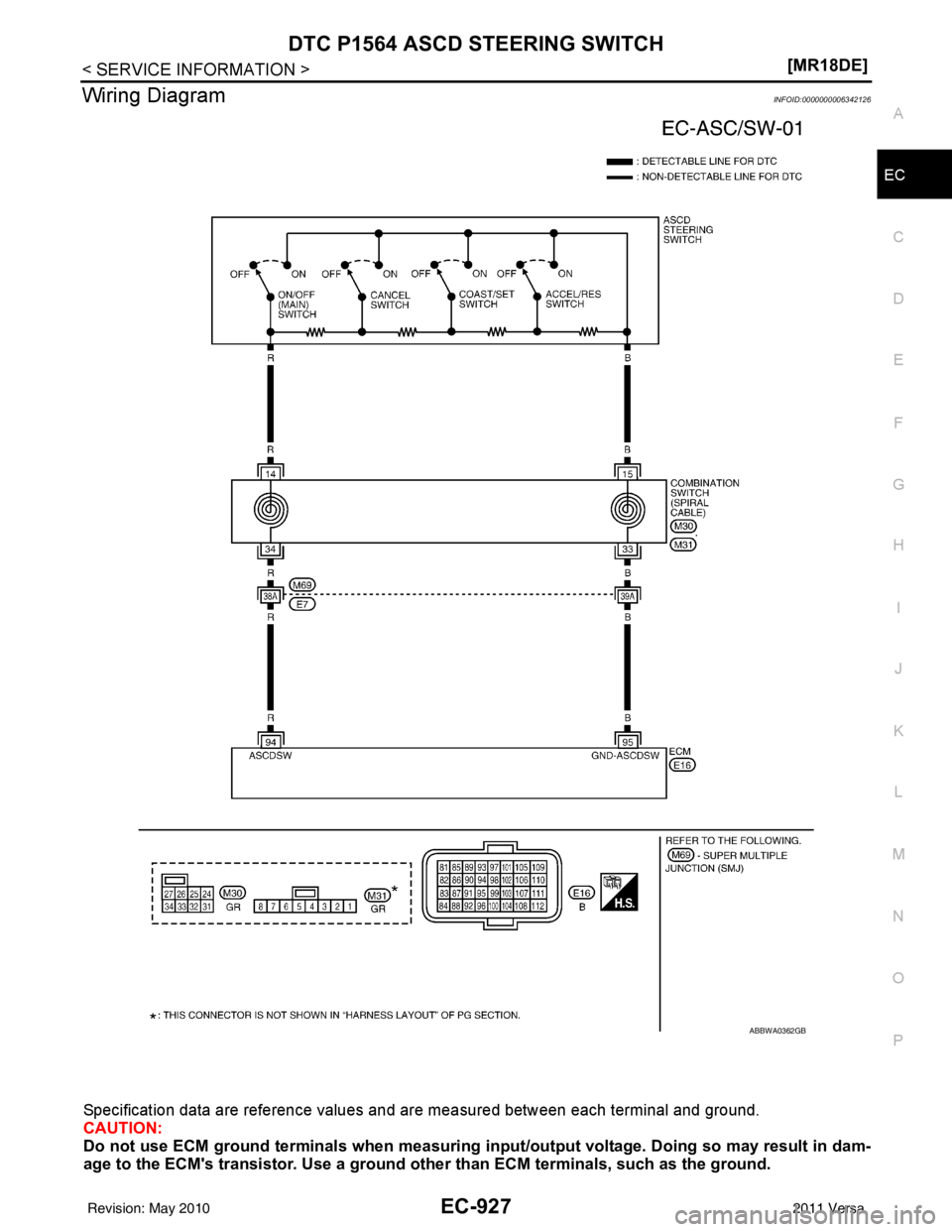

Wiring DiagramINFOID:0000000006342126
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals wh
en measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
ABBWA0362GB
Revision: May 2010 2011 Versa
Page 2222 of 3787
EC-928
< SERVICE INFORMATION >[MR18DE]
DTC P1564 ASCD STEERING SWITCH
Diagnosis Procedure
INFOID:0000000006342127
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body. Refer to EC-638, "
Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK ASCD STEERING SWITCH CIRCUIT
With CONSULT-III
1. Turn ignition switch ON.
2. Select “MAIN SW”, “RESUME/ACC SW”, “SET SW and “CANCEL SW” in “DATA MONITOR” mode with
CONSULT-III.
3. Check each item indication under the following conditions.
TERMI-
NAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
94 R ASCD steering switch [Ignition switch: ON]
• ASCD steering switch: OFF
Approximately 4 V
[Ignition switch: ON]
• MAIN switch: Pressed Approximately 0 V
[Ignition switch: ON]
• CANCEL switch: Pressed Approximately 1 V
[Ignition switch: ON]
• RESUME/ACCELERATE switch: Pressed Approximately 3 V
[Ignition switch: ON]
• SET/COAST switch: Pressed Approximately 2 V
95 B Sensor ground [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
:
Vehicle front
1. Body ground E24 2. Engine ground F93. Engine ground F16
4. Body ground E15
BBIA0698E
Switch Monitor item Condition Indication
MAIN switch MAIN SW Pressed
ON
Released OFF
CANCEL switch CANCEL SW Pressed
ON
Released OFF
Revision: May 2010 2011 Versa
Page 2223 of 3787
DTC P1564 ASCD STEERING SWITCHEC-929
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Without CONSULT-III
1. Turn ignition switch ON.

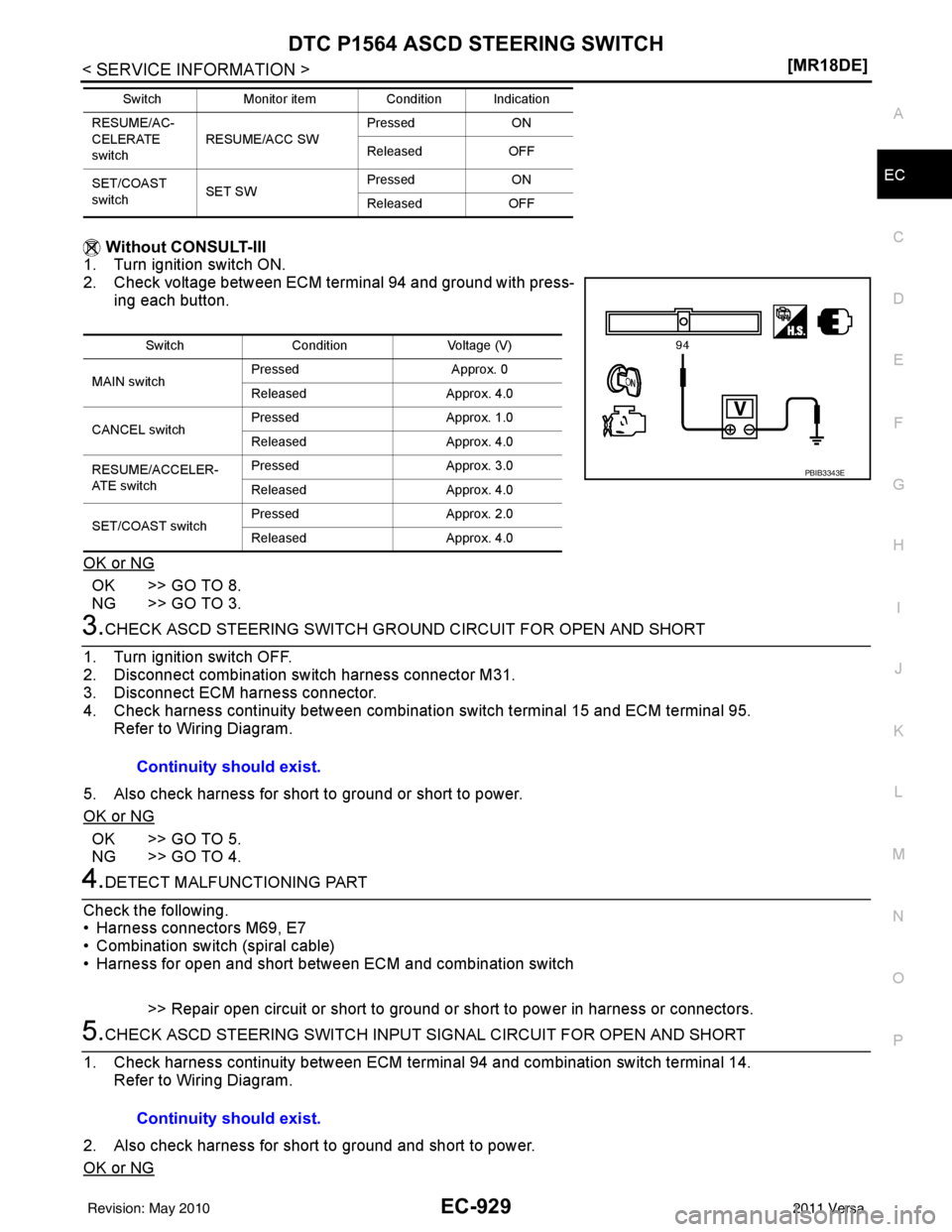

2. Check voltage between ECM terminal 94 and ground with press- ing each button.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
3.CHECK ASCD STEERING SWITCH GRO UND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect combination switch harness connector M31.
3. Disconnect ECM harness connector.
4. Check harness continuity between combinati on switch terminal 15 and ECM terminal 95.
Refer to Wiring Diagram.
5. Also check harness for short to ground or short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors M69, E7
• Combination switch (spiral cable)
• Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK ASCD STEERING SWITCH INPUT S IGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 94 and combination switch terminal 14. Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
RESUME/AC-
CELERATE
switch RESUME/ACC SW
Pressed
ON
Released OFF
SET/COAST
switch SET SW Pressed
ON
Released OFF
Switch
Monitor item Condition Indication
Switch Condition Voltage (V)
MAIN switch Pressed
Approx. 0
Released Approx. 4.0
CANCEL switch Pressed
Approx. 1.0
Released Approx. 4.0
RESUME/ACCELER-
ATE switch Pressed
Approx. 3.0
Released Approx. 4.0
SET/COAST switch Pressed
Approx. 2.0
Released Approx. 4.0
PBIB3343E
Continuity should exist.
Continuity should exist.
Revision: May 2010 2011 Versa
Page 2224 of 3787
EC-930
< SERVICE INFORMATION >[MR18DE]
DTC P1564 ASCD STEERING SWITCH
OK >> GO TO 7.
NG >> GO TO 6.
6.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors M69, E7
• Combination switch (spiral cable)
• Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK ASCD STEERING SWITCH
Refer to EC-930, "
Component Inspection".
OK or NG
OK >> GO TO 8.
NG >> Replace ASCD steering switch.
8.CHECK INTERMITTENT INCIDENT
Refer to EC-632
.
>> INSPECTION END
Component InspectionINFOID:0000000006342128
ASCD STEERING SWITCH
1. Disconnect combination switch (spiral cable) harness connector M31.
2. Check continuity between combination switch (spiral cable) ter-
minals 14 and 15 with pushing each switch.
If NG, replace ASCD steering switch.
Switch ConditionResistance (Ω)
MAIN switch Pressed
Approx. 0
Released Approx. 4,000
CANCEL switch Pressed
Approx. 250
Released Approx. 4,000
RESUME/ACCELERATE
switch Pressed
Approx. 1,480
Released Approx. 4,000
SET/COAST switch Pressed
Approx. 660
Released Approx. 4,000
PBIB2549E
Revision: May 2010 2011 Versa
