Page 1737 of 4171

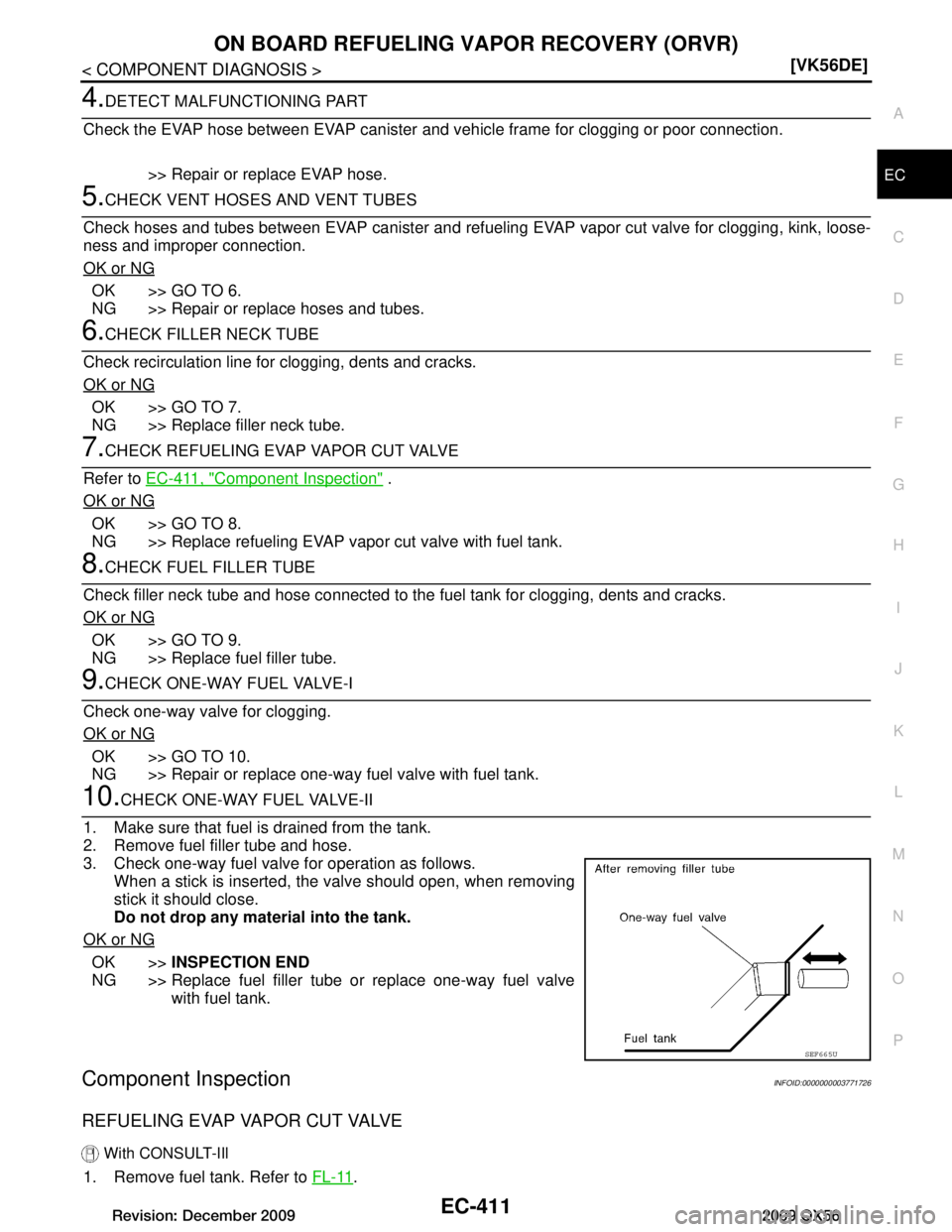

INFINITI QX56 2009 Factory Service Manual EC-410 < COMPONENT DIAGNOSIS >[VK56DE] ON BOARD REFUELING VAPOR RECOVERY (ORVR) Does water drain from the EVAP canister? Ye s o r N o Ye s > > G O T O 3 . No >> GO TO 5. 3.REPLACE EVAP CANISTER R

Page 1738 of 4171

INFINITI QX56 2009 Factory Service Manual ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-411 < COMPONENT DIAGNOSIS > [VK56DE] C D E F G H I J K L M A EC NP O 4.DETECT MALFUNCTIONING PART Check the EVAP hose between EVAP canister and vehicle fra

Page 1739 of 4171

INFINITI QX56 2009 Factory Service Manual EC-412 < COMPONENT DIAGNOSIS >[VK56DE] ON BOARD REFUELING VAPOR RECOVERY (ORVR) 2. Drain fuel from the tank as follows: a. Remove fuel feed hose located on the fuel gauge retainer. b. Connect a spar

Page 1740 of 4171

INFINITI QX56 2009 Factory Service Manual ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-413 < COMPONENT DIAGNOSIS > [VK56DE] C D E F G H I J K L M A EC NP O d. Apply vacuum pressure to hose end [ −13.3 kPa ( −100 mmHg, −3.94 inHg)] with

Page 1741 of 4171

INFINITI QX56 2009 Factory Service Manual EC-414 < COMPONENT DIAGNOSIS >[VK56DE] POSITIVE CRANKCASE VENTILATION POSITIVE CRANKCASE VENTILATION DescriptionINFOID:0000000003771727 SYSTEM DESCRIPTION This system returns blow-by gas to the intak

Page 1742 of 4171

INFINITI QX56 2009 Factory Service Manual POSITIVE CRANKCASE VENTILATIONEC-415 < COMPONENT DIAGNOSIS > [VK56DE] C D E F G H I J K L M A EC NP O 1. Check hoses and hose connections for leaks. 2. Disconnect all hoses and clean with compressed

Page 1743 of 4171

INFINITI QX56 2009 Factory Service Manual EC-416 < COMPONENT DIAGNOSIS >[VK56DE] REFRIGERANT PRESSURE SENSOR REFRIGERANT PRESSURE SENSOR Component DescriptionINFOID:0000000003771729 The refrigerant pressure sensor is installed at the conden

Page 1744 of 4171

INFINITI QX56 2009 Factory Service Manual REFRIGERANT PRESSURE SENSOREC-417 < COMPONENT DIAGNOSIS > [VK56DE] C D E F G H I J K L M A EC NP O Refer to EC-85, "Ground Inspection". OK or NG OK >> GO TO 3. NG >> Repair or replace ground connect
