INFINITI QX56 2009 Factory Service Manual MWI
BCM (BODY CONTROL MODULE)MWI-71
< ECU DIAGNOSIS >
C
DE
F
G H
I
J
K L
M B A
O P
58 W/R Optical sensor Input ONWhen optical sensor is illumi-
nated
3.1V or more
When optical sensor is not illu-
mina

Page 2794 of 4171

INFINITI QX56 2009 Factory Service Manual MWI-72
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)
Wiring Diagram
INFOID:0000000004225398
ABMWA0014GB
Revision: December 20092009 QX56

Page 2795 of 4171

INFINITI QX56 2009 Factory Service Manual MWI
BCM (BODY CONTROL MODULE)MWI-73
< ECU DIAGNOSIS >
C
DE
F
G H
I
J
K L
M B A
O P

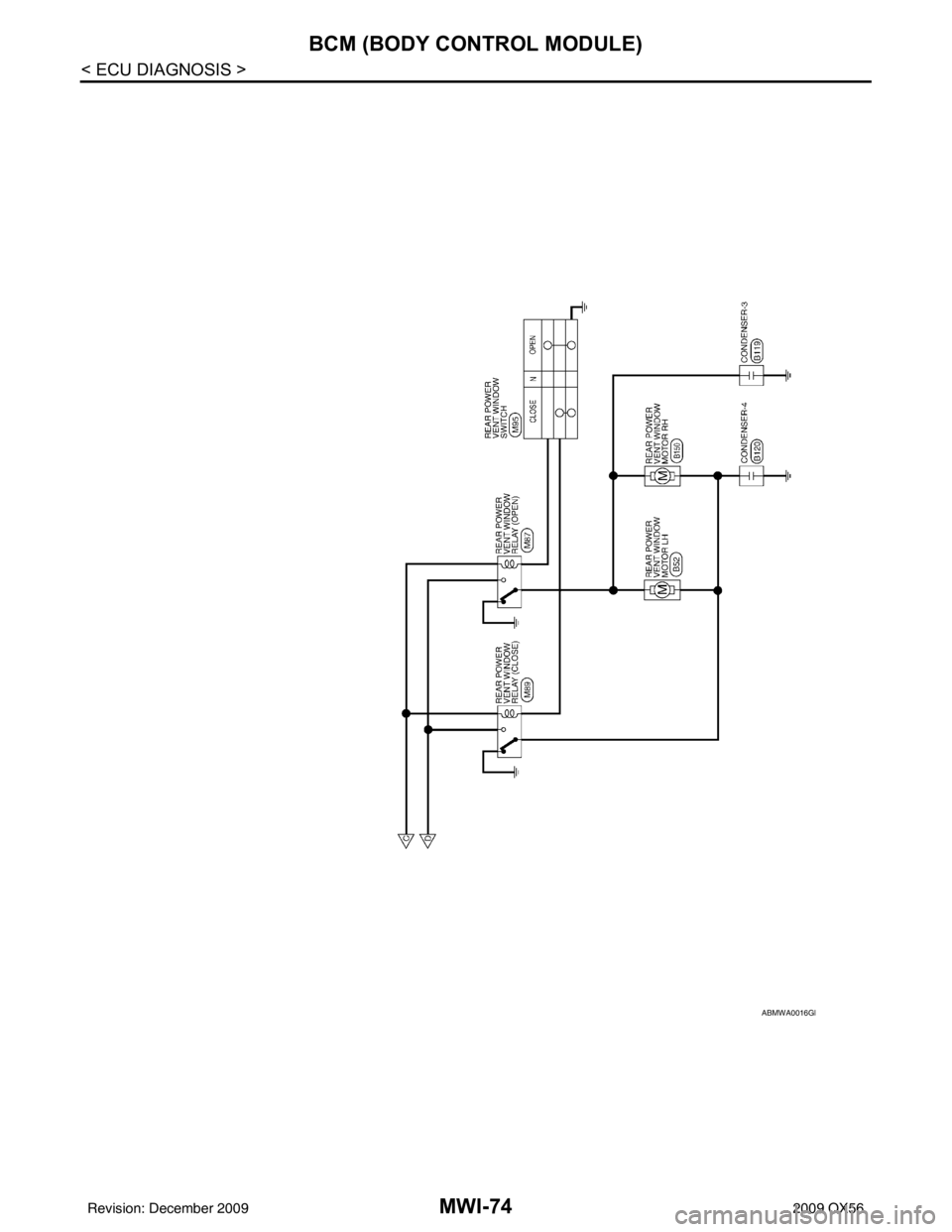

ABMWA0015GB
Revision: December 20092009 QX56

Page 2796 of 4171

INFINITI QX56 2009 Factory Service Manual MWI-74
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)

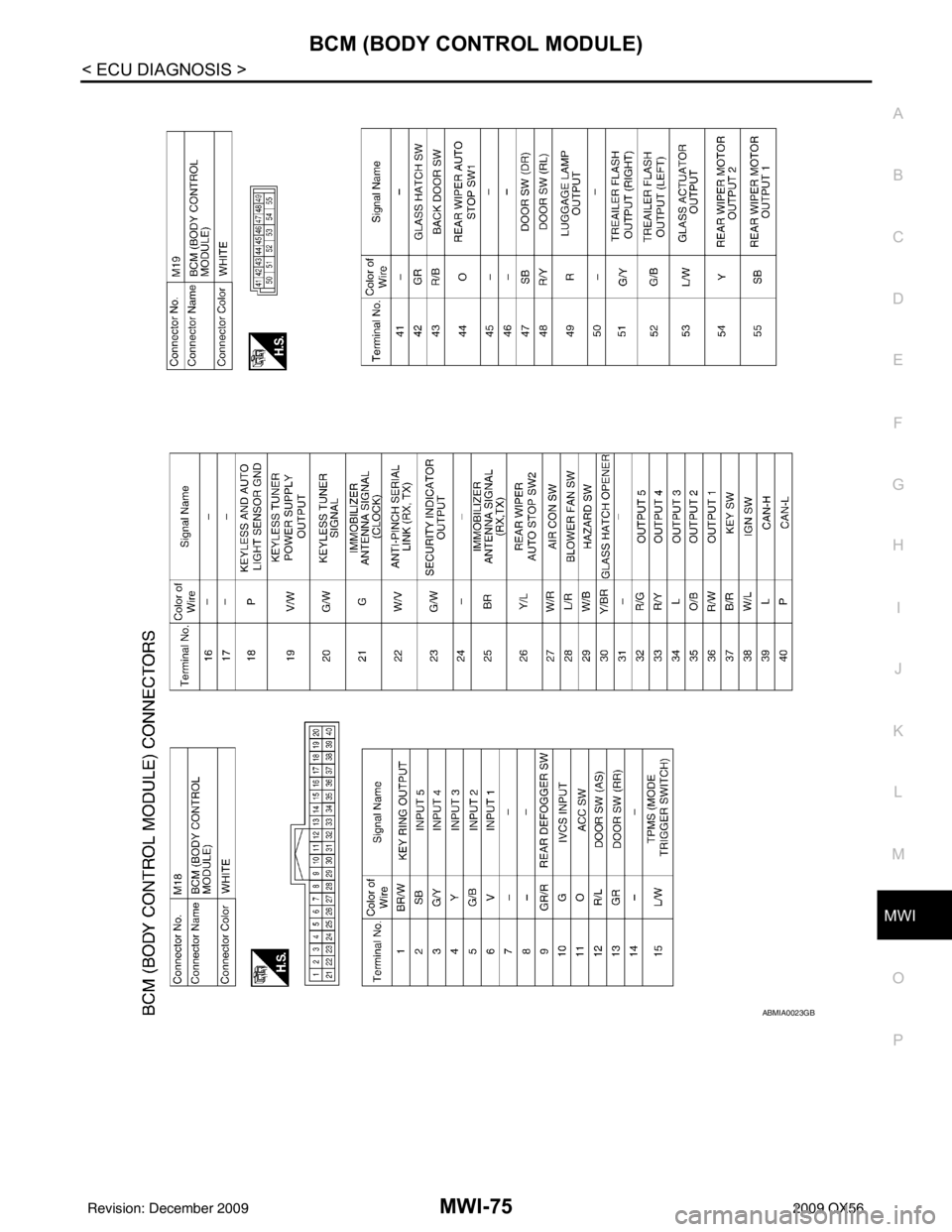

ABMWA0016GB
Revision: December 20092009 QX56

Page 2797 of 4171

INFINITI QX56 2009 Factory Service Manual MWI
BCM (BODY CONTROL MODULE)MWI-75
< ECU DIAGNOSIS >
C
DE
F
G H
I
J
K L
M B A
O P

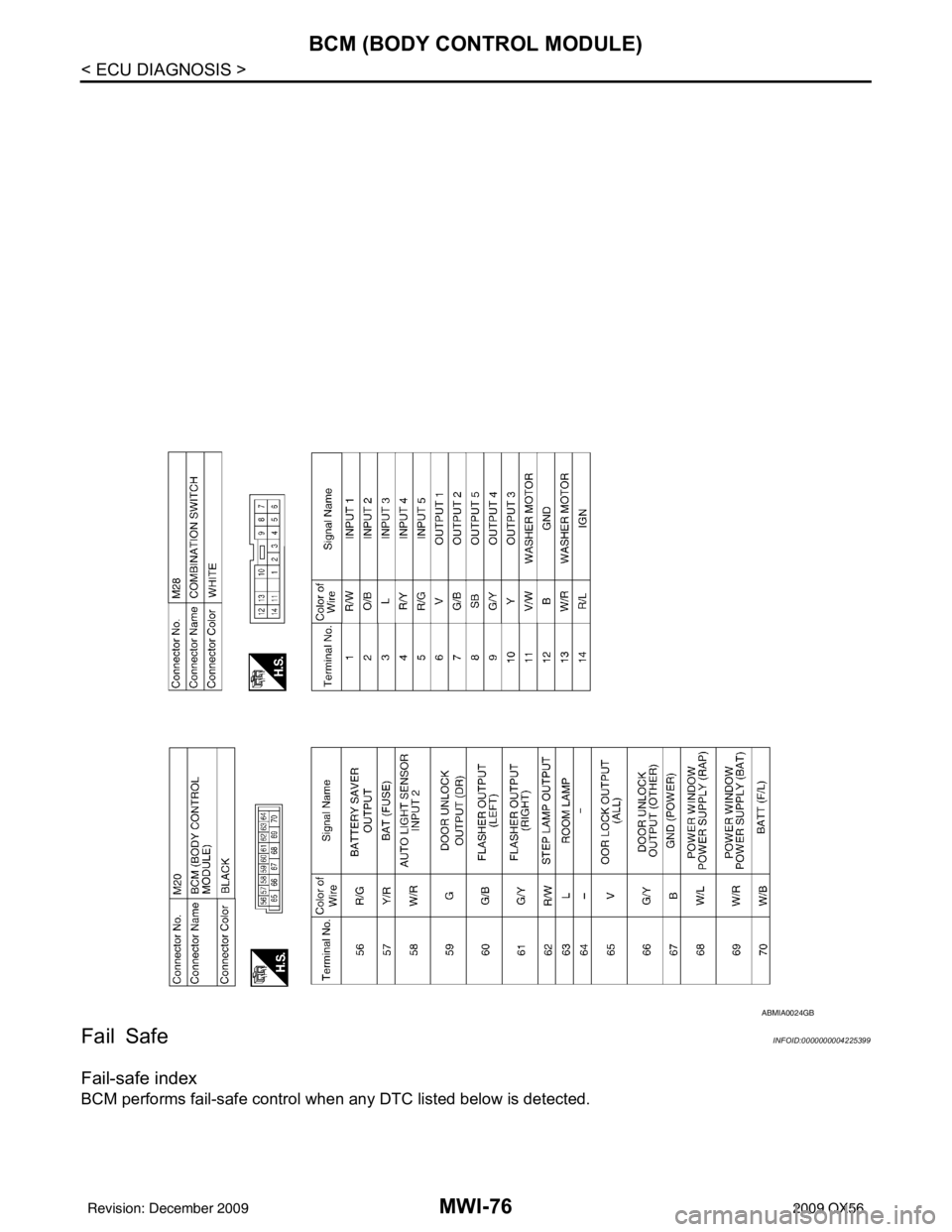

ABMIA0023GB
Revision: December 20092009 QX56

Page 2798 of 4171

INFINITI QX56 2009 Factory Service Manual MWI-76
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)
Fail Safe
INFOID:0000000004225399
Fail-safe index
BCM performs fail-safe control when any DTC listed below is detected.
ABMIA0024GB
Revision: Decembe

Page 2799 of 4171

INFINITI QX56 2009 Factory Service Manual MWI
BCM (BODY CONTROL MODULE)MWI-77
< ECU DIAGNOSIS >
C
DE
F
G H
I
J
K L
M B A
O P
DTC Inspection Priority ChartINFOID:0000000004225400
If some DTCs are displayed at the same time, perform inspections

MWI
BCM (BODY CONTROL MODULE)MWI-77
< ECU DIAGNOSIS >
C
DE
F
G H
I
J
K L
M B A
O P
DTC Inspection Priority ChartINFOID:0000000004225400
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
DTC IndexINFOID:0000000004225401
NOTE: Details of time display
• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-
tion switch OFF → ON again.
• 1 - 39: Displayed if any previous ma lfunction is present when current conditi on is normal. It increases like 1
→ 2 → 3...38 → 39 after returning to the normal condition whenever ignition switch OFF → ON. The counter
remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
OFF → ON after returning to the normal condi tion if the malfunction is detected again.
Display contents of CONSULT Fail-safe Cancellation
U1000: CAN COMM CIRCUIT I nhibit engine crankingWhen the BCM re-establishes communication with the other mod-
ules.
U1010: CONTROL UNIT (CAN) Inhibit engine cranking When the BCM re-start communicating with the other modules.
Priority DTC
1 • U1000: CAN COMM CIRCUIT
• U1010: CONTROL UNIT (CAN)
2 • B2190: NATS ANTENNA AMP
• B2191: DIFFERENCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM
• B2013: STRG COMM 1
• B2552: INTELLIGENT KEY
• B2590: NATS MALFUNCTION
3 • C1729: VHCL SPEED SIG ERR
• C1735: IGNITION SIGNAL
4 • C1704: LOW PRESSURE FL
• C1705: LOW PRESSURE FR
• C1706: LOW PRESSURE RR
• C1707: LOW PRESSURE RL
• C1708: [NO DATA] FL
• C1709: [NO DATA] FR
• C1710: [NO DATA] RR
• C1711: [NO DATA] RL
• C1712: [CHECKSUM ERR] FL
• C1713: [CHECKSUM ERR] FR
• C1714: [CHECKSUM ERR] RR
• C1715: [CHECKSUM ERR] RL
• C1716: [PRESSDATA ERR] FL
• C1717: [PRESSDATA ERR] FR
• C1718: [PRESSDATA ERR] RR
• C1719: [PRESSDATA ERR] RL
• C1720: [CODE ERR] FL
• C1721: [CODE ERR] FR
• C1722: [CODE ERR] RR
• C1723: [CODE ERR] RL
• C1724: [BATT VOLT LOW] FL
• C1725: [BATT VOLT LOW] FR
• C1726: [BATT VOLT LOW] RR
• C1727: [BATT VOLT LOW] RL
Revision: December 20092009 QX56

Page 2800 of 4171

INFINITI QX56 2009 Factory Service Manual MWI-78
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)
CONSULT displayFail-safeIntelligent Key
warning lamp ON Tire pressure
monitor warning lamp ON Reference page
No DTC is detected.
further testing
