Page 3297 of 4171

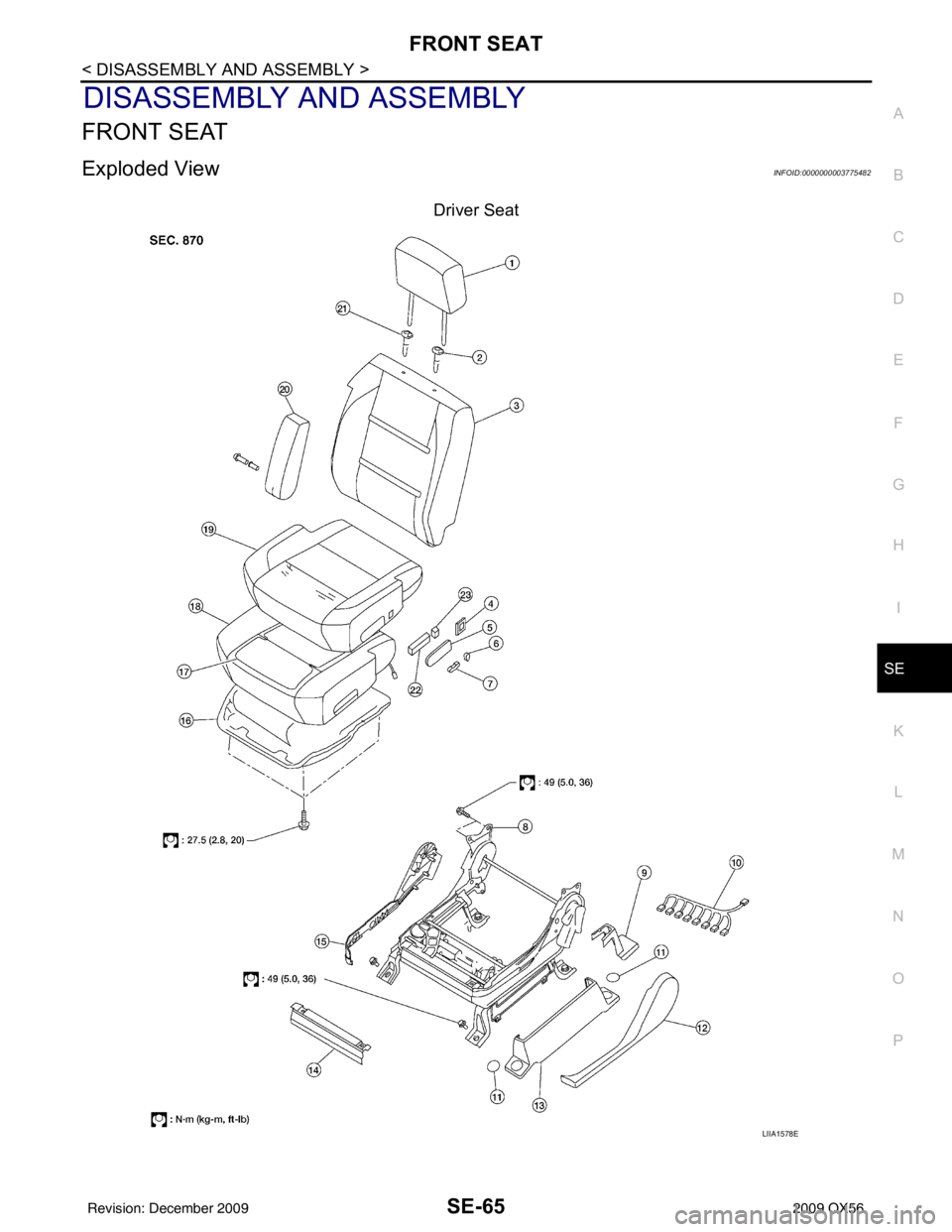

INFINITI QX56 2009 Factory Service Manual FRONT SEATSE-65 < DISASSEMBLY AND ASSEMBLY > C DE F G H I K L M A B SE N O P DISASSEMBLY AND ASSEMBLY FRONT SEAT Exploded ViewINFOID:0000000003775482 Driver Seat LIIA1578E Revision: December 20092009

Page 3298 of 4171

INFINITI QX56 2009 Factory Service Manual SE-66 < DISASSEMBLY AND ASSEMBLY > FRONT SEAT 1. Headrest2. Headrest holder with multi-position lock 3. Seatback assembly 4. Lumbar switch bezel 5. Power seat switch escutcheon 6. Recliner switch

Page 3299 of 4171

INFINITI QX56 2009 Factory Service Manual FRONT SEATSE-67 < DISASSEMBLY AND ASSEMBLY > C DE F G H I K L M A B SE N O P Passenger Seat WIIA0476E 1. Headrest 2. Headrest holder with multi-position lock 3. Seatback board 4. Armrest assembly 5

Page 3300 of 4171

INFINITI QX56 2009 Factory Service Manual SE-68 < DISASSEMBLY AND ASSEMBLY > FRONT SEAT Disassembly and Assembly INFOID:0000000003775483 SEATBACK TRIM AND PAD WARNING: Removal of front side air bag module should only be done to allow deployme

Page 3301 of 4171

INFINITI QX56 2009 Factory Service Manual FRONT SEATSE-69 < DISASSEMBLY AND ASSEMBLY > C DE F G H I K L M A B SE N O P 3. Remove the retainer. 4. From inside of the seatback, squeeze the headrest holder tabs at the base of the stay pipe and

Page 3302 of 4171

INFINITI QX56 2009 Factory Service Manual SE-70 < DISASSEMBLY AND ASSEMBLY > FRONT SEAT 3. Remove four bolts and the seat cushion assembly. 4. Remove the retainer on the seat cushion frame, then remove the harness connector for the seat heate

Page 3303 of 4171

INFINITI QX56 2009 Factory Service Manual SECOND SEATSE-71 < DISASSEMBLY AND ASSEMBLY > C DE F G H I K L M A B SE N O P SECOND SEAT Disassembly and AssemblyINFOID:0000000003775484 Second Row RH WIIA1013E 1. Headrest 2. Seatback pad 3. Seatba

Page 3304 of 4171

INFINITI QX56 2009 Factory Service Manual SE-72 < DISASSEMBLY AND ASSEMBLY > SECOND SEAT 10. Reclining device inner mid cover 11. Armrest assembly12. Armrest bolt cover 13. Armrest trim cover 14. Latch assembly 15. Seat cushion mat springs 16
