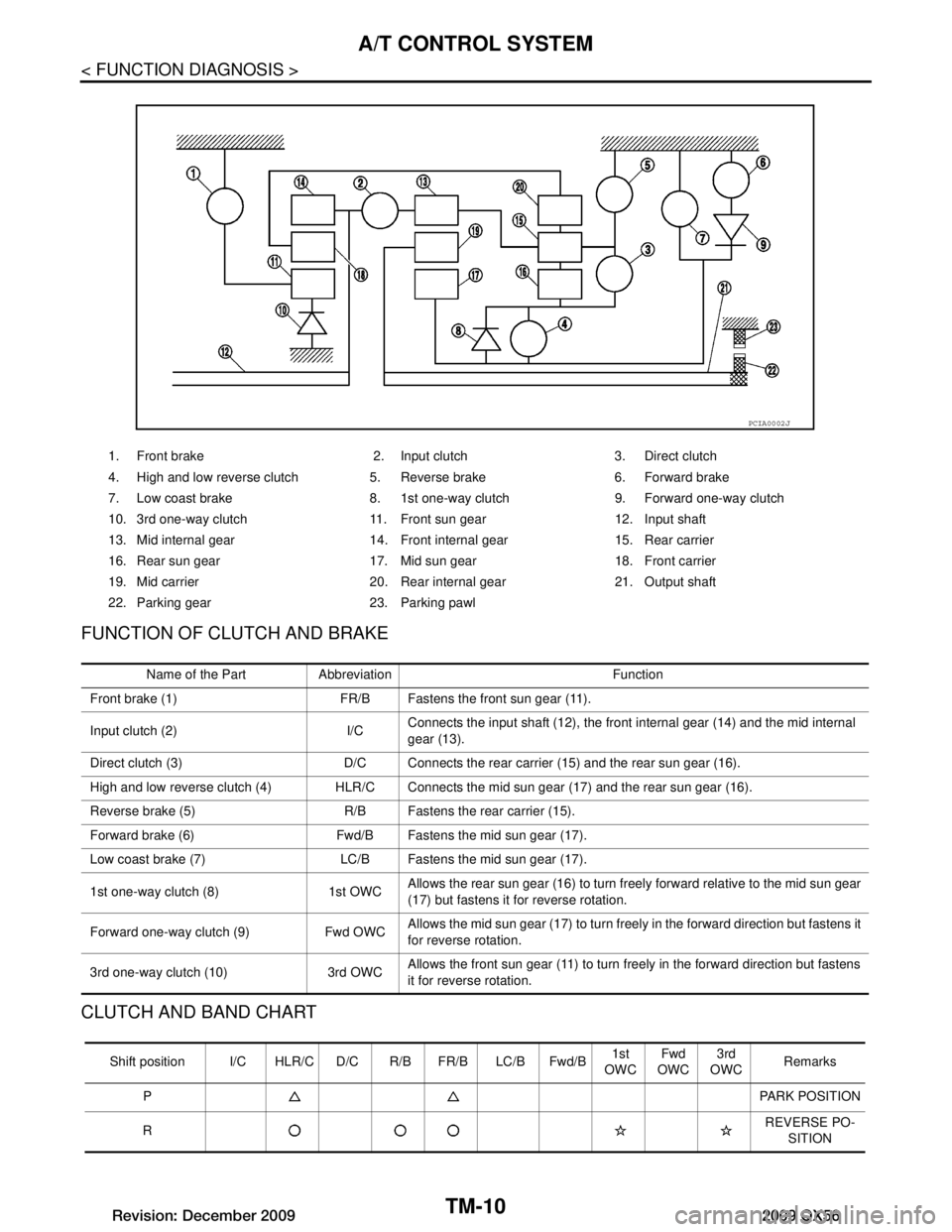

Page 3657 of 4171

INFINITI QX56 2009 Factory Service Manual A/T CONTROL SYSTEMTM-9 < FUNCTION DIAGNOSIS > CEF G H I J K L M A B TM N O P Cross-Sectional View (4WD models)INFOID:0000000003771806 Shift MechanismINFOID:0000000003771807 The automatic transmission

Page 3658 of 4171

INFINITI QX56 2009 Factory Service Manual TM-10 < FUNCTION DIAGNOSIS > A/T CONTROL SYSTEM FUNCTION OF CLUTCH AND BRAKE CLUTCH AND BAND CHART 1. Front brake 2. Input clutch 3. Direct clutch 4. High and low reverse clutch 5. Reverse brake 6

Page 3659 of 4171

INFINITI QX56 2009 Factory Service Manual A/T CONTROL SYSTEMTM-11 < FUNCTION DIAGNOSIS > CEF G H I J K L M A B TM N O P  —Operates  —Operates during “pro gressive” acceleration.  —Operates and effects power transmission while co

Page 3660 of 4171

INFINITI QX56 2009 Factory Service Manual TM-12 < FUNCTION DIAGNOSIS > A/T CONTROL SYSTEM Since both the forward brake and the reverse brake are released, torque from the input shaft drive is not trans- mitted to the output shaft. “P” Po

Page 3661 of 4171

INFINITI QX56 2009 Factory Service Manual A/T CONTROL SYSTEMTM-13 < FUNCTION DIAGNOSIS > CEF G H I J K L M A B TM N O P “1” Position 1GR  The front brake fastens the front sun gear.  The forward brake and the forward one-way clutch re

Page 3662 of 4171

INFINITI QX56 2009 Factory Service Manual TM-14 < FUNCTION DIAGNOSIS > A/T CONTROL SYSTEM “D”, “4”, “3” Positions 2GR  The forward brake and the forward one-way clutch regulate reverse rotation of the mid sun gear.  The 3rd one

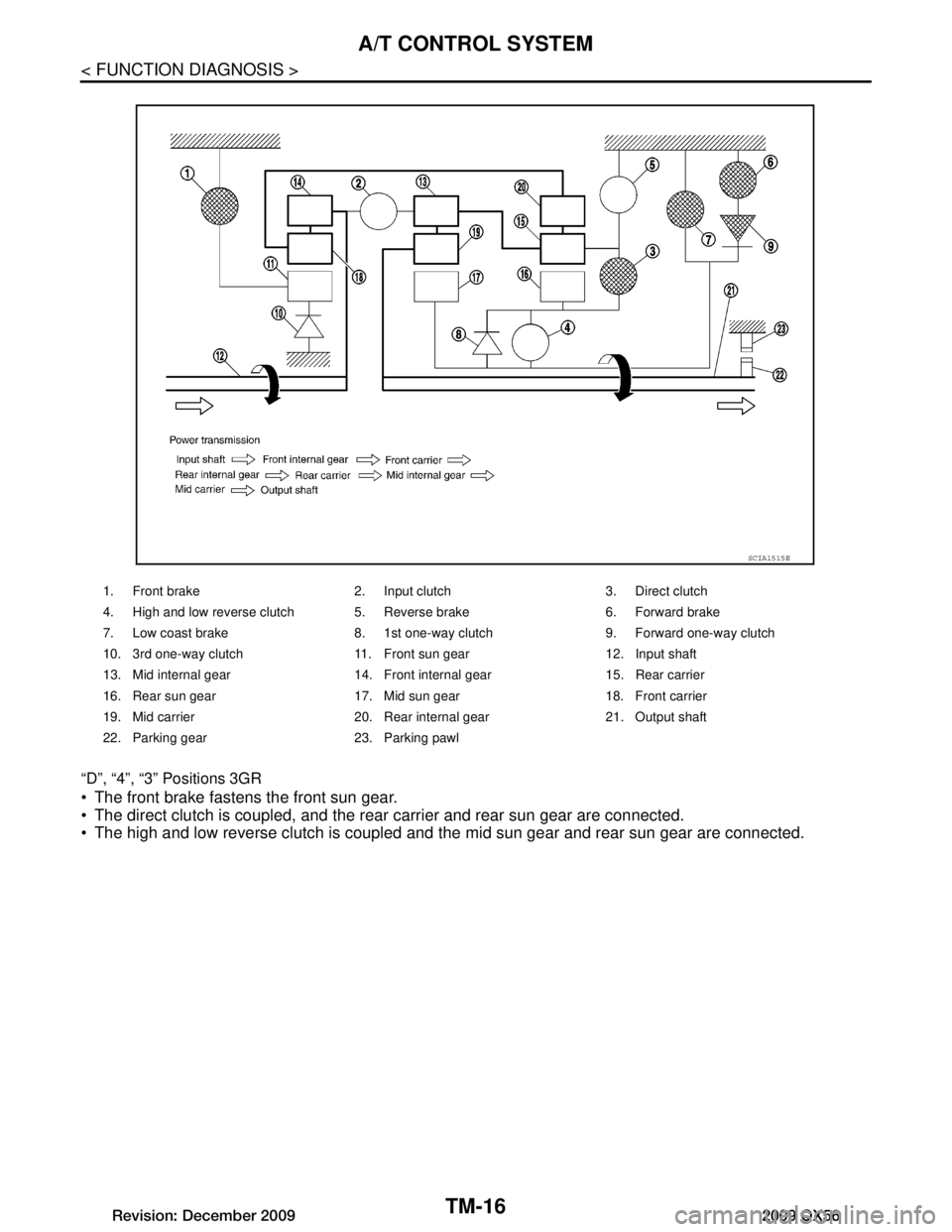

Page 3663 of 4171

INFINITI QX56 2009 Factory Service Manual A/T CONTROL SYSTEMTM-15 < FUNCTION DIAGNOSIS > CEF G H I J K L M A B TM N O P “2”, “1” Positions 2GR  The front brake fastens the front sun gear.  The forward brake and the forward one-way

Page 3664 of 4171

INFINITI QX56 2009 Factory Service Manual TM-16 < FUNCTION DIAGNOSIS > A/T CONTROL SYSTEM “D”, “4”, “3” Positions 3GR  The front brake fastens the front sun gear.  The direct clutch is coupled, and the rear carrier and rear sun
