SUNROOF SYSTEM
System DiagramINFOID:0000000003776064
SUNROOF
System DescriptionINFOID:0000000003776065
SUNROOF SYSTEM
INPUT/OUTPUT SIGNAL CHART
SUNROOF OPERATION
• The sunroof motor assembly operates with a power supply that is output from the BCM while the ignition
switch is ON or retained power is operating.
• The tilt up/down & slide open/close signals from the sunr oof switch enable the sunroof motor to move arbi-
trarily.
AUTO OPERATION
The sunroof AUTO feature makes it possible to sli de open and slide close or tilt up and tilt down the sunroof
without holding the sunroof switch in the slide open/tilt down or slide close/tilt up position.
RETAINED POWER OPERATION
Retained power operation is an additional power supply function that enables the sunroof system to operate
up to 45 seconds after the ignition switch is turned OFF.
Retained power function cancel conditions
• When a front door is opened (door switch ON)
• When ignition switch is turned ON again.
• When 45 seconds elapse on the timer.
ALKIA0861GB
Item Input signal to sunroof motor assembly Sunroof motor function Actuator
Sunroof switch Sunroof switch signal (tilt down or slide
open)
Sunroof controlSunroof motor
Sunroof switch signal (tilt up or slide
close)
BCM RAP signal
Revision: December 20092009 QX56
Page 3098 of 4171
SUNROOF SYSTEMRF-7
< FUNCTION DIAGNOSIS >
C
DE
F
G H
I
J
L
M A
B
RF
N
O P
Component Parts LocationINFOID:0000000003776066
Component DescriptionINFOID:0000000003776067

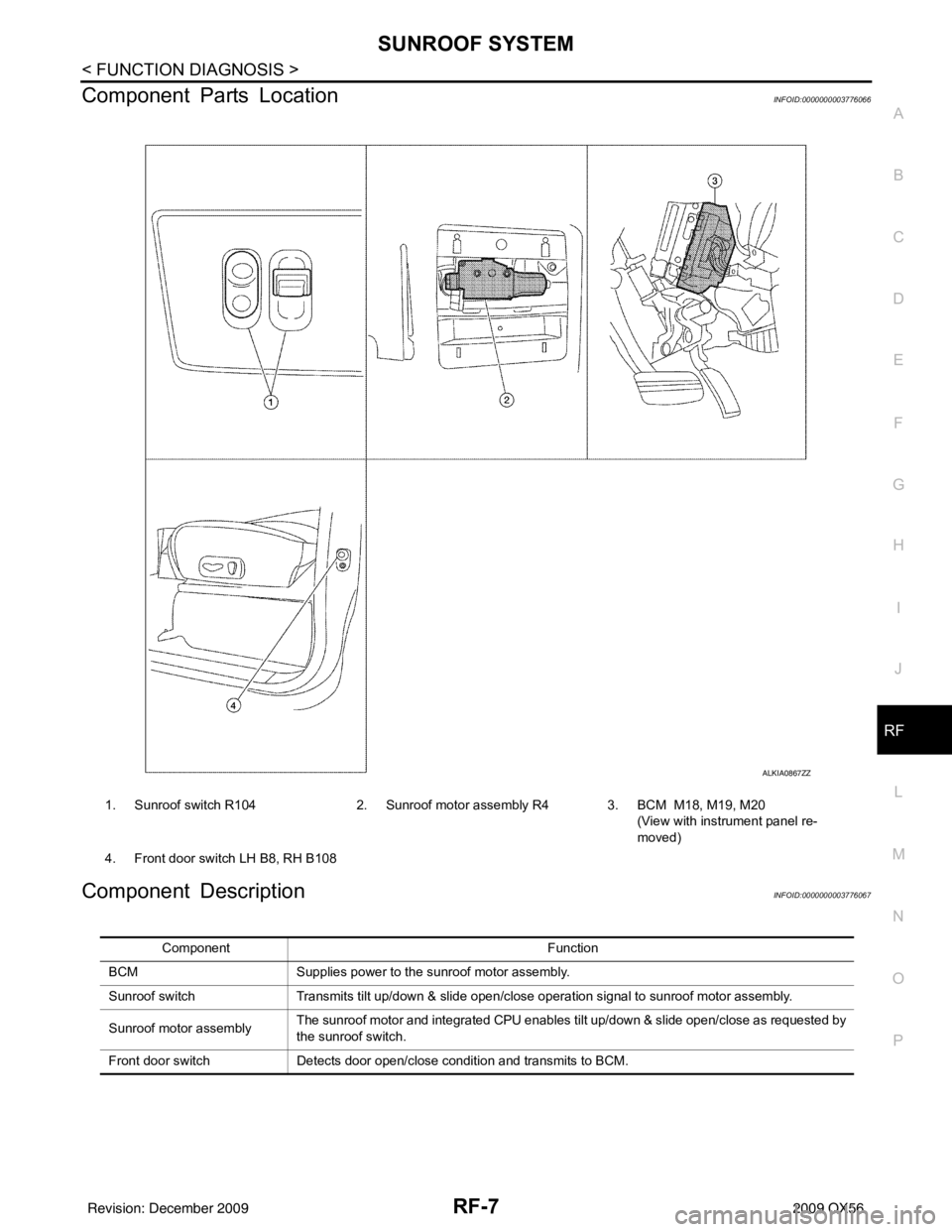

ALKIA0867ZZ
1. Sunroof switch R104 2. Sunroof motor assembly R4 3. BCM M18, M19, M20
(View with instrument panel re-
moved)
4. Front door switch LH B8, RH B108
Component Function
BCM Supplies power to the sunroof motor assembly.
Sunroof switch Transmits tilt up/down & slide open/close operation signal to sunroof motor assembly.
Sunroof motor assembly The sunroof motor and integrated CPU enables tilt up/down & slide open/close as requested by
the sunroof switch.
Front door switch Detects door open/close condition and transmits to BCM.
Revision: December 20092009 QX56
Page 3099 of 4171

RF-8
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (BCM)
DIAGNOSIS SYSTEM (BCM)
COMMON ITEM
COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)INFOID:0000000005867481
APPLICATION ITEM
CONSULT-III performs the following functions via CAN communication with BCM.
SYSTEM APPLICATION
BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.
RETAINED PWR
RETAINED PWR : CONSULT-III Function (BCM - RETAINED PWR)INFOID:0000000005867482
Data monitor
Diagnosis mode Function Description
WORK SUPPORT Changes the setting for each system function.
SELF-DIAG RESULTS Displays the diagnosis results judged by BCM. Refer to RF-29, "
DTCIndex".
CAN DIAG SUPPORT MNTR Monitors the reception status of CAN communication viewed from BCM.
DATA MONITOR The BCM input/output signals are displayed.
ACTIVE TEST The signals used to activate each device are forcibly supplied from BCM.
ECU IDENTIFICATION The BCM part number is displayed.
CONFIGURATION • Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.
System
Sub system selection item Diagnosis mode
WORK SUPPORT DATA MONITOR ACTIVE TEST
BCM BCM ×
Door lock DOOR LOCK ×××
Rear window defogger REAR DEFOGGER ×
Warning chime BUZZER ××
Interior room lamp timer INT LAMP ×××
Remote keyless entry system MULTI REMOTE ENT ××
Exterior lamp HEAD LAMP ×××
Wiper and washer WIPER ×××
Turn signal and hazard warning lamps FLASHER ××
Air conditioner AIR CONDITONER ×
Intelligent Key system INTELLIGENT KEY ×
Combination switch COMB SW ×
Immobilizer IMMU ××
Interior room lamp battery saver BATTERY SAVER ×××
Back door open TRUNK ××
RAP (retained accessory power) RETAINED PWR ×××
Signal buffer system SIGNAL BUFFER ××
TPMS (tire pressure monitoring sys-
tem) AIR PRESSURE MONITOR
×××
Vehicle security system PANIC ALARM ×
Revision: December 20092009 QX56
Page 3100 of 4171
DIAGNOSIS SYSTEM (BCM)RF-9
< FUNCTION DIAGNOSIS >
C
DE
F
G H
I
J
L
M A
B
RF
N
O P
Monitor Item [Unit] Description
DOOR SW-DR [ON/OFF] Indicates condition of front door switch LH.
DOOR SW-AS [ON/OFF] Indicates condition of front door switch RH.
Revision: December 20092009 QX56
Page 3101 of 4171

RF-10
< COMPONENT DIAGNOSIS >
POWER SUPPLY AND GROUND CIRCUIT
COMPONENT DIAGNOSIS
POWER SUPPLY AND GROUND CIRCUIT
SUNROOF MOTOR ASSEMBLY
SUNROOF MOTOR ASSEMBLY : Diagnosis ProcedureINFOID:0000000003776070
SUNROOF MOTOR ASSEMBLY
1. CHECK SUNROOF MOTOR POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect sunroof motor assembly connector R4.
3. Turn ignition switch ON.
4. Check voltage between sunroof motor assembly connector R4 terminals 1 and 5 and ground.
Is the voltage as specified?
YES >> GO TO 4
NO >> GO TO 2
2. CHECK SUNROOF MOTOR POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect BCM connector M20.
3. Check continuity between BCM connector M20 (A) and sunroof motor assembly connector R4 (B).
4. Check continuity between BCM connector M20 (A) and ground.
Are the continuity test results as specified?
YES >> GO TO 3
NO >> Repair or replace harness.
3. CHECK BCM OUTPUT SIGNAL
(+) (–)Voltage
Connector Terminal
R4 1
Ground Battery voltage
5
ALKIA0868ZZ
AB
Continuity
Connector Terminal Connector Terminal
M20 68
R4 1
Ye s
69 5
A —Contin u it y
Connector Terminal
M20 68
Ground No
69
ALKIA0870ZZ
Revision: December 20092009 QX56
Page 3102 of 4171

POWER SUPPLY AND GROUND CIRCUITRF-11
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
L
M A
B
RF
N
O P
1. Connect BCM connector M20.
2. Turn ignition switch ON.
3. Check voltage between BCM connector M20 and ground.
Is the voltage reading as specified?
YES >> Check condition of harness and connector.
NO >> Replace BCM. Refer to BCS-56, "
Removal and Installation".
4. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between sunroof motor assembly connector R4 terminal 7 and ground.
Is the continuity test result as specified?
YES >> Power supply and ground circuits are OK.
NO >> Repair or replace harness.
SUNROOF MOTOR ASSEMBLY : Special Repair RequirementINFOID:0000000003776071
1. PERFORM INITIALIZATION PROCEDURE
Perform initialization procedure.
Refer to RF-5, "
ADDITIONAL SERVICE WHEN REPLACING CO NTROL UNIT : Special Repair Requirement".
Does the sunroof motor assembly operate properly?
YES >> Repair is complete.
NO >> Check fitting adjustment.
(+) (–) Voltage
Connector Terminal
M20 68
Ground Battery voltage
69
ALKIA0871ZZ
Connector Terminal—Continuity
R4 7Ground Yes
ALKIA0869ZZ
Revision: December 20092009 QX56
Page 3103 of 4171

RF-12
< COMPONENT DIAGNOSIS >
SUNROOF SWITCH CIRCUIT
SUNROOF SWITCH CIRCUIT
DescriptionINFOID:0000000003776072
The BCM supplies power to the integrated CPU of the sunroof motor assembly. The tilt and slide functions of
the sunroof motor assembly is controlled by the sunroof switch.
Component Function CheckINFOID:0000000003776073
1. CHECK SUNROOF MOTOR FUNCTION
Do tilt up/down & slide open/close functi ons operate normally with sunroof switch?
Is the inspection result normal?
YES >> Sunroof motor assembly is OK.
NO >> Refer to RF-10, "
SUNROOF MOTOR ASSEMBLY : DiagnosisProcedure".
Diagnosis ProcedureINFOID:0000000003776074
1. CHECK SUNROOF SWITCH INPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between sunroof switch connector and ground.
Are the voltage measurements as specified?
YES >> Sunroof switch is operating normally.
NO >> GO TO 2
2. CHECK SUNROOF SWITCH CIRCUITS
1. Turn ignition switch OFF.
2. Disconnect sunroof motor assembly connector R4 and sunroof switch connector R104.
3. Check continuity between sunroof switch connector R104 (A) and sunroof motor assembly connector R4 (B).
4. Check continuity between sunroof switch connector R104 (A) and ground.
Connector Te r m i n a l s
Sunroof switch position Voltage (V)
(Approx.)
(+) (–)
R104 1
2SLIDE CLOSE
0V
Other than above Battery voltage
3 SLIDE OPEN
0V
Other than above Battery voltage
4 TILT UP
0V
Other than above Battery voltage
6 TILT DOWN
0V
Other than above Battery voltage
ALKIA1041GB
AB
Continuity
Connector Terminal Connector Terminal
R104 1
R4 3
Ye s
28
39
44
61
0
ALKIA0873ZZ
Revision: December 20092009 QX56
Page 3104 of 4171
SUNROOF SWITCH CIRCUITRF-13
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
L
M A
B
RF
N
O P
Are the continuity test results as specified?
YES >> GO TO 3
NO >> Repair harness or connector.
3. CHECK SUNROOF SWITCH
1. Check continuity between sunroof switch terminals.
Are the continuity test results as specified?
YES >> Sunroof switch is operating normally.
NO >> Replace sunroof switch (map lamp assembly).
A —Continuity
Connector Terminal
R104 1
Ground No
2
3
4
6
Terminals
Sunroof switch position Continuity
1
2SLIDE CLOSE
Yes
Other than above No
3 SLIDE OPEN
Yes
Other than above No
4 TILT UP
Yes
Other than above No
6 TILT DOWN
Yes
Other than above No
ALKIA0874ZZ
Revision: December 20092009 QX56
