INFINITI QX56 2009 Factory Service Manual INT-14 < ON-VEHICLE REPAIR > BODY SIDE TRIM BODY SIDE TRIM Removal and InstallationINFOID:0000000003775410 CAUTION: • Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips f

Page 2538 of 4171

INFINITI QX56 2009 Factory Service Manual BODY SIDE TRIMINT-15 < ON-VEHICLE REPAIR > C DE F G H I K L M A B INT N O P Removal 1. Remove the front and rear door welts. 2. Remove the seat belt anchor. Refer to SB-14, " Removal and Installation

Page 2539 of 4171

INFINITI QX56 2009 Factory Service Manual INT-16 < ON-VEHICLE REPAIR > FLOOR TRIM FLOOR TRIM Removal and InstallationINFOID:0000000003775411 REMOVAL 1. Remove the front seats. Refer to SE-50, "Removal and Installation". • Remove the subwoof

Page 2540 of 4171

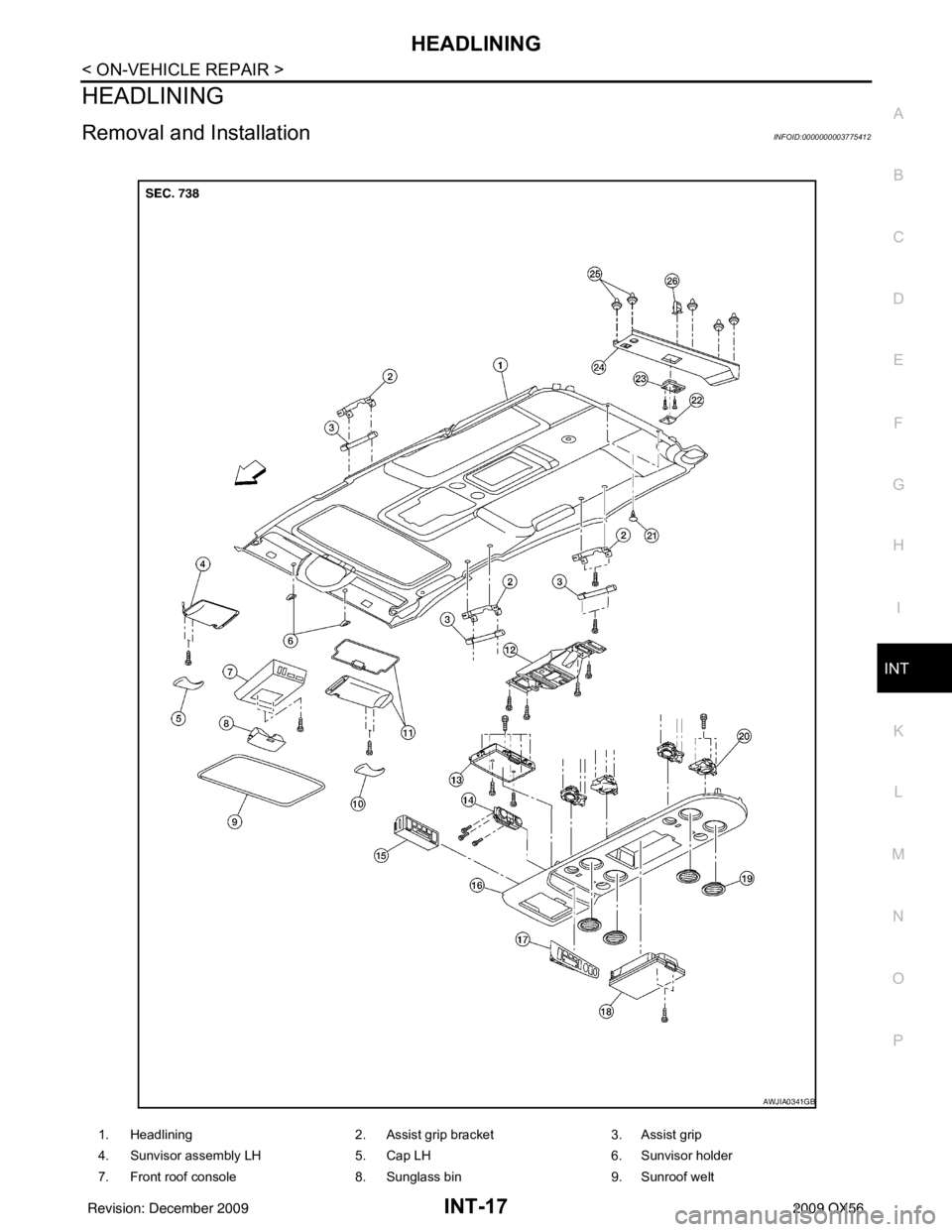

INFINITI QX56 2009 Factory Service Manual HEADLININGINT-17 < ON-VEHICLE REPAIR > C DE F G H I K L M A B INT N O P HEADLINING Removal and InstallationINFOID:0000000003775412 1. Headlining 2. Assist grip bracket3. Assist grip 4. Sunvisor assemb

Page 2541 of 4171

INFINITI QX56 2009 Factory Service Manual INT-18 < ON-VEHICLE REPAIR > HEADLINING CAUTION: Disconnect both terminals from battery in advance. REMOVAL 1. Remove the body side trim. Refer to INT-14. 2. Remove the luggage floor trim. Refer to I

Page 2542 of 4171

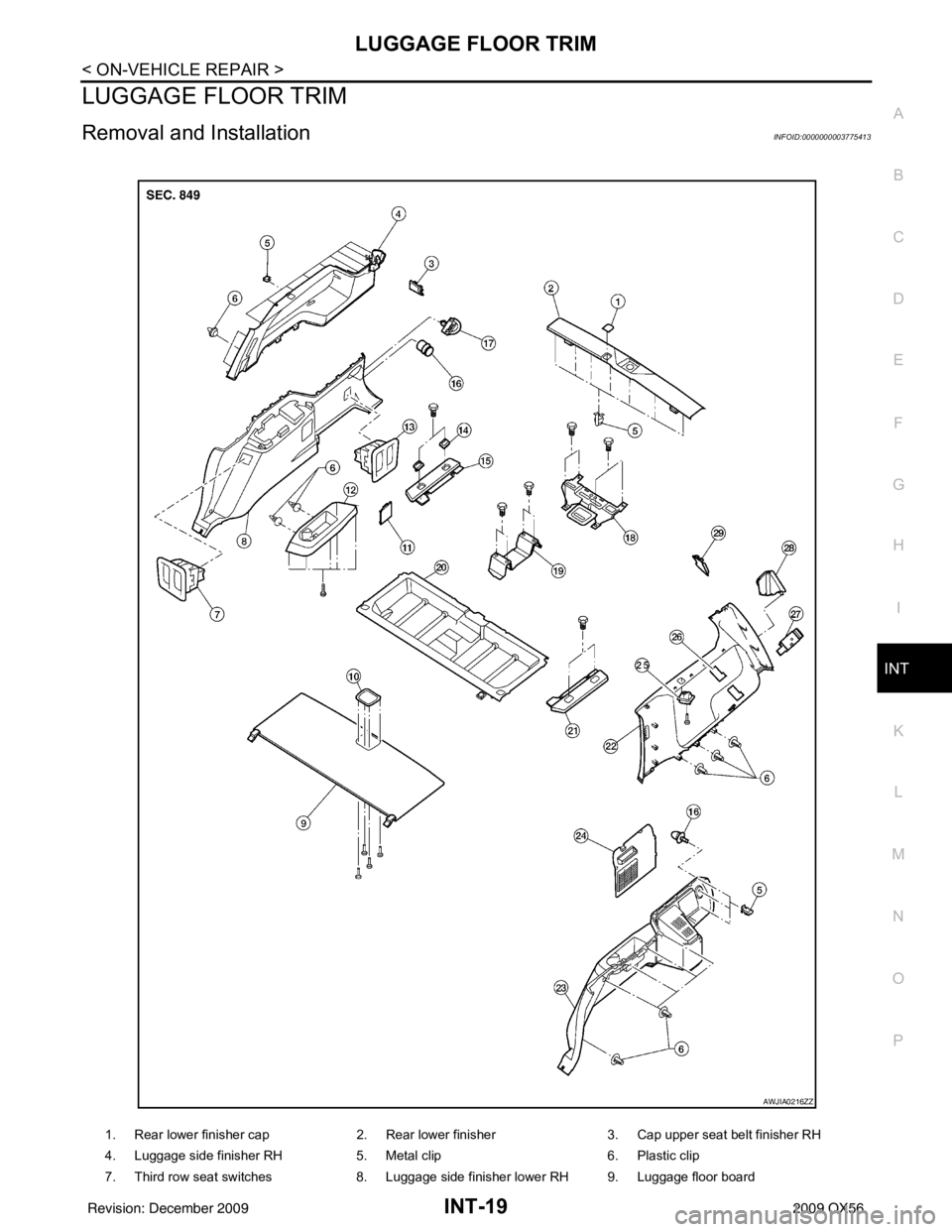

INFINITI QX56 2009 Factory Service Manual LUGGAGE FLOOR TRIMINT-19 < ON-VEHICLE REPAIR > C DE F G H I K L M A B INT N O P LUGGAGE FLOOR TRIM Removal and InstallationINFOID:0000000003775413 1. Rear lower finisher cap 2. Rear lower finisher3. C

Page 2543 of 4171

INFINITI QX56 2009 Factory Service Manual INT-20 < ON-VEHICLE REPAIR > LUGGAGE FLOOR TRIM REMOVAL 1. Remove the 2nd and 3rd row seat belts. Refer to SB-7, "Removal and Installation of Second Row Seat Belt" and SB-9, "Removal and Installation

Page 2544 of 4171

INFINITI QX56 2009 Factory Service Manual BACK DOOR TRIMINT-21 < ON-VEHICLE REPAIR > C DE F G H I K L M A B INT N O P BACK DOOR TRIM Removal and InstallationINFOID:0000000003775414 REMOVAL 1. Disconnect the door open/close link. Refer to INT
