INFINITI QX56 2009 Factory Service Manual STR-12 < COMPONENT DIAGNOSIS > STARTING SYSTEM STARTING SYSTEM Wiring DiagramINFOID:0000000003771796 ABBWA0004GB Revision: December 20092009 QX56

Page 3642 of 4171

INFINITI QX56 2009 Factory Service Manual STARTING SYSTEMSTR-13 < COMPONENT DIAGNOSIS > C DE F G H I J K L M A STR NP O AABIA0056GB Revision: December 20092009 QX56

Page 3643 of 4171

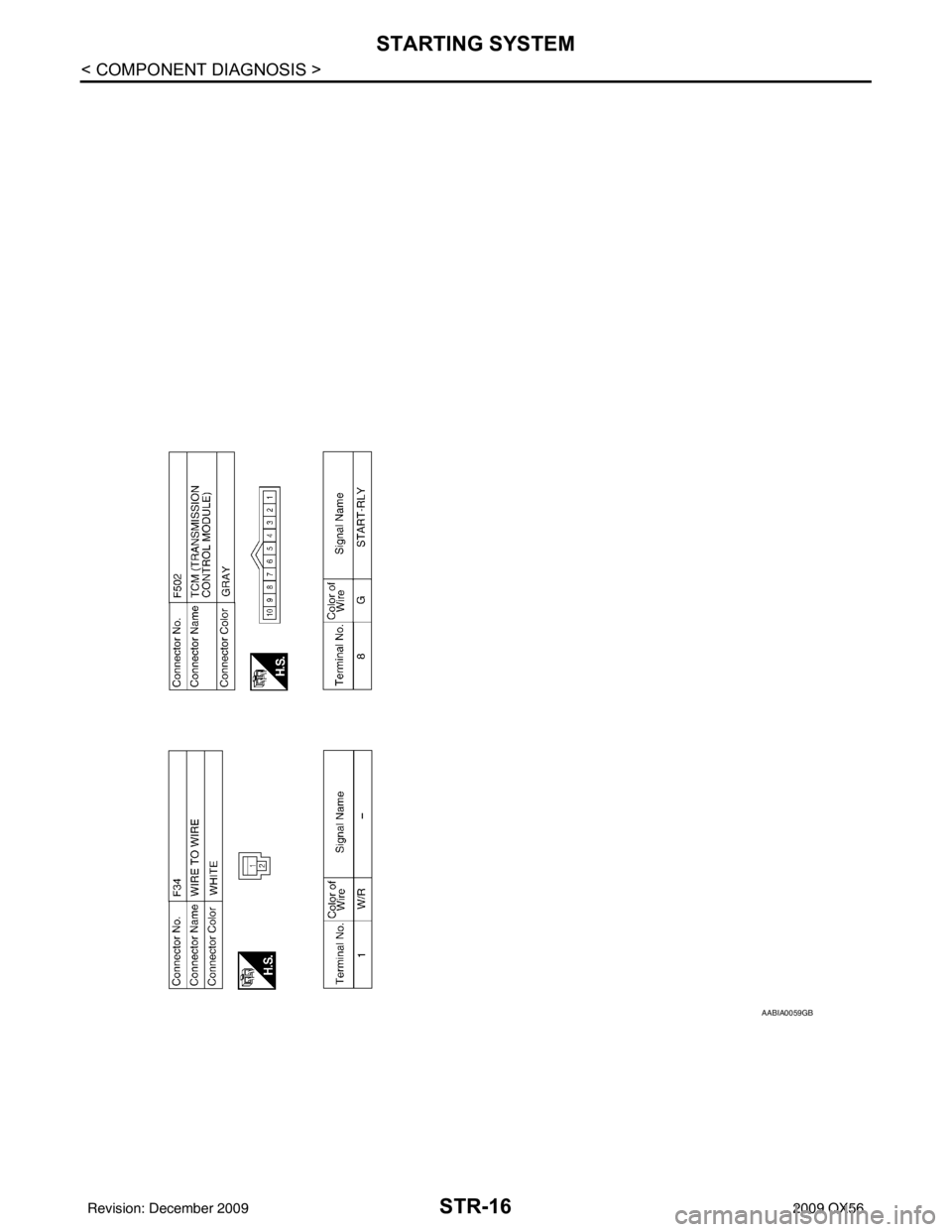

INFINITI QX56 2009 Factory Service Manual STR-14 < COMPONENT DIAGNOSIS > STARTING SYSTEM AABIA0057GB Revision: December 20092009 QX56

Page 3644 of 4171

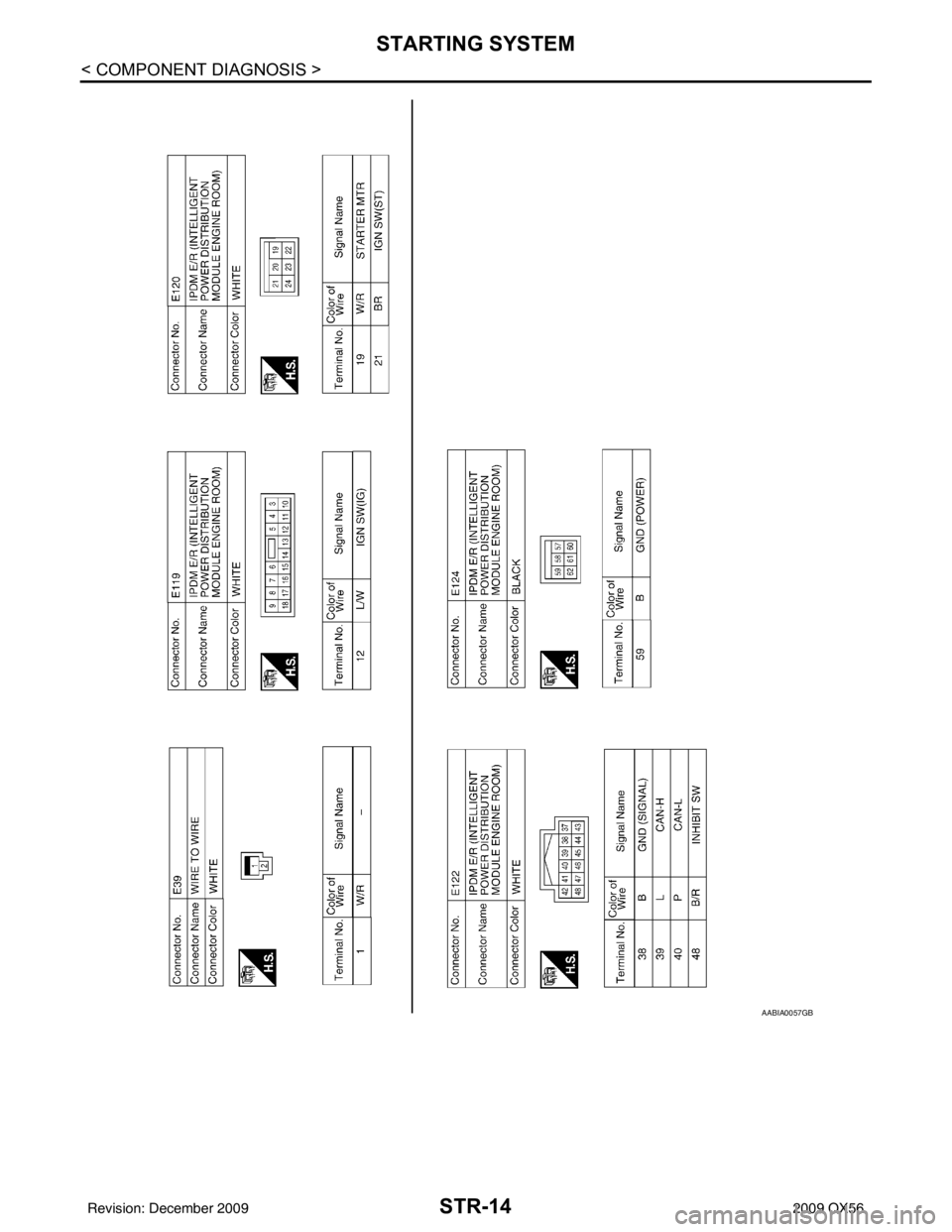

INFINITI QX56 2009 Factory Service Manual STARTING SYSTEMSTR-15 < COMPONENT DIAGNOSIS > C DE F G H I J K L M A STR NP O AABIA0058GB Revision: December 20092009 QX56

Page 3645 of 4171

INFINITI QX56 2009 Factory Service Manual STR-16 < COMPONENT DIAGNOSIS > STARTING SYSTEM AABIA0059GB Revision: December 20092009 QX56

Page 3646 of 4171

INFINITI QX56 2009 Factory Service Manual STARTING SYSTEMSTR-17 < SYMPTOM DIAGNOSIS > C DE F G H I J K L M A STR NP O SYMPTOM DIAGNOSIS STARTING SYSTEM Symptom TableINFOID:0000000003771797 Symptom Reference No normal cranking Refer to STR-5,

Page 3647 of 4171

INFINITI QX56 2009 Factory Service Manual STR-18 < ON-VEHICLE REPAIR > STARTER MOTOR ON-VEHICLE REPAIR STARTER MOTOR Removal and InstallationINFOID:0000000003771798 REMOVAL 1. Remove the intake manifold. Refer to EM-26, "Removal and Installat

Page 3648 of 4171

INFINITI QX56 2009 Factory Service Manual STARTER MOTORSTR-19 < SERVICE DATA AND SPECIFICATIONS (SDS) C DE F G H I J K L M A STR NP O SERVICE DATA AND SPECIFICATIONS (SDS) STARTER MOTOR StarterINFOID:0000000003771799 Application All models M
