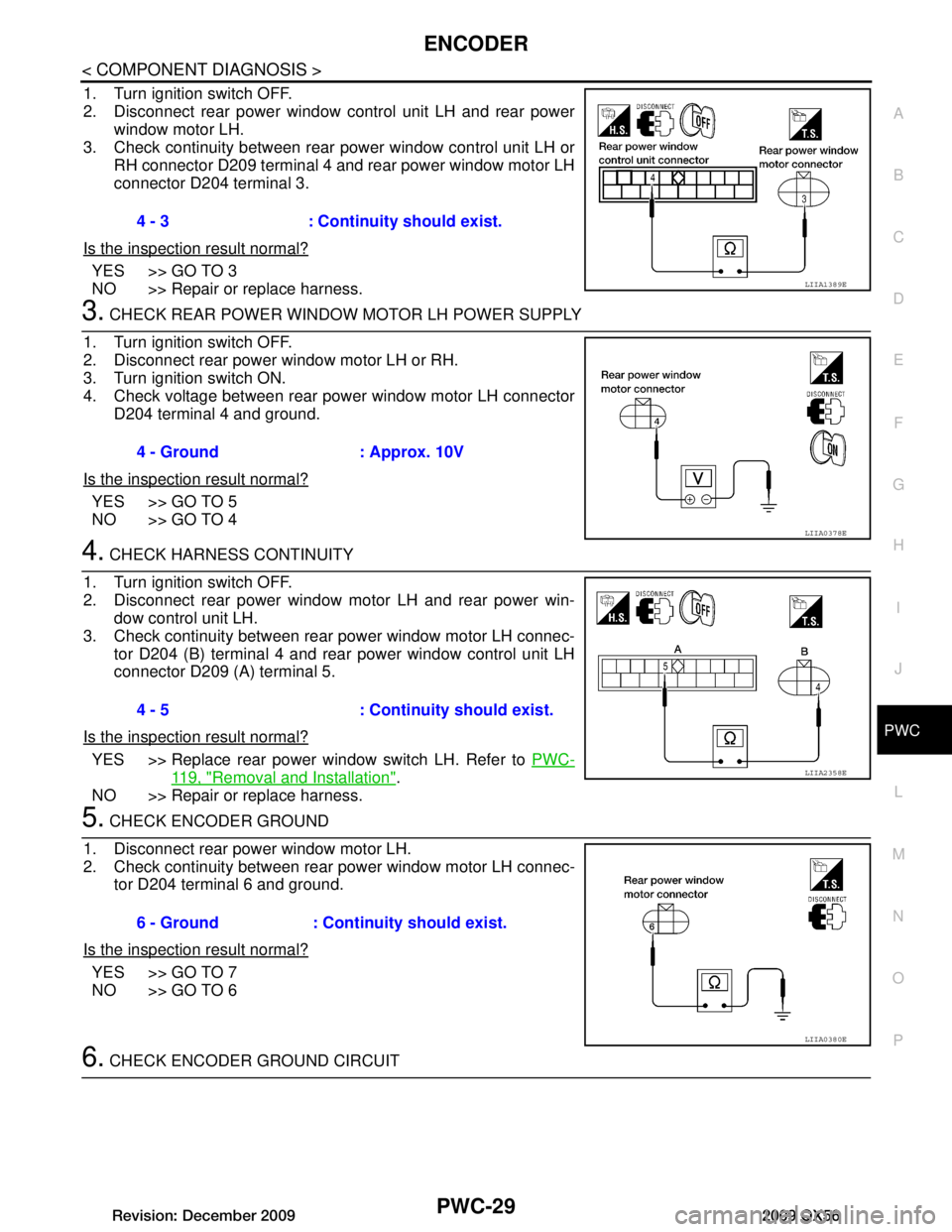

Page 2977 of 4171

ENCODERPWC-29
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
L
M A
B
PWC
N
O P
1. Turn ignition switch OFF.
2. Disconnect rear power window control unit LH and rear power window motor LH.
3. Check continuity between rear power window control unit LH or
RH connector D209 terminal 4 and rear power window motor LH
connector D204 terminal 3.
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair or replace harness.
3. CHECK REAR POWER WINDOW MOTOR LH POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect rear power window motor LH or RH.
3. Turn ignition switch ON.
4. Check voltage between rear power window motor LH connector D204 terminal 4 and ground.
Is the inspection result normal?
YES >> GO TO 5
NO >> GO TO 4
4. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect rear power window motor LH and rear power win- dow control unit LH.
3. Check continuity between rear power window motor LH connec- tor D204 (B) terminal 4 and rear power window control unit LH
connector D209 (A) terminal 5.
Is the inspection result normal?
YES >> Replace rear power window switch LH. Refer to PWC-
119, "Removal and Installation".
NO >> Repair or replace harness.
5. CHECK ENCODER GROUND
1. Disconnect rear power window motor LH.
2. Check continuity between rear power window motor LH connec- tor D204 terminal 6 and ground.
Is the inspection result normal?
YES >> GO TO 7
NO >> GO TO 6
6. CHECK ENCODER GROUND CIRCUIT 4 - 3 : Continuity should exist.
LIIA1389E
4 - Ground : Approx. 10V
LIIA0378E
4 - 5 : Continuity should exist.
LIIA2358E
6 - Ground : Continuity should exist.
LIIA0380E
Revision: December 20092009 QX56
Page 2978 of 4171

PWC-30
< COMPONENT DIAGNOSIS >
ENCODER
1. Disconnect rear power window control unit LH.
2. Check continuity between rear power window motor LH connec-tor D204 terminal 6 and rear power window control unit LH con-
nector D209 terminal 3.
Is the inspection result normal?
YES >> Replace rear power window control unit LH.
NO >> Repair or replace harness.
7. CHECK REAR POWER WINDOW MO TOR LH LIMIT SWITCH SIGNAL
1. Turn ignition switch ON.
2. Check voltage between rear power window control unit LH con- nector and ground.
Is the inspection result normal?
YES >> Limit switch circuit is OK.
NO >> GO TO 8
8. CHECK REAR POWER WINDOW SWITCH LH OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between rear power window control unit LH har- ness connector D209 terminal 2 and ground.
Is the inspection result normal?
YES >> GO TO 9
NO >> Replace rear power window control unit LH.
9. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect rear power window control unit LH.
3. Check continuity between rear power window control unit LH connector D209 terminal 2 and rear power window motor LH
connector D204 terminal 5.
Is the inspection result normal?
YES >> Replace rear power window motor LH. Refer to GW-19,
"Removal and Installation".
NO >> Repair or replace harness.
REAR RH
6 - 3 : Continuity should exist.
LIIA1383E
Connector Te r m i n a l s
Condition Voltage (V)
(Approx.)
(+) (-)
D209 3 Ground Rear power window LH is be-
tween fully-open and just be-
fore fully-closed position (ON)
0
Rear power window LH is be-
tween just before fully-closed
position and fully-closed posi-
tion (OFF) 5
LIIA2366E
2 - Ground : Approx. 5V
LIIA2367E
2 - 5 : Continuity should exist.
LIIA1385E
Revision: December 20092009 QX56
Page 2979 of 4171

ENCODERPWC-31
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
L
M A
B
PWC
N
O P
REAR RH : DescriptionINFOID:0000000003776001
Detects condition of the front power window motor LH operation and transmits to main power window and door
lock/unlock switch as pulse signal.
REAR RH : Componen t Function CheckINFOID:0000000003776002
1. CHECK ENCODER OPERATION
Does front door glass RH perform AUTO open/close operation normally when operating main power window
and door lock/unlock switch?
Is the inspection result normal?
YES >> Encoder operation is OK.
NO >> Refer to PWC-31, "REAR RH : Diagnosis Procedure"
.
REAR RH : Diagnosis ProcedureINFOID:0000000003776003
Encoder Circuit Check
1. CHECK ENCODER SIGNAL
1. Turn ignition switch ON.
2. Check the signal between rear power window control unit RH connector D309 terminal 4 and ground with oscilloscope.
Is the inspection result normal?
YES >> GO TO 2
NO >> Replace rear power window control unit RH.
2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect rear power window control unit RH and rear power window motor RH.
3. Check continuity between rear power window control unit RH
connector D309 terminal 4 and rear power window motor RH
connector D304 terminal 3.
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair or replace harness.
3. CHECK REAR POWER WINDOW MOTOR RH POWER SUPPLY
Connec- tor Te r m i n a l s
Condition Signal
(+) (-)
D309 4 Ground Opening
LIIA2368E
OCC3383D
4 - 3 : Continuity should exist.
LIIA1389E
Revision: December 20092009 QX56
Page 2980 of 4171

PWC-32
< COMPONENT DIAGNOSIS >
ENCODER
1. Turn ignition switch OFF.
2. Disconnect rear power window motor RH.
3. Turn ignition switch ON.
4. Check voltage between rear power window motor RH connectorD304 terminal 4 and ground.
Is the inspection result normal?
YES >> GO TO 5
NO >> GO TO 4
4. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect rear power window motor RH and rear power win- dow control unit RH.
3. Check continuity between rear power window motor RH connec- tor D304 (B) terminal 4 and rear power window control unit RH
connector D309 (A) terminal 5.
Is the inspection result normal?
YES >> Replace rear power window switch RH. Refer to PWC-
119, "Removal and Installation".
NO >> Repair or replace harness.
5. CHECK ENCODER GROUND
1. Disconnect rear power window motor RH.
2. Check continuity between rear power window motor RH connec- tor D304 terminal 6 and ground.
Is the inspection result normal?
YES >> GO TO 7
NO >> GO TO 6
6. CHECK ENCODER GROUND CIRCUIT
1. Disconnect rear power window control unit RH.
2. Check continuity between rear power window motor RH connec- tor D304 terminal 6 and rear power window control unit RH con-
nector D309 terminal 3.
Is the inspection result normal?
YES >> Replace rear power window control unit RH.
NO >> Repair or replace harness.
7. CHECK REAR POWER WINDOW MOTOR RH LIMIT SWITCH SIGNAL
4 - Ground : Approx. 10V
LIIA0378E
4 - 5 : Continuity should exist.
LIIA2358E
6 - Ground : Continuity should exist.
LIIA0380E
6 - 3 : Continuity should exist.
LIIA1383E
Revision: December 20092009 QX56
Page 2981 of 4171

ENCODERPWC-33
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
L
M A
B
PWC
N
O P
1. Turn ignition switch ON.
2. Check voltage between rear power window control unit RH con- nector and ground.
Is the inspection result normal?
YES >> Limit switch circuit is OK.
NO >> GO TO 8
8. CHECK REAR POWER WINDOW SWITCH RH OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between rear power window control unit RH har- ness connector D309 terminal 2 and ground.
Is the inspection result normal?
YES >> GO TO 9
NO >> Replace rear power window control unit RH.
9. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect rear power window control unit RH.
3. Check continuity between rear power window control unit RH connector D309 terminal 2 and rear power window motor RH
connector D304 terminal 5.
Is the inspection result normal?
YES >> Replace rear power window motor RH. Refer to GW-19,
"Removal and Installation".
NO >> Repair or replace harness.
Connector Te r m i n a l s
Condition Voltage (V)
(Approx.)
(+) (-)
D209 3 Ground Rear power window RH is be-
tween fully-open and just be-
fore fully-closed position (ON)
0
Rear power window RH is be-
tween just before fully-closed
position and fully-closed posi-
tion (OFF) 5
LIIA2366E
2 - Ground : Approx. 5V
LIIA2367E
2 - 5 : Continuity should exist.
LIIA1385E
Revision: December 20092009 QX56
Page 2982 of 4171

PWC-34
< COMPONENT DIAGNOSIS >
DOOR SWITCH
DOOR SWITCH
DescriptionINFOID:0000000003776004
Detects door open/close condition and transmits the signal to BCM.
Component Function CheckINFOID:0000000003776005
1. CHECK FRONT DOOR SWITCH INPUT SIGNAL
Check (“DOOR SW-DR” and “DOOR SW-AS”) in “DATA MONITOR” mode with CONSULT-III. Refer to BCS-
26, "RETAINED PWR : CONSULT-III Function (BCM - RETAINED PWR)".
Is the inspection result normal?
YES >> Front door switch circuit is OK.
NO >> Refer to PWC-34, "Diagnosis Procedure"
.
Diagnosis ProcedureINFOID:0000000003776006
1. CHECK FRONT DOOR SWITCH
Check voltage between BCM connector and ground.
Is the measurement value within the specification?
YES >> Replace BCM. Refer to BCS-56, "Removal and Installation".
NO >> GO TO 2
2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect BCM and front door switch.
3. Check continuity between BCM connector and front door switch connector.
4. Check continuity between front door switch connector and ground.
Monitor item Condition
DOOR SW-DR OPEN : ON
CLOSE : OFF
DOOR SW-AS OPEN : ON
CLOSE : OFF
Te r m i n a l s
Door conditionVoltage (V)
(Approx.)
(+)
(–)
BCM
connector Te r m i n a l
M18 12 GroundFront door
RH OPEN 0
CLOSE Battery voltage
M19 47 Front door
LH OPEN 0
CLOSE Battery voltage
LIIA0946E
BCM connector Terminal Front door switch
connector Terminal Continuity
M18 12 RH: B108 2Yes
M19 47 LH: B8
LIIA0947E
Revision: December 20092009 QX56

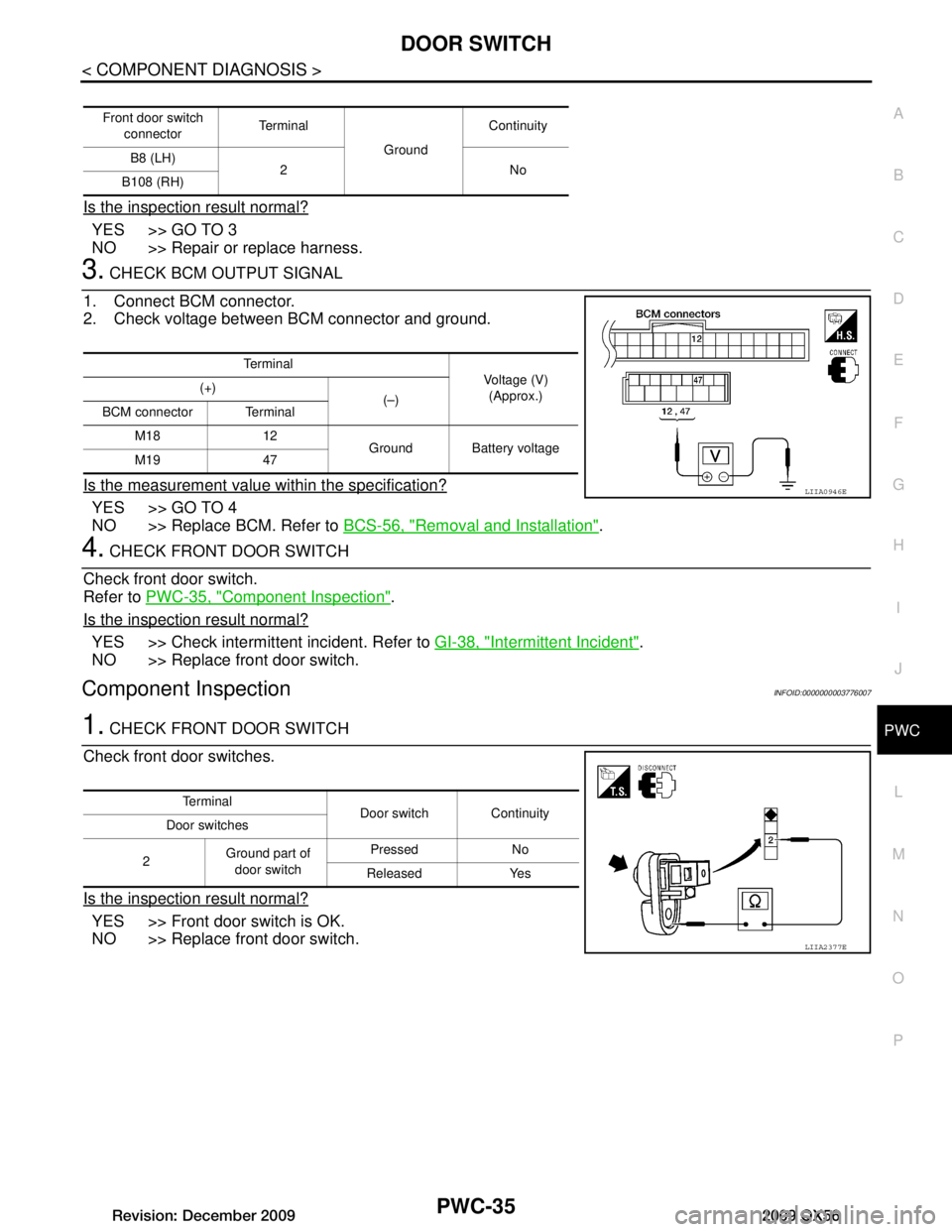

Page 2983 of 4171

DOOR SWITCHPWC-35
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
L
M A
B
PWC
N
O P
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair or replace harness.
3. CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Check voltage between BCM connector and ground.
Is the measurement value within the specification?
YES >> GO TO 4
NO >> Replace BCM. Refer to BCS-56, "Removal and Installation"
.
4. CHECK FRONT DOOR SWITCH
Check front door switch.
Refer to PWC-35, "Component Inspection"
.
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-38, "Intermittent Incident".
NO >> Replace front door switch.
Component InspectionINFOID:0000000003776007
1. CHECK FRONT DOOR SWITCH
Check front door switches.
Is the inspection result normal?
YES >> Front door switch is OK.
NO >> Replace front door switch.
Front door switch connector Te r m i n a l
GroundContinuity
B8 (LH) 2No
B108 (RH)
Te r m i n a l
Voltage (V)
(Approx.)
(+)
(–)
BCM connector Terminal
M18 12 Ground Battery voltage
M19 47
LIIA0946E
Te r m i n a l Door switch Continuity
Door switches
2 Ground part of
door switch Pressed No
Released Yes
LIIA2377E
Revision: December 20092009 QX56
Page 2984 of 4171

PWC-36
< COMPONENT DIAGNOSIS >
DOOR KEY CYLINDER SWITCH
DOOR KEY CYLINDER SWITCH
DescriptionINFOID:0000000003776008
Main power window and door lock/unlock switch detects condition of the door key cylinder and transmits to
BCM as the LOCK or UNLOCK signals.
Component Function CheckINFOID:0000000003776009
1. CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL
Check (“KEY CYL LK-SW”, “KEY CYL UN-SW”) in “DAT A MONITOR” mode for “POWER DOOR LOCK SYS-
TEM” with CONSULT-III. Refer to DLK-56, "CONSULT-III Function (INTELLIGENT KEY)"
.
Is the inspection result normal?
YES >> Key cylinder switch is OK.
NO >> Refer to PWC-36, "Diagnosis Procedure"
.
Diagnosis ProcedureINFOID:0000000003776010
1. CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between main power window and door lock/ unlock switch connector and ground.
Is the measurement value within the specification?
YES >> Replace main power window and door lock/unlock switch.
NO >> GO TO 2
2. CHECK DOOR KEY CYLINDER SIGNAL CIRCUIT
Monitor item Condition
KEY CYL LK-SW Lock : ON
Neutral / Unlock : OFF
KEY CYL UN-SW Unlock : ON
Neutral / Lock : OFF
Te r m i n a l s
Key positionVoltage (V)
(Approx.)
(+)
(–)
Main power window
and door lock/unlock switch connector Te r m i n a l
D7 4
Ground Lock 0
Neutral/Unlock 5
6 Unlock 0
Neutral/Lock 5
ALKIA0309ZZ
Revision: December 20092009 QX56
