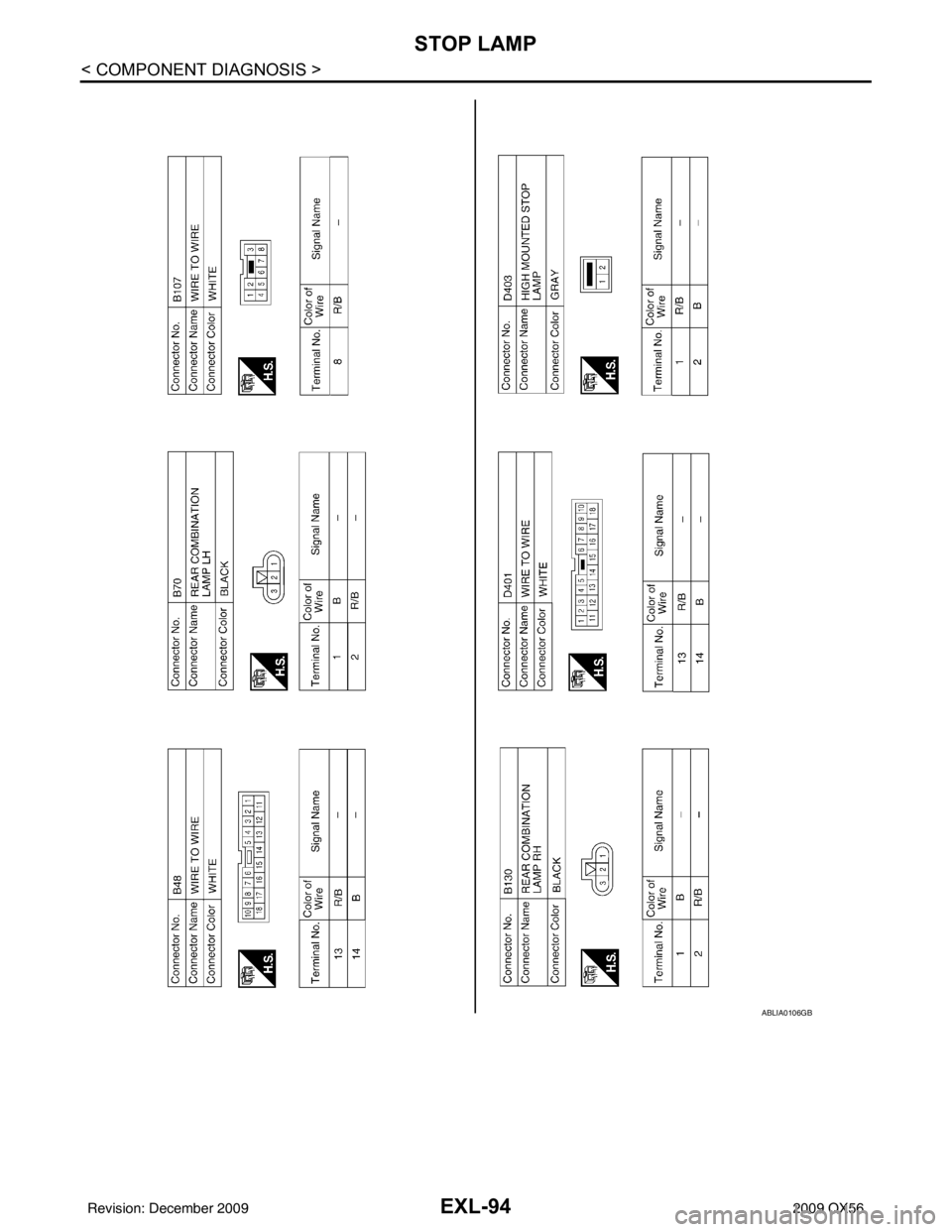

INFINITI QX56 2009 Factory Service Manual STOP LAMPEXL-93 < COMPONENT DIAGNOSIS > C DE F G H I J K M A B EXL N O P ABLIA0105GB Revision: December 20092009 QX56

Page 2042 of 4171

INFINITI QX56 2009 Factory Service Manual EXL-94 < COMPONENT DIAGNOSIS > STOP LAMP ABLIA0106GB Revision: December 20092009 QX56

Page 2043 of 4171

INFINITI QX56 2009 Factory Service Manual BACK-UP LAMPEXL-95 < COMPONENT DIAGNOSIS > C DE F G H I J K M A B EXL N O P BACK-UP LAMP Wiring DiagramINFOID:0000000003776206 ABLWA0029GB Revision: December 20092009 QX56

Page 2044 of 4171

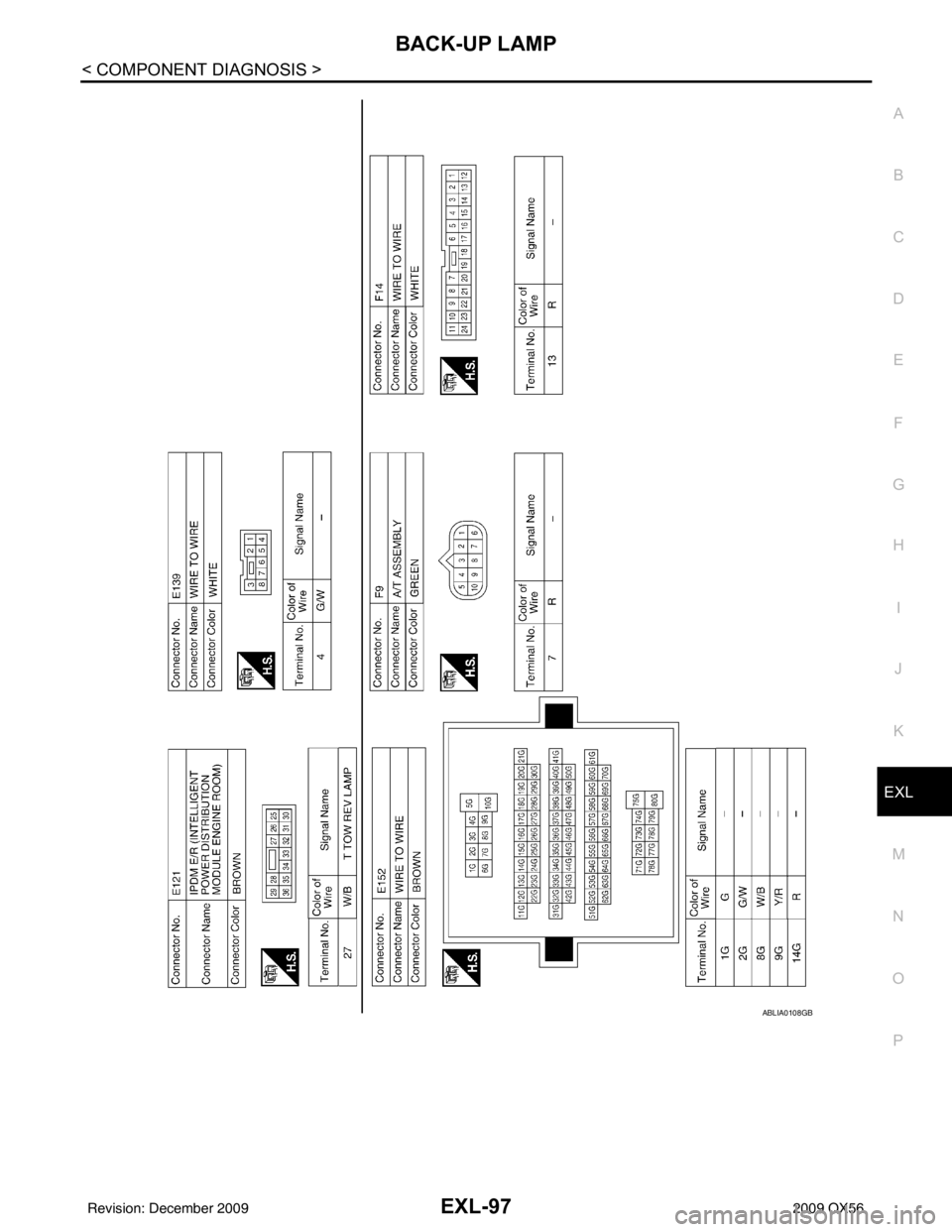

INFINITI QX56 2009 Factory Service Manual EXL-96 < COMPONENT DIAGNOSIS > BACK-UP LAMP ABLIA0107GB Revision: December 20092009 QX56

Page 2045 of 4171

INFINITI QX56 2009 Factory Service Manual BACK-UP LAMPEXL-97 < COMPONENT DIAGNOSIS > C DE F G H I J K M A B EXL N O P ABLIA0108GB Revision: December 20092009 QX56

Page 2046 of 4171

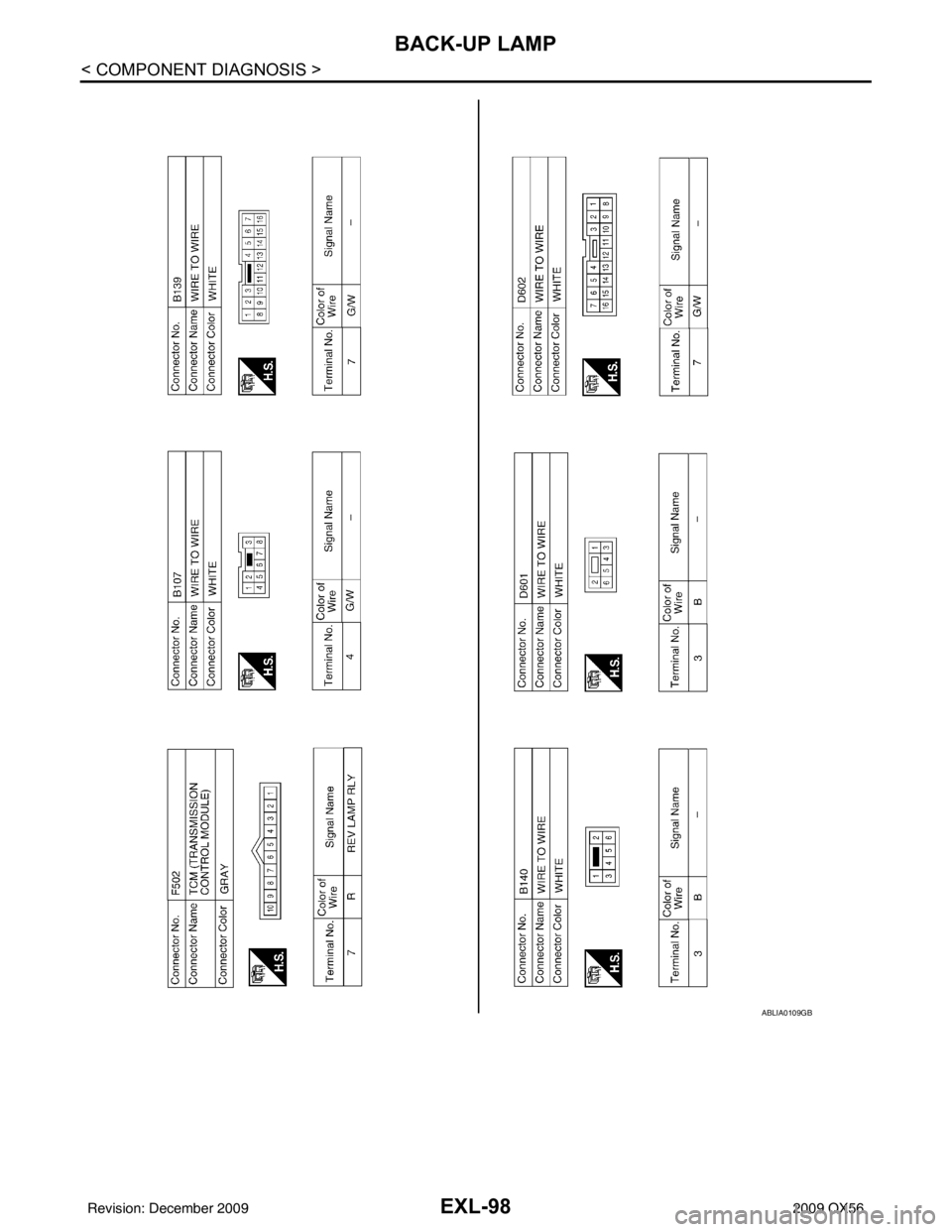

INFINITI QX56 2009 Factory Service Manual EXL-98 < COMPONENT DIAGNOSIS > BACK-UP LAMP ABLIA0109GB Revision: December 20092009 QX56

Page 2047 of 4171

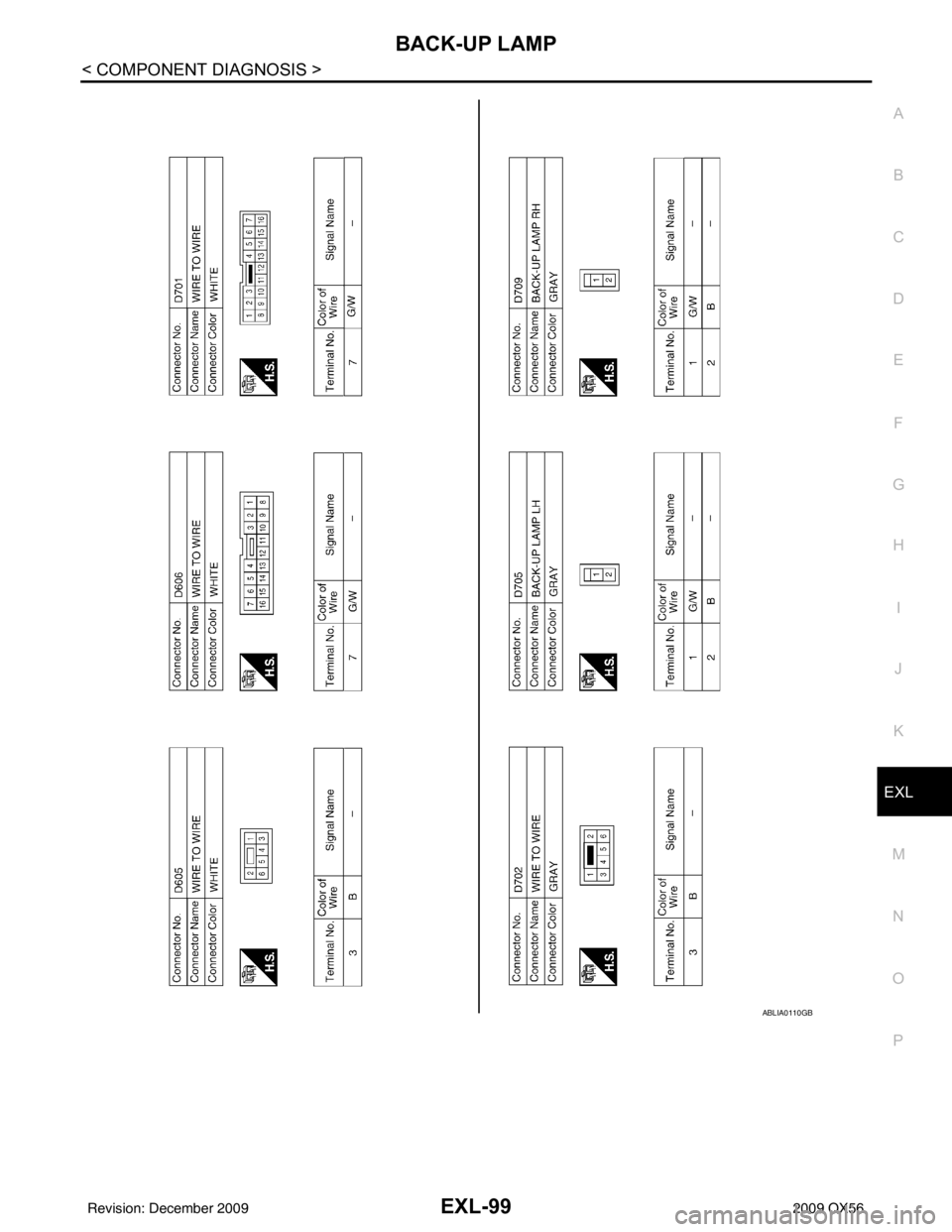

INFINITI QX56 2009 Factory Service Manual BACK-UP LAMPEXL-99 < COMPONENT DIAGNOSIS > C DE F G H I J K M A B EXL N O P ABLIA0110GB Revision: December 20092009 QX56

Page 2048 of 4171

INFINITI QX56 2009 Factory Service Manual EXL-100 < COMPONENT DIAGNOSIS > TRAILER TOW TRAILER TOW Wiring DiagramINFOID:0000000003776207 AALWA0200GB Revision: December 20092009 QX56
