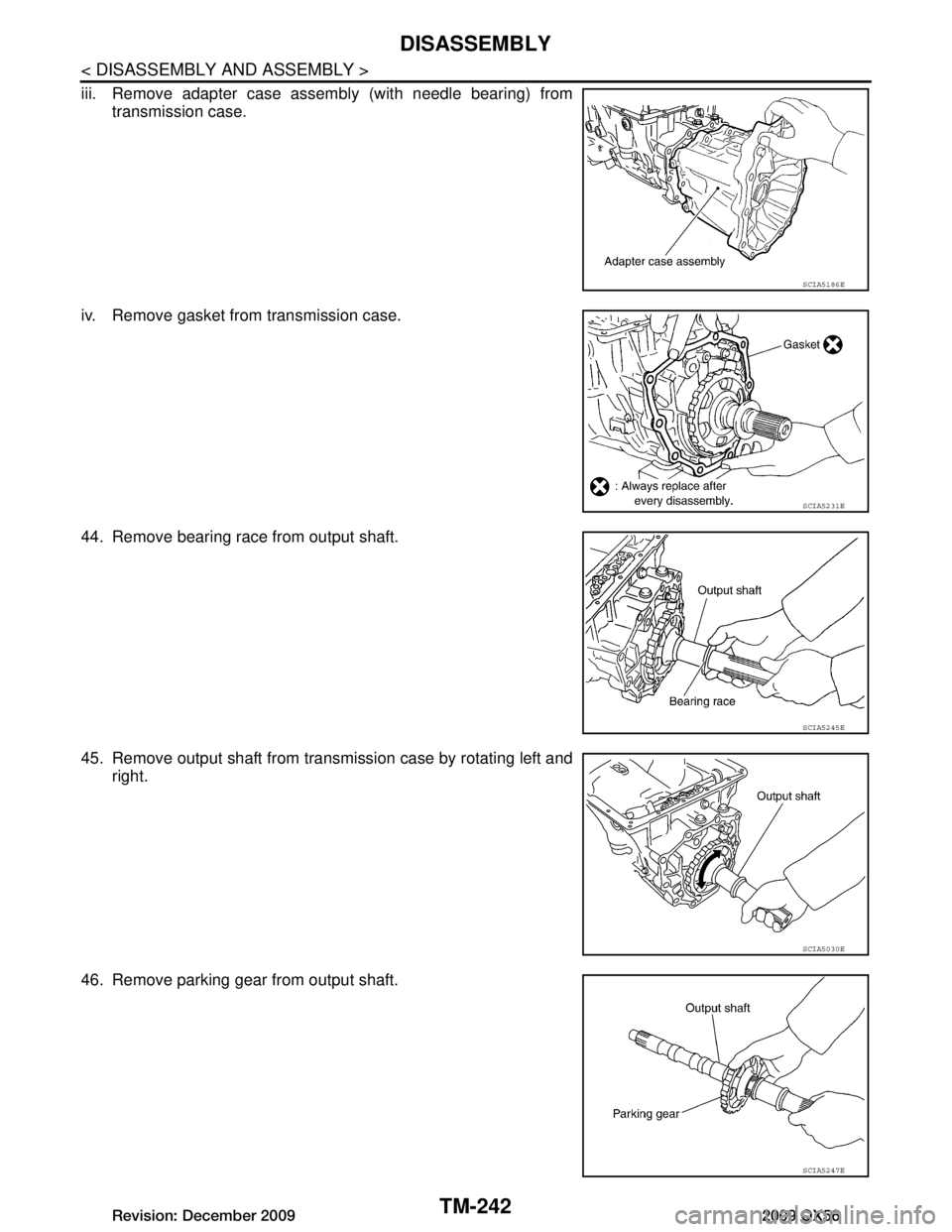

Page 3889 of 4171

INFINITI QX56 2009 Factory Service Manual DISASSEMBLYTM-241 < DISASSEMBLY AND ASSEMBLY > CEF G H I J K L M A B TM N O P ii. Tap rear extension assembly with soft hammer. iii. Remove rear extension assembly (with needle bearing) from transmis

Page 3890 of 4171

INFINITI QX56 2009 Factory Service Manual TM-242 < DISASSEMBLY AND ASSEMBLY > DISASSEMBLY iii. Remove adapter case assembly (with needle bearing) fromtransmission case. iv. Remove gasket from transmission case. 44. Remove bearing race from o

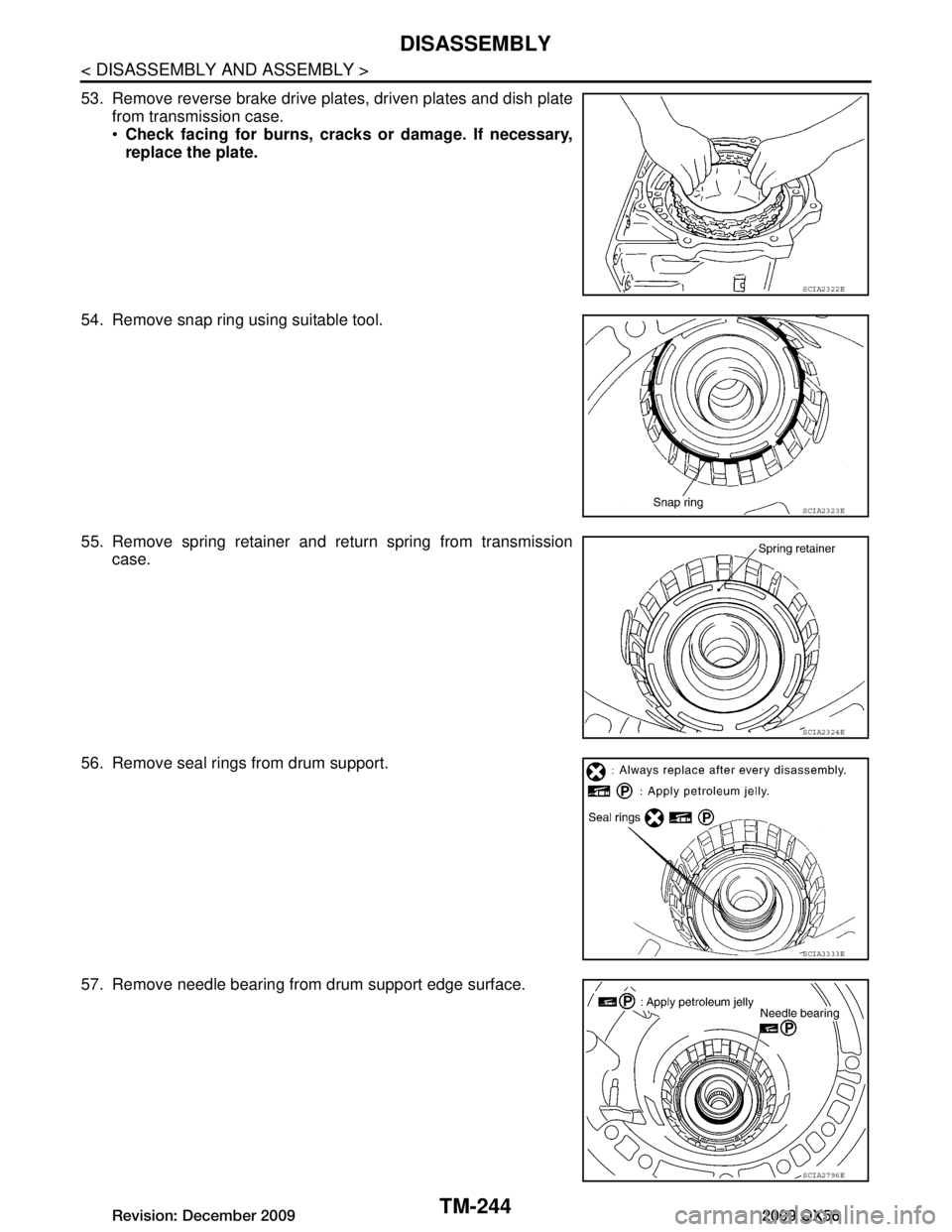

Page 3891 of 4171

INFINITI QX56 2009 Factory Service Manual DISASSEMBLYTM-243 < DISASSEMBLY AND ASSEMBLY > CEF G H I J K L M A B TM N O P 47. Remove seal rings from output shaft. 48. Remove needle bearing from transmission case. 49. Remove output speed sensor

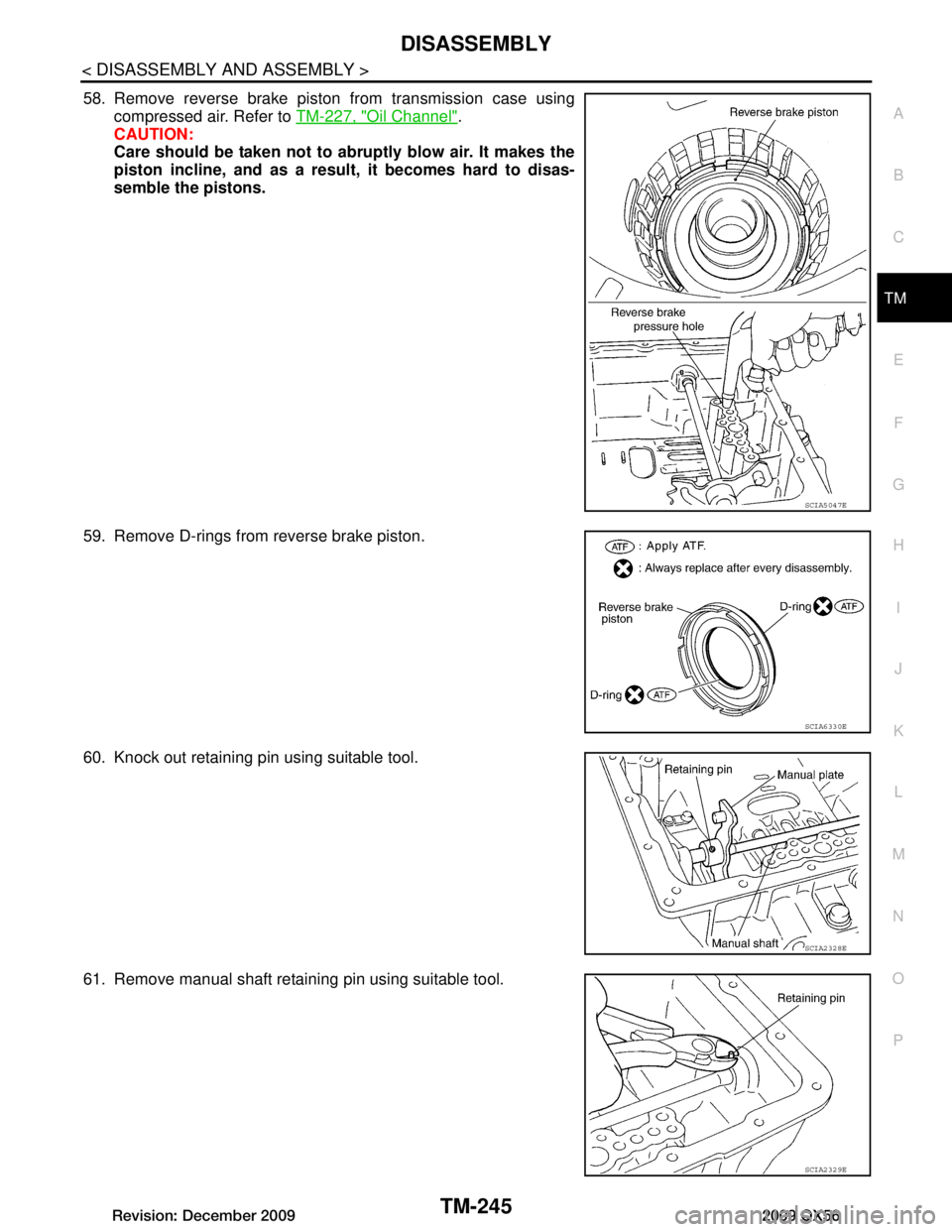

Page 3892 of 4171

INFINITI QX56 2009 Factory Service Manual TM-244 < DISASSEMBLY AND ASSEMBLY > DISASSEMBLY 53. Remove reverse brake drive plates, driven plates and dish platefrom transmission case. Check facing for burns, cracks or damage. If necessary, rep

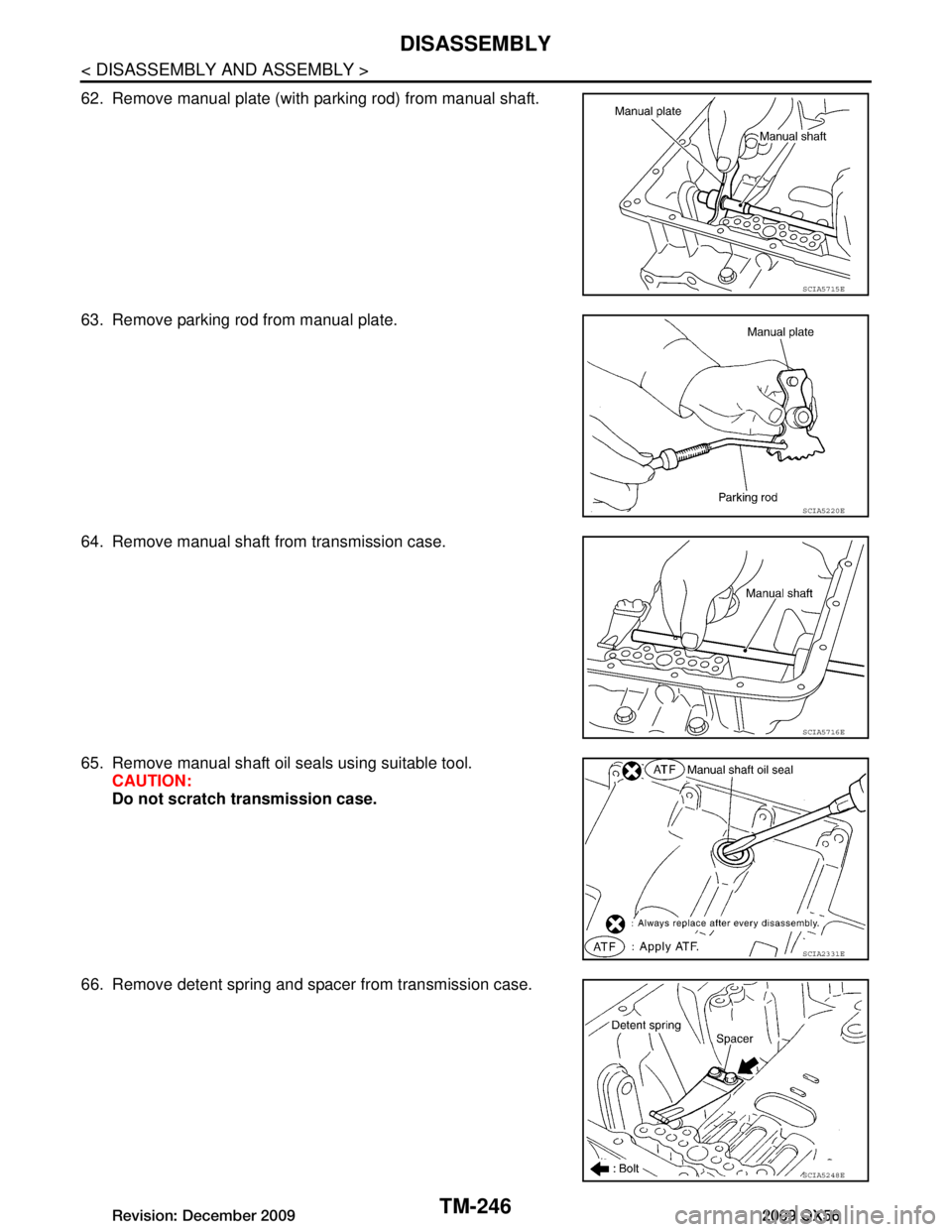

Page 3893 of 4171

INFINITI QX56 2009 Factory Service Manual DISASSEMBLYTM-245 < DISASSEMBLY AND ASSEMBLY > CEF G H I J K L M A B TM N O P 58. Remove reverse brake piston from transmission case using compressed air. Refer to TM-227, "Oil Channel" . CAUTION: C

Page 3894 of 4171

INFINITI QX56 2009 Factory Service Manual TM-246 < DISASSEMBLY AND ASSEMBLY > DISASSEMBLY 62. Remove manual plate (with parking rod) from manual shaft. 63. Remove parking rod from manual plate. 64. Remove manual shaft from transmission case.

Page 3895 of 4171

INFINITI QX56 2009 Factory Service Manual DISASSEMBLYTM-247 < DISASSEMBLY AND ASSEMBLY > CEF G H I J K L M A B TM N O P 67. Remove snap ring from transmission case using suitable tool. 68. Remove servo assembly (with return spring) from tran

Page 3896 of 4171

INFINITI QX56 2009 Factory Service Manual TM-248 < DISASSEMBLY AND ASSEMBLY > DISASSEMBLY 72. Remove parking actuator support from rear extension (2WD models) or adapter case (4WD models). 73. Remove parking pawl (with return spring) and paw
