CAMSHAFT
Camshaft End Play
• Install dial gauge in the thrust direction on the front end of the cam-shaft. Measure the end play when the camshaft is moved forward/
backward (in direction to axis).
• If measurement is out of the specified range, replace the camshaft and measure again.
• If measurement is still out of the specified range, replace the cylin-
der head.
• Measure the following parts if end play is outside the specified value.
- Dimension ″A″ for camshaft No. 1 journal
- Dimension ″B″ for cylinder head No. 1 journal
• If measurements are not within specification, replace the camshaft and/or cylinder head.
Camshaft Sprocket Runout
1. Install the camshaft in the cylinder head.
2. Install the camshaft sprocket to the camshaft.
3. Measure the camshaft sprocket runout.
• If measurement exceeds the specification, replace the cam-shaft sprocket.
Valve Lifter
Check if the surface of the valve lifter has any wear or cracks.
• If any damage is found, replace the valve lifter.
• Select the thickness of the head so that the valve clearance iswithin the standard when replacing. Refer to EM-18, "
Valve Clear-
ance".
Valve Lifter Clearance
Valve Lifter Diameter
Standard : 0.115 - 0.188 mm (0.0045 - 0.0074 in)
PBIC0042E
Standard : 30.500 - 30.548 mm (1.2008-1.2027 in)
Standard : 30.360 - 30.385 mm (1.1953-1.1963 in)
KBIA2426J
Runout : Less than 0.15 mm (0.0059 in)
KBIA0181J
KBIA0182E
Revision: December 20092009 QX56
Page 1882 of 4171

CAMSHAFTEM-59
< ON-VEHICLE REPAIR >
C
DE
F
G H
I
J
K L
M A
EM
NP
O
• Measure the diameter of the valve lifter.
Valve Lifter Hole Diameter• Measure the diameter of the valve lifter hole of the cylinder head,
using suitable tool.
Calculation of Valve Lifter Clearance
(Valve lifter clearance) = (valve lifter hole diameter) – (valve lifter
diameter)
• If the measurement is not within specification, referring to each specification of the valve lifter diameter and hole diameter, replace
either or both the valve lifter and cylinder head.
INSTALLATION
1. Install the valve lifters if removed. • Install removed parts in their original locations.
2. Install the camshafts. use the table below for identification of the RH and LH, and intake and exhaust.
• Install so that the RH bank (B) dowel pins (A) and LH bank (C)dowel pins (A) at the front of the camshaft face are in the
direction shown.Standard : 33.977 - 33.987 mm (1.3377 - 1.3381 in)
JEM798G
Standard : 34.000 - 34.016 mm (1.3386 - 1.3392 in)
Standard : 0.013 - 0.039 mm (0.0005 - 0.0015 in)
PBIC0043E
Bank INT EXH
Identification
paint (front) Identification
paint (rear) Identification
rib
RH INT Pink
—Yes
EXH — OrangeYes
LH INT Pink
—No
EXH — OrangeNo
KBIA2523E
WBIA0708E
Revision: December 20092009 QX56
Page 1883 of 4171

EM-60
< ON-VEHICLE REPAIR >
CAMSHAFT

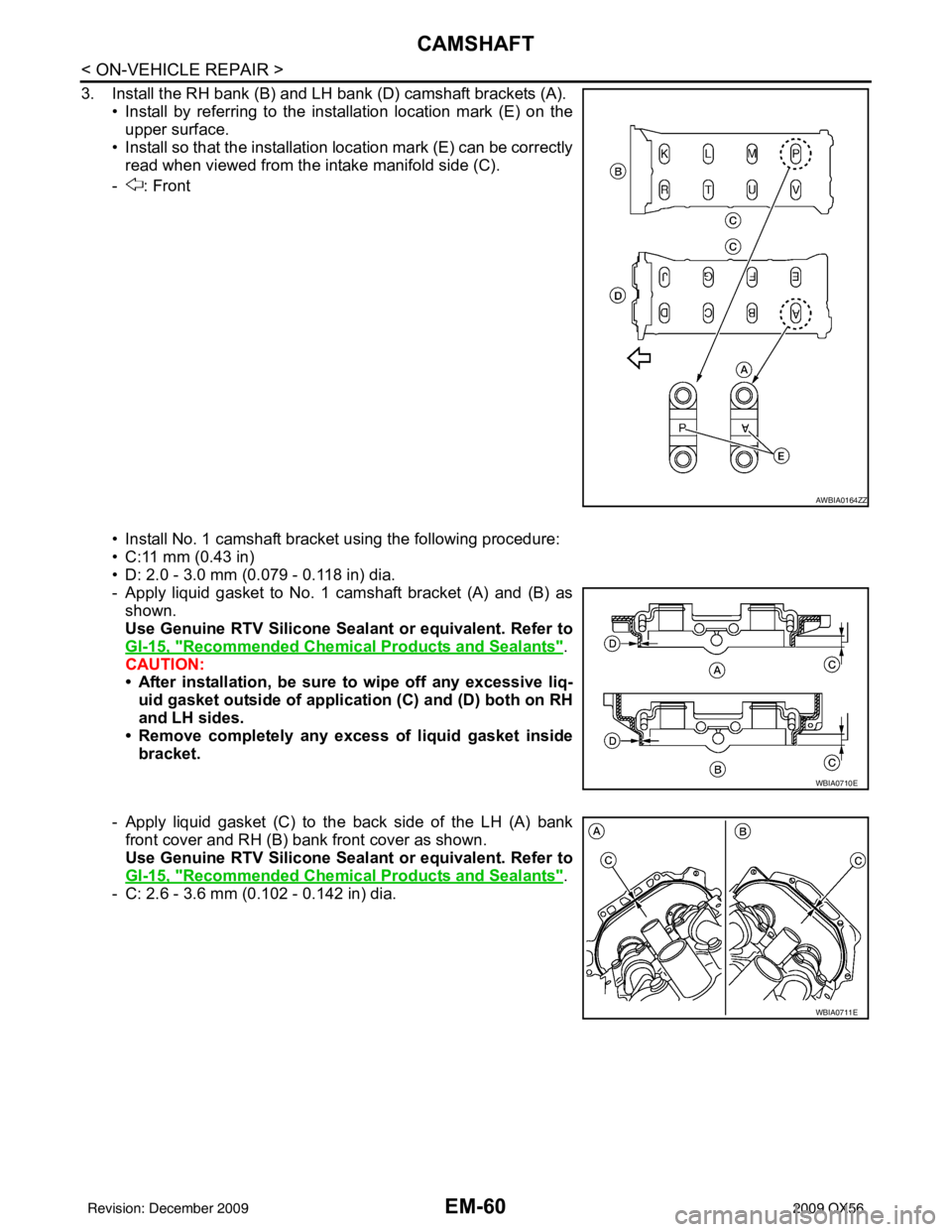

3. Install the RH bank (B) and LH bank (D) camshaft brackets (A).• Install by referring to the installation location mark (E) on theupper surface.
• Install so that the installation location mark (E) can be correctly read when viewed from the intake manifold side (C).
- : Front
• Install No. 1 camshaft bracket using the following procedure:
• C:11 mm (0.43 in)
• D: 2.0 - 3.0 mm (0.079 - 0.118 in) dia.
- Apply liquid gasket to No. 1 camshaft bracket (A) and (B) as shown.
Use Genuine RTV Silicone Seal ant or equivalent. Refer to
GI-15, "
Recommended Chemical Products and Sealants".
CAUTION:
• After installation, be sure to wipe off any excessive liq- uid gasket outside of applicat ion (C) and (D) both on RH
and LH sides.
• Remove completely any excess of liquid gasket inside
bracket.
- Apply liquid gasket (C) to the back side of the LH (A) bank front cover and RH (B) bank front cover as shown.
Use Genuine RTV Silicone Seal ant or equivalent. Refer to
GI-15, "
Recommended Chemical Products and Sealants".
- C: 2.6 - 3.6 mm (0.102 - 0.142 in) dia.
AWBIA0164ZZ
WBIA0710E
WBIA0711E
Revision: December 20092009 QX56
Page 1884 of 4171

CAMSHAFTEM-61
< ON-VEHICLE REPAIR >
C
DE
F
G H
I
J
K L
M A
EM
NP
O
- Position No. 1 camshaft bracket close to the mounting posi-
tion, and then install it to prevent from touching liquid gasket
applied to each surface.
- Temporarily tighten the RH (A) and LH (B) front cover bolts (4 for each bank) as shown.
4. Tighten the camshaft bracket bolts as follows: CAUTION:
After tightening the camshaft br acket bolts, be sure to wipe
off excessive liquid gasket from the parts listed below.
• Mating surface of rocker cover
• Mating surface of front cover
• A: RH bank
• B: Exhaust side
• C: LH bank
• D: Intake side
• : Front
a. Tighten the RH (A) and LH (B) front cover bolts (4 for each bank) as shown to the specified torque.
SBIA0259E
WBIA0706E
Camshaft bracket bolts
Step 1 (bolts 9 - 12) : 1.96 N·m (0.2 kg-m, 17 in-lb)
Step 2 (bolts 1 - 8) : 1.96 N·m (0.2 kg-m, 17 in-lb)
Step 3 (all bolts) : 5.88 N·m (0.6 kg-m, 52 in-lb)
Step 4 (all bolts) : 10.4 N·m (1.1 kg-m, 92 in-lb)
WBIA0707E
Front cover bolts : 11.0 N·m (1.1 kg-m, 8 ft-lb)
WBIA0706E
Revision: December 20092009 QX56
Page 1885 of 4171

EM-62
< ON-VEHICLE REPAIR >
CAMSHAFT
5. Install the camshaft sprockets using the following procedure:• A: LH bank shown
a. Install the camshaft sprockets aligning them with the matching marks painted on the timing chain (B) and the camshaft sprock-
ets (C) before removal. Align the camshaft sprocket key groove
with the dowel pin on the camshaft front edge at the same time.
Then temporarily tighten camshaft sprocket bolts.
• Install the intake (VTC) (A) and exhaust (B) side camshaft
sprockets by selectively using the groove of the dowel pin
according to the bank for the exhaust (B) side camshaft
sprockets. (Common part used for both exhaust banks.)
NOTE:
Use the groove marked "R" for RH bank and "L" for LH bank.
b. Lock the hexagonal part of the camshaft in the same way as for removal, and tighten the camshaft sprocket bolts.
c. Check again that the timing alignment mark on the timing chain and on each sprocket are aligned.
6. Install the chain tensioner using the following procedure: NOTE:
LH is shown.
a. Install the chain tensioner. • Compress the plunger and hold it using a stopper pin wheninstalling.
• Loosen the slack guide side timing chain by rotating the cam- shaft hexagonal part if mounting space is small.
b. Remove the stopper pin and release the plunger, and then apply tension to the timing chain.
c. Install the chain tensioner cover onto the front cover. • Apply liquid gasket as shown.
Use Genuine RTV Silicone Seal ant or equivalent. Refer to
GI-15, "
Recommended Chemical Products and Sealants".
7. Check and adjust valve clearances. Refer to EM-18, "
Va l v e
Clearance".
8. Installation of the remaining components is in the reverse order of removal.
Inspection after InstallationINFOID:0000000005885890
INSPECTION OF CAMSHAFT SPROCKET (INT) OIL GROOVE
WARNING:
• Check when engine is cold so as to pr event burns from any splashing engine oil.
CAUTION:
AWBIA0152ZZ
AWBIA0151ZZ
Chain tensioner bolts : 6.9 N·m (0.70 kg-m, 61 in-lb)
Chain tensioner cover
bolts : 9.0 N·m (0.92 kg-m, 80 in-lb)KBIA2479E
KBIA2547E
Revision: December 20092009 QX56
Page 1886 of 4171

CAMSHAFTEM-63
< ON-VEHICLE REPAIR >
C
DE
F
G H
I
J
K L
M A
EM
NP
O
• Perform this inspection only when
DTC P0011 is detected in self-diagnostic results of CONSULT III
and it is directed according to inspecti on procedure of EC section. Refer to EC-87, "
On Board Diag-
nosis Logic".
1. Check engine oil level. Refer to LU-8, "
Inspection".
2. Perform the following procedure so as to prevent the engine from being unintentionally started while checking.
a. Release fuel pressure. Refer to EC-487, "
Fuel Pressure Check".
b. Disconnect ignition coil and injector harness connectors if practical.
3. Remove IVT control solenoid valve.
4. Crank engine, and then make sure that engine oil comes out from IVT control cover oil hole. End cranking after checking.
WARNING:
Be careful not to touch rotating parts (drive be lts, idler pulley, and crankshaft pulley, etc.).
CAUTION:
• Engine oil may squirt from IVT control solenoid valve installation hole during cranking. Use a
shop cloth to prevent engine oil from splash ing on worker, engine components and vehicle.
• Do not allow engine oil to get on rubber components such as drive belts or engine mount insula- tors. Immediately wipe off any splashed engine oil.
5. Clean oil groove between oil strainer and IVT control solenoid valve if engine oil does not come out from IVT control valve cover oil hole. Refer to LU-7, "
Schematic".
6. Remove components between IVT control solenoid valve and camshaft sprocket (INT), and then check each oil groove for clogging.
• Clean oil groove if necessary.
7. After inspection, installation of the remaining components is in the reverse order of removal.
