Page 3241 of 4171

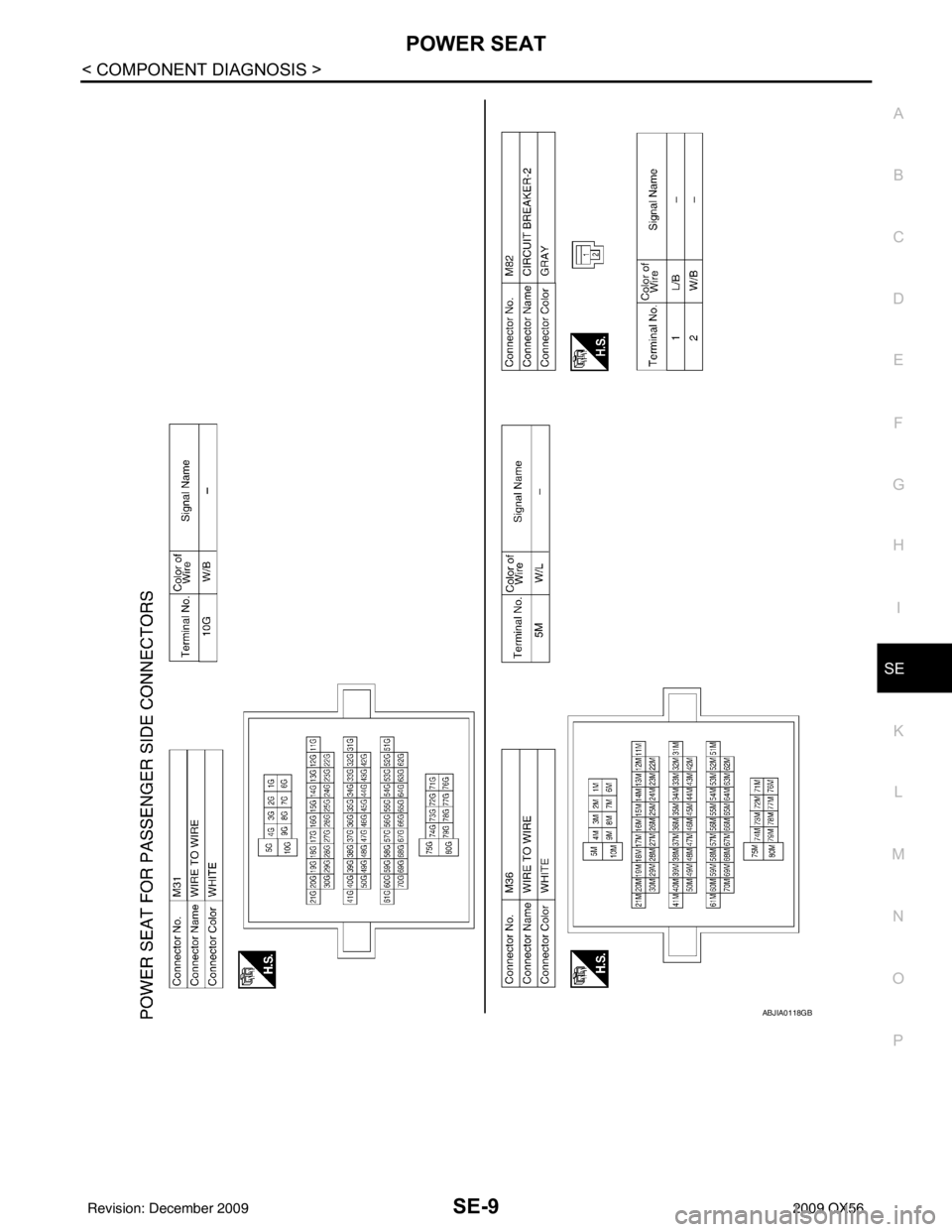

INFINITI QX56 2009 Factory Service Manual POWER SEATSE-9 < COMPONENT DIAGNOSIS > C DE F G H I K L M A B SE N O P ABJIA0118GB Revision: December 20092009 QX56

Page 3242 of 4171

INFINITI QX56 2009 Factory Service Manual SE-10 < COMPONENT DIAGNOSIS > POWER SEAT ABJIA0083GB Revision: December 20092009 QX56

Page 3243 of 4171

INFINITI QX56 2009 Factory Service Manual POWER SEATSE-11 < COMPONENT DIAGNOSIS > C DE F G H I K L M A B SE N O P ABJIA0084GB Revision: December 20092009 QX56

Page 3244 of 4171

INFINITI QX56 2009 Factory Service Manual SE-12 < COMPONENT DIAGNOSIS > HEATED SEAT HEATED SEAT DescriptionINFOID:0000000003775445 • When handling seat, be extremely careful not to scratch heating unit. • Front passenger seat cushion and

Page 3245 of 4171

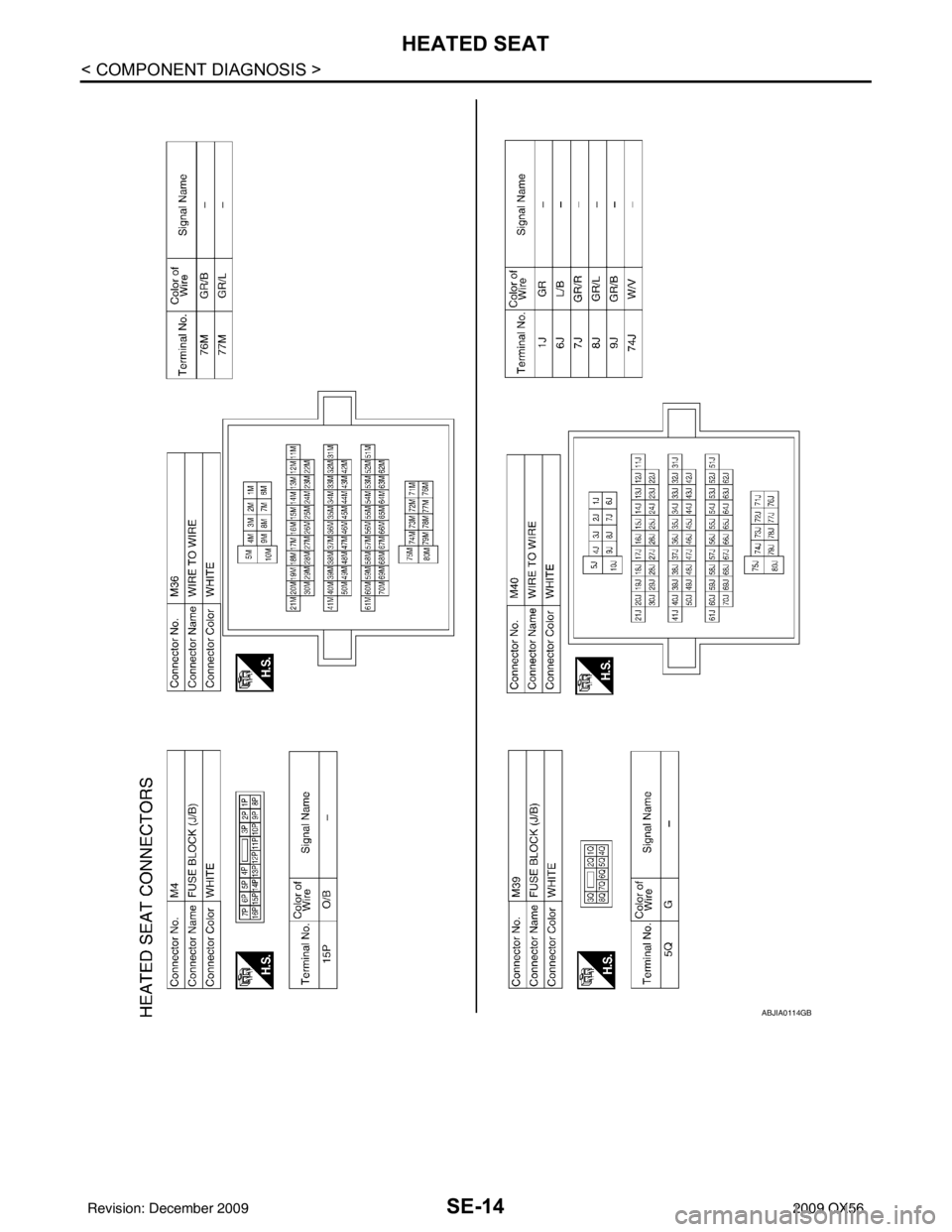

INFINITI QX56 2009 Factory Service Manual HEATED SEATSE-13 < COMPONENT DIAGNOSIS > C DE F G H I K L M A B SE N O P Wiring DiagramINFOID:0000000003775446 ABJWA0031GB Revision: December 20092009 QX56

Page 3246 of 4171

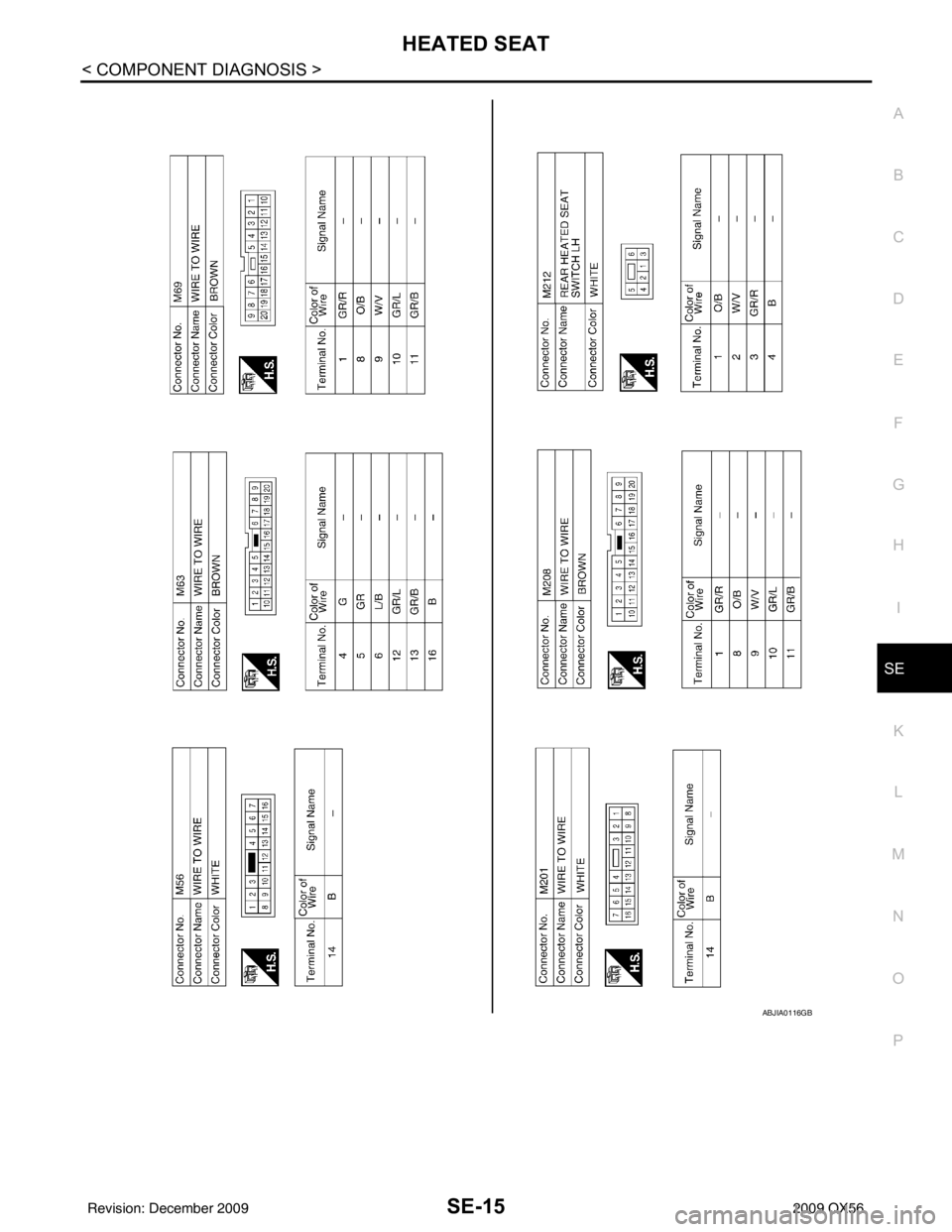

INFINITI QX56 2009 Factory Service Manual SE-14 < COMPONENT DIAGNOSIS > HEATED SEAT ABJIA0114GB Revision: December 20092009 QX56

Page 3247 of 4171

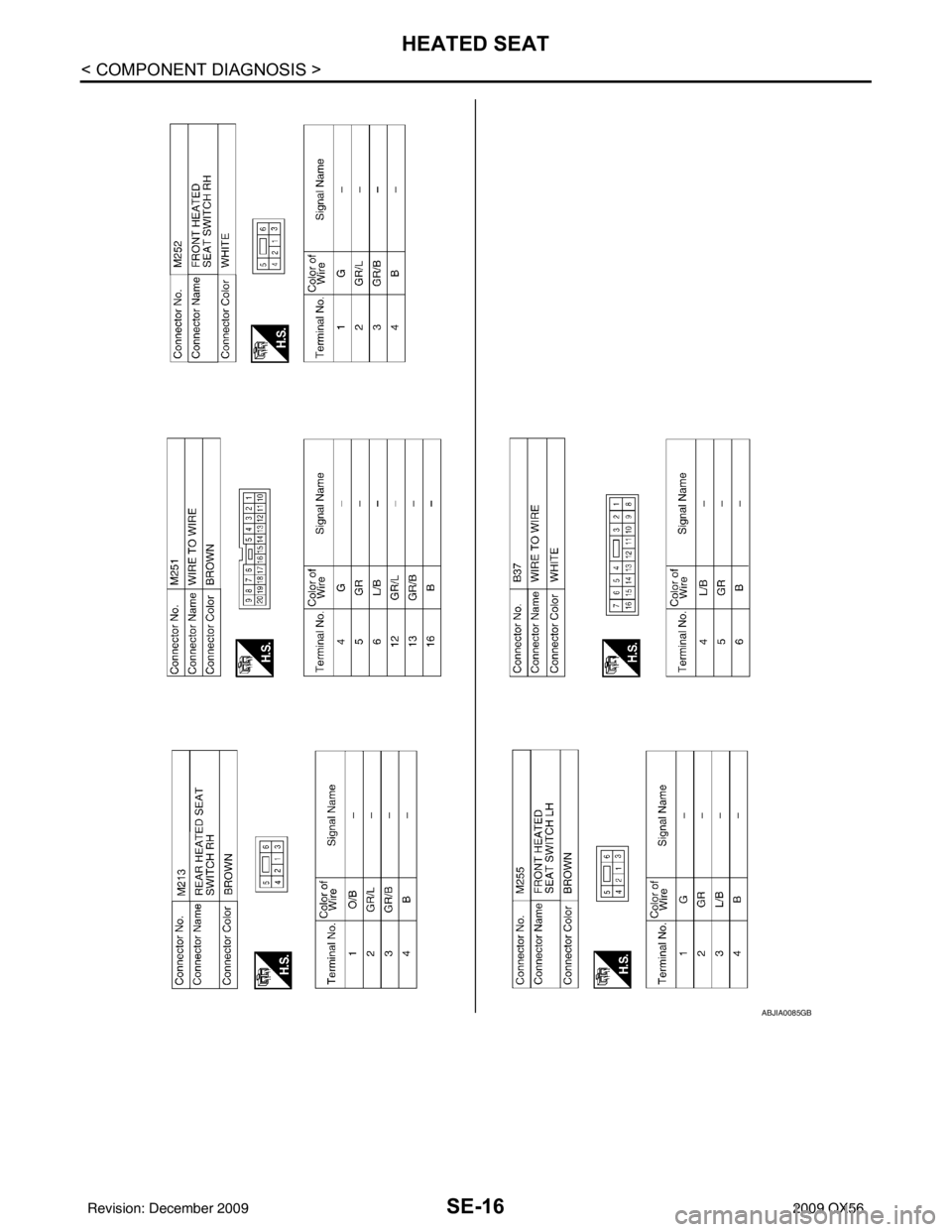

INFINITI QX56 2009 Factory Service Manual HEATED SEATSE-15 < COMPONENT DIAGNOSIS > C DE F G H I K L M A B SE N O P ABJIA0116GB Revision: December 20092009 QX56

Page 3248 of 4171

INFINITI QX56 2009 Factory Service Manual SE-16 < COMPONENT DIAGNOSIS > HEATED SEAT ABJIA0085GB Revision: December 20092009 QX56
