Page 2913 of 4171

INFINITI QX56 2009 Factory Service Manual PG-42
< COMPONENT DIAGNOSIS >

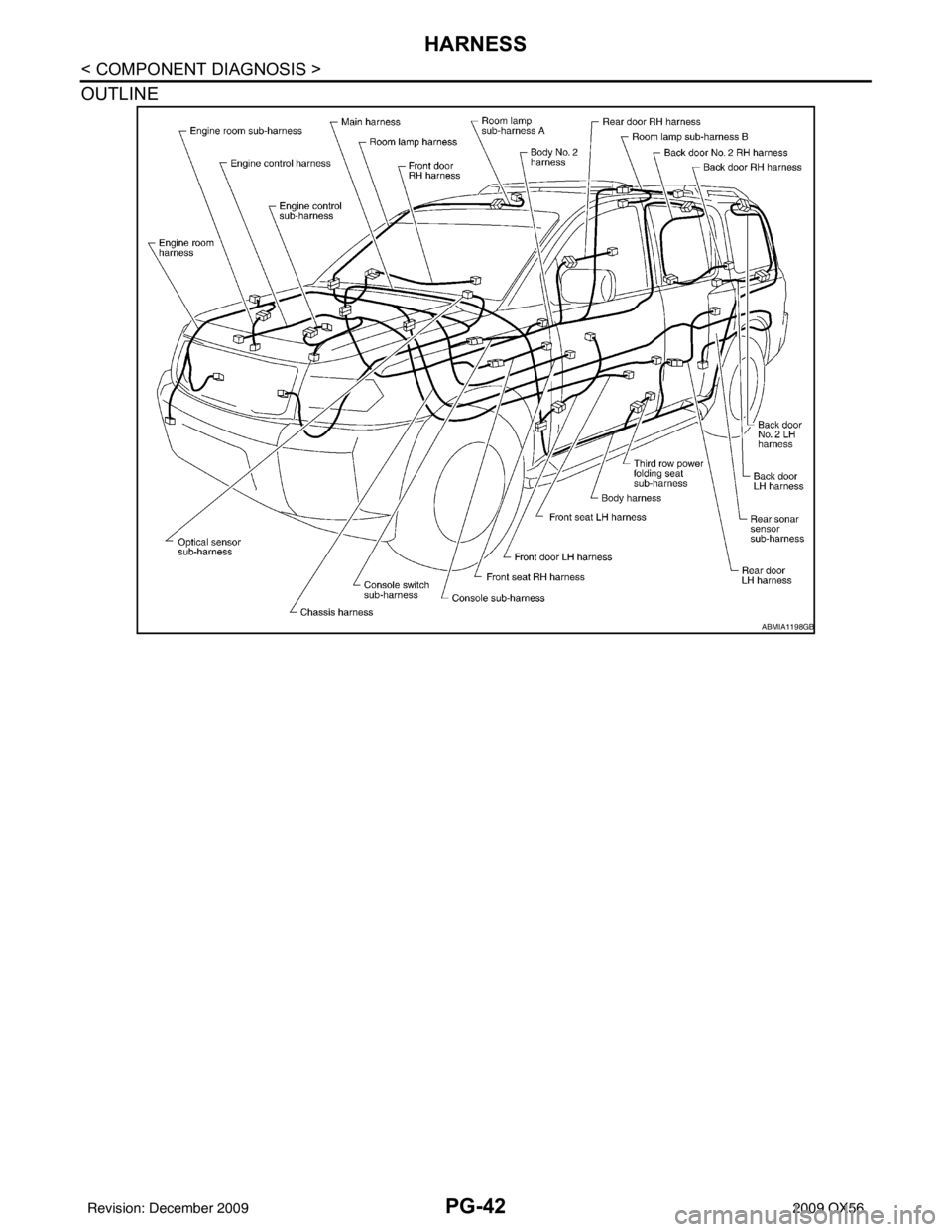

HARNESS
OUTLINE
ABMIA1198GB
Revision: December 20092009 QX56

Page 2914 of 4171

INFINITI QX56 2009 Factory Service Manual PG
HARNESSPG-43
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
MAIN HARNESS
AAMIA0455GB
G4 M1 W/16 : To R1
G3 M78 BR/2 : To M550
F4 M2 W/12 : To R2 E2 M79 — : Body ground
G2 M3 W/8 : Fuse bloc

Page 2915 of 4171

INFINITI QX56 2009 Factory Service Manual PG-44
< COMPONENT DIAGNOSIS >
HARNESS
A3 M6 W/10 : To E10A3 M82 W/2 : Circuit breaker-2
A2 M7 B/5 : Passenger select unlock relay G4 M84 W/16 : To B101
A3 M8 W/16 : To D2 A3 M85 W/3 : Tilt motor assem

PG-44
< COMPONENT DIAGNOSIS >
HARNESS
A3 M6 W/10 : To E10A3 M82 W/2 : Circuit breaker-2
A2 M7 B/5 : Passenger select unlock relay G4 M84 W/16 : To B101
A3 M8 W/16 : To D2 A3 M85 W/3 : Tilt motor assembly
A2 M9 BR/24 : To D1 B3 M86 W/2 : Tilt motor assembly
A3 M10 Y/4 : To E29 B3 M87 B/5 : Rear power vent window relay (open)
A3 M11 B/1 : Parking brake switch B3 M89 B/5 : Rear power vent window relay (close)
C3 M12 GR/6 : Key switch and ignition knob switch B3 M91 W/16 : To E26
D3 M13 BR/2 : Front passenger air bag OFF indicator A2 M92 B/6 : Power liftgate switch
A2 M14 GR/6 : Diode-3 D1 M93 W/24 : Display unit
B3 M15 W/4 : Steering lock solenoid A2 M95 W/6 : Rear power vent window switch
A2 M16 GR/6 : ADP steering switch A2 M96 BR/6 : Pedal adjusting switch
B2 M17 W/8 : Steering angle sensor C2 M98 W/16 : A/C and AV switch assembly
C2 M18 W/40 : BCM (body control module) C3 M99 BR/2 : Foot lamp LH
C2 M19 W/15 : BCM (body control module) F4 M100 BR/2 : Foot lamp RH
C2 M20 B/15 : BCM (body control module) E3 M104 W/4 : Aux jack
C3 M21 W/4 : NATS antenna AMP. F2 M105 Y/2 : Front passenger air bag module
C3 M22 W/16 : Data link connector F2 M106 O/2 : Front passenger air bag module
B1 M23 W/12 : Combination meter F3 M107 B/5 : Front blower relay
C1 M24 W/40 : Combination meter D5 M108 B/6 : Yaw rate/ side/ decel G sensor
F2 M25 B/4 : Remote keyless entry receiver A1 M109 BR/2 : Front tweeter LH
B2 M26 W/6 : Ignition switch D2 M110 BR/2 : Center speaker
B2 M28 W/16 : Combination switch F2 M111 BR/2 : Front tweeter RH
B2 M29 Y/6 : Combination switch (spiral cable) C2 M112 BR/14 : BOSE speaker amp.
B3 M30 GR/8 : Combination switch (spiral cable) C2 M113 BR/23 : BOSE speaker amp.
G4 M31 SMJ : To E152 A2 M116 GR/8 : Sonar system OFF switch
C3 M32 W/4 : In-vehicle sensor A2 M117 GR/8 : Rear sonar system OFF switch
B3 M33 W/32 : Automatic drive position control unit B1 M118 B/2 : Front sonar buzzer
B3 M34 W/16 : Automatic drive position control unit F2 M120 W/4 : Remote keyless entry receiver
C5 M35 Y/28 : Air bag diagnosis sensor unit F4 M122 W/4 : Variable blower control (front)
G4 M36 SMJ : To B149 C3 M123 W/2 : Tire pressure warning check connector
G3 M37 B/1 : Fuse block (J/B) D2 M139 B/2 : Diode-1
G3 M38 B/2 : Fuse block (J/B) D1 M140 B/2 : Diode-2
D3 M39 W/8 : Fuse block (J/B) C2 M141 GR/8 : 4WD shift switch
A3 M40 SMJ : To B69 E1 M142 B/6 : Mode door motor (front)
D2 M42 W/20 : AV control unit E3 M143 B/6 : Air mix door motor (passenger)
D2 M43 W/12 : AV control unit C1 M144 B/6 : Defroster door motor
D2 M44 W/32 : AV control unit E3 M146 GR/2 : Intake sensor
D3 M45 W/40 : AV control unit D3 M147B/6 : Air mix doo r motor (driver)
B1 M47 B/2 : Sonar buzzer D2 M148 W/4 : Headlamp aiming switch
D2 M49 B/26 : A/C auto amp. D3 M149 W/4 : Clock
D2 M50 L/26 : A/C auto amp. B1 M150 W/2 : Ignition keyhole illumination
B3 M51 L/4 : Trailer tow relay 1 A3 M158 W/10 : To D3
B2 M52 W/2 : Combination switch (spiral cable) Console sub-harness
D3 M53 B/3 : Front power socket LH D4 M201 W/16 : To M56
E3 M54 B/3 : Front power socket RH (for cigarette
lighter) D4 M202 BR/24 : To M64
Revision: December 20092009 QX56

Page 2916 of 4171

INFINITI QX56 2009 Factory Service Manual PG
HARNESSPG-45
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
D2 M55 W/4 : Hazard switch
D4 M203 W/12 : A/T shift selector
D4 M56 W/16 : To M201 D5 M205 W/32 : DVD player
A3 M57 — : Body grou

Page 2917 of 4171

INFINITI QX56 2009 Factory Service Manual PG-46
< COMPONENT DIAGNOSIS >
HARNESS
ENGINE ROOM HARNESS
AAMIA0451GB
C4 E1 GR/2 : Ambient sensorE3 E114 B/6 : Delta stroke motor
D3 E2 W/16 : To F32 D1 E116 W/2 : Condenser-2
C3 E3 B/2 : Horn D3 E117

Page 2918 of 4171

INFINITI QX56 2009 Factory Service Manual PG
HARNESSPG-47
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
C1 E5 W/24 : To F14
C1 E119 W/16: IPDM E/R (intelligent power distri-
bution module engine room)
C2 E7 GR/2 : Fusible link box (b

PG
HARNESSPG-47
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
C1 E5 W/24 : To F14
C1 E119 W/16: IPDM E/R (intelligent power distri-
bution module engine room)
C2 E7 GR/2 : Fusible link box (battery) D1 E120 W/6: IPDM E/R (intelligent power distri-
bution module engine room)
C2 E9 — : Body ground E1 E121 BR/12: IPDM E/R (intelligent power distri-
bution module engine room)
D4 E6 B/8 : Front combination lamp LH (without
daytime light system) C1 E122 W/12: IPDM E/R (intelligent power distri-
bution module engine room)
B2 E8 W/2 : Hood switch C1 E123 BR/8: IPDM E/R (intelligent power distri-
bution module engine room)
D4 E11 B/8 : Front combination lamp LH (with
daytime light system) D1 E124 B/6
: IPDM E/R (intelligent power distri-
bution module engine room)
D3 E12 B/5 : Stop lamp relay F3 E125 B/47: ABS actuator and electric unit
(control unit)
D4 E14 — : Body ground D4 E126 — : Body ground
C2 E15 — : Body ground C2 E130 W/2 : Compressor motor relay
C1 E16 B/40 : ECM C3 E131 W/2 : Compressor motor relay
E4 E18 GR/2 : Front wheel sensor LH D2 E134 GR/6 : ICC brake hold relay
D1 E19 W/16 : To F33 C2 E135 GR/2 : Transfer dropping resistor
E3 E21 GR/2 : Brake fluid level swit chC1 E140 BR/6 : Trailer tow relay-2
E2 E23 GR/6 : Front wiper motor B2 E153 W/2 : Transfer motor relay
D4 E24 — : Body ground B2 E154 W/2 : Transfer motor relay
F3 E25 BR/3 : Intelligent key warning buzzer D3 E156 L/4 : Trailer turn relay LH
C3 E27 BR/2 : Fusible link box (battery) D3 E157 L/4 : Trailer turn relay RH
C2 E30 /1 : Fusible link box (battery) D5 E158 B/3 : Front sonar sensor LH outer
E3 E31 B/3 : Front pressure sensor D5 E159 GR/3 : To E164
E3 E32 B/3 : Rear pressure sensor B4 E160 GR/3 : To E165
E1 E39 W/2 : To F34 C3 E161 B/3 : Battery current sensor
D3 E40 B/3 : To E201 C5 E162 B/3 : Front sonar sensor LH inner
D3 E41 SMJ : To C1 B4 E163 B/3 : Front sonar sensor RH inner
D2 E42 B/6 : ICC sensor D5 E164 GR/3 : To E159
E1 E46 B/5 : Transfer shift high relay A4 E165 GR/3 : To E160
D2 E47 B/5 : Transfer shift low relay A3 E166 B/3 : Front sonar sensor RH outer
C4 E48 B/3 : Refrigerant pressure sensor Engine room sub-harness
E3 E49 B/6 : Active booster D3 E201 B/3 : To E40
D1 E69 L/4 : Transfer shut off relay C1 E202 /1 : Fusible link box (battery)
D5 E101 B/3 : Front turn-fog lamp LH C2 E203 — : Engine ground
A4 E102 B/3 : Front turn-fog lamp RH C3 E204 /1 : Generator
C3 E103 B/5 : Daytime light relay C3 E205 B/3 : Generator
D4 E105 BR/2 : Front and rear washer motor C3 E206 /1 : Generator
E4 E106 BR/2 : Washer fluid level switch
B3 E107 B/8 : Front combination lamp RH (without
daytime light system)
A3 E108 B/6 : Front combination lamp RH (without
daytime light system)
C5 E113 W/2 : Cooling fan motor
Revision: December 20092009 QX56

Page 2919 of 4171

INFINITI QX56 2009 Factory Service Manual PG-48
< COMPONENT DIAGNOSIS >
HARNESS
ENGINE ROOM HARNESS (PASSENGER COMPARTMENT)
ABMIA0156GB
A3 E10 W/10 : To M6
C4 E20 B/8: Accelerator pedal position
(APP) sensor
C4 E26 W/16 : To M91
B4 E29 Y/

Page 2920 of 4171

INFINITI QX56 2009 Factory Service Manual PG
HARNESSPG-49
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
A3 E34 W/24 : To B40
A4 E35 W/12 : To B41
A4 E36 W/2 : To B42
B3 E37 BR/2 : ASCD brake switch (with ASCD)
B3 E38 W/4 : Stop lamp sw
