Page 2929 of 4171

INFINITI QX56 2009 Factory Service Manual PG-58 < COMPONENT DIAGNOSIS > HARNESS FRONT DOOR LH HARNESS C3 R7 GR/10 : Auto anti-dazzling inside mirror D1 R201 BR/24 : To B146 B3 R8 W/2 : Vanity lamp RHC2 R202 W/12 : Video monitor D3 R9 W/8 : To

Page 2930 of 4171

INFINITI QX56 2009 Factory Service Manual PG HARNESSPG-59 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N FRONT DOOR RH HARNESS ALMIA0218GB D101 W/10 : To M75 D109 W/2 : Front step lamp RH D102 BR/20 : To M74 D112 W/2 : Front door speak

Page 2931 of 4171

INFINITI QX56 2009 Factory Service Manual PG-60 < COMPONENT DIAGNOSIS > HARNESS REAR DOOR LH HARNESS AWMIA0109GB D201 W/18 : To B6 D206 W/2 : Rear step lamp LH D203 W/8 : Rear power window switch LH D207 W/2 : Rear door speaker LH D204 GR/6

Page 2932 of 4171

INFINITI QX56 2009 Factory Service Manual PG HARNESSPG-61 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N REAR DOOR RH HARNESS AWMIA0110GB D301 W/18 : To B106 D306 W/2 : Rear step lamp RH D303 W/8 : Rear power window switch RHD307 W/2

Page 2933 of 4171

INFINITI QX56 2009 Factory Service Manual PG-62 < COMPONENT DIAGNOSIS > HARNESS BACK DOOR HARNESS AAMIA0452GB Back door No. 2 LH harnessBack door RH harness E2 D401 W/18 : To B48 B3 D701 W/16 : To D606 E2 D402 W/2 : To B49 A3 D702 W/6 : To D6

Page 2934 of 4171

INFINITI QX56 2009 Factory Service Manual PG HARNESSPG-63 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N F2 D406 B/1 : Rear window defogger D2 D705 GR/2 : Back-up lamp LH Back door LH harness C4 D706 W/4 : Back door and glass hatch swit

Page 2935 of 4171

INFINITI QX56 2009 Factory Service Manual PG-64 < COMPONENT DIAGNOSIS > ELECTRICAL UNITS LOCATION ELECTRICAL UNITS LOCATION Electrical Units LocationINFOID:0000000003776572 ENGINE COMPARTMENT ABMIA0164GB Revision: December 20092009 QX56

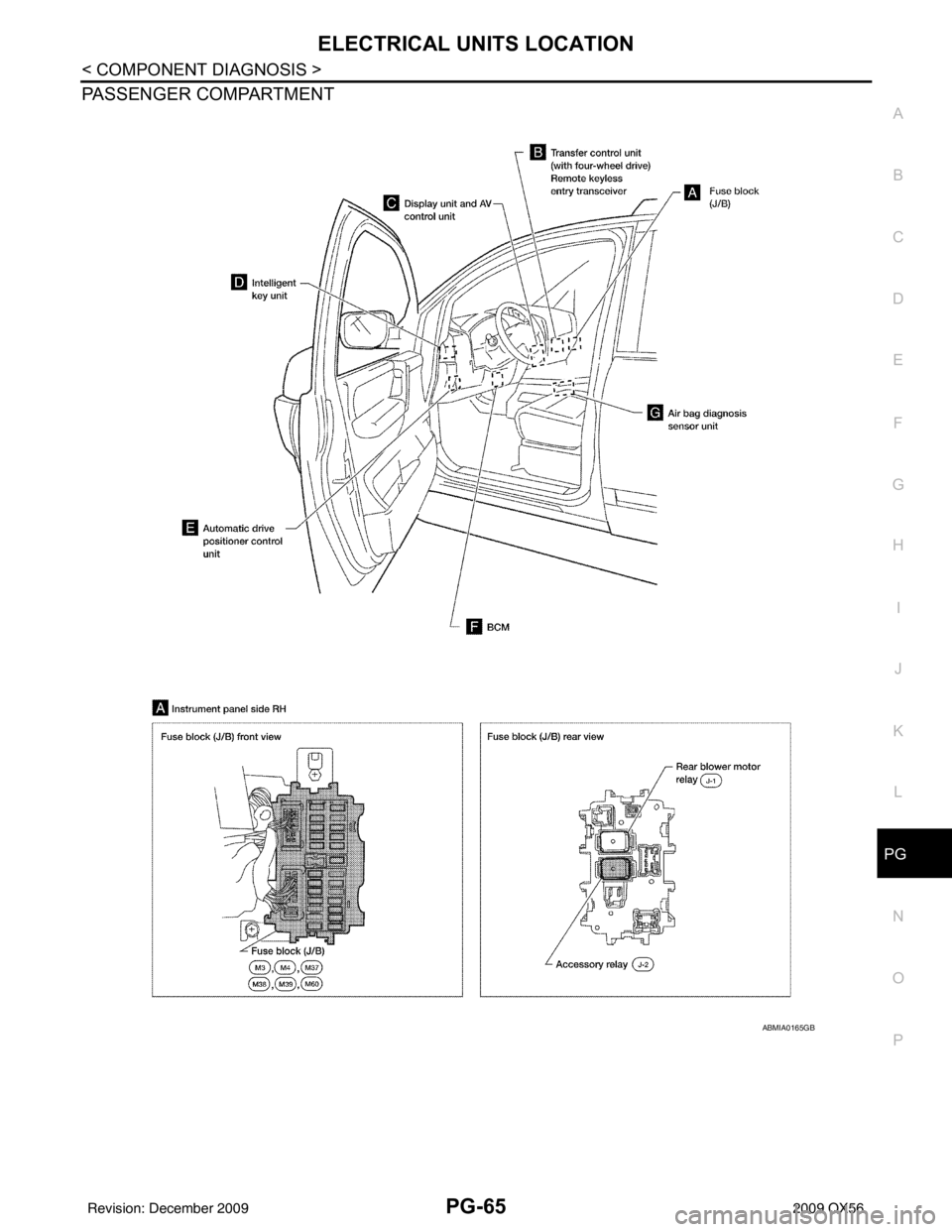

Page 2936 of 4171

INFINITI QX56 2009 Factory Service Manual PG ELECTRICAL UNITS LOCATIONPG-65 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N PASSENGER COMPARTMENT ABMIA0165GB Revision: December 20092009 QX56
