LAN-40
< BASIC INSPECTION >[CAN]
DIAGNOSIS AND REPAIR WORKFLOW

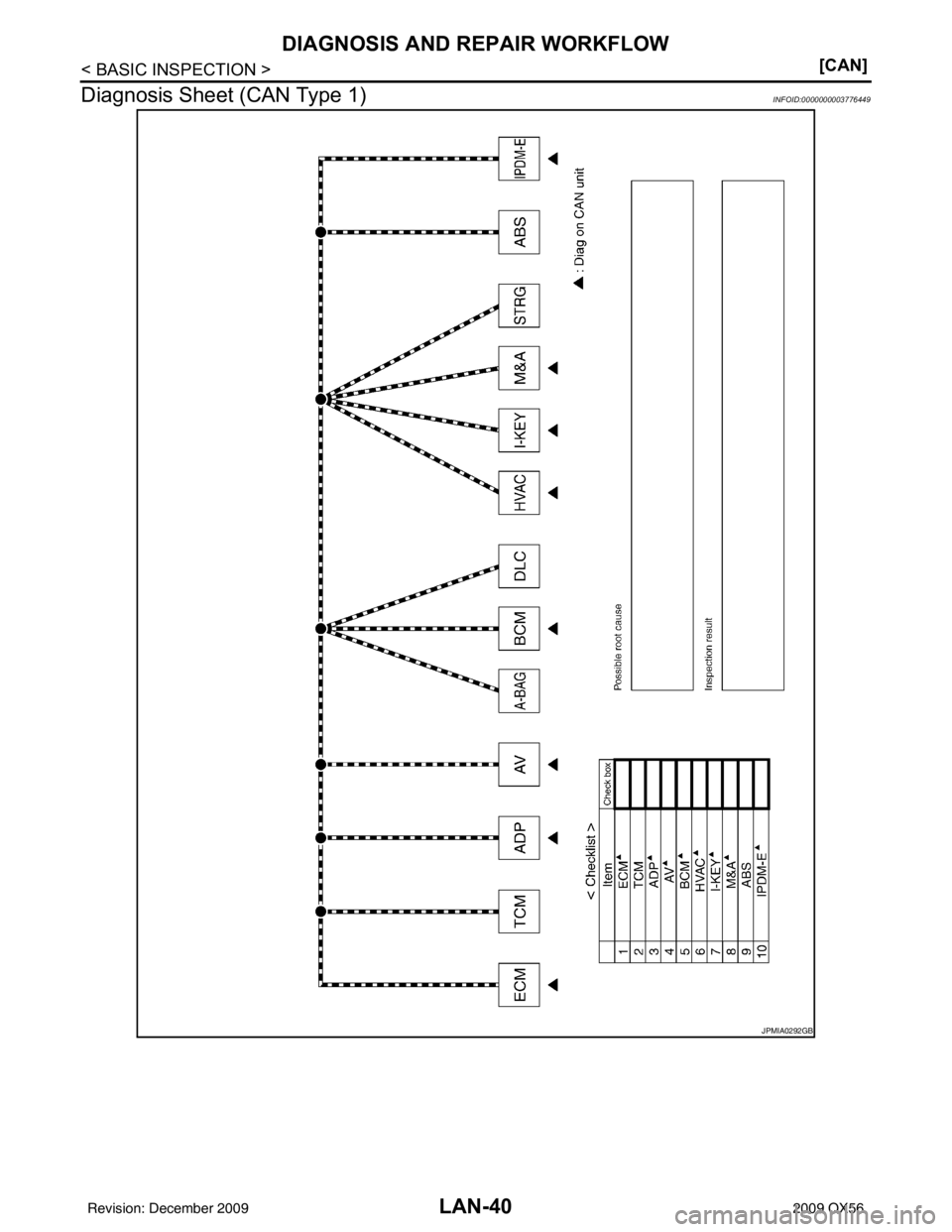

Diagnosis Sheet (CAN Type 1)
INFOID:0000000003776449
JPMIA0292GB
Revision: December 20092009 QX56
Page 2610 of 4171
LAN
DIAGNOSIS AND REPAIR WORKFLOWLAN-41
< BASIC INSPECTION > [CAN]
C
D
E
F
G H
I
J
K L
B A
O P
N

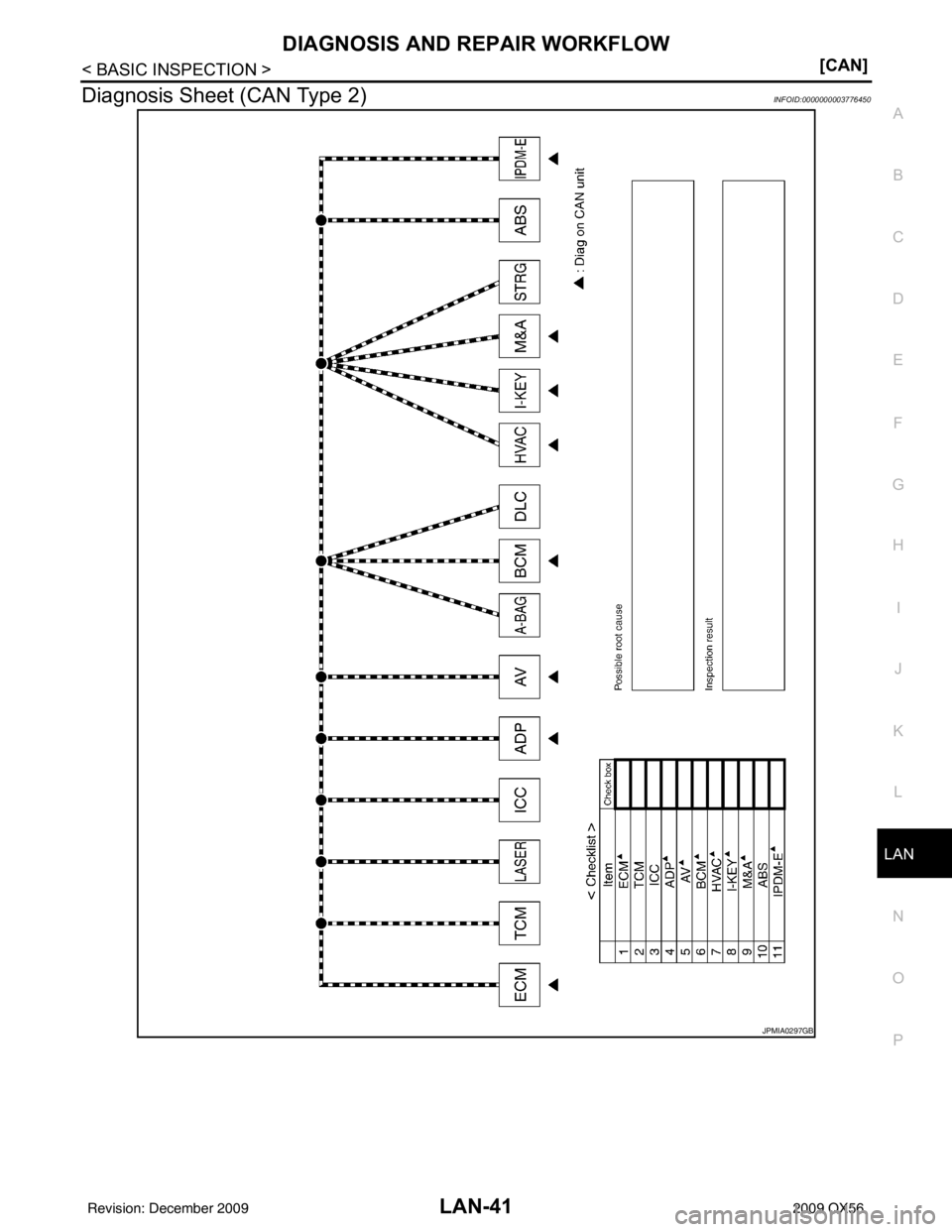

Diagnosis Sheet (CAN Type 2)INFOID:0000000003776450
JPMIA0297GB
Revision: December 20092009 QX56
Page 2611 of 4171
LAN-42
< BASIC INSPECTION >[CAN]
DIAGNOSIS AND REPAIR WORKFLOW
Diagnosis Sheet (CAN Type 3)
INFOID:0000000003776451
JPMIA0295GB
Revision: December 20092009 QX56
Page 2612 of 4171
LAN
DIAGNOSIS AND REPAIR WORKFLOWLAN-43
< BASIC INSPECTION > [CAN]
C
D
E
F
G H
I
J
K L
B A
O P
N

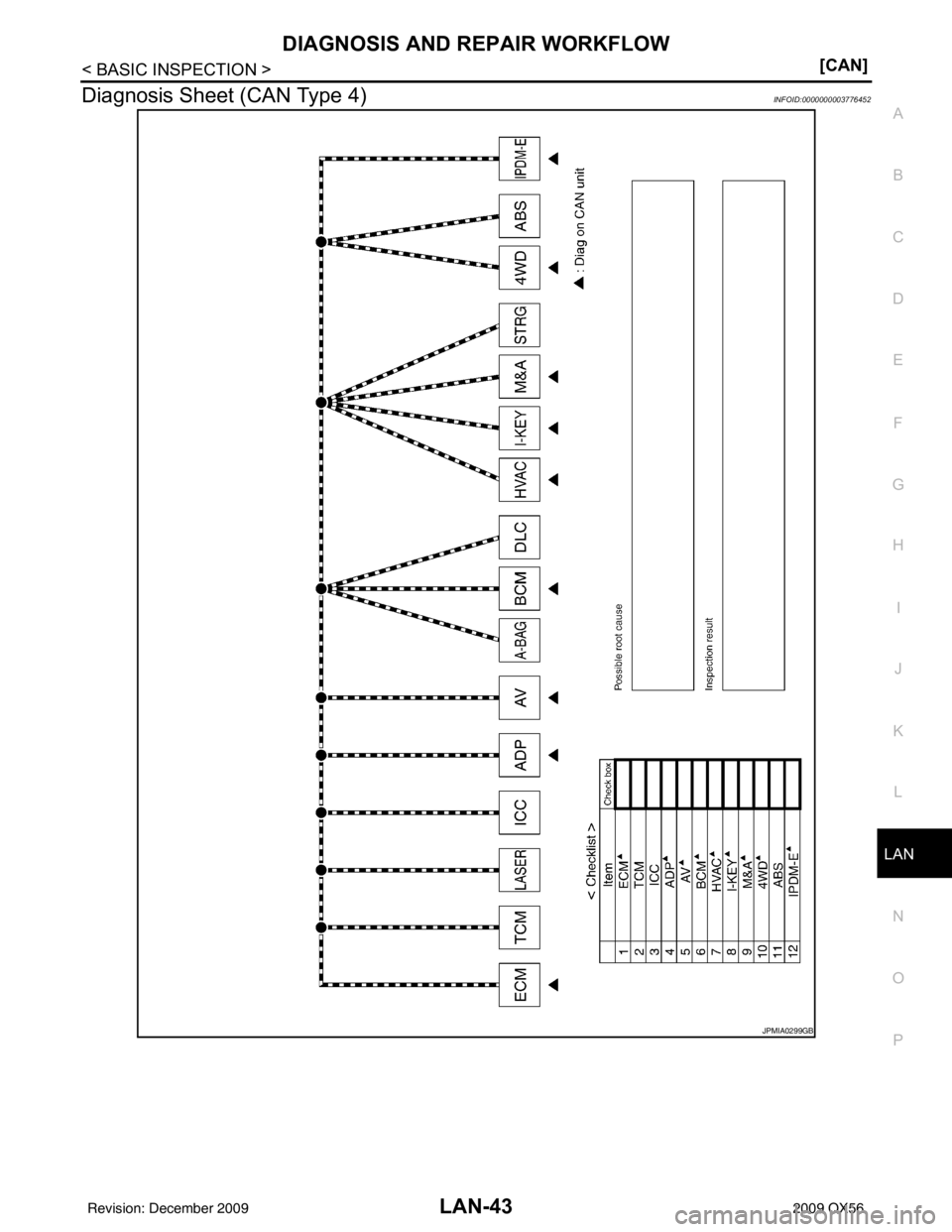

Diagnosis Sheet (CAN Type 4)INFOID:0000000003776452
JPMIA0299GB
Revision: December 20092009 QX56
Page 2613 of 4171
![INFINITI QX56 2009 Factory Service Manual LAN-44
< FUNCTION DIAGNOSIS >[CAN]
CAN COMMUNICATION SYSTEM
FUNCTION DIAGNOSIS
CAN COMMUNICATION SYSTEM
CAN System Specification ChartINFOID:0000000003776453
Determine CAN system type from the followi INFINITI QX56 2009 Factory Service Manual LAN-44
< FUNCTION DIAGNOSIS >[CAN]
CAN COMMUNICATION SYSTEM
FUNCTION DIAGNOSIS
CAN COMMUNICATION SYSTEM
CAN System Specification ChartINFOID:0000000003776453
Determine CAN system type from the followi](/manual-img/42/57031/w960_57031-2612.png)
LAN-44
< FUNCTION DIAGNOSIS >[CAN]
CAN COMMUNICATION SYSTEM
FUNCTION DIAGNOSIS
CAN COMMUNICATION SYSTEM
CAN System Specification ChartINFOID:0000000003776453
Determine CAN system type from the following specificat
ion chart. Then choose the correct diagnosis sheet.
NOTE:
Refer to LAN-14, "
Trouble Diagnosis Procedure" for how to use CAN system specification chart.
×: Applicable
VEHICLE EQUIPMENT IDENTIFICATION INFORMATION
NOTE:
Check CAN system type from the vehicle shape and equipment.
CAN Communication Signal ChartINFOID:0000000003776454
Refer to LAN-13, "How to Use CAN Communication Signal Chart" for how to use CAN communication signal
chart.
NOTE:
Refer to LAN-36, "
Abbreviation List" for the abbreviations of the connecting units.
T: Transmit R: Receive
Body type Wagon
Axle 2WD4WD
Engine VK56DE
Transmission A/T
Brake control VDC
ICC system ××
CAN system type 1234
Diagnosis sheet LAN-40
LAN-41LAN-42LAN-43
AWMIA0012GB
Signal name/Connecting unitECM
TCM
LASER ICC
ADP
AV
BCM
HVAC I-KEY M&A
STRG 4WDABS
IPDM-E
Accelerator pedal position signal T RR R R
A/C compressor request signal T R
ASCD CRUISE lamp signal T R
ASCD OD cancel request signal T R
ASCD operation signal T R
ASCD SET lamp signal T R
Battery voltage signal T R
Closed throttle position signal T RR
Cooling fan speed request signal T R
Engine coolant temperature signal T RR
