INFINITI QX56 2009 Factory Service Manual OVERHAULTM-225 < DISASSEMBLY AND ASSEMBLY > CEF G H I J K L M A B TM N O P 1. Rear oil seal 2. Bracket 3. Adapter case 4. Parking actuator support 5. Parking pawl 6. Return spring 7. Pawl shaft 8. Br

Page 3874 of 4171

INFINITI QX56 2009 Factory Service Manual TM-226 < DISASSEMBLY AND ASSEMBLY > OVERHAUL 19. Parking rod 20. Manual shaft oil seal 21. Manual shaft 22. O-ring 23. Band servo anchor end pin 24. Detent spring 25. Spacer 26. Seal rings 27. Return

Page 3875 of 4171

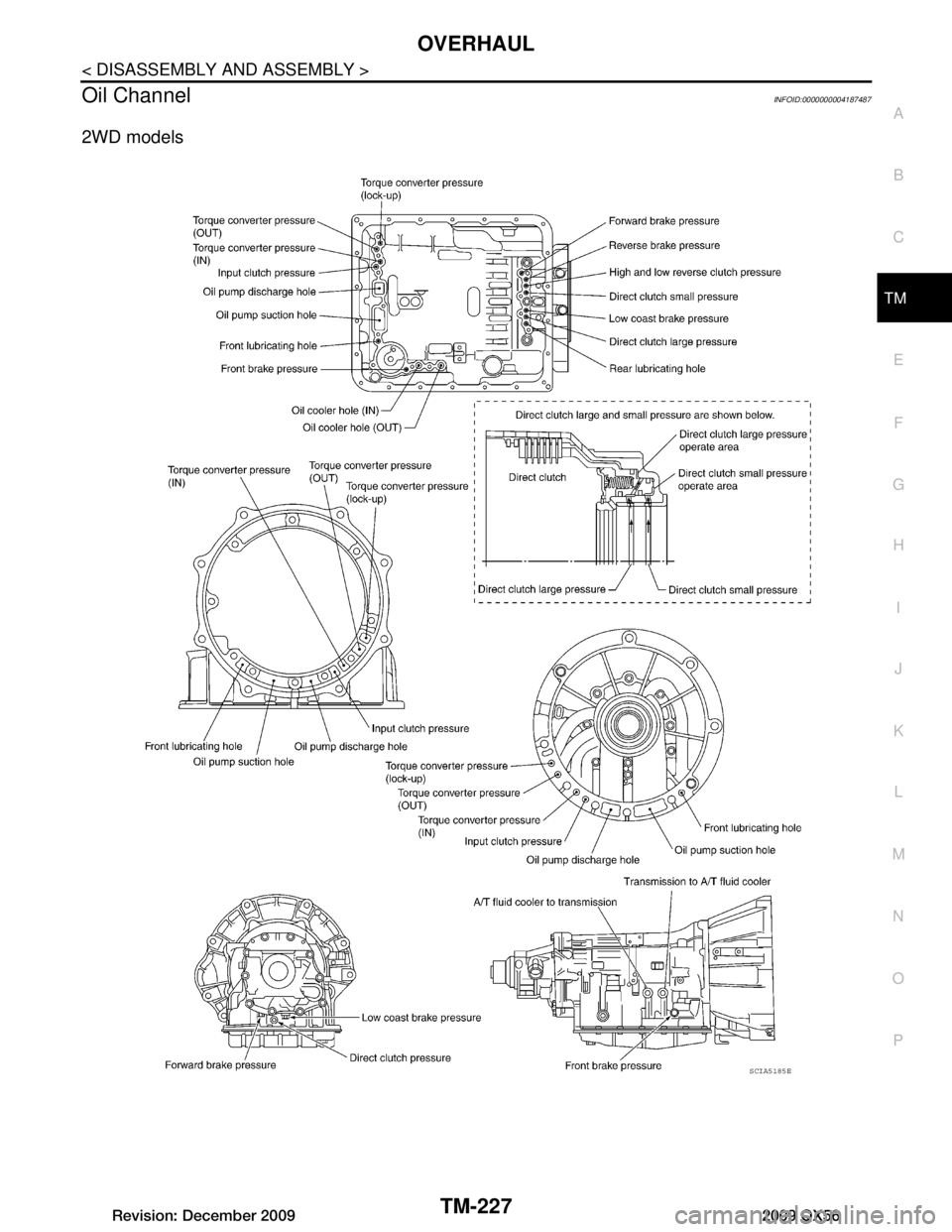

INFINITI QX56 2009 Factory Service Manual OVERHAULTM-227 < DISASSEMBLY AND ASSEMBLY > CEF G H I J K L M A B TM N O P Oil ChannelINFOID:0000000004187487 2WD models SCIA5185E Revision: December 20092009 QX56

Page 3876 of 4171

INFINITI QX56 2009 Factory Service Manual TM-228 < DISASSEMBLY AND ASSEMBLY > OVERHAUL 4WD models SCIA5189E Revision: December 20092009 QX56

Page 3877 of 4171

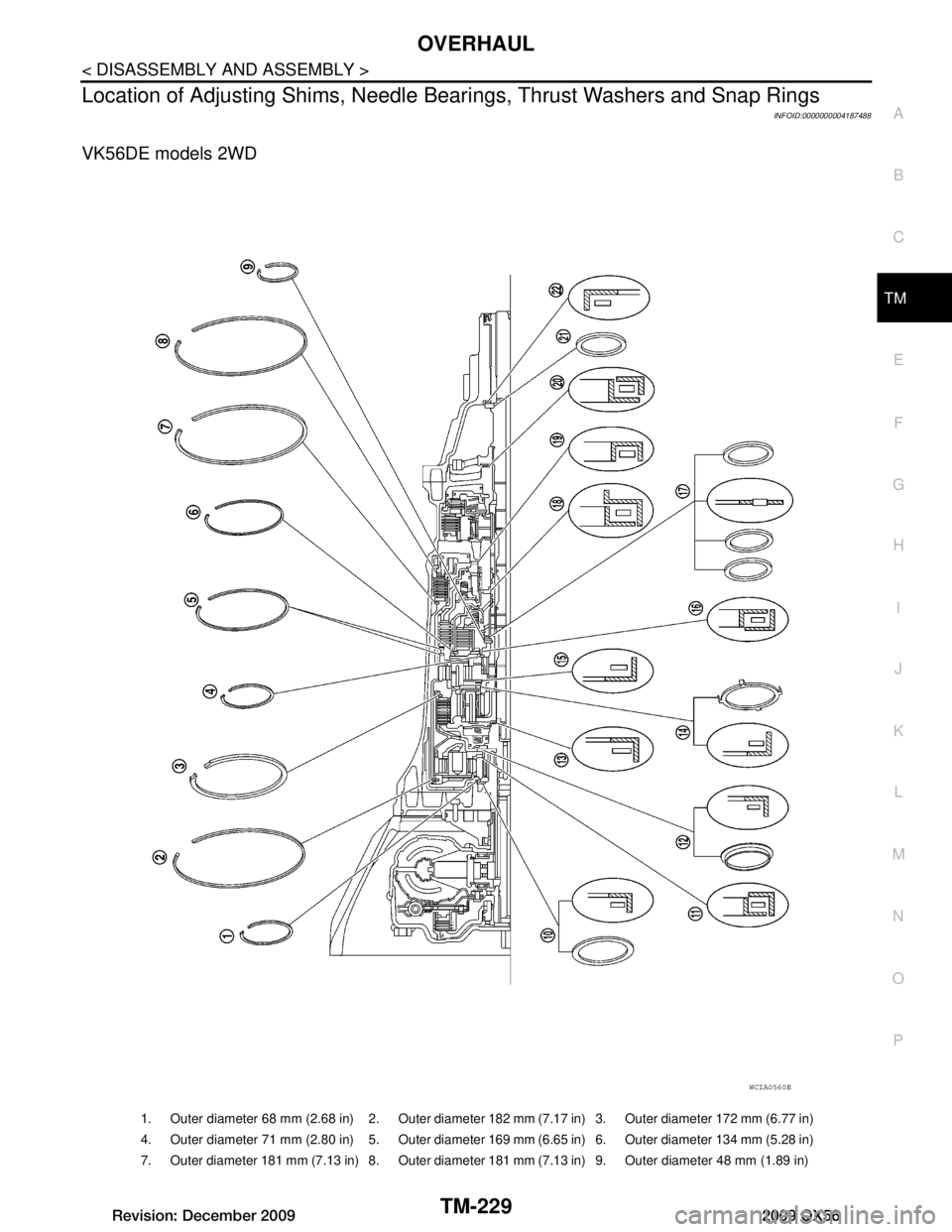

INFINITI QX56 2009 Factory Service Manual OVERHAULTM-229 < DISASSEMBLY AND ASSEMBLY > CEF G H I J K L M A B TM N O P Location of Adjusting Shim s, Needle Bearings, Thrust Washers and Snap Rings INFOID:0000000004187488 VK56DE models 2WD WCIA0

Page 3878 of 4171

INFINITI QX56 2009 Factory Service Manual TM-230 < DISASSEMBLY AND ASSEMBLY > OVERHAUL VK56DE models 4WD 10. Outer diameter 80 mm (3.15 in) 11. Outer diameter 77 mm (3.03 in) 12. Outer diameter 77 mm (3.03 in) 13. Outer diameter 47 mm (1.85

Page 3879 of 4171

INFINITI QX56 2009 Factory Service Manual OVERHAULTM-231 < DISASSEMBLY AND ASSEMBLY > CEF G H I J K L M A B TM N O P 1. Outer diameter 68 mm (2.68 in) 2. Outer diameter 182 mm (7.17 in) 3. Outer diameter 172 mm (6.77 in) 4. Outer diameter 71

Page 3880 of 4171

INFINITI QX56 2009 Factory Service Manual TM-232 < DISASSEMBLY AND ASSEMBLY > DISASSEMBLY DISASSEMBLY DisassemblyINFOID:0000000004187489 CAUTION: Do not disassemble parts behind Drum Support. Refer to TM-8, "Cross-Sectional View (2WD models)
