INFINITI QX56 2009 Factory Service Manual WW-26 < COMPONENT DIAGNOSIS > WASHER SWITCH WASHER SWITCH DescriptionINFOID:0000000003776297 • Washer switch is integrated with combination switch. • Combination switch switches polarity between f

Page 4114 of 4171

INFINITI QX56 2009 Factory Service Manual WASHER SWITCHWW-27 < COMPONENT DIAGNOSIS > C DE F G H I J K M A B WW N O P 1. Turn the ignition switch OFF. 2. Disconnect combination switch. 3. Check continuity between the combination switch termina

Page 4115 of 4171

INFINITI QX56 2009 Factory Service Manual WW-28 < COMPONENT DIAGNOSIS > REAR WIPER MOTOR CIRCUIT REAR WIPER MOTOR CIRCUIT Component Function CheckINFOID:0000000003776299 1. CHECK REAR WIPER ON OPERATION CONSULT-III ACTIVE TEST 1. Select "RR W

Page 4116 of 4171

INFINITI QX56 2009 Factory Service Manual REAR WIPER MOTOR CIRCUITWW-29 < COMPONENT DIAGNOSIS > C DE F G H I J K M A B WW N O P 3. Make sure hatch glass is closed 4. Check continuity between BCM harness connector and ground. Does continuity e

Page 4117 of 4171

INFINITI QX56 2009 Factory Service Manual WW-30 < COMPONENT DIAGNOSIS > REAR WIPER AUTO STOP SIGNAL CIRCUIT REAR WIPER AUTO STOP SIGNAL CIRCUIT Component Function CheckINFOID:0000000003776301 1. CHECK REAR WIPER (AUTO STOP) OPERATION CONSULT-

Page 4118 of 4171

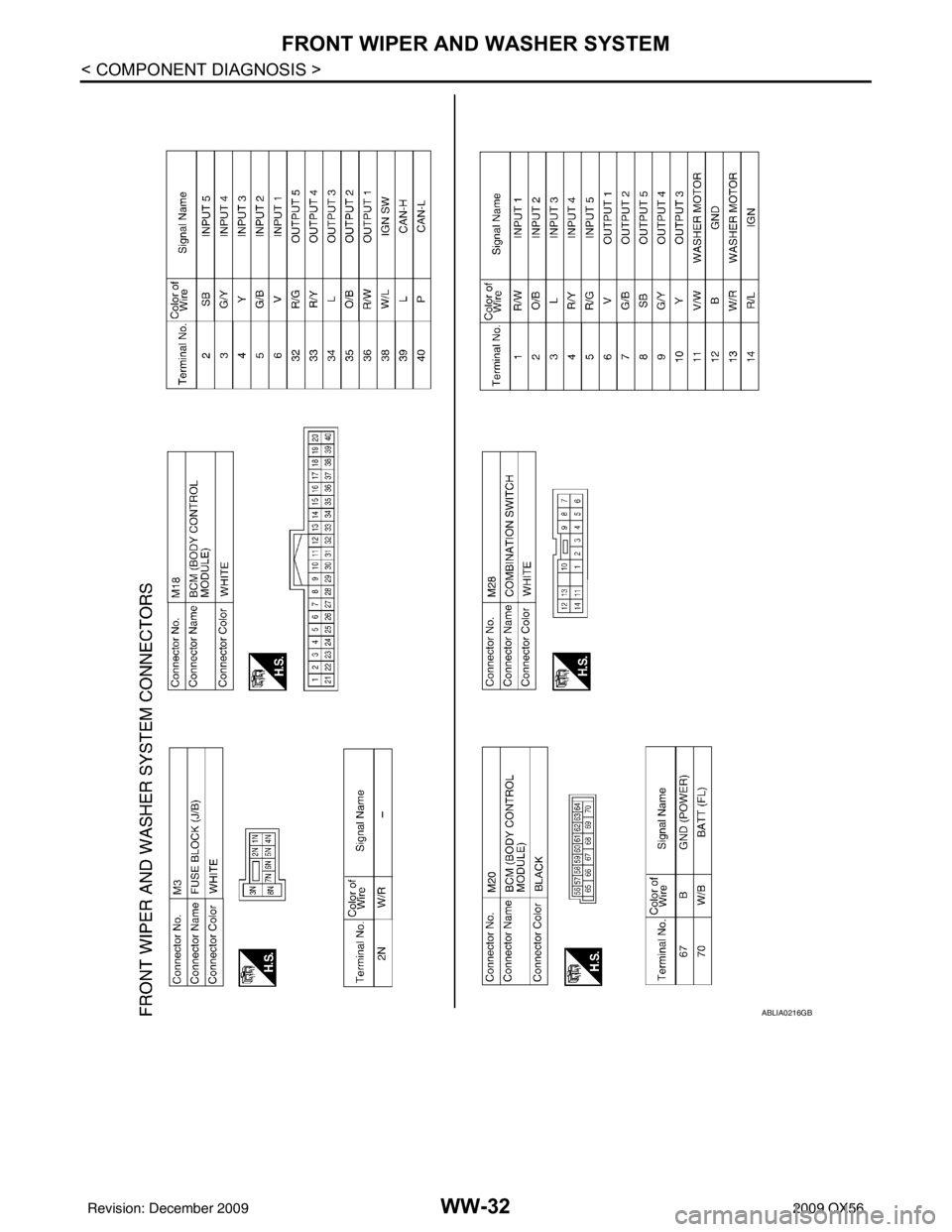

INFINITI QX56 2009 Factory Service Manual FRONT WIPER AND WASHER SYSTEMWW-31 < COMPONENT DIAGNOSIS > C DE F G H I J K M A B WW N O P FRONT WIPER AND WASHER SYSTEM Wiring DiagramINFOID:0000000003776303 ABLWA0067GB Revision: December 20092009 Q

Page 4119 of 4171

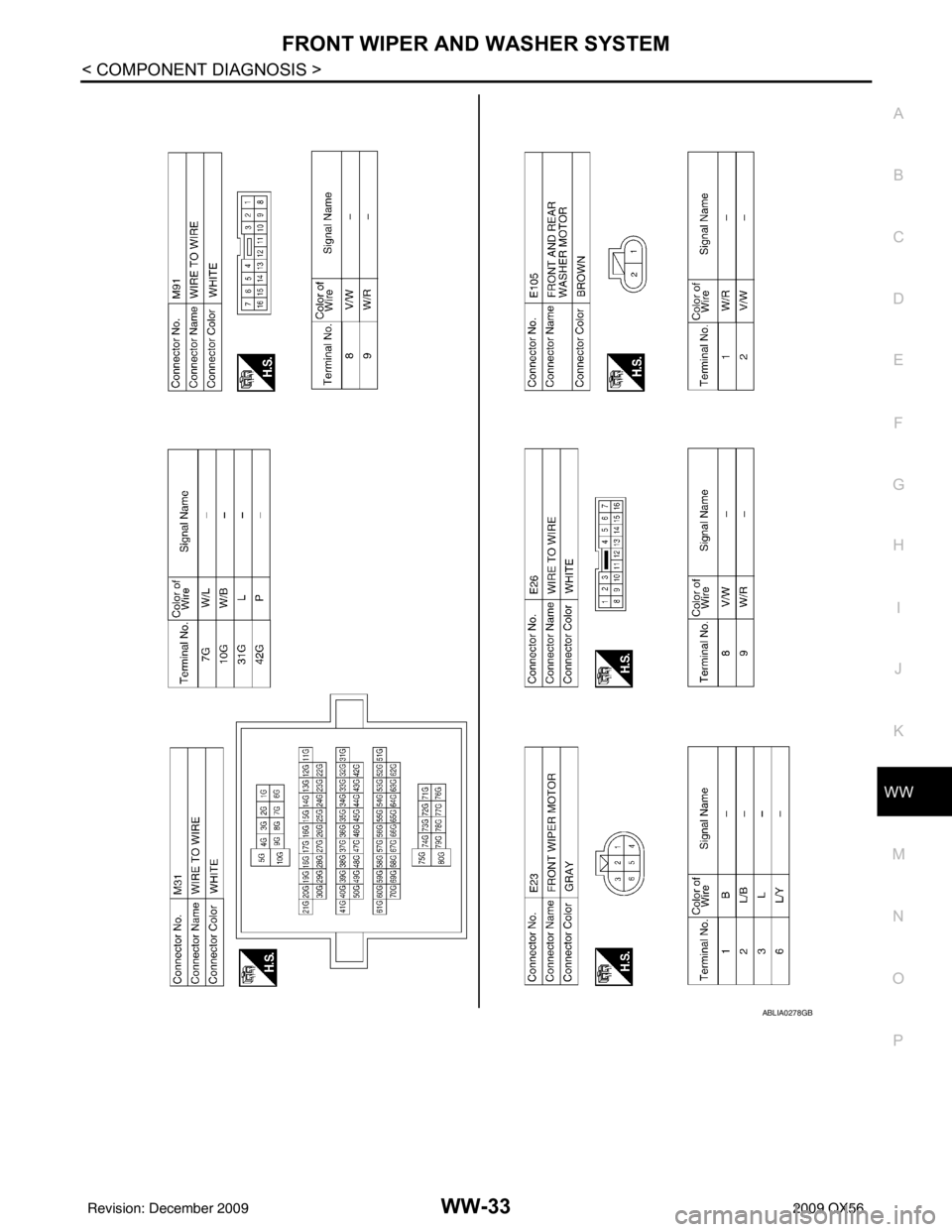

INFINITI QX56 2009 Factory Service Manual WW-32 < COMPONENT DIAGNOSIS > FRONT WIPER AND WASHER SYSTEM ABLIA0216GB Revision: December 20092009 QX56

Page 4120 of 4171

INFINITI QX56 2009 Factory Service Manual FRONT WIPER AND WASHER SYSTEMWW-33 < COMPONENT DIAGNOSIS > C DE F G H I J K M A B WW N O P ABLIA0278GB Revision: December 20092009 QX56
