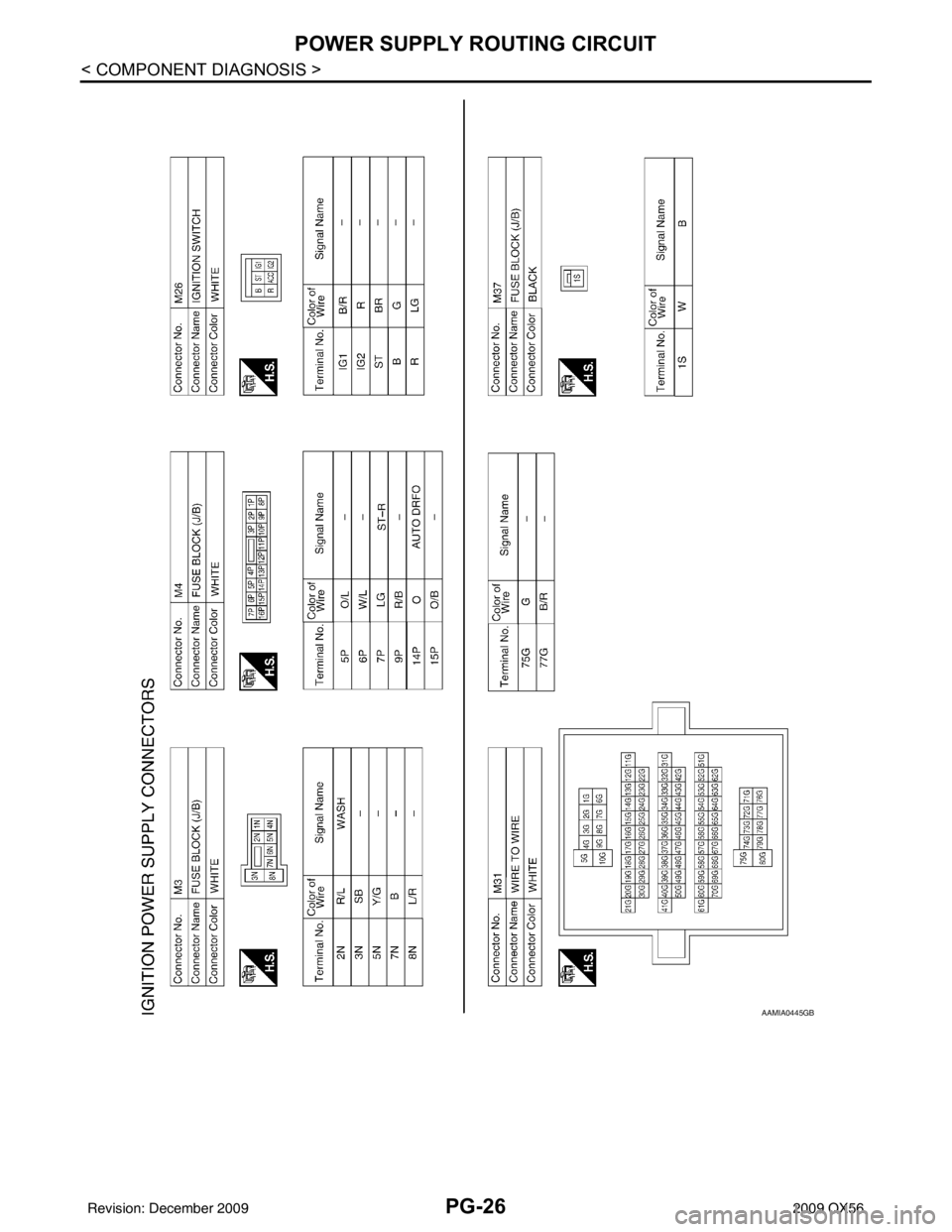

INFINITI QX56 2009 Factory Service Manual PG-26 < COMPONENT DIAGNOSIS > POWER SUPPLY ROUTING CIRCUIT AAMIA0445GB Revision: December 20092009 QX56

Page 2898 of 4171

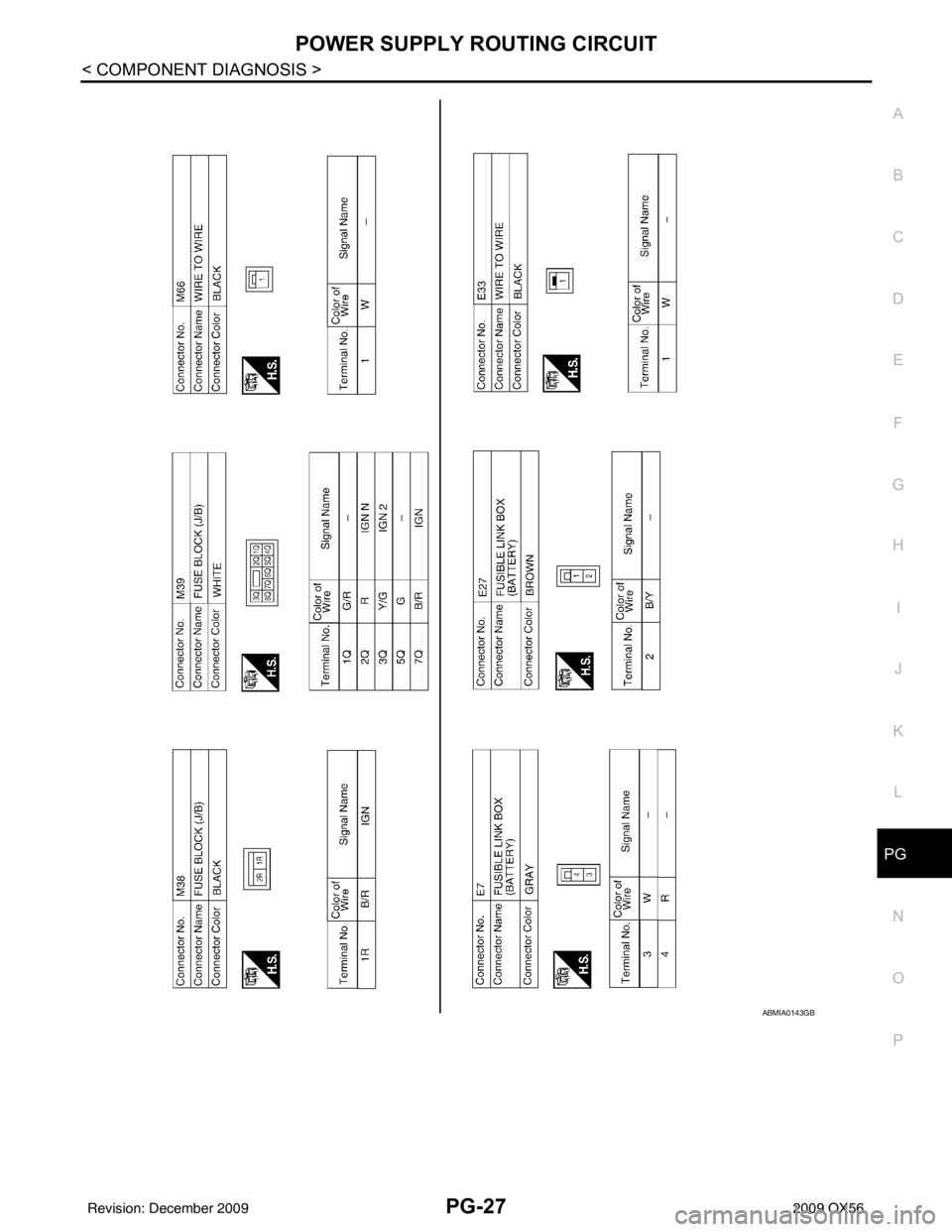

INFINITI QX56 2009 Factory Service Manual PG POWER SUPPLY ROUTING CIRCUITPG-27 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N ABMIA0143GB Revision: December 20092009 QX56

Page 2899 of 4171

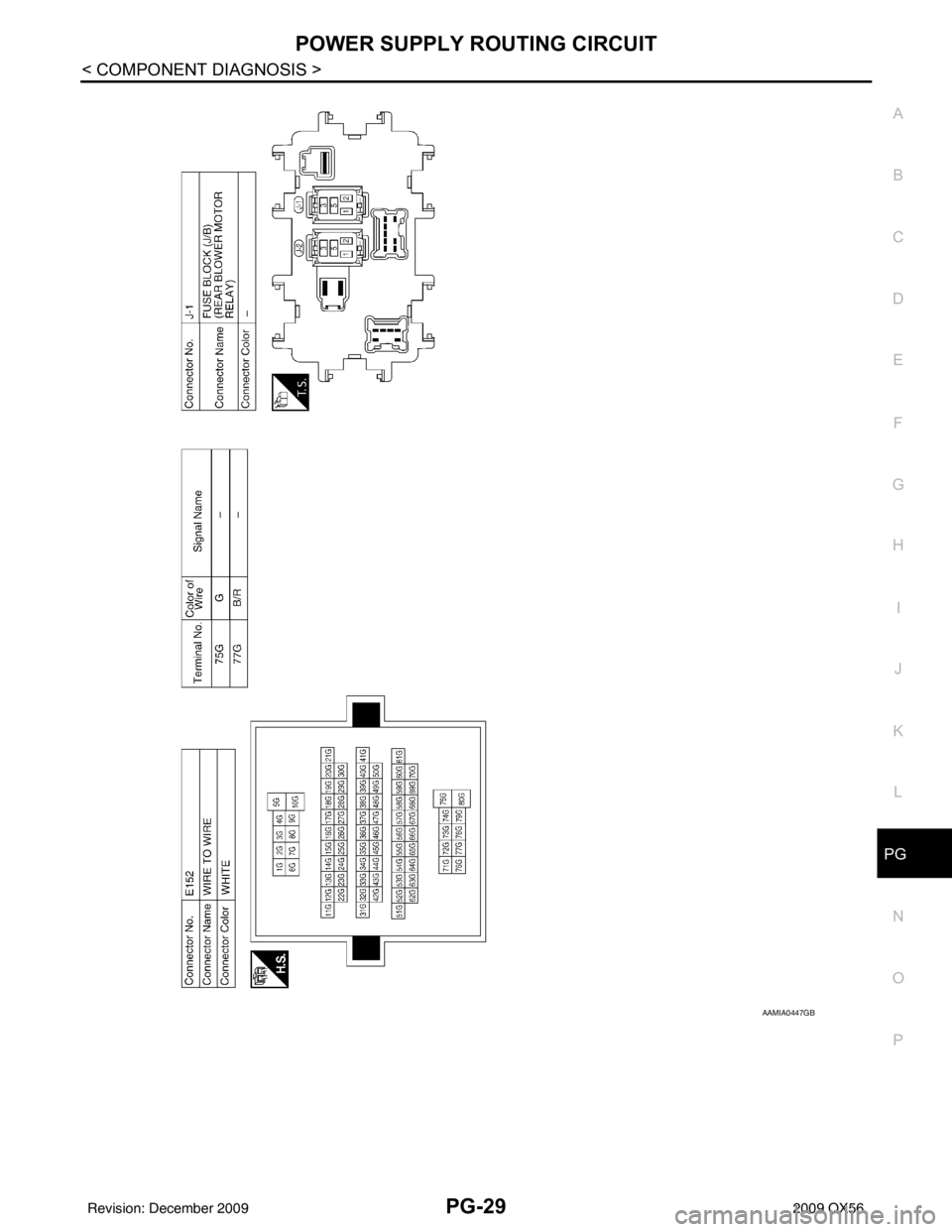

INFINITI QX56 2009 Factory Service Manual PG-28 < COMPONENT DIAGNOSIS > POWER SUPPLY ROUTING CIRCUIT ABMIA0144GB Revision: December 20092009 QX56

Page 2900 of 4171

INFINITI QX56 2009 Factory Service Manual PG POWER SUPPLY ROUTING CIRCUITPG-29 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N AAMIA0447GB Revision: December 20092009 QX56

Page 2901 of 4171

INFINITI QX56 2009 Factory Service Manual PG-30 < COMPONENT DIAGNOSIS > POWER SUPPLY ROUTING CIRCUIT Fuse INFOID:0000000003776568 • If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. • Use fuse of spec

Page 2902 of 4171

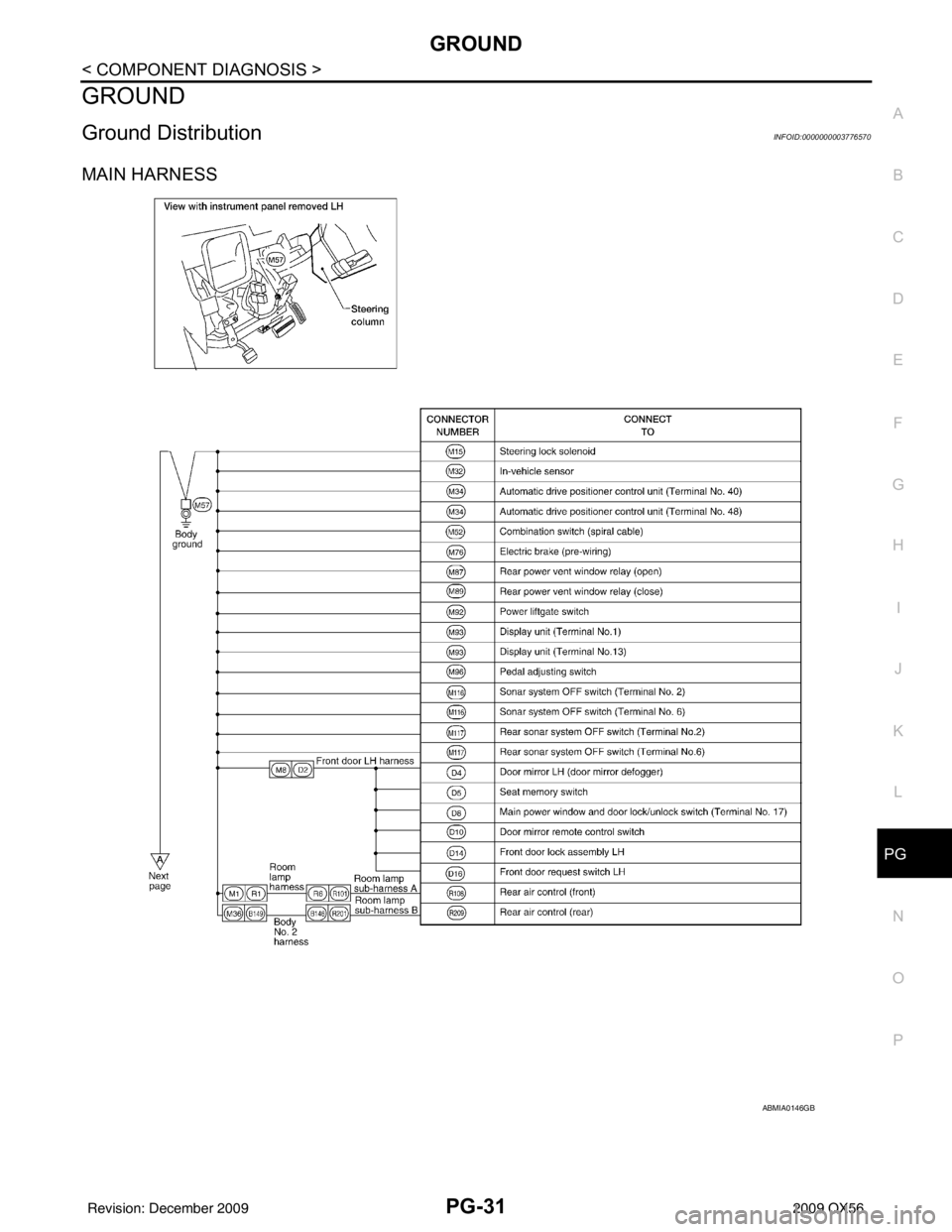

INFINITI QX56 2009 Factory Service Manual PG GROUNDPG-31 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N GROUND Ground DistributionINFOID:0000000003776570 MAIN HARNESS ABMIA0146GB Revision: December 20092009 QX56

Page 2903 of 4171

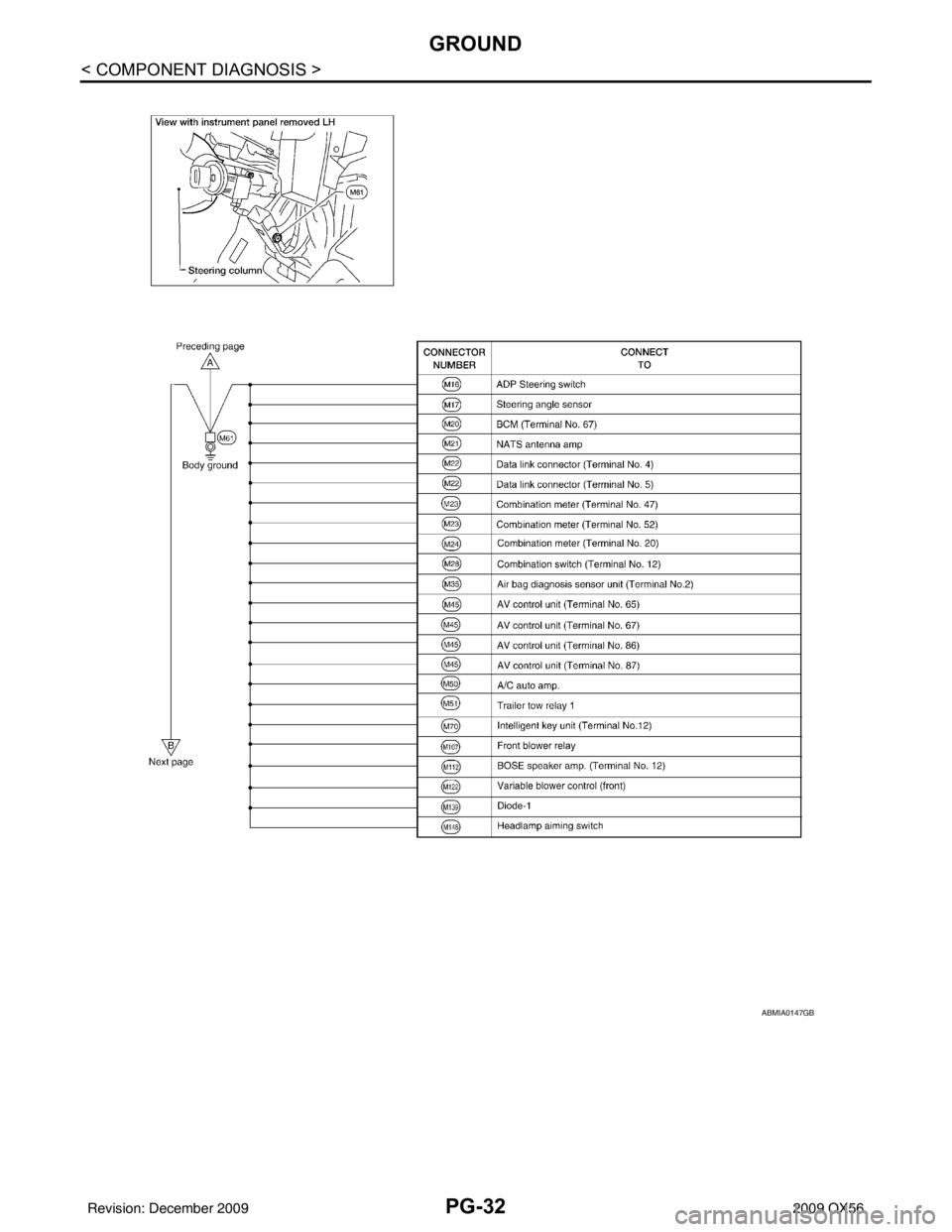

INFINITI QX56 2009 Factory Service Manual PG-32 < COMPONENT DIAGNOSIS > GROUND ABMIA0147GB Revision: December 20092009 QX56

Page 2904 of 4171

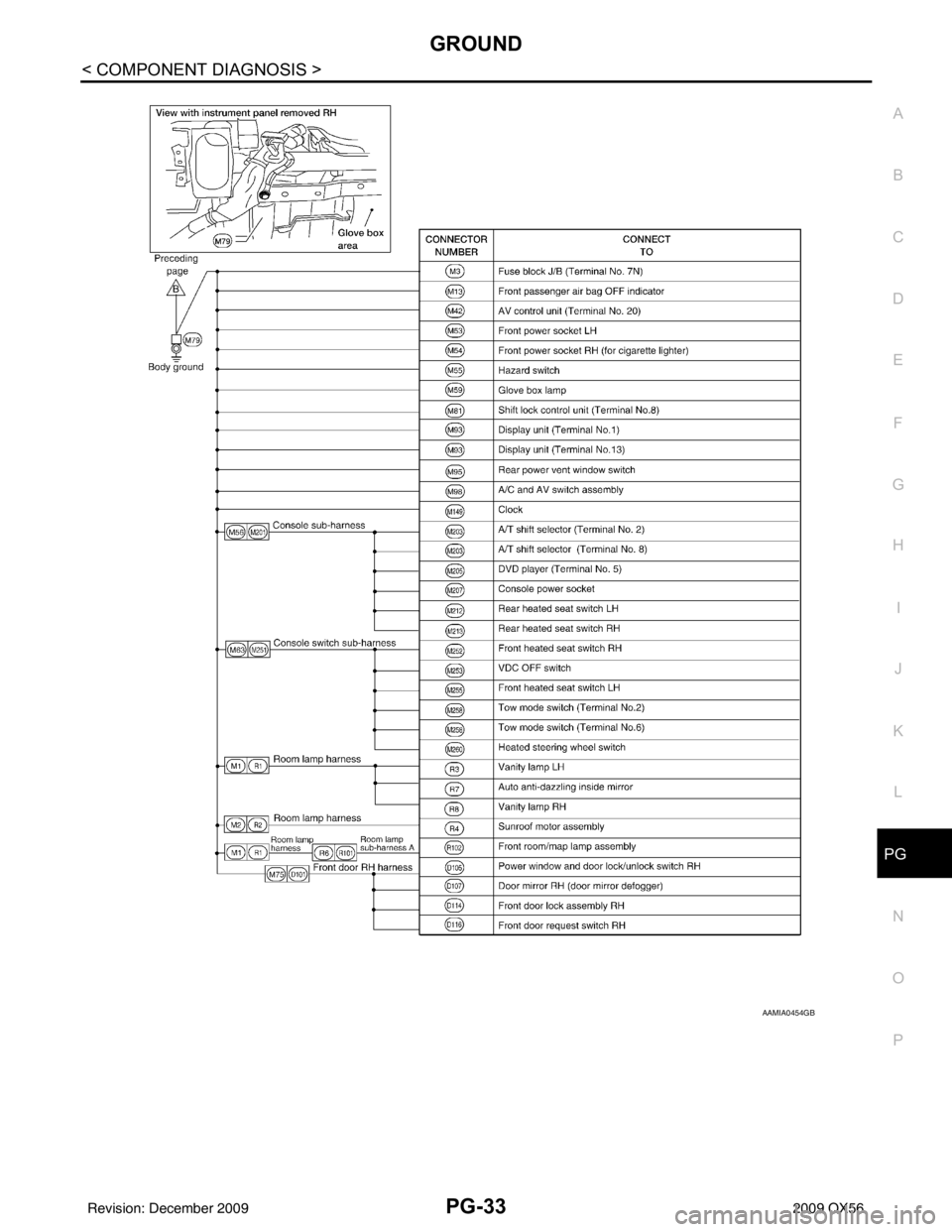

INFINITI QX56 2009 Factory Service Manual PG GROUNDPG-33 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N AAMIA0454GB Revision: December 20092009 QX56
