EC-34
< FUNCTION DIAGNOSIS >[VK56DE]
AUTOMATIC SPEED CONTROL DEVICE (ASCD)
When the RESUME/ACCELERATE
switch is pressed after cancel operation other than pressing MAIN switch
is performed, vehicle speed will return to last set s peed. To resume vehicle set speed, vehicle condition must
meet following conditions.
Brake pedal is released
A/T selector lever is in other than P and N positions
Vehicle speed is greater than 40 km/h (25 MPH) and less than 144 km/h (89 MPH)
Component DescriptionINFOID:0000000003771308
ASCD STEERING SWITCH
Refer to EC-328.
ASCD BRAKE SWITCH
Refer to EC-339, and EC-383.
STOP LAMP SWITCH
Refer to EC-339, EC-348 and EC-383.
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EC-351, EC-354, EC-358 and EC-360.
ASCD INDICATOR
Refer to EC-387.
Revision: December 20092009 QX56
Page 1362 of 4171
CAN COMMUNICATIONEC-35
< FUNCTION DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
CAN COMMUNICATION
System DescriptionINFOID:0000000003771309
CAN (Controller Area Network) is a serial communication li
ne for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
Refer to LAN-44, "CAN System Specification Chart"
, about CAN communication for detail.
Revision: December 20092009 QX56
Page 1363 of 4171
EC-36
< FUNCTION DIAGNOSIS >[VK56DE]
COOLING FAN CONTROL
COOLING FAN CONTROL
DescriptionINFOID:0000000003771310
SYSTEM DESCRIPTION
Cooling Fan Control
*1: The ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to ECM through CAN communication line.
The ECM controls the cooling fan corresponding to the
vehicle speed, engine coolant temperature, refrigerant
pressure, and air conditioner ON signal. The c ontrol system has 2-step control [HI/OFF].
Cooling Fan Operation
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed*
1
Cooling fan
controlIPDM E/R
(Cooling fan relay)
Battery
Battery voltage*
1
Wheel sensorVehicle speed*2
Engine coolant temperature sensor Engine coolant temperature
Air conditioner switchAir conditioner ON signal*
2
Refrigerant pressure sensor Refrigerant pressure
PBIB2060E
Revision: December 20092009 QX56
Page 1364 of 4171
![INFINITI QX56 2009 Factory Service Manual
EVAPORATIVE EMISSION SYSTEMEC-37
< FUNCTION DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
EVAPORATIVE EMISSION SYSTEM
DescriptionINFOID:0000000003771311
SYSTEM DESCRIPTION
The evaporative emis INFINITI QX56 2009 Factory Service Manual
EVAPORATIVE EMISSION SYSTEMEC-37
< FUNCTION DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
EVAPORATIVE EMISSION SYSTEM
DescriptionINFOID:0000000003771311
SYSTEM DESCRIPTION
The evaporative emis](/manual-img/42/57031/w960_57031-1363.png)
EVAPORATIVE EMISSION SYSTEMEC-37
< FUNCTION DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
EVAPORATIVE EMISSION SYSTEM
DescriptionINFOID:0000000003771311
SYSTEM DESCRIPTION
The evaporative emission system is us
ed to reduce hydrocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accompli shed by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into t he EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not oper ating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve al so shuts off the vapor purge line during decelerating and
idling.
PBIB1631E
Revision: December 20092009 QX56
Page 1365 of 4171
EC-38
< FUNCTION DIAGNOSIS >[VK56DE]
EVAPORATIVE EMISSION SYSTEM

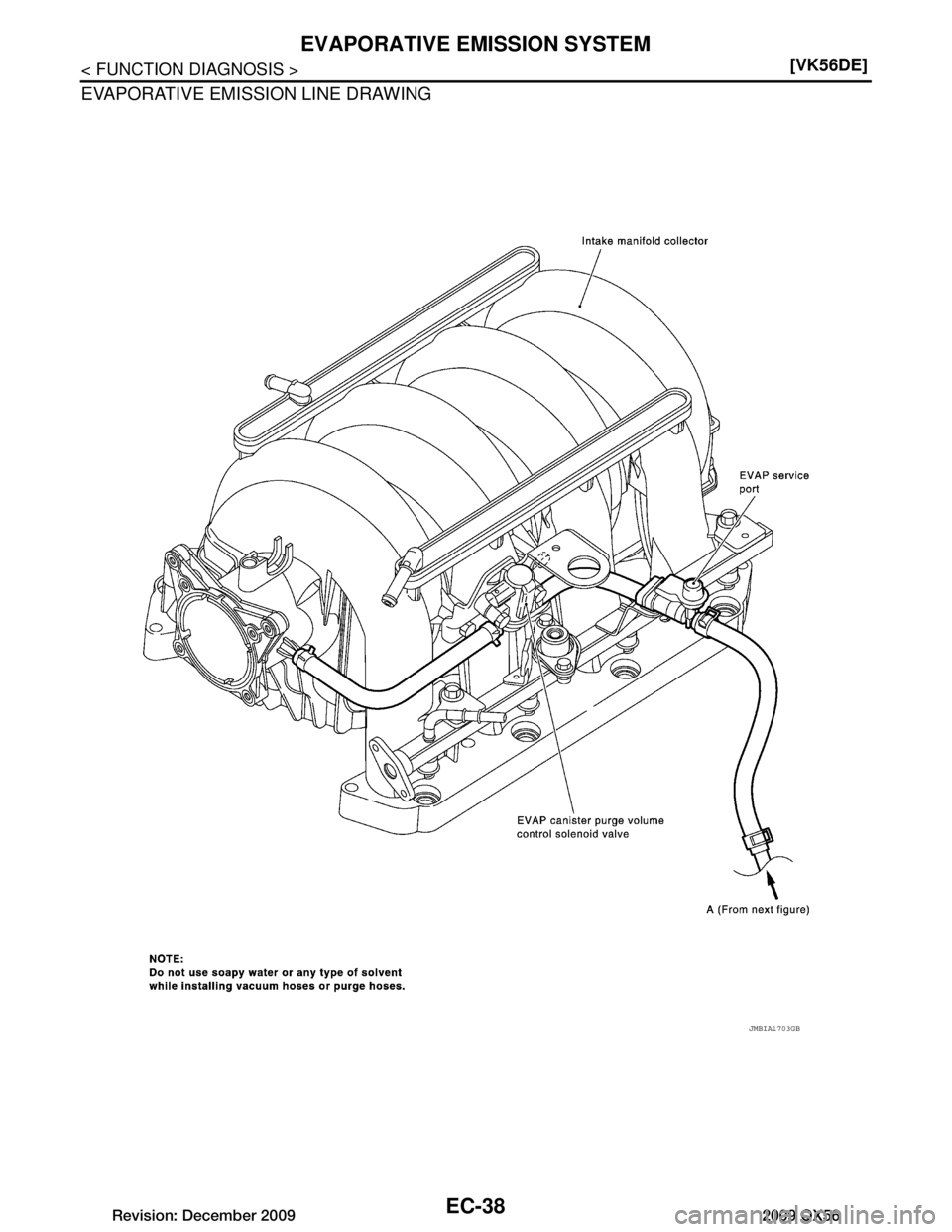

EVAPORATIVE EMISSION LINE DRAWING
JMBIA1703GB
Revision: December 20092009 QX56
Page 1366 of 4171
EVAPORATIVE EMISSION SYSTEMEC-39
< FUNCTION DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

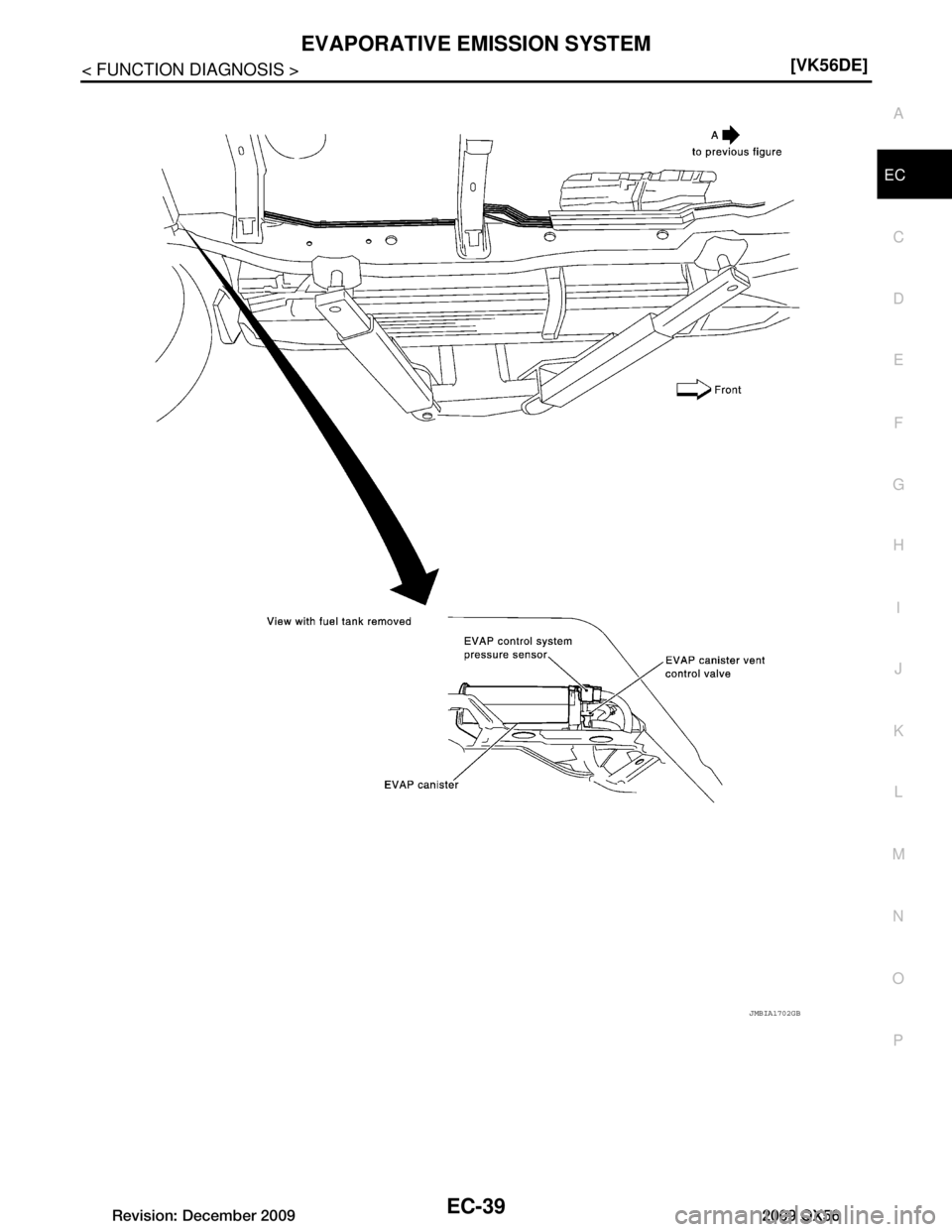

JMBIA1702GB
Revision: December 20092009 QX56
Page 1367 of 4171
![INFINITI QX56 2009 Factory Service Manual
EC-40
< FUNCTION DIAGNOSIS >[VK56DE]
INTAKE VALVE TIMING CONTROL
INTAKE VALVE TIMING CONTROL
DescriptionINFOID:0000000003771312
SYSTEM DESCRIPTION
*: This signal is sent to the ECM through CAN commun INFINITI QX56 2009 Factory Service Manual
EC-40
< FUNCTION DIAGNOSIS >[VK56DE]
INTAKE VALVE TIMING CONTROL
INTAKE VALVE TIMING CONTROL
DescriptionINFOID:0000000003771312
SYSTEM DESCRIPTION
*: This signal is sent to the ECM through CAN commun](/manual-img/42/57031/w960_57031-1366.png)
EC-40
< FUNCTION DIAGNOSIS >[VK56DE]
INTAKE VALVE TIMING CONTROL
INTAKE VALVE TIMING CONTROL
DescriptionINFOID:0000000003771312
SYSTEM DESCRIPTION
*: This signal is sent to the ECM through CAN communication line
This mechanism hydraulically controls cam phases c
ontinuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft posit ion, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON /OFF pulse duty signals to the intake valve timing (IVT) control sole-
noid valve depending on driving status. This makes it po ssible to control the shut/open timing of the intake
valve to increase engine torque in low/mid speed range and output in high-speed range.
Sensor Input signal to ECM function ECM Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed
Intake valve
timing controlIntake valve timing control
solenoid valve
Intake valve timing control position sensor Intake valve timing signal
Engine coolant temperature sensor Engine coolant temperature
Wheel sensor Vehicle speed*
PBIB3276E
Revision: December 20092009 QX56
Page 1368 of 4171
![INFINITI QX56 2009 Factory Service Manual
ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-41
< FUNCTION DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ON BOARD DIAGNOSTIC (OBD) SYSTEM
IntroductionINFOID:0000000003771313
The ECM has an on board diag INFINITI QX56 2009 Factory Service Manual
ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-41
< FUNCTION DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ON BOARD DIAGNOSTIC (OBD) SYSTEM
IntroductionINFOID:0000000003771313
The ECM has an on board diag](/manual-img/42/57031/w960_57031-1367.png)
ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-41
< FUNCTION DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ON BOARD DIAGNOSTIC (OBD) SYSTEM
IntroductionINFOID:0000000003771313
The ECM has an on board diagnostic system, which detects
malfunctions related to engine sensors or actua-
tors. The ECM also records various emis sion-related diagnostic information including:
The above information can be checked using procedures listed in the table below.
× : Applicable —: Not applicable
*: When DTC and 1st trip DTC simultaneously appear on the display, they cannot be clearly distinguished from each other.
The malfunction indicator lamp (MIL) on the instrument panel lights up when the same malfunction is detected
in two consecutive trips (Two trip detection logic) , or when the ECM enters fail-safe mode. (Refer to EC-453,
"Fail-Safe Chart".)
Two Trip Detection LogicINFOID:0000000003771314
When a malfunction is detected for the first time, 1st tr ip DTC and 1st trip Freeze Frame data are stored in the
ECM memory. The MIL will not light up at this stage. <1st trip>
If the same malfunction is detected again during the next drive, the DTC and Freeze Frame data are stored in
the ECM memory, and the MIL lights up. The MIL lights up at the same time when the DTC is stored. <2nd
trip> The “trip” in the “Two Trip Detection Logic” m eans a driving mode in which self-diagnosis is performed
during vehicle operation. Specific on board diagnostic item s will cause the ECM to light up or blink the MIL,
and store DTC and Freeze Frame data, even in the 1st trip, as shown below.
× : Applicable —: Not applicable
When there is an open circuit on MIL circuit, the ECM c annot warn the driver by lighting up MIL when there is
malfunction on engine control system.
Emission-related diagnostic information Diagnostic service
Diagnostic Trouble Code (DTC) Service $03 of SAE J1979
Freeze Frame data Service $02 of SAE J1979
System Readiness Test (SRT) code Service $01 of SAE J1979
1st Trip Diagnostic Trou ble Code (1st Trip DTC) Service $07 of SAE J1979
1st Trip Freeze Frame data
Test values and Test limi ts Service $06 of SAE J1979
Calibration ID Servic e $09 of SAE J1979
DTC 1st trip DTCFreeze
Frame data 1st trip Freeze
Frame data SRT code SRT status Test value
CONSULT-III ×× × × × × —
GST ×× × —×××
ECM ××*— — — ×—
Items MIL DTC 1st trip DTC
1st trip 2nd trip 1st trip
displaying 2nd trip
displaying 1st trip
displaying 2nd trip
display- ing
Blinking Lighting
up Blinking Lighting
up
Misfire (Possible three way catalyst
damage) — DTC: P0300 - P0308 is
being detected ×
———— — ×—
Misfire (Possible three way catalyst
damage) — DTC: P0300 - P0308 is
being detected ——
×—— ×——
One trip detection diagnoses (Re-
fer to EC-456, "DTC Index"
.) —
×—— ×———
Except above — — — ×— ×× —
