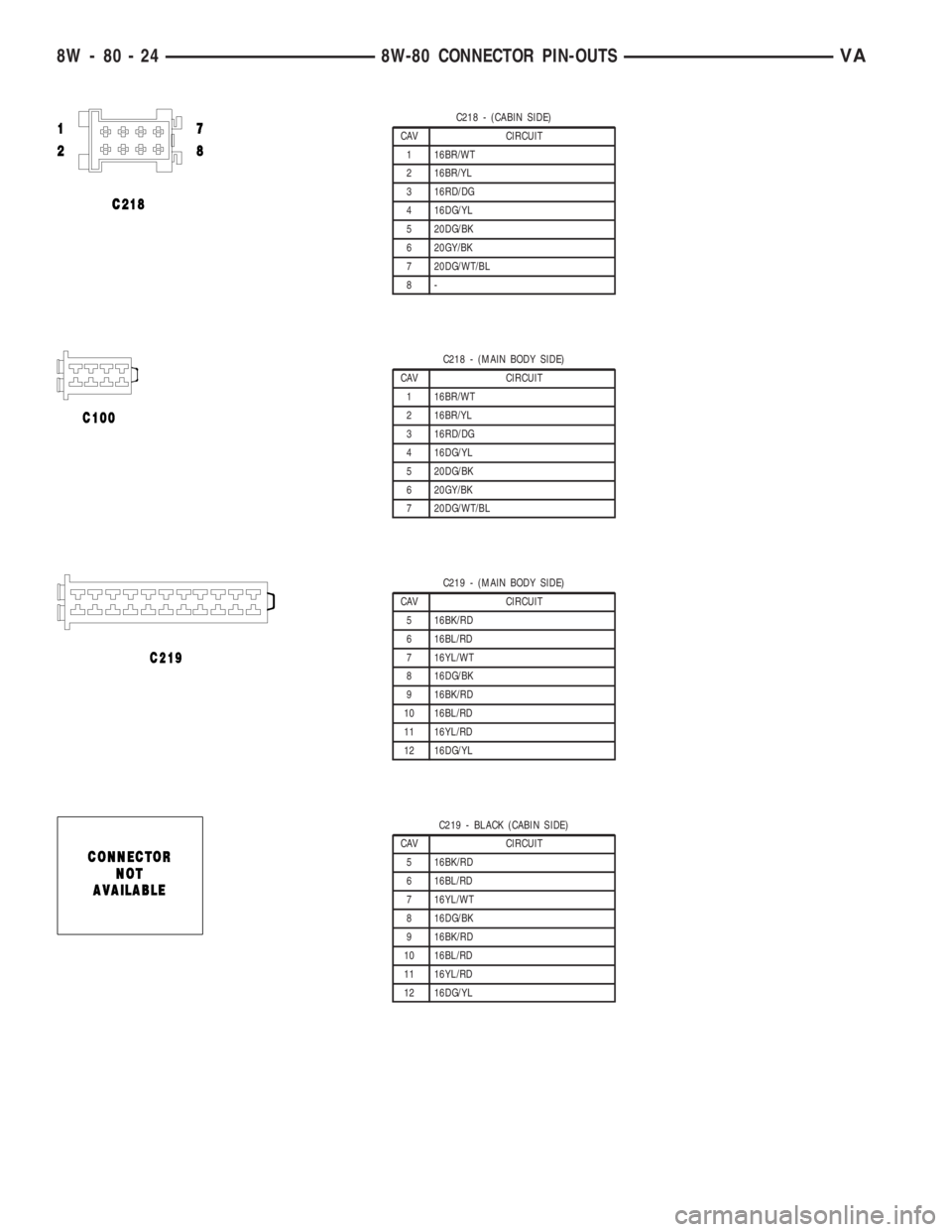

Page 1441 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual C218 - (CABIN SIDE) CAV CIRCUIT 1 16BR/WT 2 16BR/YL 3 16RD/DG 4 16DG/YL 5 20DG/BK 6 20GY/BK 7 20DG/WT/BL 8- C218 - (MAIN BODY SIDE) CAV CIRCUIT 1 16BR/WT 2 16BR/YL 3 16RD/DG 4 16DG/YL 5 20DG/BK 6 20GY

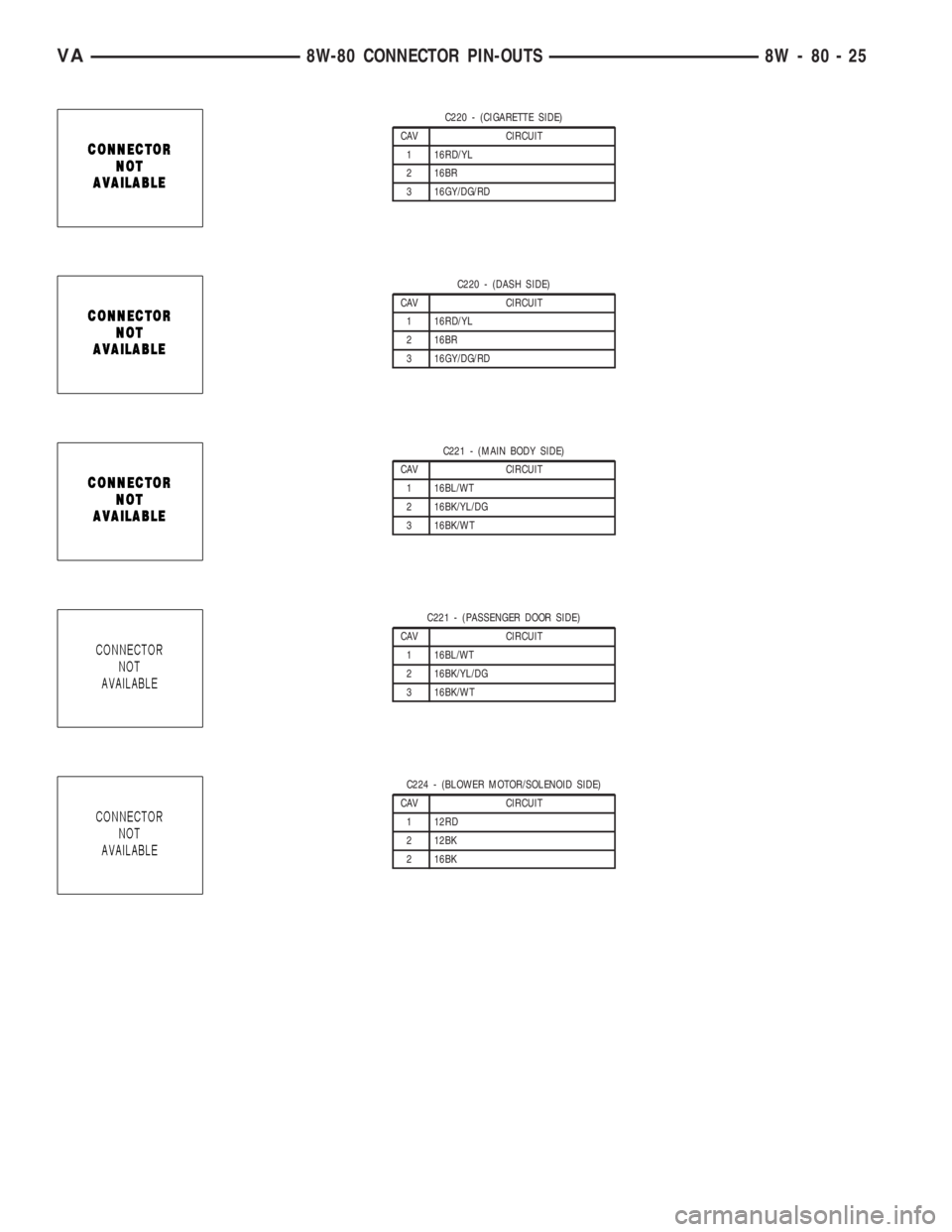

Page 1442 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual C220 - (CIGARETTE SIDE) CAV CIRCUIT 1 16RD/YL 2 16BR 3 16GY/DG/RD C220 - (DASH SIDE) CAV CIRCUIT 1 16RD/YL 2 16BR 3 16GY/DG/RD C221 - (MAIN BODY SIDE) CAV CIRCUIT 1 16BL/WT 2 16BK/YL/DG 3 16BK/WT C221

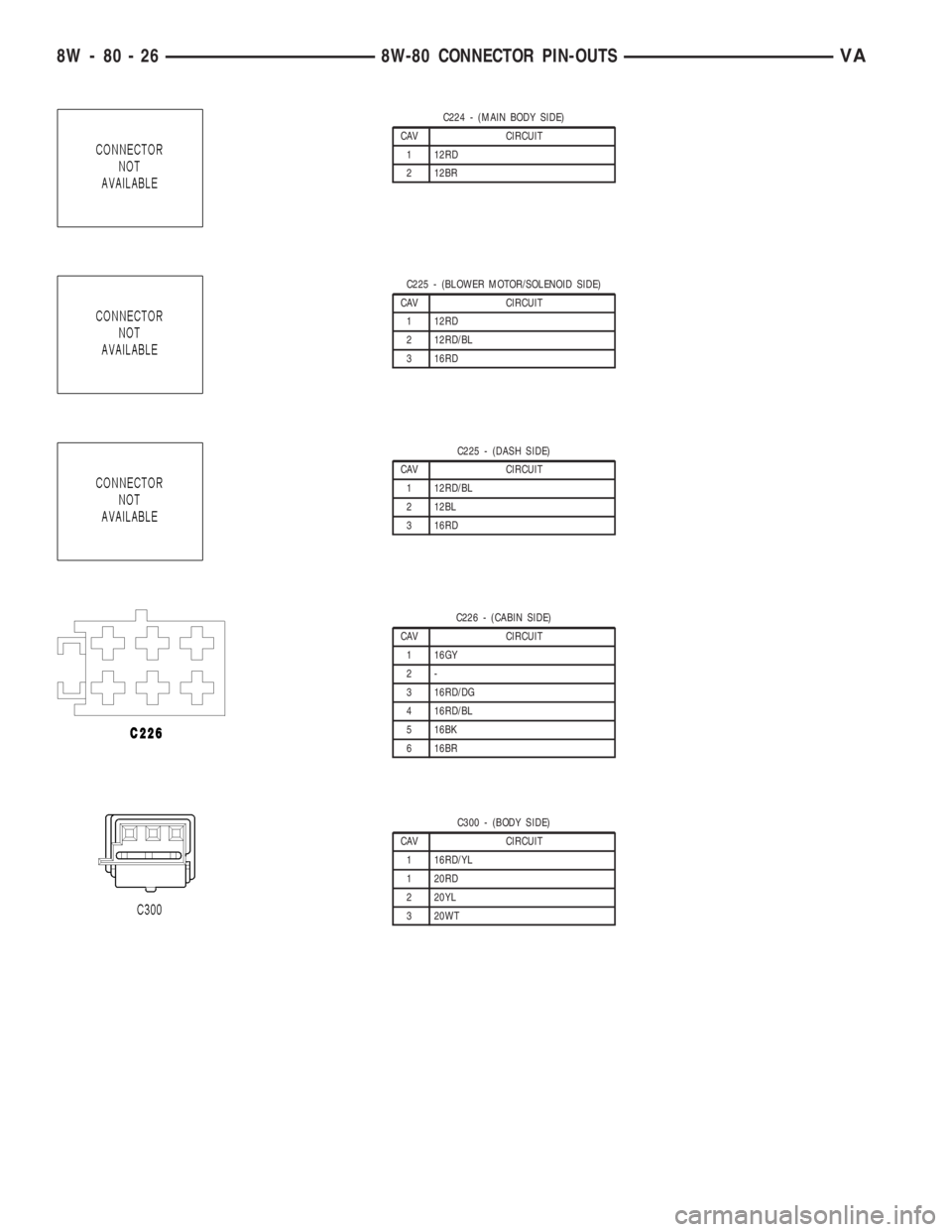

Page 1443 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual C224 - (MAIN BODY SIDE) CAV CIRCUIT 1 12RD 2 12BR C225 - (BLOWER MOTOR/SOLENOID SIDE) CAV CIRCUIT 1 12RD 2 12RD/BL 3 16RD C225 - (DASH SIDE) CAV CIRCUIT 1 12RD/BL 2 12BL 3 16RD C226 - (CABIN SIDE) CAV

Page 1444 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual C300 - (RAIN SENSOR SIDE) CAV CIRCUIT 1 20DG 2 20BR 3 20BK/DG 4 16RD/YL C301 - (BODY SIDE) CAV CIRCUIT 1 20RD 2 20YL 3 20WT 4- 5- 6- 7- 8- C301 - (CABIN SIDE) CAV CIRCUIT 1 20RD 2 20YL 3 20WT 4- 5- 6-

Page 1445 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual C306 - (BODY SIDE) CAV CIRCUIT FUNCTION 2 14BR C307 - (BODY SIDE) CAV CIRCUIT 1 16BR 2 16BL C307 - (TEMPERATURE SENSOR SIDE) CAV CIRCUIT 1 16BR 2 16BL CABIN HEATER ASSEMBLY CAV CIRCUIT FUNCTION B 16BL

Page 1446 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual CAMSHAFT POSITION SENSOR - BLACK CAV CIRCUIT FUNCTION 1 20BR/DG CAMSHAFT POSITION SENSOR GROUND 2 20YL/GY CAMSHAFT POSITION SENSOR SIGNAL 3 18RD/BL (EXCEPT OBD) CAMSHAFT POSITION SENSOR 12 VOLT SUPPLY

Page 1447 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual CENTRAL TIMER MODULE C2 - LT. GREEN CAV CIRCUIT FUNCTION 1- - 2- - 3 16WT/DG PASSENGER DOOR AJAR INDICATOR DRIVER 4- - 5- - 6 16WT/RD MASTER DOOR LOCK SWITCH SENSE-PASSENGER DOORS 7 16DG/BK LEFT SLIDI

Page 1448 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual CIRCULATION PUMP (CABIN HEATER MODULE) CAV CIRCUIT FUNCTION 1 18DG/RD CIRCULATION PUMP RELAY OUTPUT 2 18BR GROUND CIRCULATION PUMP (REST SYSTEM) CAV CIRCUIT FUNCTION 1 18DG/RD CIRCULATION PUMP CONTROL
