Page 625 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY 8WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING. NOTE: Th

Page 626 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom: P2332-SENSOR SUPPLY 3 VOLTAGE IS TOO LOW POSSIBLE CAUSES ENGINE OIL SENSOR INTAKE AIR PRESSURE SENSOR VISUAL WIRING AND CONNECTOR INSPECTION INTERMITTENT CONDITION SENSOR SUPPLY VOLTAGE 3 SHO

Page 627 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY 4 Turn the ignition off. Disconnect the Engine Oil Sensor harness connector. Disconnect the ECM harness connectors. Measure the resistance between the Sensor Ground circuit a

Page 628 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY 8WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING. NOTE: Th

Page 629 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom: P2332-SENSOR SUPPLY 3 VOLTAGE IS TOO HIGH POSSIBLE CAUSES EO SENSOR INTAKE AIR PRESSURE SENSOR VISUAL WIRING AND CONNECTOR INSPECTION INTERMITTENT CONDITION SENSOR SUPPLY VOLTAGE 3 SHORTED TO

Page 630 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY 3 Turn the ignition off. Disconnect the Intake Air Pressure Sensor and Engine Oil Sensor harness connec- tors. Disconnect the ECM harness connectors. Remove the Engine Contro

Page 631 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY 6WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING. NOTE: Th

Page 632 of 2305

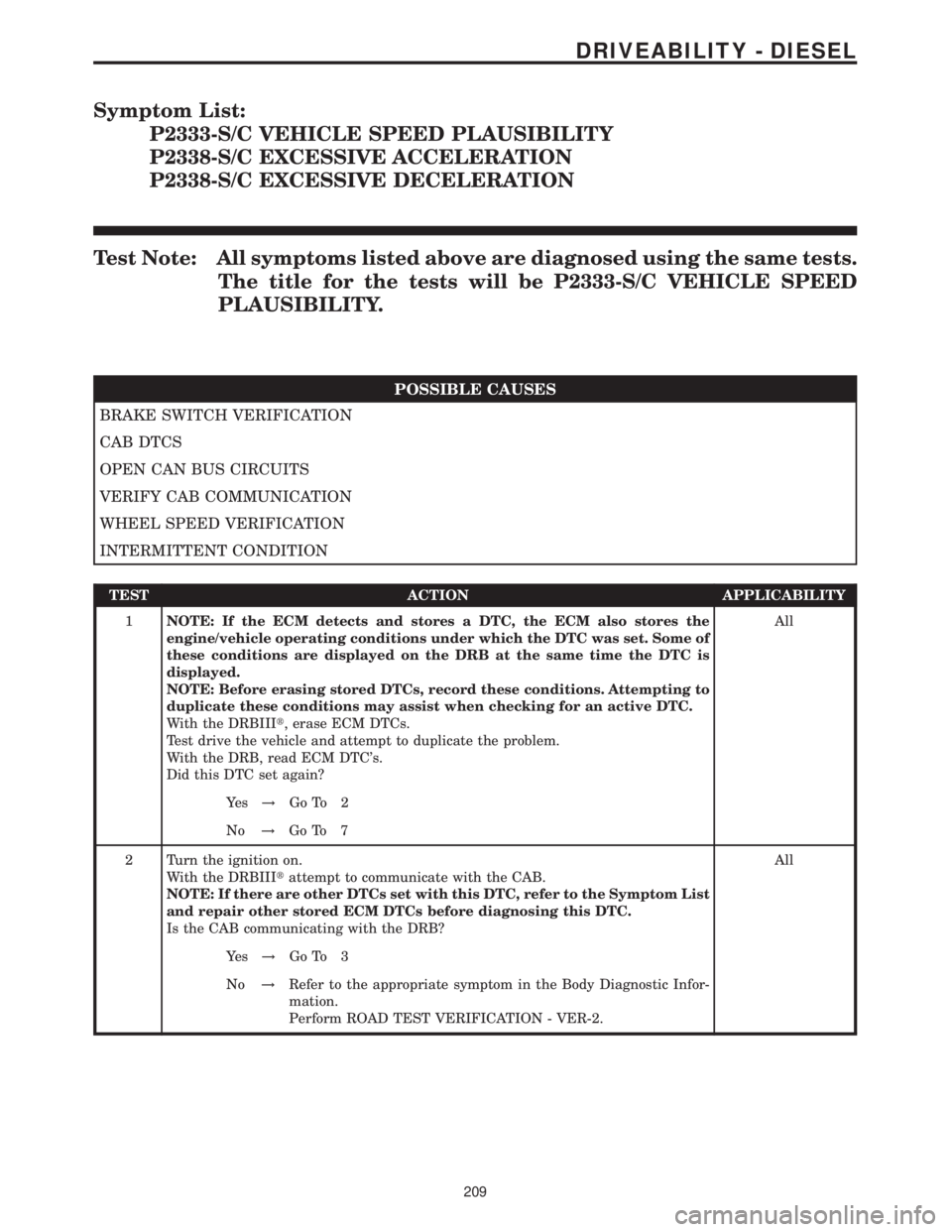

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom List: P2333-S/C VEHICLE SPEED PLAUSIBILITY P2338-S/C EXCESSIVE ACCELERATION P2338-S/C EXCESSIVE DECELERATION Test Note: All symptoms listed above are diagnosed using the same tests. The title
