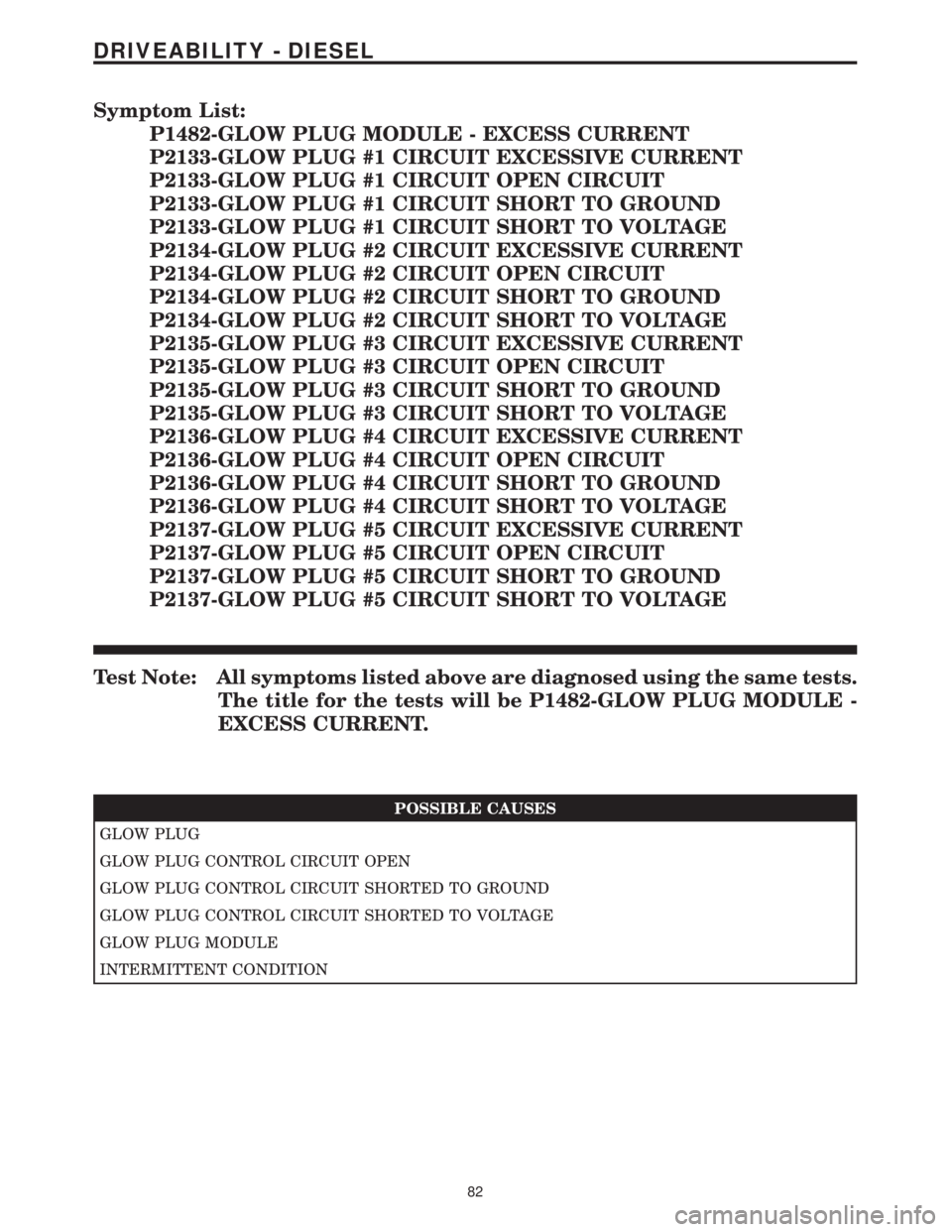

Page 505 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom List: P1482-GLOW PLUG MODULE - EXCESS CURRENT P2133-GLOW PLUG #1 CIRCUIT EXCESSIVE CURRENT P2133-GLOW PLUG #1 CIRCUIT OPEN CIRCUIT P2133-GLOW PLUG #1 CIRCUIT SHORT TO GROUND P2133-GLOW PLUG #1

Page 506 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY 1NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions under which the DTC was set. Some of these conditions are displayed on

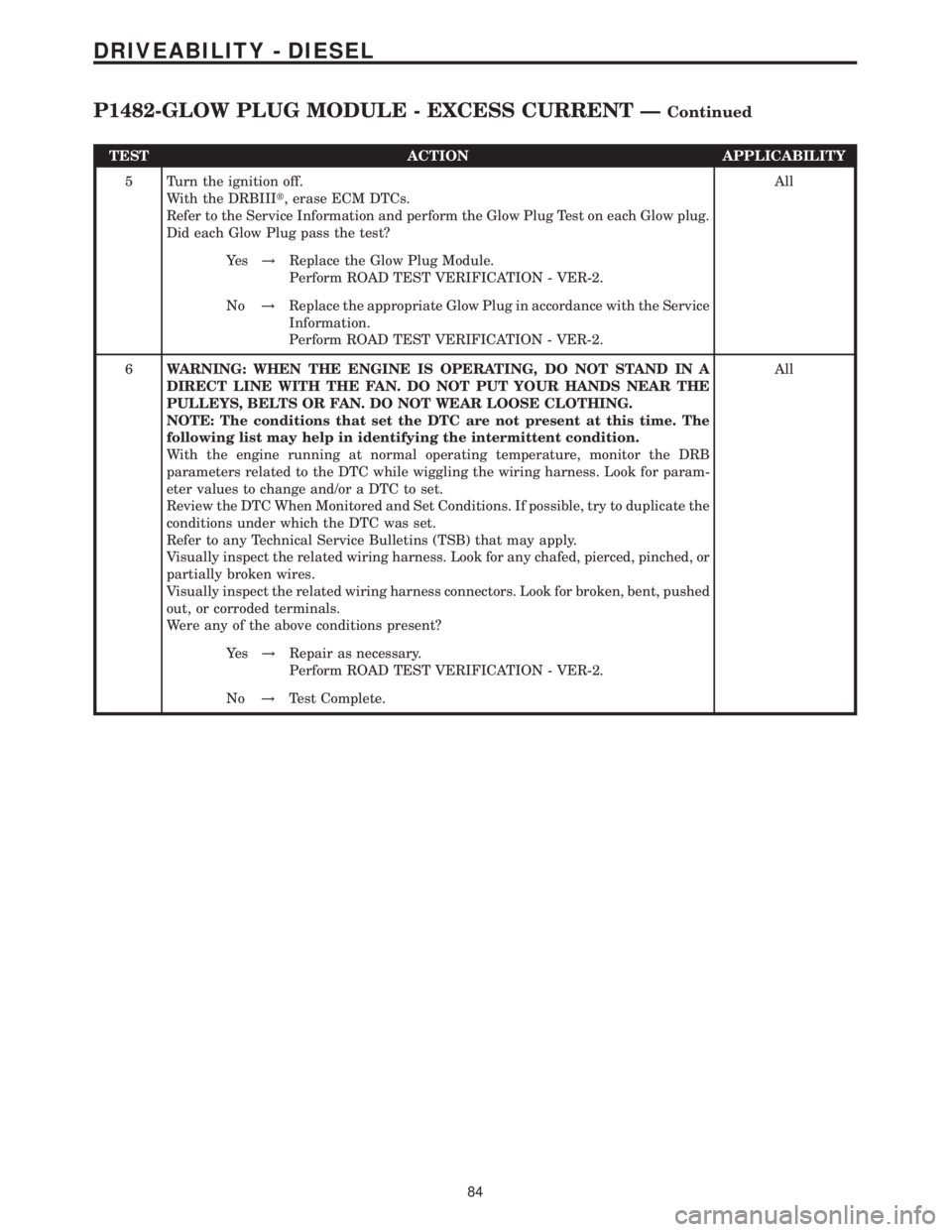

Page 507 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY 5 Turn the ignition off. With the DRBIIIt, erase ECM DTCs. Refer to the Service Information and perform the Glow Plug Test on each Glow plug. Did each Glow Plug pass the test

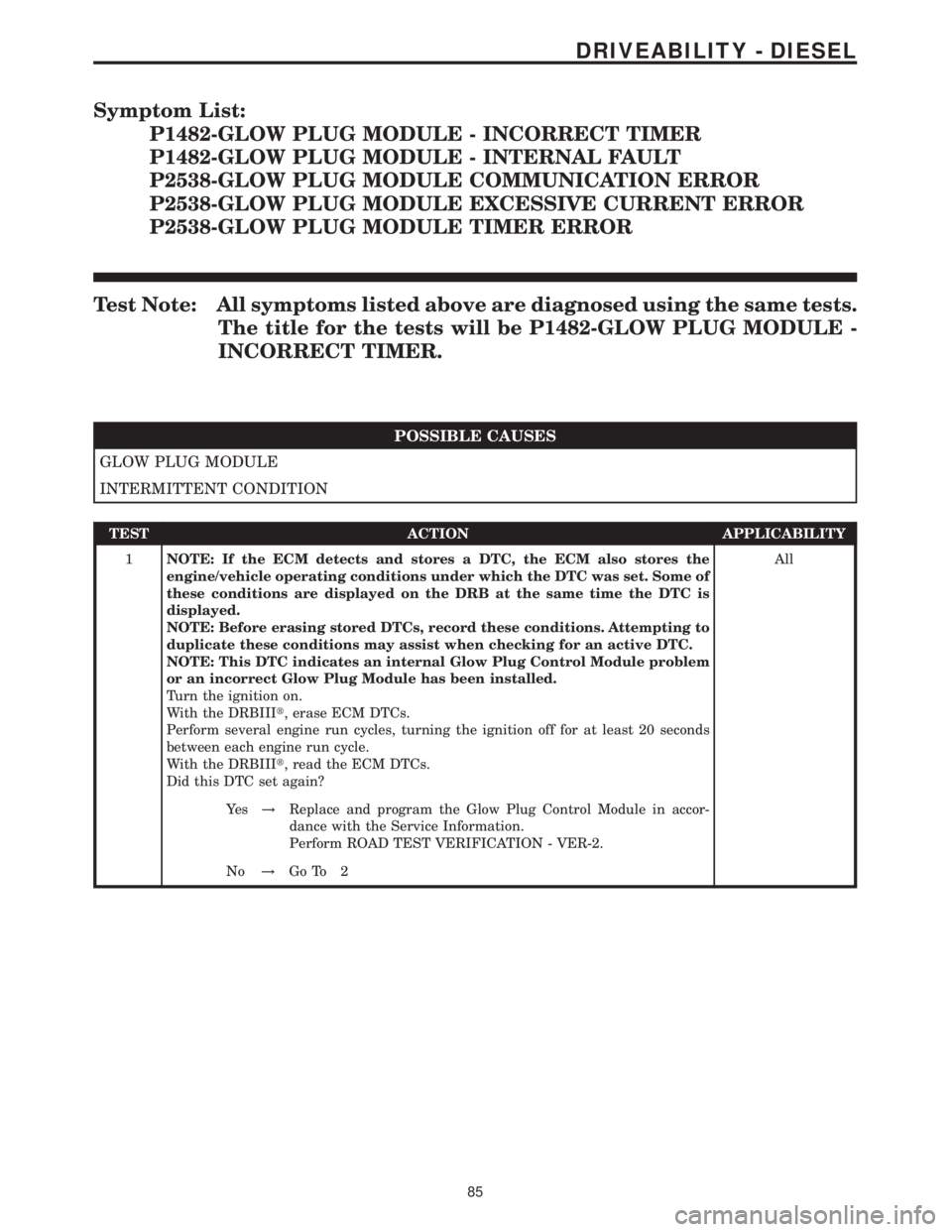

Page 508 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom List: P1482-GLOW PLUG MODULE - INCORRECT TIMER P1482-GLOW PLUG MODULE - INTERNAL FAULT P2538-GLOW PLUG MODULE COMMUNICATION ERROR P2538-GLOW PLUG MODULE EXCESSIVE CURRENT ERROR P2538-GLOW PLUG

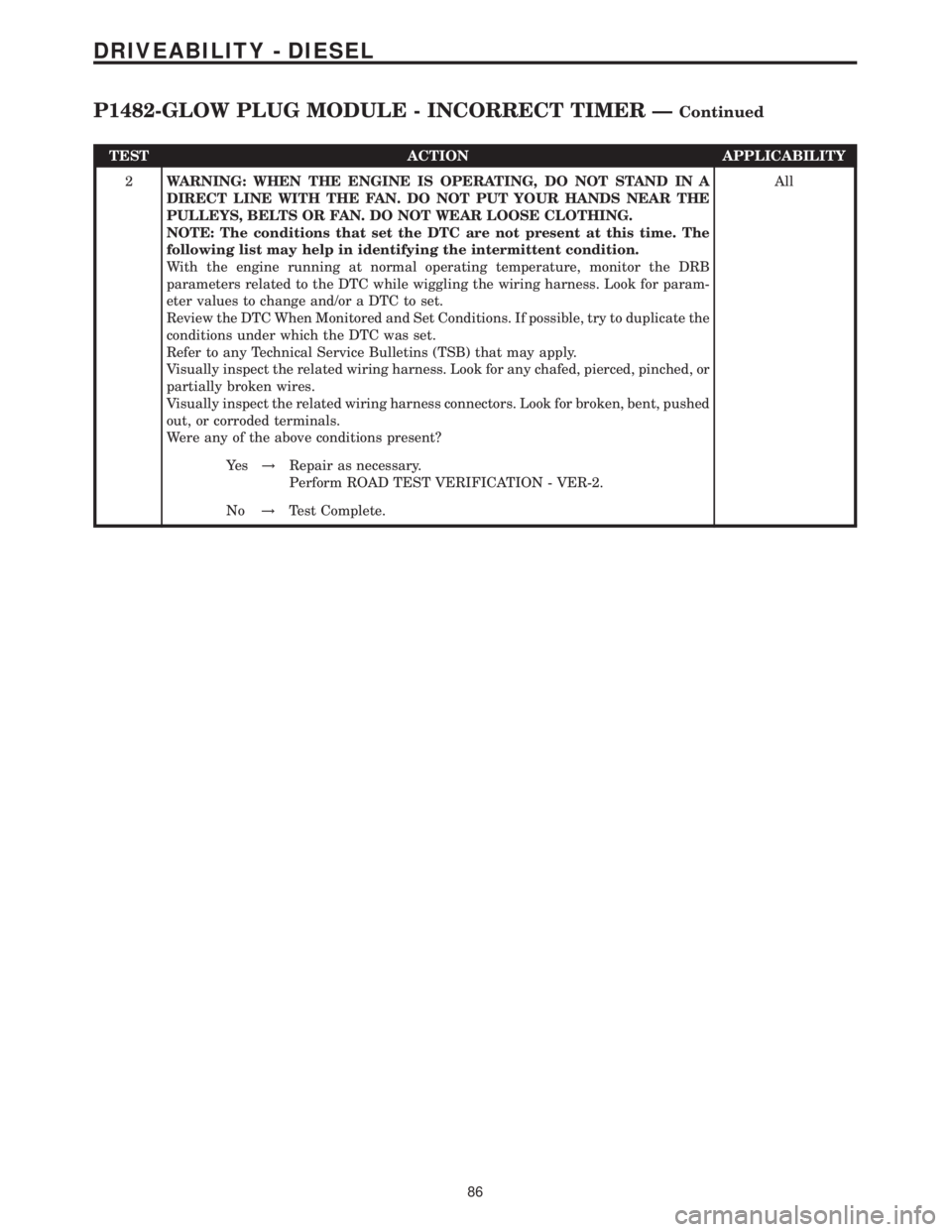

Page 509 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY 2WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING. NOTE: Th

Page 510 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom: P1610-ENGINE CONTROL RELAY PLAUSIBILITY When Monitored and Set Condition: P1610-ENGINE CONTROL RELAY PLAUSIBILITY When Monitored: During after-run. Set Condition: The internal ECM timer deter

Page 511 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY 3 Turn the ignition off. Install a substitute relay in place of the Engine Control Relay. Turn the ignition on. With the DRBIIIt, erase DTCs. Perform several ignition key cyc

Page 512 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom: P1610-ENGINE CONTROL RELAY SHUTS OFF TOO EARLY When Monitored and Set Condition: P1610-ENGINE CONTROL RELAY SHUTS OFF TOO EARLY When Monitored: During after-run. Set Condition: The internal E
