Page 761 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual INSTALLATION Fig. 4 SINGLE REAR WHEEL AXLE 1 - REAR SPRING 12 - WEAR INDICATOR CONNECTOR 2 - U-BRACKET 13 - BRAKE HOSE 3 - PLATE 14 - WHEEL BOLT 4 - NUT 15 - BOLT 5 - BRAKE CABLE 16 - NUT 6 - REAR AXL

Page 762 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual (1) Raise axle into position. (2) Install plates and U-brackets (Fig. 4) and (Fig. 5) withnewnuts. Tighten nuts to 170 N´m (125 ft. lbs.). (3) Install propeller shaft and tighten bolts to 70 N´m (52

Page 763 of 2305

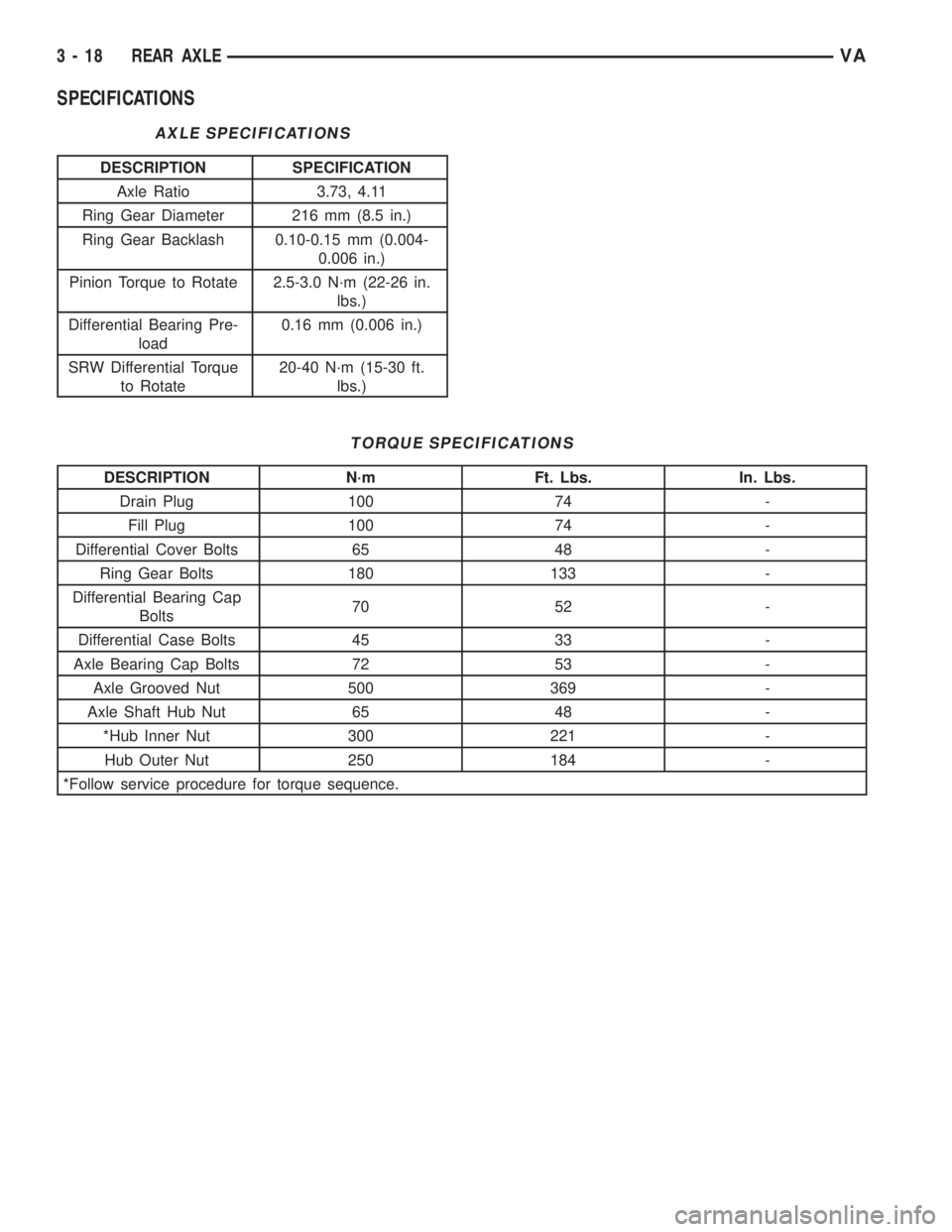

MERCEDES-BENZ SPRINTER 2006 Service Manual SPECIFICATIONS AXLE SPECIFICATIONS DESCRIPTION SPECIFICATION Axle Ratio 3.73, 4.11 Ring Gear Diameter 216 mm (8.5 in.) Ring Gear Backlash 0.10-0.15 mm (0.004- 0.006 in.) Pinion Torque to Rotate 2.5-3.

Page 764 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual SPECIAL TOOLS SPECIAL TOOL CROSS-REFERENCE CHART MB TOOL #MILLER TOOL #DESCRIPTION N/A C-293-PA PULLER N/A C-293-37 ADAPTERS N/A C-293-47 ADAPTERS N/A C-293-3 PLUG N/A C-3281 WRENCH N/A C-4310 INSTALL

Page 765 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual REMOVER D-103 SCOOTER BLOCK D-115-2A INSTALLER 6448A INSTALLER 8617 FLANGE PULLER 8992 REMOVER 9084 INSTALLER 9275 INSTALLER 9276 3 - 20 REAR AXLEVA

Page 766 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual PLATE 9277 INSTALLER 9278 WRENCH 9279 WRENCH 9290 INSTALLER 9291 SPREADER ADAPTERS 9317 INSTALLER 9523 VAREAR AXLE 3 - 21

Page 767 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual DIAL INDICATOR 9524 INSTALLER 9548 ARBOR DISC 9571 PINION BLOCK 9572 DUMMY BEARING 9573 3 - 22 REAR AXLEVA

Page 768 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual SHAFT - AXLE SINGLE REAR WHEEL REMOVAL-SINGLE REAR WHEEL (1) Remove wheels. (2) Detach front brake cable. (3) Pull ABS sensor (18) together with clamp bush- ing (19) out of bearing cap (Fig. 6). (4) R
