Page 345 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the CAB harness connector.
Turn the ignition on.
Using a 12-volt test light connected to ground, check the Fused Optional Equipment
Relay

Page 346 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom:
CAN COMMUNICATION ERROR
POSSIBLE CAUSES
CAN DTCS PRESENT IN OTHER MODULES
INTERMITTENT CAN COMMUNICATION ERROR DTC
DAMAGED CAB/CAB HARNESS CONNECTOR
CAN CIRCUIT(S) SHORT TO VOLTAGE
CAN CIRCUI

Page 347 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY
4 Turn the ignition off.
Disconnect the CAB harness connector.
Turn the ignition on.
Measure the voltage of the CAN(+) circuit.
Measure the voltage of the CAN(-) circuit.
Is

Page 348 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY
9 Turn the ignition off.
Disconnect the CAB harness connector.
Using a 12-volt test light connected to ground, check both Fused B(+) circuits at the
CAB harness connector.
NO

Page 349 of 2305

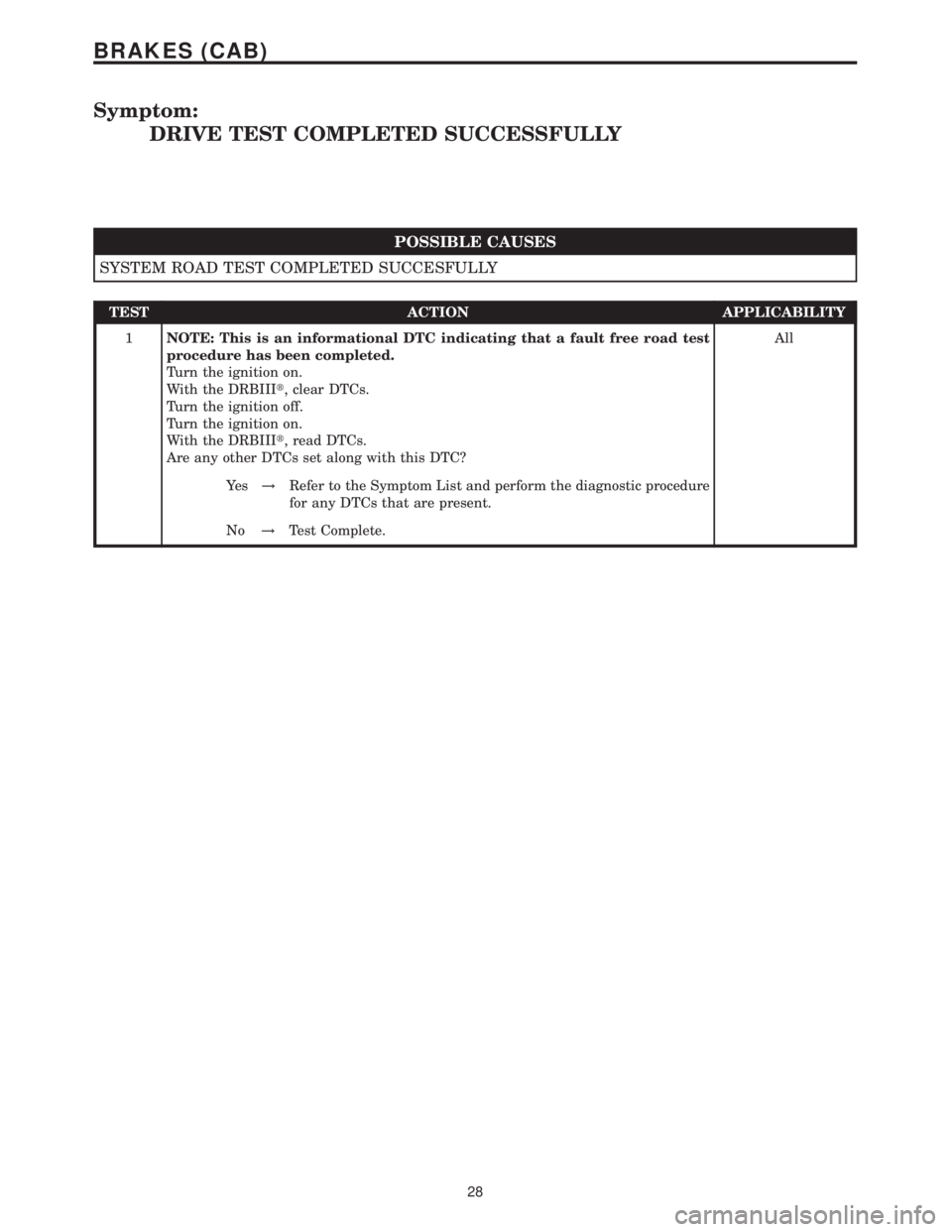

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom:
DRIVE TEST COMPLETED SUCCESSFULLY
POSSIBLE CAUSES
SYSTEM ROAD TEST COMPLETED SUCCESFULLY
TEST ACTION APPLICABILITY
1NOTE: This is an informational DTC indicating that a fault free road test
p

Page 350 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom:
DRIVE TEST ERROR
POSSIBLE CAUSES
INTERMITTENT DRIVE TEST ERROR DTC
STEERING COMPONENT INSPECTION
LATERAL ACCELERATION SENSOR CIRCUIT SHORT TO VOLTAGE
LATERAL ACCELERATION SENSOR CIRCUIT SHORT

Page 351 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Lateral Acceleration Sensor harness connector.
Disconnect the CAB harness connector.
Turn the ignition on.
Measure the voltage on all

TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Lateral Acceleration Sensor harness connector.
Disconnect the CAB harness connector.
Turn the ignition on.
Measure the voltage on all 4 of the Lateral Acceleration Sensor signal circuits.
Measure the voltage of the Lateral Acceleration Sensor ground circuit.
There should be no voltage present on any of the circuits.
Measure the resistance between the Lateral Acceleration supply circuit and all 4 of
the Lateral Acceleration Sensor signal circuits.
The resistance between the circuits should be above 5.0 ohms.
Were there any problems found?All
Ye s!Repair the shorted Lateral Acceleration Sensor circuit(s).
No!Go To 4
4 Turn the ignition off.
Disconnect the Lateral Acceleration Sensor harness connector.
Disconnect the CAB harness connector.
Measure the resistance between the Lateral Acceleration Sensor ground and the 4
Lateral Acceleration Sensor signal circuits.
Measure the resistance between ground and the 4 Lateral Acceleration Sensor signal
circuits.
Measure the resistance between ground and the Lateral Acceleration Sensor supply
circuit.
Is the resistance below 5.0 ohms for any of the circuits?All
Ye s!Repair the Lateral Acceleration Sensor circuit(s) for a short to
ground.
No!Go To 5
5 Turn the ignition off.
Disconnect the Lateral Acceleration Sensor harness connector.
Disconnect the CAB harness connector.
Measure the resistance of the Lateral Acceleration Sensor supply circuit.
Measure the resistance of the Lateral Acceleration Sensor ground circuit.
Measure the resistance of the 4 Lateral Acceleration Sensor signal circuits.
Is the resistance above 5.0 ohms for any of the circuits?All
Ye s!Repair the Lateral Acceleration Sensor circuit(s) for an open
No!Go To 6
6 Turn the ignition off.
Disconnect the Lateral Acceleration Sensor harness connector.
Inspect the harness and connectors related to this circuit. If any problems are found,
repair as necessary.
If no problems are found, replace the Lateral Acceleration Sensor in accordance with
the Service Information.
With the DRBIIIt, clear DTCs.
With the DRBIIIt, perform the road test procedure.
With the DRBIIIt, read DTCs.
Does this DTC reset?All
Ye s!Replace the CAB in accordance with the Service Information.
No!Test Complete.
30
BRAKES (CAB)
DRIVE TEST ERROR ÐContinued

Page 352 of 2305

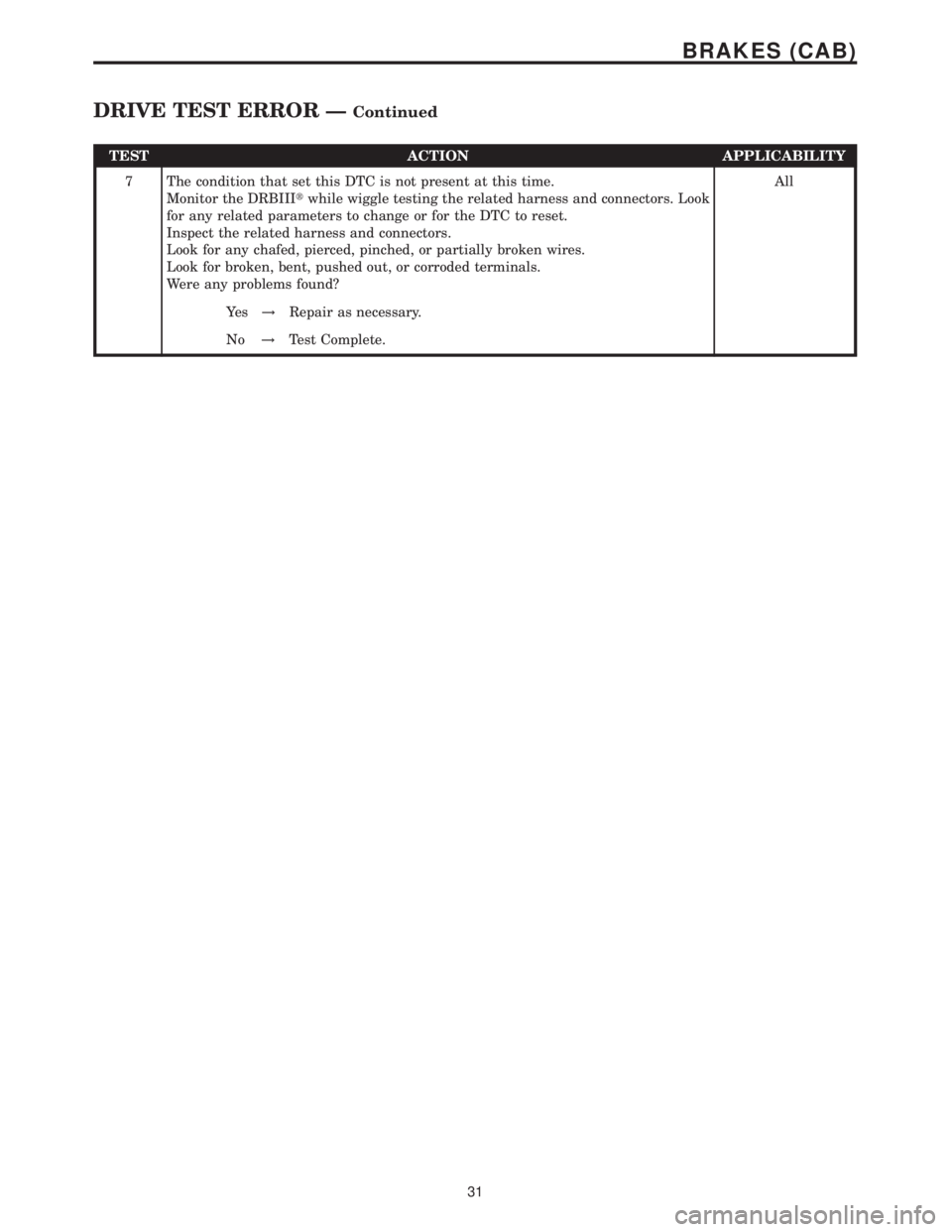

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY
7 The condition that set this DTC is not present at this time.
Monitor the DRBIIItwhile wiggle testing the related harness and connectors. Look
for any related parameters to
