Page 73 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY
2WARNING: TO AVOID PERSONAL INJURY OR DEATH, TURN THE IGNI-
TION OFF, DISCONNECT THE BATTERY AND WAIT TWO MINUTES BE-
FORE PROCEEDING.
Disconnect the Passenger Airbag connect

Page 74 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY
5 With the DRBIIIt, record and erase all DTCs from all Airbag modules.
If equipped with Passenger Airbag On - Off switch, read the DTCs in all switch
positions.
If any ACTI

Page 75 of 2305

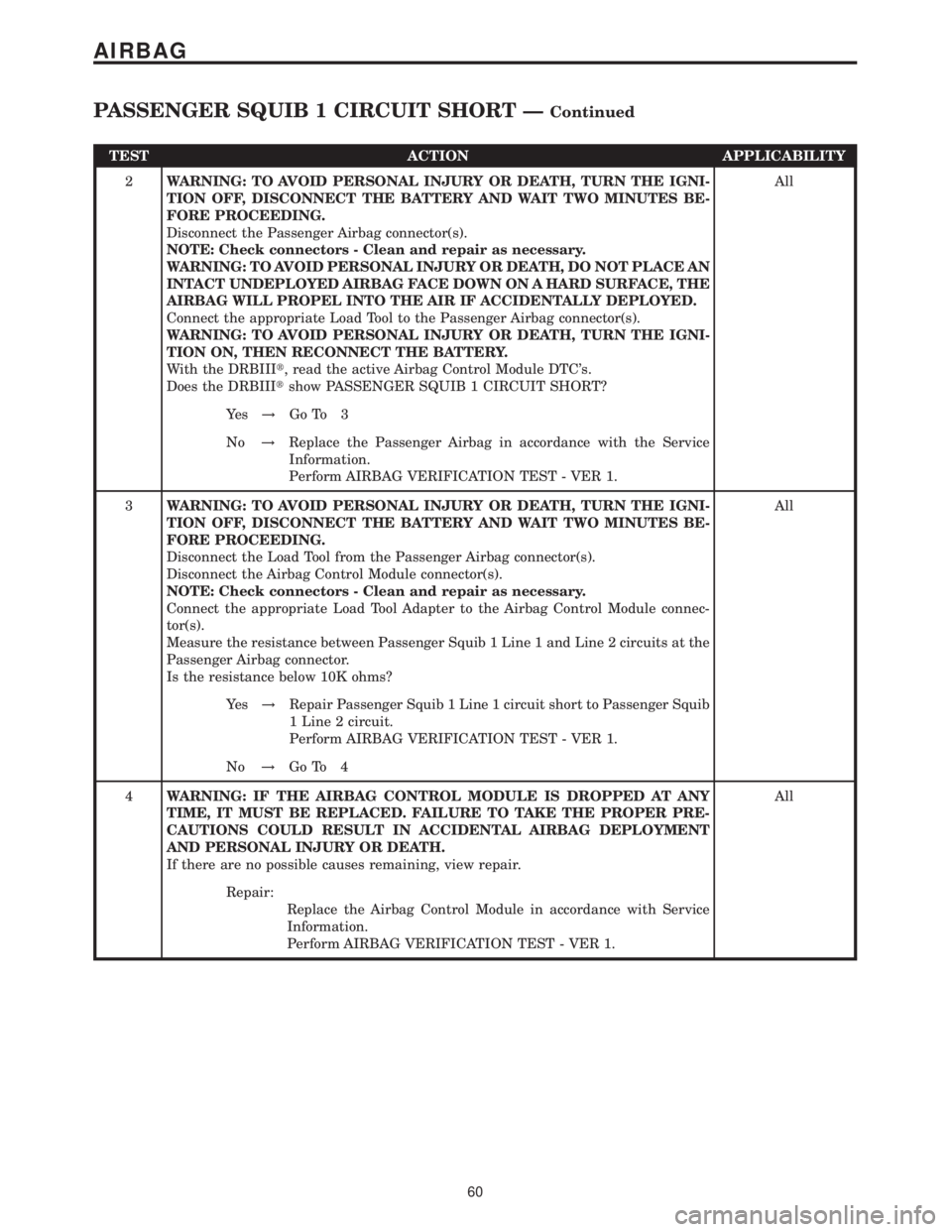

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom:
PASSENGER SQUIB 1 SHORT TO BATTERY
When Monitored and Set Condition:
PASSENGER SQUIB 1 SHORT TO BATTERY
When Monitored: With the ignition on, the ACM monitors the voltage on the Passenger
Squ

Page 76 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY
2WARNING: TO AVOID PERSONAL INJURY OR DEATH, DISCONNECT THE
BATTERY AND WAIT TWO MINUTES BEFORE PROCEEDING.
Disconnect the Passenger Airbag connector(s).
NOTE: Check connecto

TEST ACTION APPLICABILITY
2WARNING: TO AVOID PERSONAL INJURY OR DEATH, DISCONNECT THE
BATTERY AND WAIT TWO MINUTES BEFORE PROCEEDING.
Disconnect the Passenger Airbag connector(s).
NOTE: Check connectors - Clean and repair as necessary.
WARNING: IF THE AIRBAG CONTROL MODULE IS DROPPED AT ANY
TIME, IT MUST BE REPLACED. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND PERSONAL INJURY OR DEATH.
Connect the appropriate Load Tool to the Passenger Airbag connector(s).
WARNING: TO AVOID PERSONAL INJURY OR DEATH, THE IGNITION ON,
THEN RECONNECT THE BATTERY.
With the DRBIIIt, read the active Airbag Control Module DTC's.
Does the DRBIIItshow PASSENGER SQUIB 1 CIRCUIT SHORT TO BATTERY?All
Ye s!Go To 3
No!Replace Passenger Airbag in accordance with the Service Infor-
mation.
Perform AIRBAG VERIFICATION TEST - VER 1.
3WARNING: TO AVOID PERSONAL INJURY OR DEATH, TURN THE IGNI-
TION OFF, DISCONNECT THE BATTERY AND WAIT TWO MINUTES BE-
FORE PROCEEDING.
Disconnect the Load Tool from the Passenger Airbag connector(s).
Disconnect the Airbag Control Module connector(s).
NOTE: Check connectors - Clean and repair as necessary.
Connect the appropriate Load Tool Adaptor to the Airbag Control Module connec-
tor(s).
WARNING: AVOID PERSONAL INJURY OR DEATH, TURN IGNITION ON,
THEN RECONNECT THE BATTERY.
Measure the voltage on the Passenger Squib 1 Line 1 and Line 2 circuits between the
Passenger Airbag connector and ground.
Is there any voltage present?All
Ye s!Repair Passenger Squib 1 Line 1 or Line 2 circuit short to battery.
Perform AIRBAG VERIFICATION TEST - VER 1.
No!Go To 4
4WARNING: IF THE AIRBAG CONTROL MODULE IS DROPPED AT ANY
TIME, IT MUST BE REPLACED. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND PERSONAL INJURY OR DEATH.
If there are no possible causes remaining, view repair.All
Repair:
Replace the Airbag Control Module in accordance with Service
Instructions.
Perform AIRBAG VERIFICATION TEST - VER 1.
63
AIRBAG

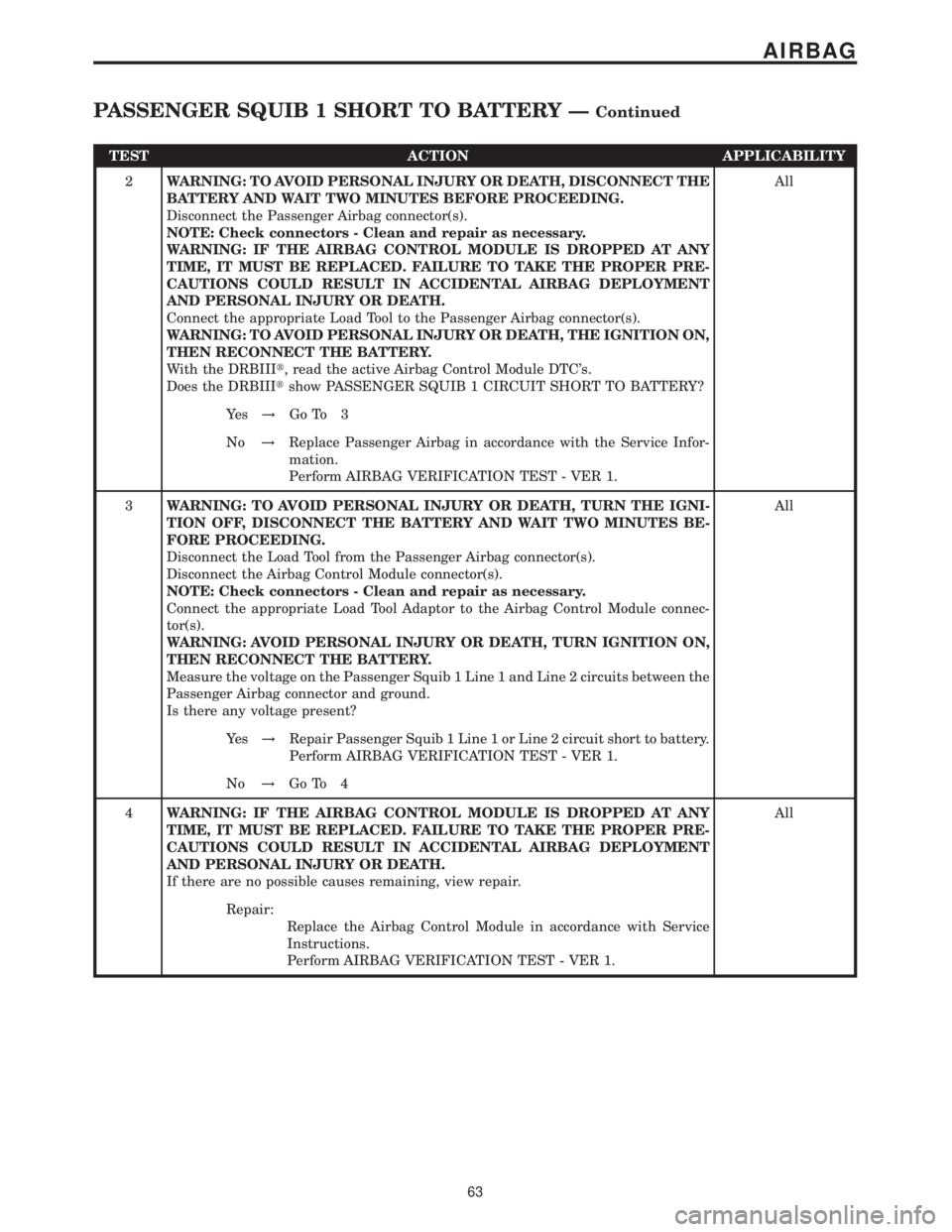

PASSENGER SQUIB 1 SHORT TO BATTERY ÐContinued

Page 77 of 2305

Page 78 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom:
PASSENGER SQUIB 1 SHORT TO GROUND
When Monitored and Set Condition:
PASSENGER SQUIB 1 SHORT TO GROUND
When Monitored: With the ignition on, the ACM monitors the resistance of the Passenger
Sq

Page 79 of 2305

TEST ACTION APPLICABILITY
2WARNING: TO AVOID PERSONAL INJURY OR DEATH, TURN THE IGNI-
TION OFF, DISCONNECT THE BATTERY AND WAIT TWO MINUTES BE-
FORE PROCEEDING.
Disconnect the Passenger Airbag connector(s).
NOTE: Check connectors - Clean and repair as necessary.
WARNING: DO NOT PLACE AN INTACT UNDEPLOYED AIRBAG FACE
DOWN ON A HARD SURFACE, THE AIRBAG WILL PROPEL INTO THE AIR
IF ACCIDENTALLY DEPLOYED, AND COULD RESULT IN SERIOUS OR
FATAL INJURY.
Connect the appropriate Load Tool to the Passenger Airbag connector(s).
WARNING: TO AVOID PERSONAL INJURY OR DEATH, TURN THE IGNI-
TION ON, THEN RECONNECT THE BATTERY.
With the DRBIIIt, read the active Airbag Control Module DTC's.
Does the DRBIIItshow PASSENGER SQUIB 1 SHORT TO GROUND?All
Ye s!Go To 3
No!Replace the Passenger Airbag in accordance with the Service
Information.
Perform AIRBAG VERIFICATION TEST - VER 1.
3WARNING: TO AVOID PERSONAL INJURY OR DEATH, TURN THE IGNI-
TION OFF, DISCONNECT THE BATTERY AND WAIT TWO MINUTES BE-
FORE PROCEEDING.
Disconnect the Load Tool from the Passenger Airbag connector(s).
Disconnect the Airbag Control Module connector(s).
NOTE: Check connectors - Clean repair as necessary.
Connect the appropriate Load Tool Adaptor to the Airbag Control Module connector.
Measure the resistance of the Passenger Squib 1 Line 1 or Line 2 circuit between the
Passenger Airbag Module Connector and ground.
Is the resistance below 10K ohms on either circuit?All
Ye s!Repair Passenger Squib 1 Line 1 and Line 2 circuits for a short to
ground.
Perform AIRBAG VERIFICATION TEST - VER 1.
No!Go To 4
4WARNING: IF THE AIRBAG CONTROL MODULE IS DROPPED AT ANY
TIME, IT MUST BE REPLACED. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND PERSONAL INJURY OR DEATH.
If there are no possible causes remaining, view repair.All
Repair:
Replace the Airbag Control Module in accordance with Service
Information.
Perform AIRBAG VERIFICATION TEST - VER 1.
66
AIRBAG

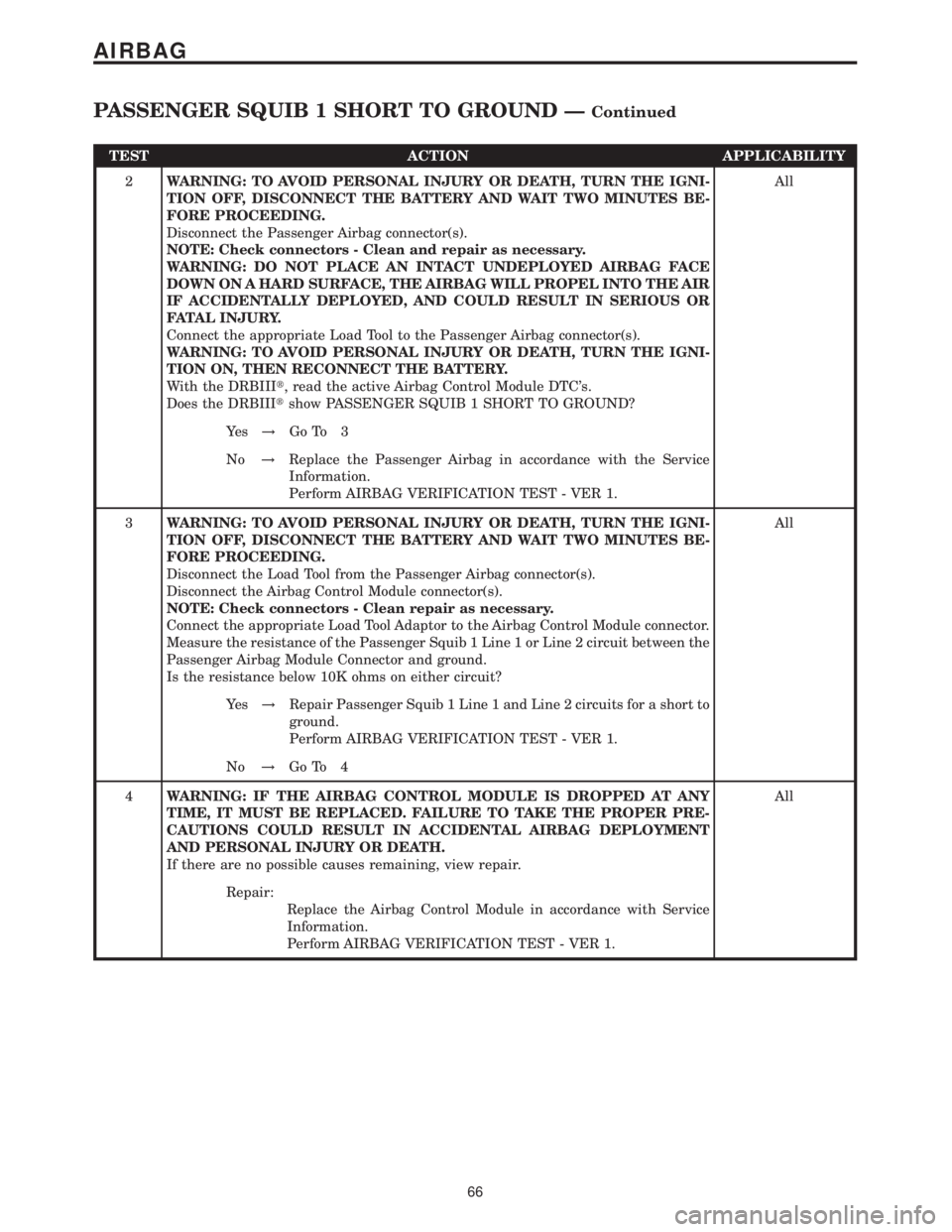

PASSENGER SQUIB 1 SHORT TO GROUND ÐContinued

Page 80 of 2305
