Page 1345 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual

Page 1346 of 2305

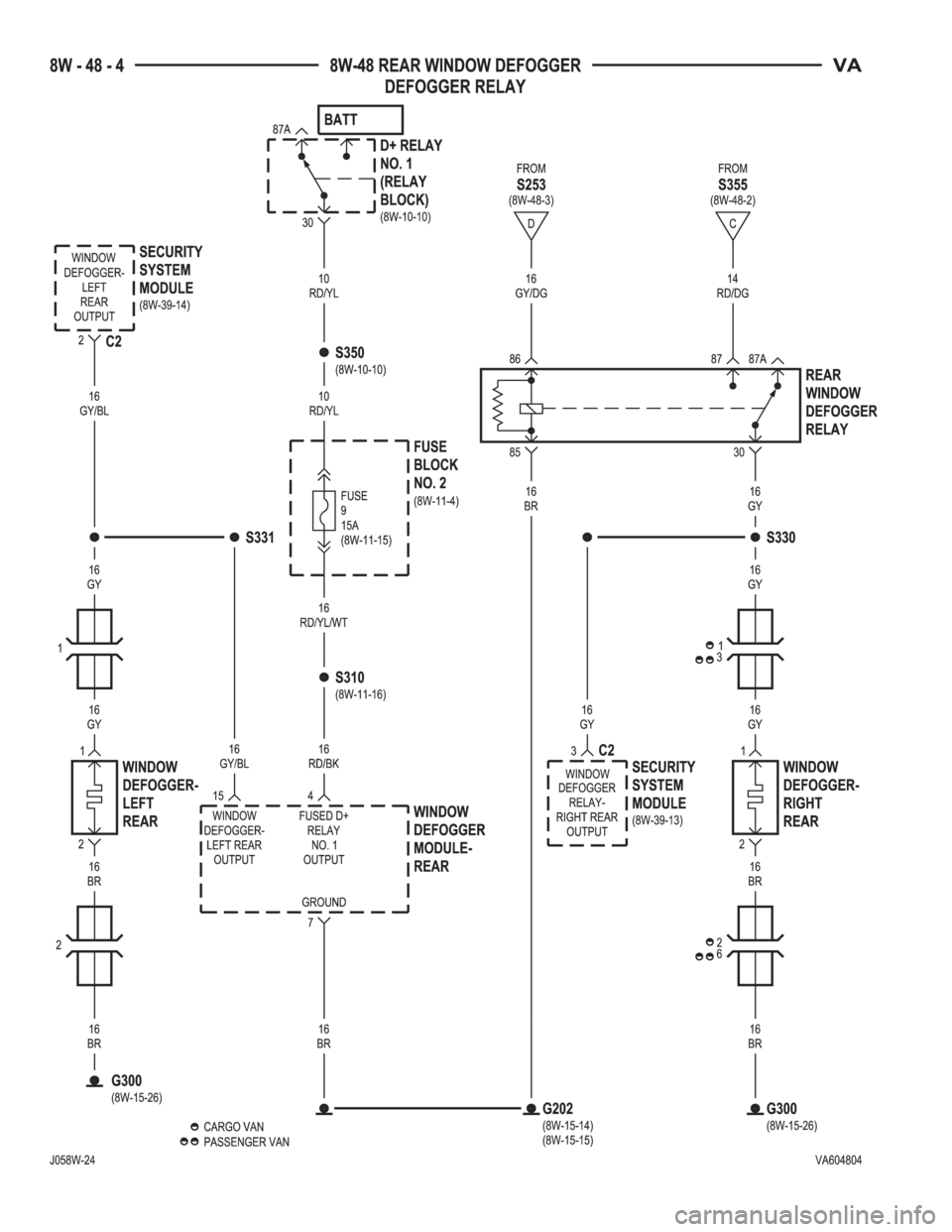

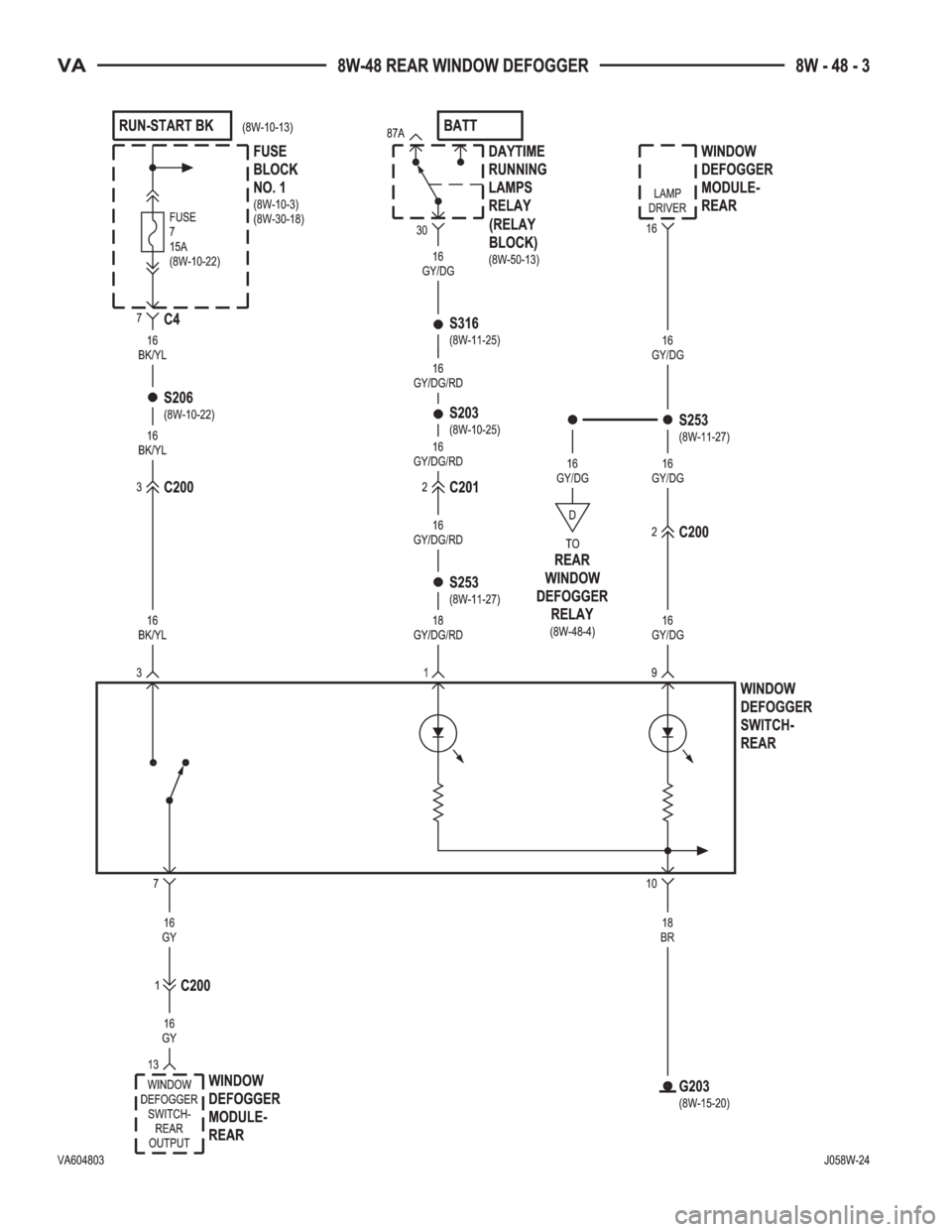

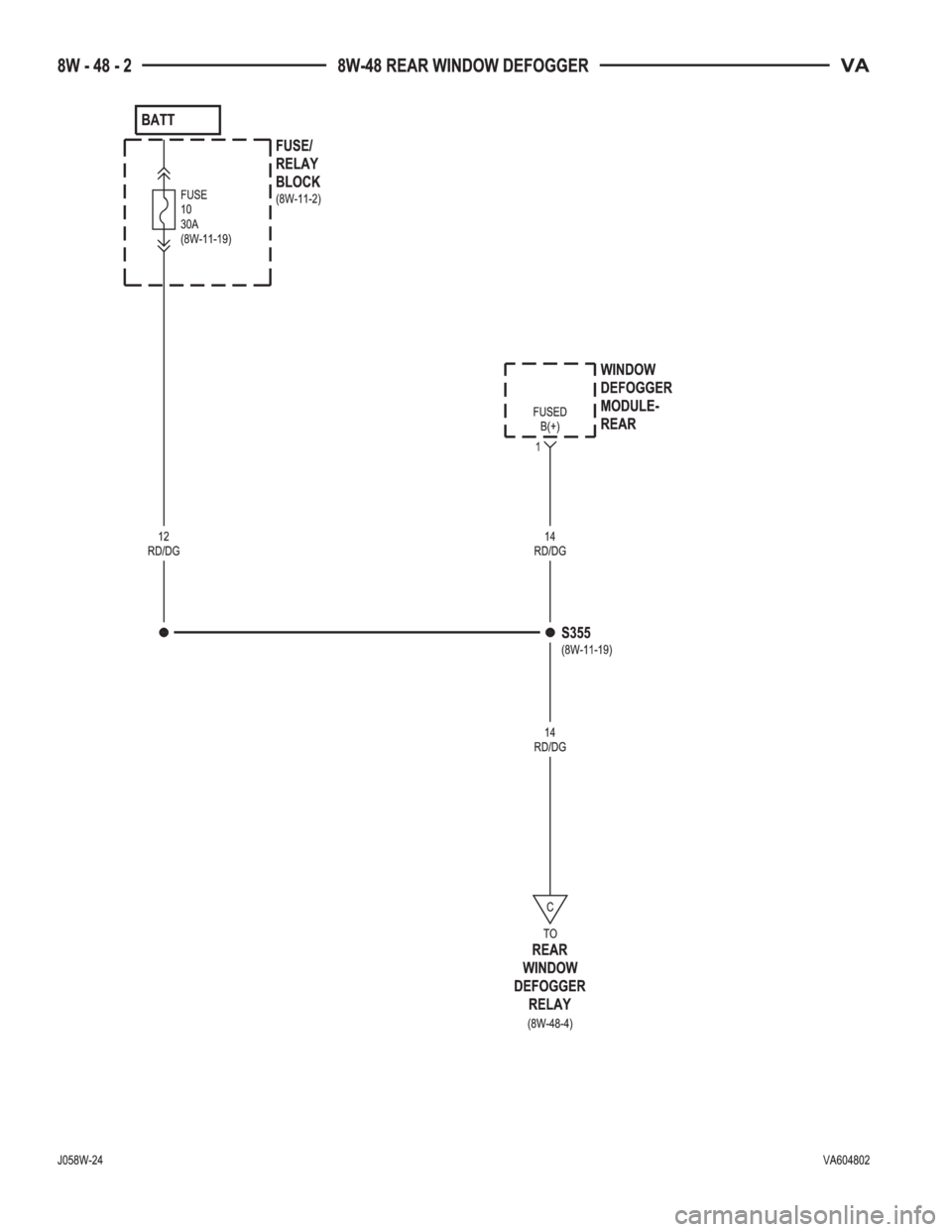

MERCEDES-BENZ SPRINTER 2006 Service Manual 8W-48 REAR WINDOW DEFOGGER
Component Page
D+ Relay No. 1...................... 8W-48-4
Daytime Running Lamps Relay......... 8W-48-3
Fuse 7............................ 8W-48-3
Fuse 9...................

Page 1347 of 2305

Page 1348 of 2305

Page 1349 of 2305

Page 1350 of 2305

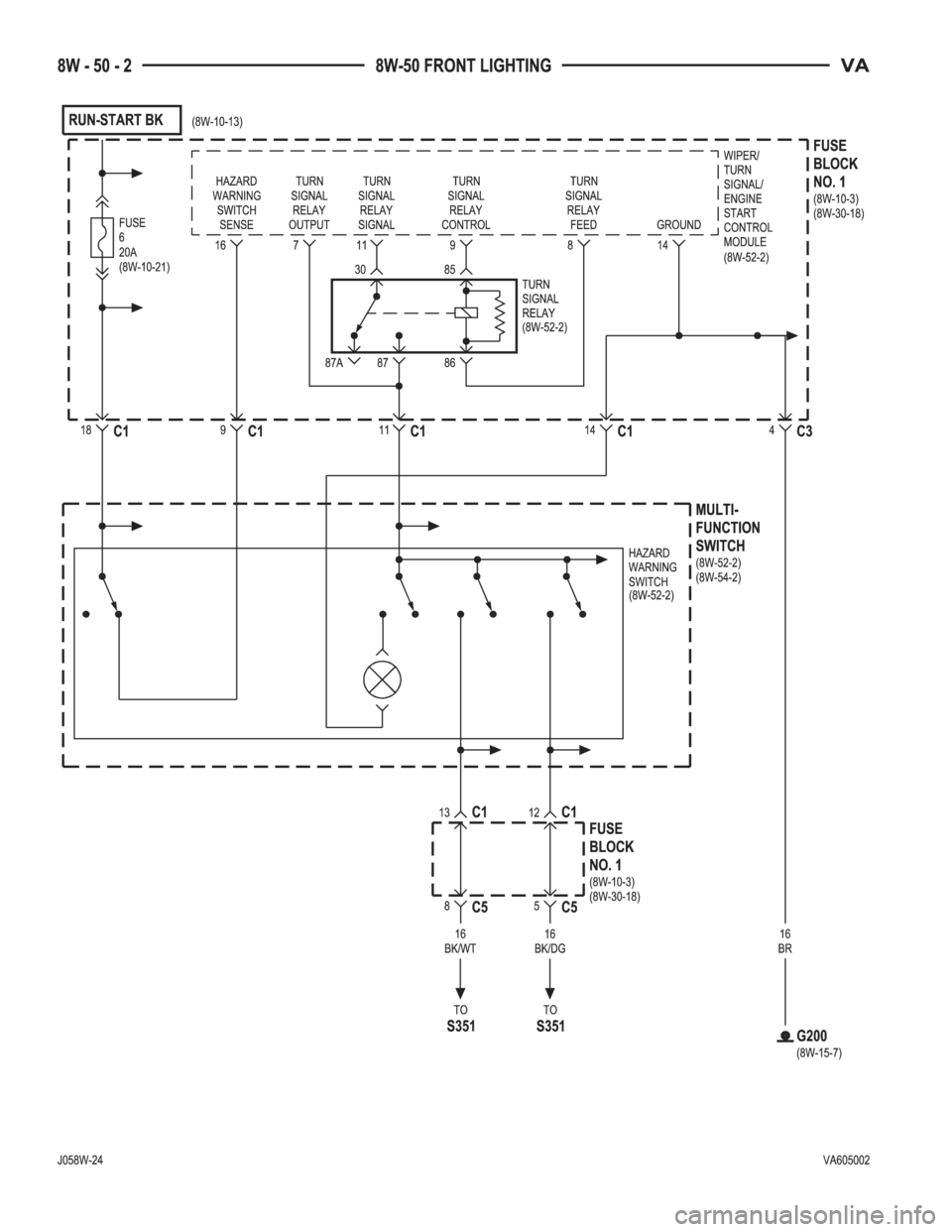

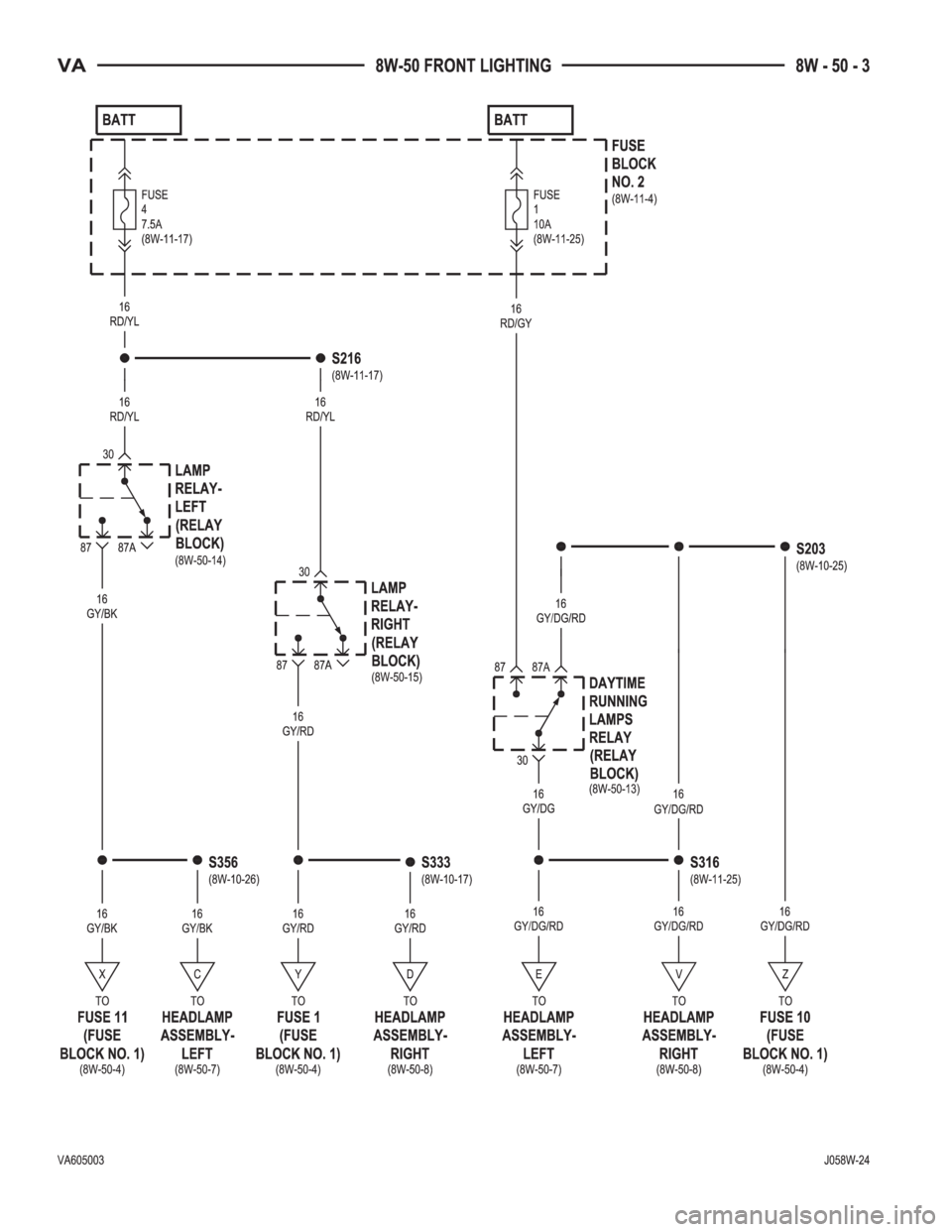

MERCEDES-BENZ SPRINTER 2006 Service Manual 8W-50 FRONT LIGHTING
Component Page
Beam Select Switch................ 8W-50-4, 6
D+ Relay No. 1........... 8W-50-7, 8, 12, 14, 15
Daytime Running Lamp Relay-Left Side . . 8W-50-7
Daytime Running Lamp

8W-50 FRONT LIGHTING
Component Page
Beam Select Switch................ 8W-50-4, 6
D+ Relay No. 1........... 8W-50-7, 8, 12, 14, 15
Daytime Running Lamp Relay-Left Side . . 8W-50-7
Daytime Running Lamp Relay-Right
Side.......................... 8W-50-6, 8
Daytime Running Lamps Relay...... 8W-50-3, 13
Fog Lamp Relay................ 8W-50-6, 9, 10
Fog Lamp Switch.................... 8W-50-9
Fuse 1........................ 8W-50-3, 4, 13
Fuse 2.......................... 8W-50-6, 8
Fuse 3........................ 8W-50-6, 7, 12
Fuse 4....................... 8W-50-3, 14, 15
Fuse 5............................ 8W-50-9
Fuse 6............................ 8W-50-2
Fuse 9................... 8W-50-12, 13, 14, 15
Fuse 10........................ 8W-50-3, 4, 8
Fuse 11........................ 8W-50-3, 4, 7
Fuse 12........................ 8W-50-4, 6, 8
Fuse 13........................ 8W-50-6, 7, 8
Fuse 14......................... 8W-50-6, 10
Fuse Block No. 1............... 8W-50-2, 4, 5, 6
Fuse Block No. 2..... 8W-50-3, 7, 8, 12, 13, 14, 15
Fuse Block No. 3.................... 8W-50-9
G100........................... 8W-50-7, 10
G102........................... 8W-50-8, 10
G200.............................. 8W-50-2
G202............. 8W-50-7, 8, 10, 11, 13, 14, 15
G203.............................. 8W-50-9Component Page
Hazard Warning Switch............... 8W-50-2
Headlamp Adjust Switch.......... 8W-50-7, 8, 9
Headlamp Assembly-Left.......... 8W-50-3, 6, 7,
9, 10, 11, 13, 14
Headlamp Assembly-Right......... 8W-50-3, 6, 8,
9, 10, 11, 13, 15
Headlamp Switch................ 8W-50-4, 5, 6
Lamp Relay-Left.................. 8W-50-3, 14
Lamp Relay-Right................. 8W-50-3, 15
Marker Lamp Connector.............. 8W-50-11
Marker Lamp No. 1-Left Front......... 8W-50-11
Marker Lamp No. 1-Right Front........ 8W-50-11
Marker Lamp No. 2-Left Front......... 8W-50-11
Marker Lamp No. 2-Right Front........ 8W-50-11
Marker Lamp-Left Center............ 8W-50-11
Marker Lamp-Left Rear.............. 8W-50-11
Marker Lamp-Right Center........... 8W-50-11
Marker Lamp-Right Rear............. 8W-50-11
Multi-Function Switch.......... 8W-50-2, 4, 5, 6
Power Distribution Center............ 8W-50-12
Tail Lamp Assembly-Left............. 8W-50-14
Tail Lamp Assembly-Right............ 8W-50-15
Turn Signal Relay.................. 8W-50-2, 5
Turn Signal Switch................. 8W-50-4, 5
Wiper/Turn Signal/Engine Start Control
Module........................ 8W-50-2, 5
VA8W-50 FRONT LIGHTING 8W - 50 - 1

Page 1351 of 2305

Page 1352 of 2305
