Page 2241 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom: IMPROPER RATIO When Monitored and Set Condition: IMPROPER RATIO When Monitored: Engine rpm greater than 450 rpm, output speed greater than 180 rpm, no N2 - N3 input speed sensor errors presen

Page 2242 of 2305

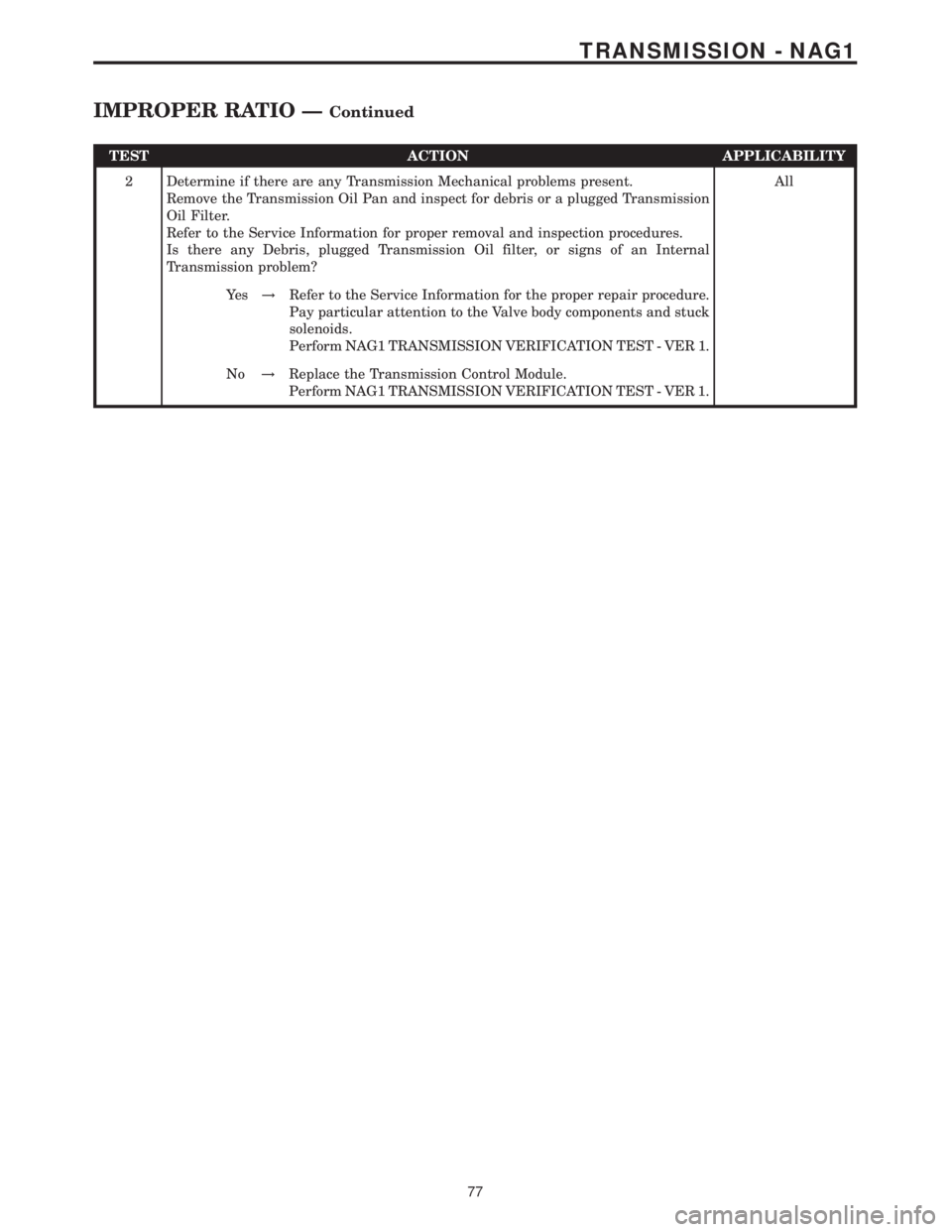

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY 2 Determine if there are any Transmission Mechanical problems present. Remove the Transmission Oil Pan and inspect for debris or a plugged Transmission Oil Filter. Refer to t

Page 2243 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom: INPUT SENSOR MISMATCH When Monitored and Set Condition: INPUT SENSOR MISMATCH When Monitored: Engine speed greater than 450 rpm, no engine speed DTCs, no TCM under-voltage system operation,

Page 2244 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY 2 With the DRBIIIt, read DTCs. Are any Speed Sensor or Sensor Supply DTCs present?All Ye s!Repair any Speed Sensor and/or Sensor Supply DTCs before proceeding with test. Perf

Page 2245 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom: INPUT SENSOR OVERSPEED When Monitored and Set Condition: INPUT SENSOR OVERSPEED When Monitored: Whenever the N2 input speed sensor is greater than 0 rpm Set Condition: If the rpm of the N2 or

Page 2246 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY 2 Ignition on, engine not running. With the DRBIIIt, erase Transmission DTCs. Raise the vehicle on the hoist. Start the engine. NOTE: This condition indicates a catastrophic

Page 2247 of 2305

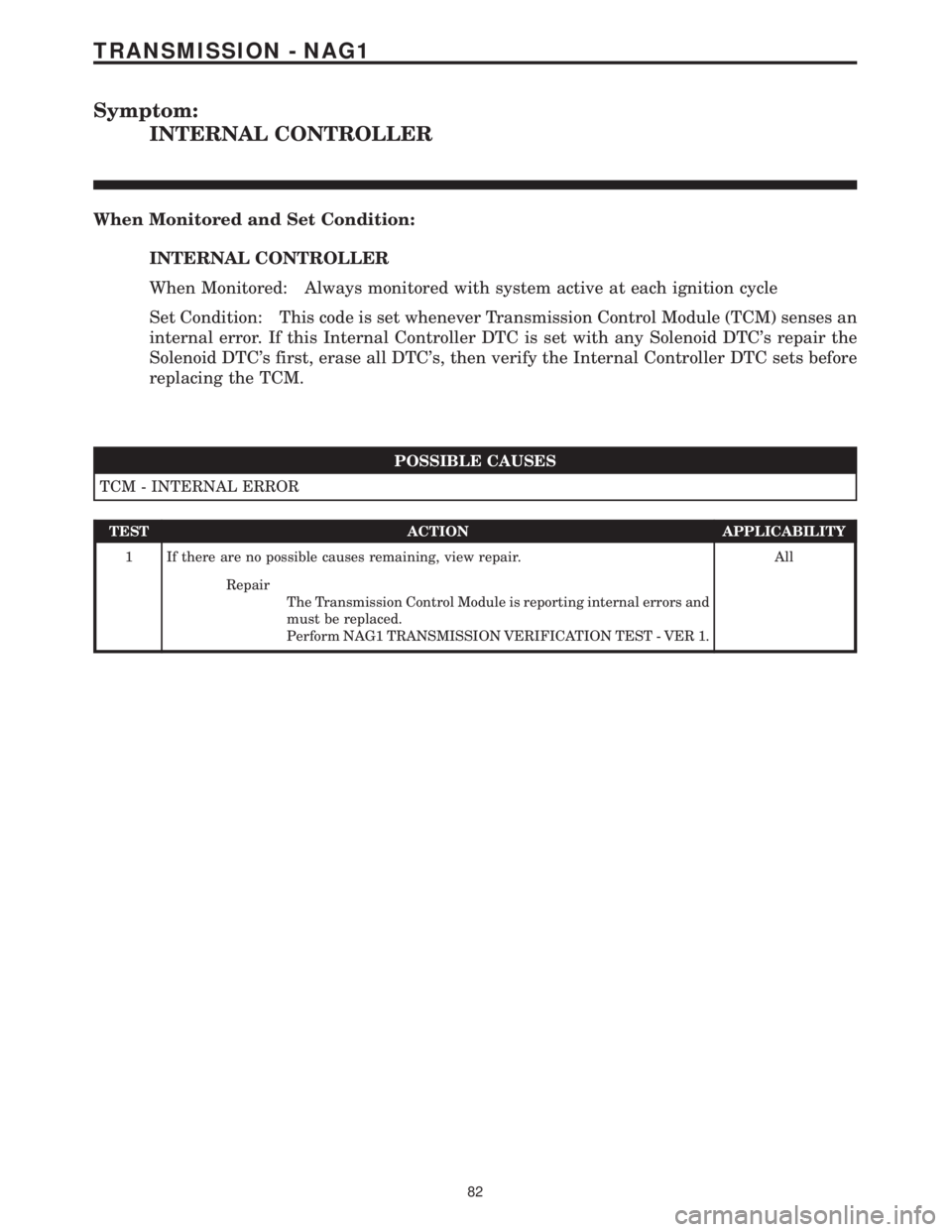

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom: INTERNAL CONTROLLER When Monitored and Set Condition: INTERNAL CONTROLLER When Monitored: Always monitored with system active at each ignition cycle Set Condition: This code is set whenever T

Page 2248 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom: INVALID CONTROL MODULE VERSION POSSIBLE CAUSES TRANSMISSION CONTROL MODULE INVALID CONTROL MODULE TEST ACTION APPLICABILITY 1NOTE: Low fluid level can be the cause of many transmission proble
