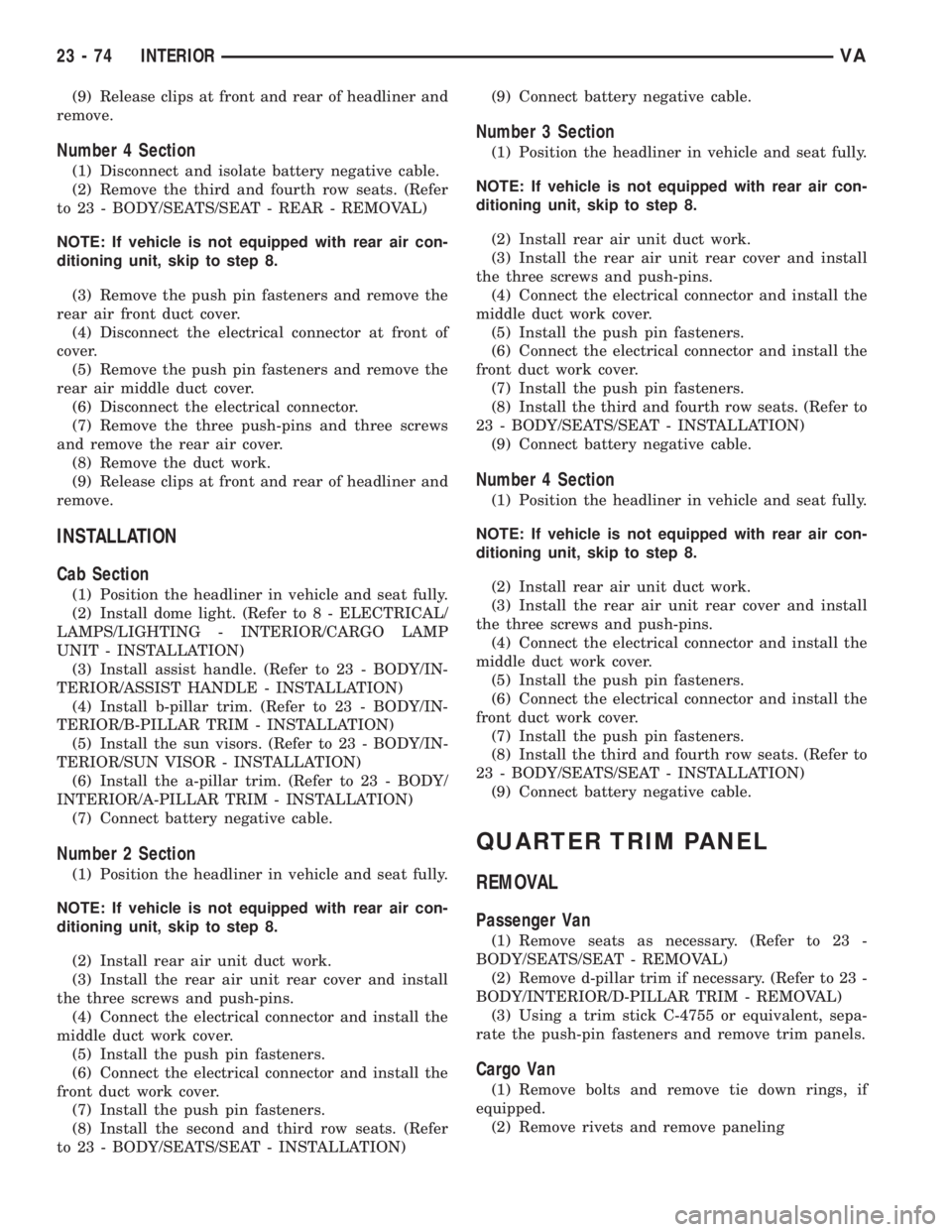

MERCEDES-BENZ SPRINTER 2006 Service Manual (9) Release clips at front and rear of headliner and
remove.
Number 4 Section
(1) Disconnect and isolate battery negative cable.
(2) Remove the third and fourth row seats. (Refer
to 23 - BODY/SEATS/SE

(9) Release clips at front and rear of headliner and
remove.
Number 4 Section
(1) Disconnect and isolate battery negative cable.
(2) Remove the third and fourth row seats. (Refer
to 23 - BODY/SEATS/SEAT - REAR - REMOVAL)
NOTE: If vehicle is not equipped with rear air con-
ditioning unit, skip to step 8.
(3) Remove the push pin fasteners and remove the
rear air front duct cover.
(4) Disconnect the electrical connector at front of
cover.
(5) Remove the push pin fasteners and remove the
rear air middle duct cover.
(6) Disconnect the electrical connector.
(7) Remove the three push-pins and three screws
and remove the rear air cover.
(8) Remove the duct work.
(9) Release clips at front and rear of headliner and
remove.
INSTALLATION
Cab Section
(1) Position the headliner in vehicle and seat fully.
(2) Install dome light. (Refer to 8 - ELECTRICAL/
LAMPS/LIGHTING - INTERIOR/CARGO LAMP
UNIT - INSTALLATION)
(3) Install assist handle. (Refer to 23 - BODY/IN-
TERIOR/ASSIST HANDLE - INSTALLATION)
(4) Install b-pillar trim. (Refer to 23 - BODY/IN-
TERIOR/B-PILLAR TRIM - INSTALLATION)
(5) Install the sun visors. (Refer to 23 - BODY/IN-
TERIOR/SUN VISOR - INSTALLATION)
(6) Install the a-pillar trim. (Refer to 23 - BODY/
INTERIOR/A-PILLAR TRIM - INSTALLATION)
(7) Connect battery negative cable.
Number 2 Section
(1) Position the headliner in vehicle and seat fully.
NOTE: If vehicle is not equipped with rear air con-
ditioning unit, skip to step 8.
(2) Install rear air unit duct work.
(3) Install the rear air unit rear cover and install
the three screws and push-pins.
(4) Connect the electrical connector and install the
middle duct work cover.
(5) Install the push pin fasteners.
(6) Connect the electrical connector and install the
front duct work cover.
(7) Install the push pin fasteners.
(8) Install the second and third row seats. (Refer
to 23 - BODY/SEATS/SEAT - INSTALLATION)(9) Connect battery negative cable.
Number 3 Section
(1) Position the headliner in vehicle and seat fully.
NOTE: If vehicle is not equipped with rear air con-
ditioning unit, skip to step 8.
(2) Install rear air unit duct work.
(3) Install the rear air unit rear cover and install
the three screws and push-pins.
(4) Connect the electrical connector and install the
middle duct work cover.
(5) Install the push pin fasteners.
(6) Connect the electrical connector and install the
front duct work cover.
(7) Install the push pin fasteners.
(8) Install the third and fourth row seats. (Refer to
23 - BODY/SEATS/SEAT - INSTALLATION)
(9) Connect battery negative cable.
Number 4 Section
(1) Position the headliner in vehicle and seat fully.
NOTE: If vehicle is not equipped with rear air con-
ditioning unit, skip to step 8.
(2) Install rear air unit duct work.
(3) Install the rear air unit rear cover and install
the three screws and push-pins.
(4) Connect the electrical connector and install the
middle duct work cover.
(5) Install the push pin fasteners.
(6) Connect the electrical connector and install the
front duct work cover.
(7) Install the push pin fasteners.
(8) Install the third and fourth row seats. (Refer to
23 - BODY/SEATS/SEAT - INSTALLATION)
(9) Connect battery negative cable.
QUARTER TRIM PANEL
REMOVAL
Passenger Van
(1) Remove seats as necessary. (Refer to 23 -
BODY/SEATS/SEAT - REMOVAL)
(2) Remove d-pillar trim if necessary. (Refer to 23 -
BODY/INTERIOR/D-PILLAR TRIM - REMOVAL)
(3) Using a trim stick C-4755 or equivalent, sepa-
rate the push-pin fasteners and remove trim panels.
Cargo Van
(1) Remove bolts and remove tie down rings, if
equipped.
(2) Remove rivets and remove paneling
23 - 74 INTERIORVA

Page 2018 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual INSTALLATION
Passenger Van
(1) Position trim panels and seat push-pin fasten-
ers fully.
(2) Install d-pillar trim, if necessary. (Refer to 23 -
BODY/INTERIOR/D-PILLAR TRIM - INSTALLA-
TION)
(3) Insta

INSTALLATION
Passenger Van
(1) Position trim panels and seat push-pin fasten-
ers fully.
(2) Install d-pillar trim, if necessary. (Refer to 23 -
BODY/INTERIOR/D-PILLAR TRIM - INSTALLA-
TION)
(3) Install seats, if necessary. (Refer to 23 - BODY/
SEATS/SEAT - INSTALLATION)
Cargo Van
(1) Install paneling and replace rivets.
(2) Install tie down rings and bolts, if equipped.
REAR VIEW MIRROR
REMOVAL
(1) Slide mirror off support bracket.
INSTALLATION
INSTALLATION
(1) Install the support bracket if necessary. (Refer
to 23 - BODY/INTERIOR/REAR VIEW MIRROR -
INSTALLATION - SUPPORT BRACKET)
(2) Slide mirror onto support bracket fully.
INSTALLATION - REAR VIEW MIRROR SUP-
PORT BRACKET
(1) Mark the position for the mirror bracket on the
outside of the windshield glass with a wax pencil.
(2) Clean the bracket contact area on the glass.
Use a mild powdered cleanser on a cloth saturated
with isopropyl (rubbing) alcohol. Finally, clean the
glass with a paper towel dampened with alcohol.
(3) Sand the surface on the support bracket with
fine grit-sandpaper. Wipe the bracket surface clean
with a paper towel.
(4) Apply accelerator to the surface on the bracket
according to the following instructions:
(a) Crush the vial to saturate the felt applicator.
(b) Remove the paper sleeve.
(c) Apply accelerator to the contact surface on
the bracket.
(d) Allow the accelerator to dry for five minutes.
(e) Do not touch the bracket contact surface
after the accelerator has been applied.
(5) Apply adhesive accelerator to the bracket con-
tact surface on the windshield glass. Allow the accel-
erator to dry for one minute. Do not touch the glass
contact surface after the accelerator has been
applied.
(6) Install the bracket according to the following
instructions:(a) Apply one drop of adhesive at the center of
the bracket contact-surface on the windshield
glass.
(b) Apply an even coat of adhesive to the contact
surface on the bracket.
(c) Align the bracket with the marked position
on the windshield glass.
(d) Press and hold the bracket in place for at
least one minute.
NOTE: Verify that the mirror support bracket is cor-
rectly aligned, because the adhesive will cure rap-
idly.
(7) Allow the adhesive to cure for 8-10 minutes.
Remove any excess adhesive with an alcohol-damp-
ened cloth.
(8) Allow the adhesive to cure for an additional
8-10 minutes before installing the mirror.
STEPWELL SCUFF PADS
REMOVAL
(1) Remove screws and remove seat bracket if nec-
essary.
(2) Remove trim plugs and screws. (Fig. 8) and
(Fig. 9)
(3) Remove stepwell scuffs.
Fig. 8 STEPWELL SCUFF PADS
1 - TRIM PLUGS
2 - STEPWELL
VAINTERIOR 23 - 75

Page 2019 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual INSTALLATION
(1) Install scuff pad and install the screws.
(2) Install the trim plugs.
