Page 649 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY
4NOTE: If DTC P1611 or P2306 is present with this DTC, diagnose DTCs P1611
and P2306 before diagnosing this DTC.
Turn the ignition off.
Disconnect the EGR Valve harness conne

Page 650 of 2305

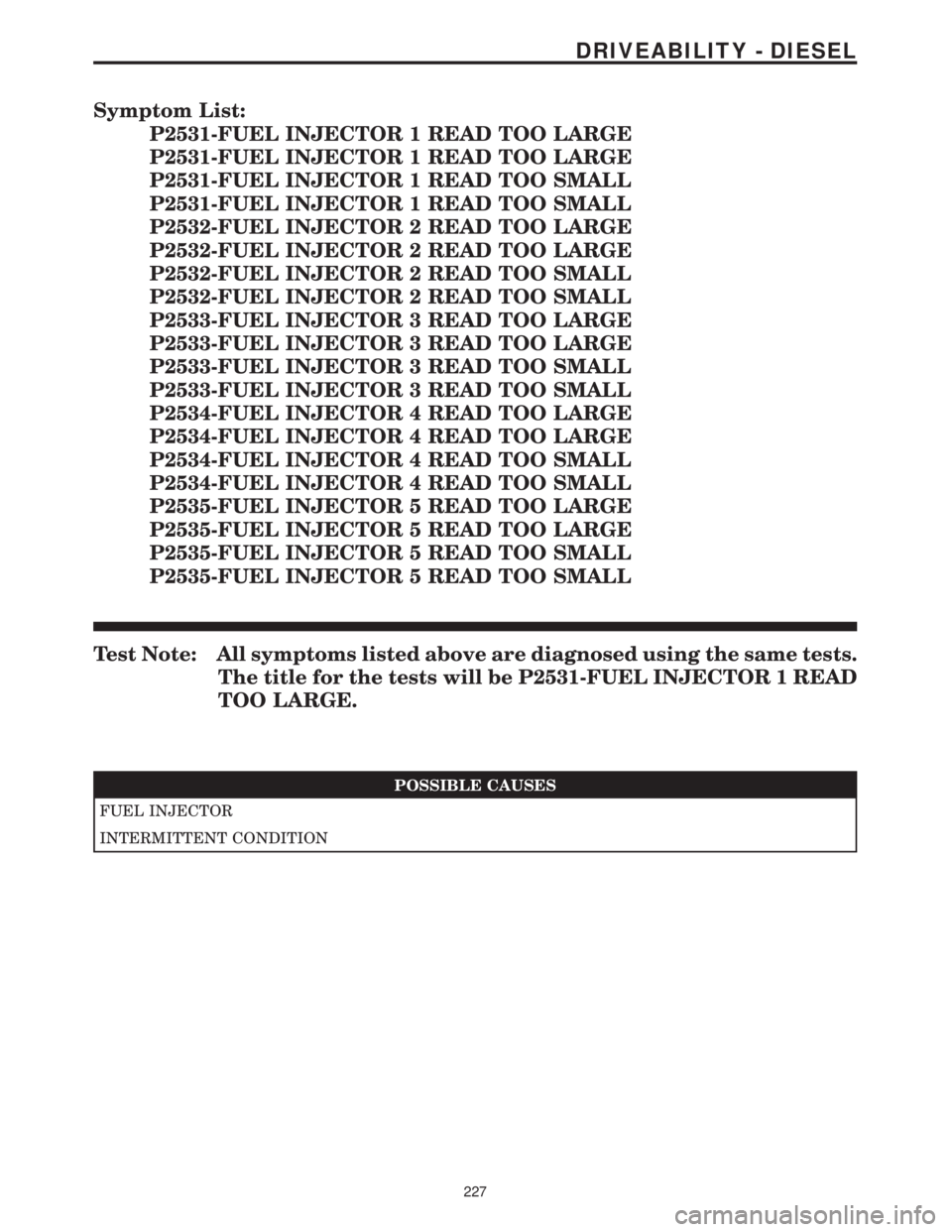

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom List:
P2531-FUEL INJECTOR 1 READ TOO LARGE
P2531-FUEL INJECTOR 1 READ TOO LARGE
P2531-FUEL INJECTOR 1 READ TOO SMALL
P2531-FUEL INJECTOR 1 READ TOO SMALL
P2532-FUEL INJECTOR 2 READ TOO LARGE
P

Page 651 of 2305

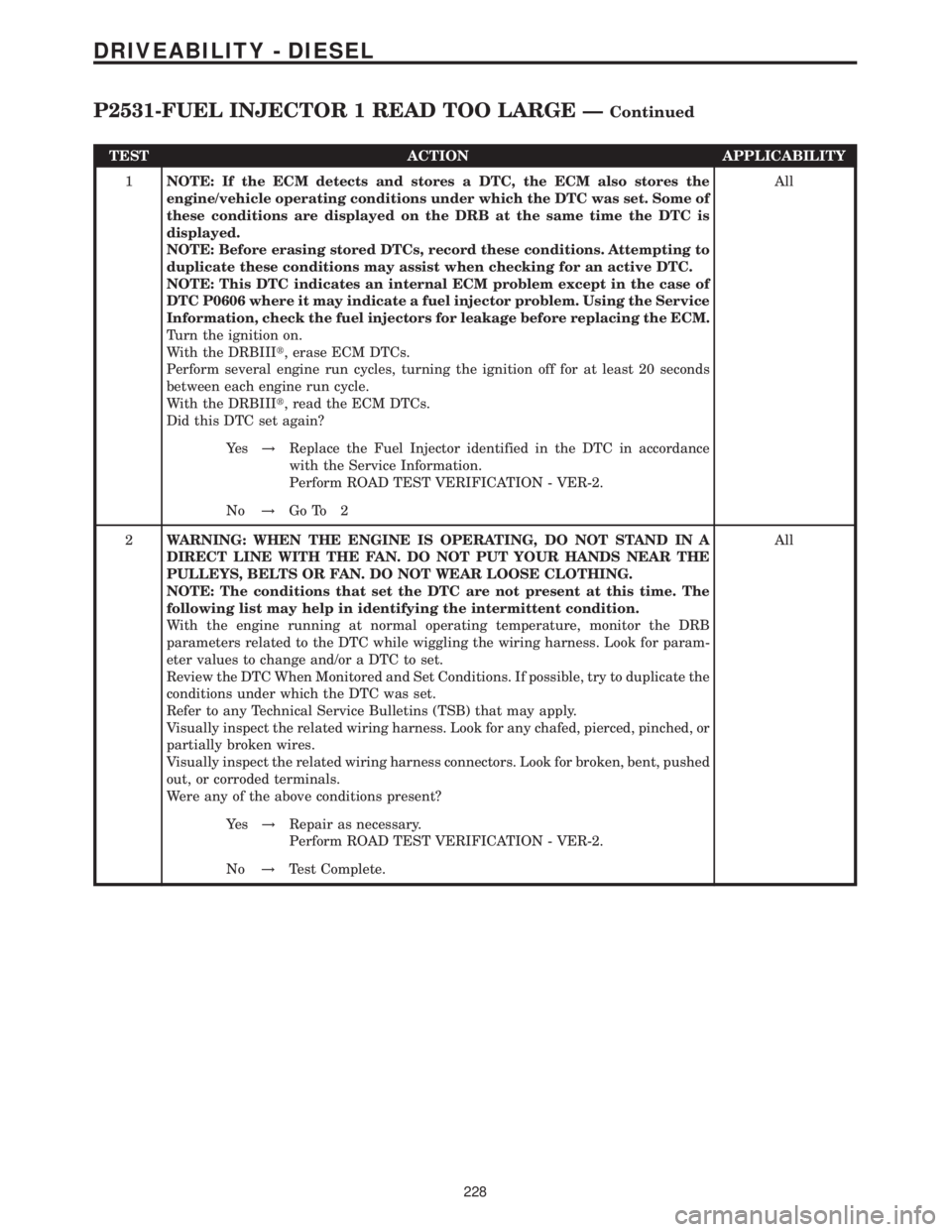

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY
1NOTE: If the ECM detects and stores a DTC, the ECM also stores the
engine/vehicle operating conditions under which the DTC was set. Some of
these conditions are displayed on

TEST ACTION APPLICABILITY
1NOTE: If the ECM detects and stores a DTC, the ECM also stores the
engine/vehicle operating conditions under which the DTC was set. Some of
these conditions are displayed on the DRB at the same time the DTC is
displayed.
NOTE: Before erasing stored DTCs, record these conditions. Attempting to
duplicate these conditions may assist when checking for an active DTC.
NOTE: This DTC indicates an internal ECM problem except in the case of
DTC P0606 where it may indicate a fuel injector problem. Using the Service
Information, check the fuel injectors for leakage before replacing the ECM.
Turn the ignition on.
With the DRBIIIt, erase ECM DTCs.
Perform several engine run cycles, turning the ignition off for at least 20 seconds
between each engine run cycle.
With the DRBIIIt, read the ECM DTCs.
Did this DTC set again?All
Ye s!Replace the Fuel Injector identified in the DTC in accordance
with the Service Information.
Perform ROAD TEST VERIFICATION - VER-2.
No!Go To 2
2WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s!Repair as necessary.
Perform ROAD TEST VERIFICATION - VER-2.
No!Test Complete.
228
DRIVEABILITY - DIESEL
P2531-FUEL INJECTOR 1 READ TOO LARGE ÐContinued

Page 652 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom:
P2606-CMP/CKP SYNCHRONIZATION ERROR
POSSIBLE CAUSES
CAMSHAFT POSITION SENSOR SIGNAL PROBLEM
CRANKSHAFT POSITION SENSOR SIGNAL PROBLEM
DAMAGED CKP SENSOR
DAMAGED CMP SENSOR OR CAMSHAFT
ENGINE

Page 653 of 2305

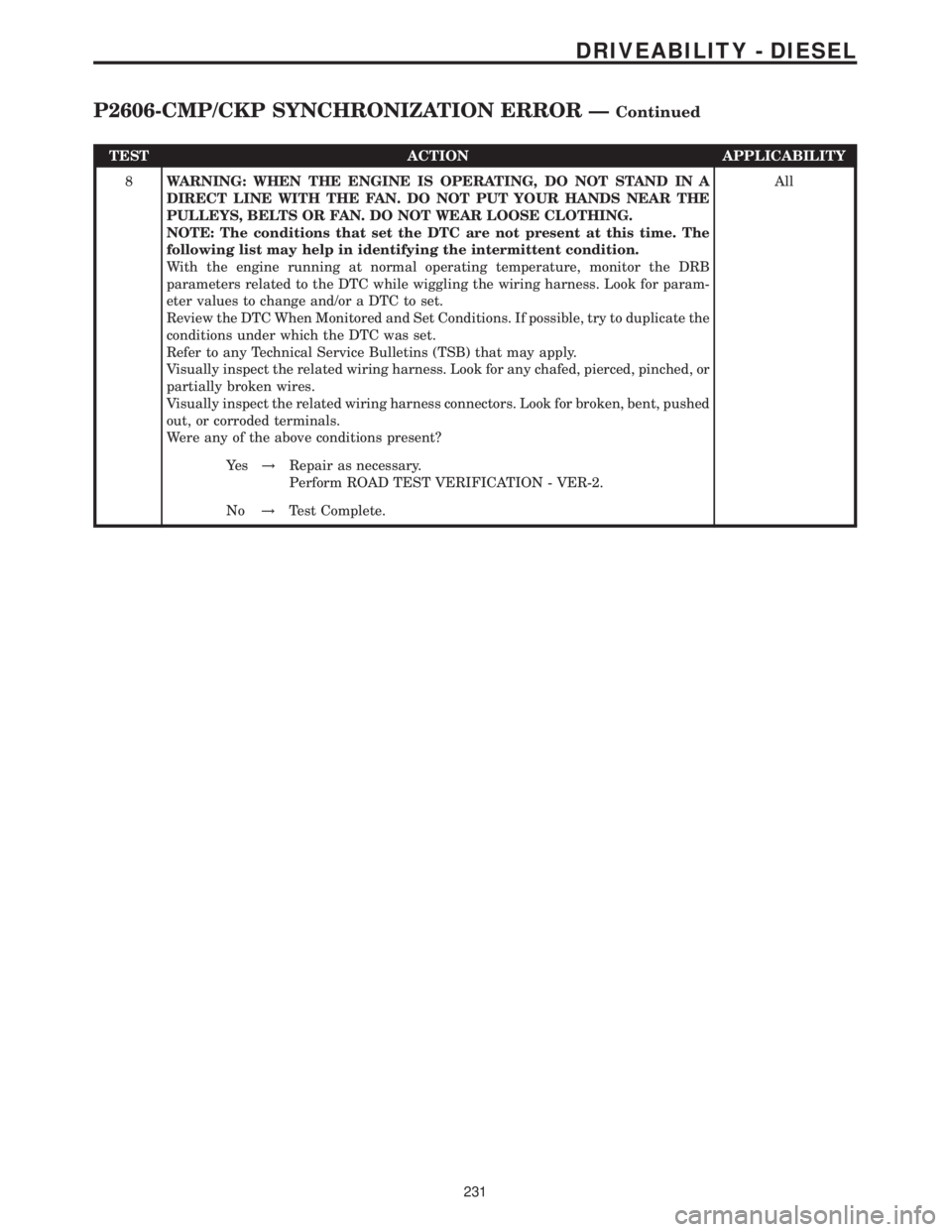

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY
4 Turn the ignition off.
Remove the CKP Sensor.
Inspect the CKP Sensor for conditions such as loose mounting screws, damage or
debris.
Is there any evidence of these conditio

Page 654 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY
8WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: Th

Page 655 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom:
*CHECKING THE FUEL PRESSURE SENSOR CIRCUITS
POSSIBLE CAUSES
OPEN CIRCUITS
TEST ACTION APPLICABILITY
1 Turn the ignition off.
Disconnect the Fuel Pressure Sensor harness connector.
Disconnect

Page 656 of 2305

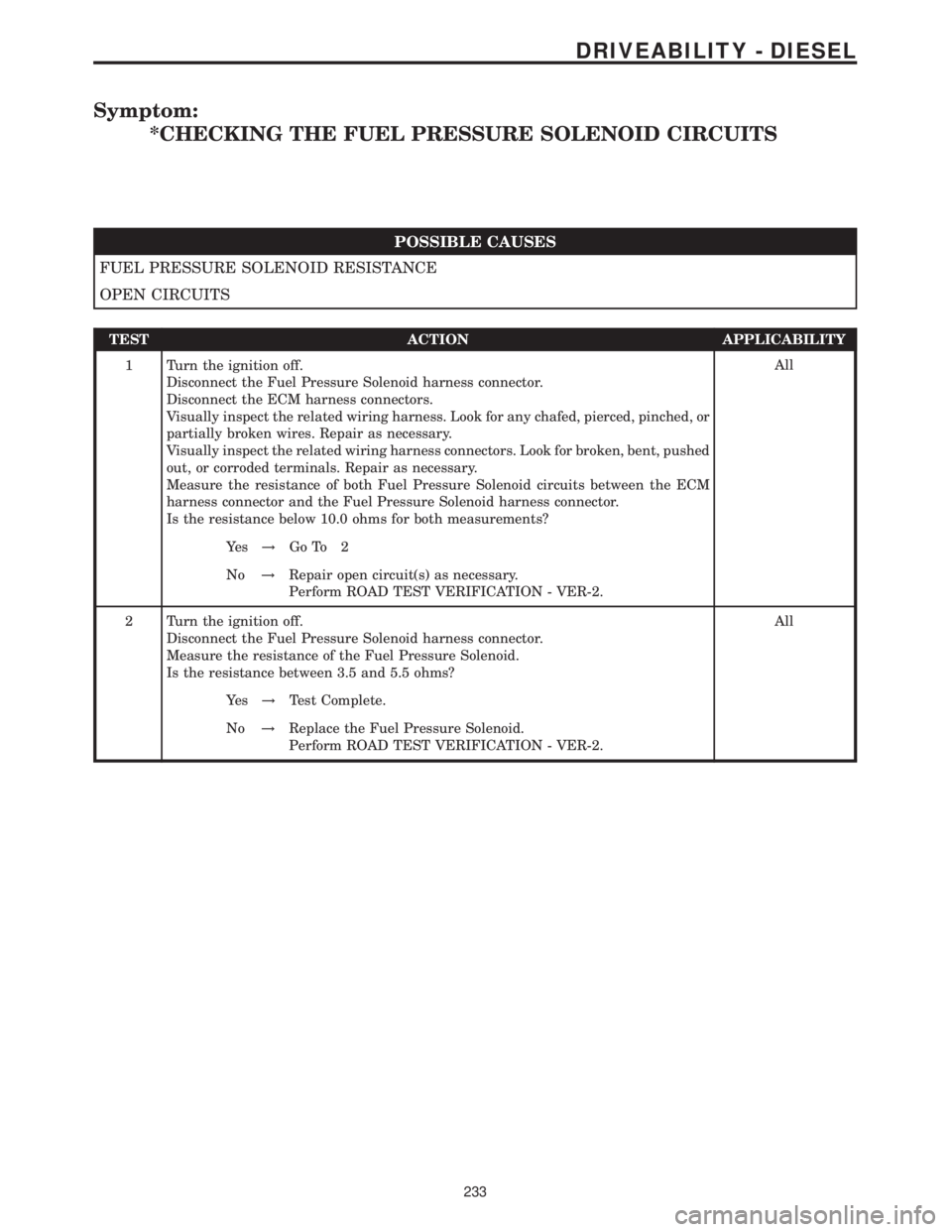

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom:
*CHECKING THE FUEL PRESSURE SOLENOID CIRCUITS
POSSIBLE CAUSES
FUEL PRESSURE SOLENOID RESISTANCE
OPEN CIRCUITS
TEST ACTION APPLICABILITY
1 Turn the ignition off.
Disconnect the Fuel Pressure S
