MERCEDES-BENZ SPRINTER 2006 Service Manual 8W-11 FUSE BLOCK
Component Page
A/C Auxiliary Fan Relay................ 8W-11-19
Additional Heat Exchanger Relay....... 8W-11-24, 34
Additional Heat Exchanger Switch......... 8W-11-27
Ash Receiver Lam

8W-11 FUSE BLOCK
Component Page
A/C Auxiliary Fan Relay................ 8W-11-19
Additional Heat Exchanger Relay....... 8W-11-24, 34
Additional Heat Exchanger Switch......... 8W-11-27
Ash Receiver Lamp.................... 8W-11-27
Automatic Temperature Control Module . . . 8W-11-16, 27
Battery Relay-Auxiliary................. 8W-11-16
Body Plug Connector.............. 8W-11-28, 38, 39
CTEL Connector................... 8W-11-21, 30
Cabin Heater Module................ 8W-11-21, 34
Central Timer Module............... 8W-11-16, 18
Cigar Lighter Lamp.................... 8W-11-27
Circulation Pump Diode................. 8W-11-34
Controller Antilock Brake............. 8W-11-21, 33
D+ Relay No. 1............... 8W-11-14, 15, 25, 38
D+ Relay No. 2.................. 8W-11-16, 28, 38
Data Link Connector................... 8W-11-18
Daytime Running Lamp Relay-Left Side..... 8W-11-15
Daytime Running Lamp Relay-Right Side.... 8W-11-15
Daytime Running Lamps Relay...... 8W-11-16, 25, 26
Fan Stage 1 Relay..................... 8W-11-24
Fog Lamp Switch................... 8W-11-21, 27
Fuse 1................ 8W-11-13, 14, 19, 20, 25, 26
Fuse 2........... 8W-11-13, 17, 29, 30, 31, 33, 36, 37
Fuse 3................ 8W-11-13, 14, 17, 18, 19, 20,
21, 22, 23, 24, 25, 28
Fuse 4..................... 8W-11-13, 14, 17, 21
Fuse 5................... 8W-11-13, 14, 18, 21, 23
Fuse 6................ 8W-11-13, 18, 24, 29, 33, 36
Fuse 7................ 8W-11-13, 21, 29, 30, 33, 34
Fuse 8................ 8W-11-14, 20, 24, 29, 34, 35
Fuse 9............. 8W-11-13, 14, 15, 16, 21, 25, 38
Fuse 10.................. 8W-11-14, 15, 19, 26, 36
Fuse 11....................... 8W-11-14, 15, 20
Fuse 12....................... 8W-11-28, 29, 33
Fuse 13.................... 8W-11-28, 29, 30, 39
Fuse 14.................... 8W-11-28, 29, 30, 38
Fuse 15....................... 8W-11-29, 31, 32
Fuse 18....................... 8W-11-14, 22, 39
Fuse 19............................ 8W-11-16
Fuse 20......................... 8W-11-29, 31

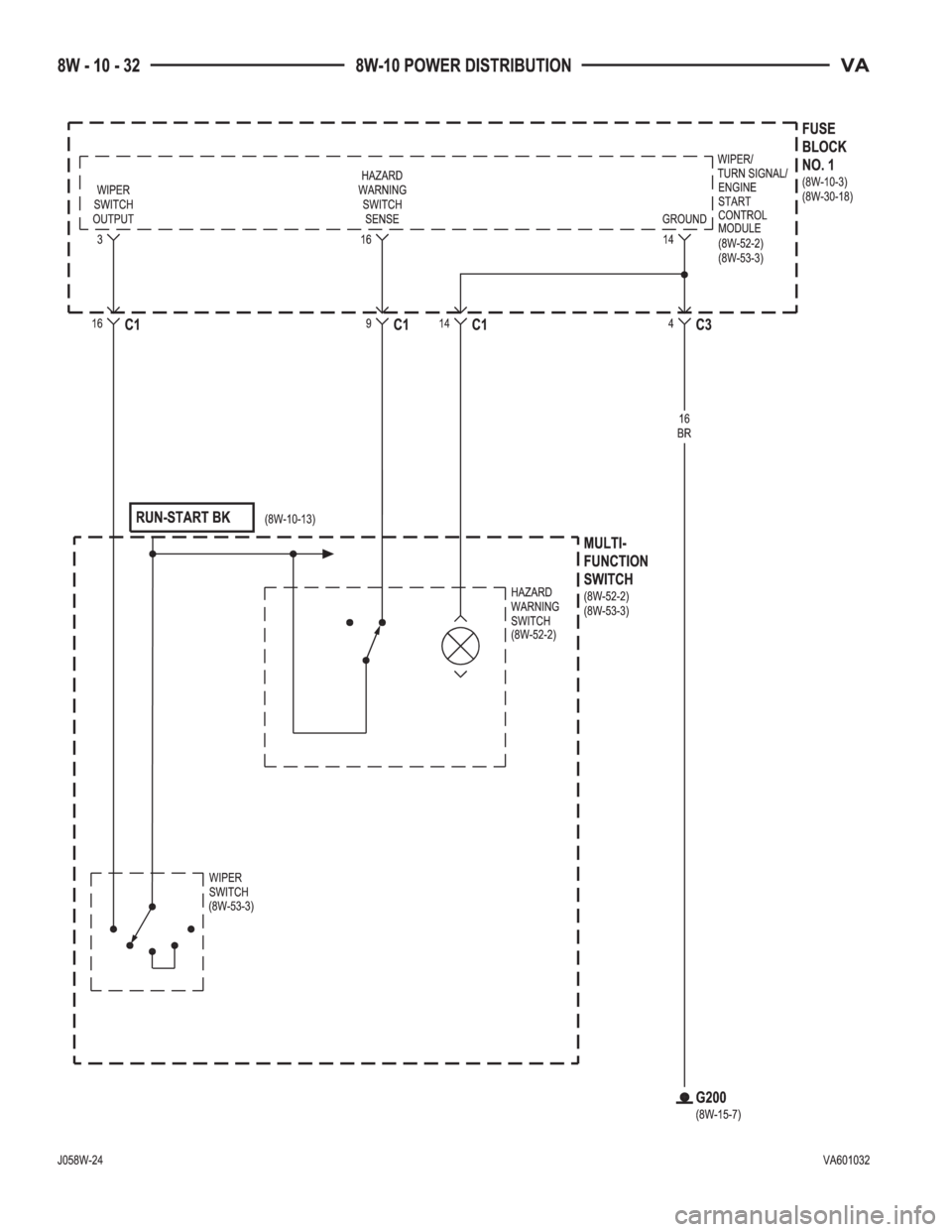

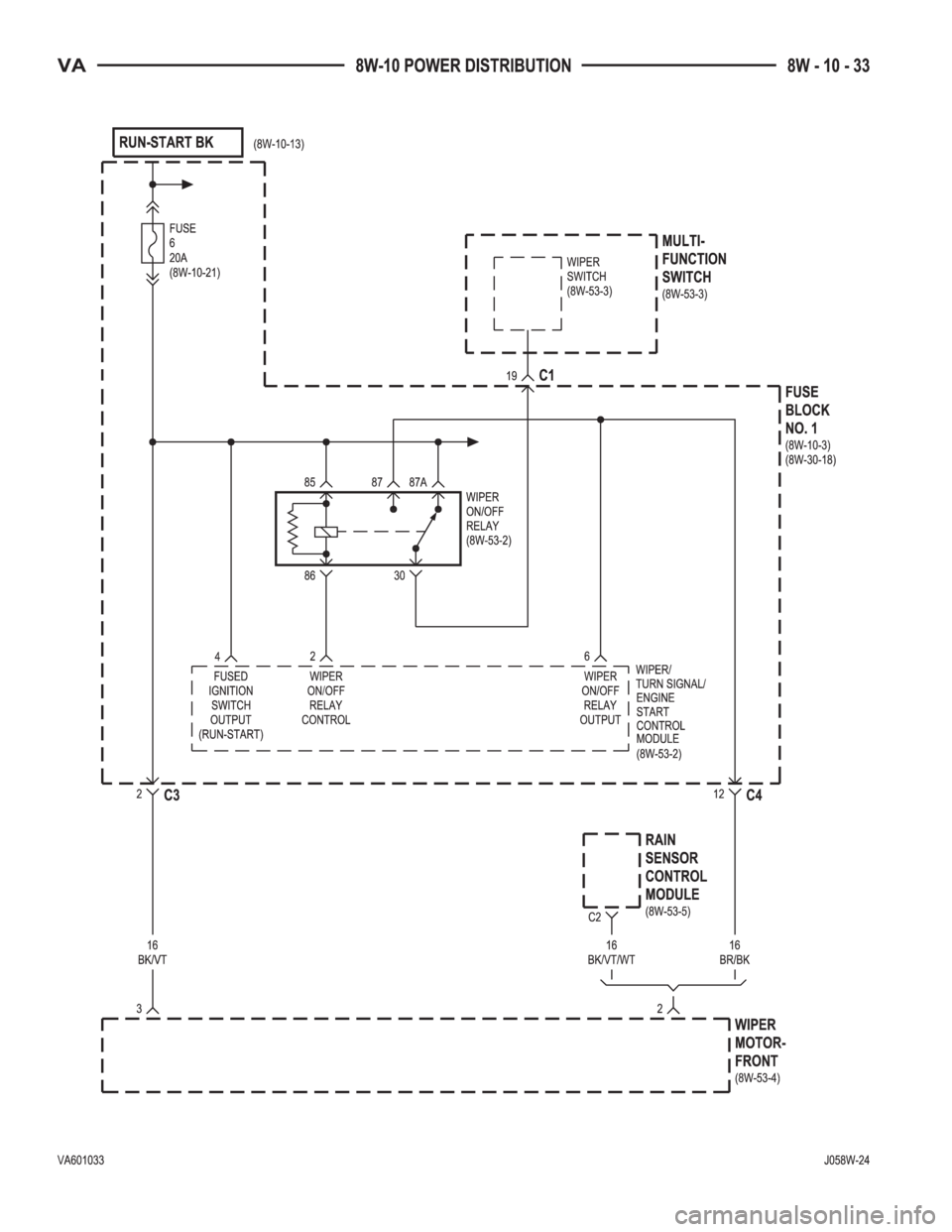

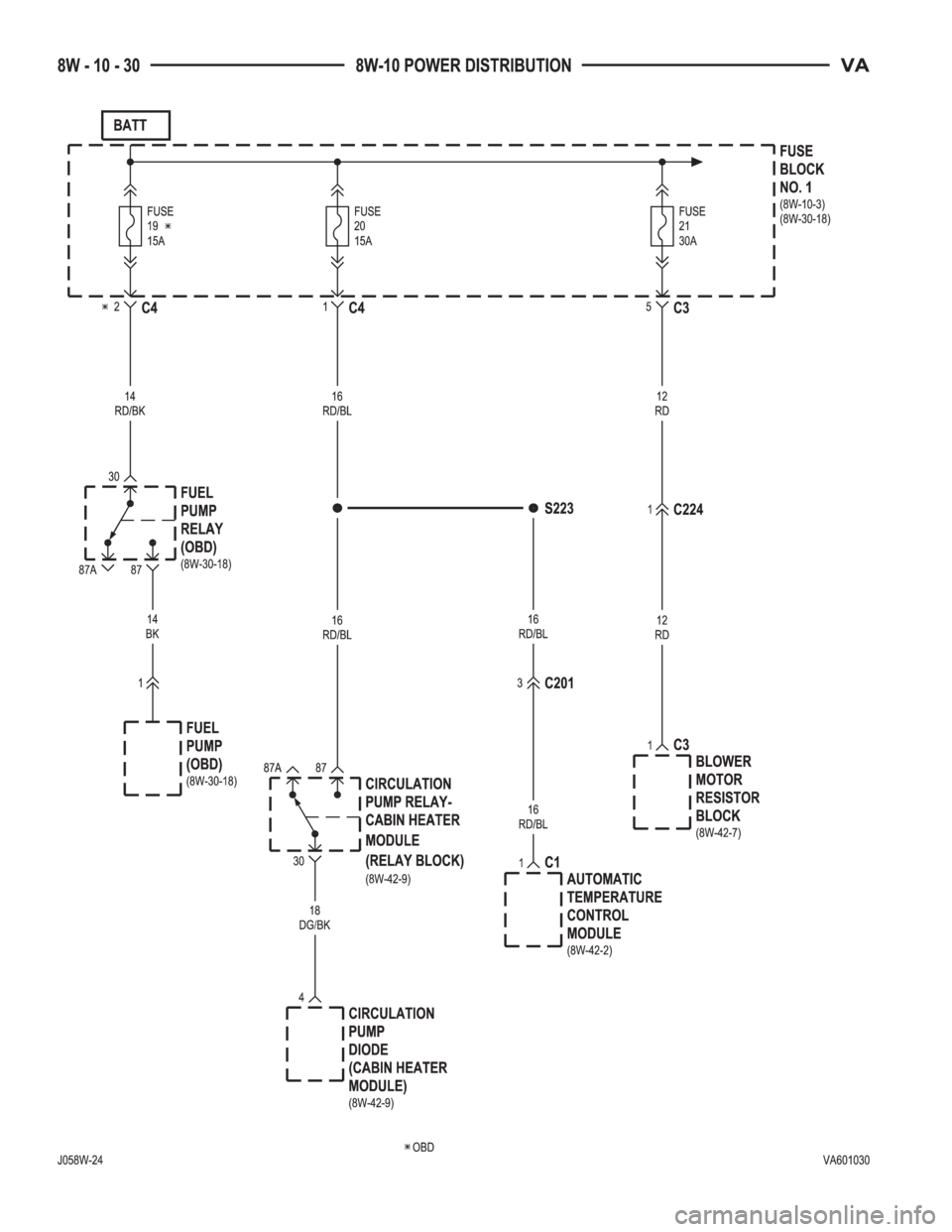

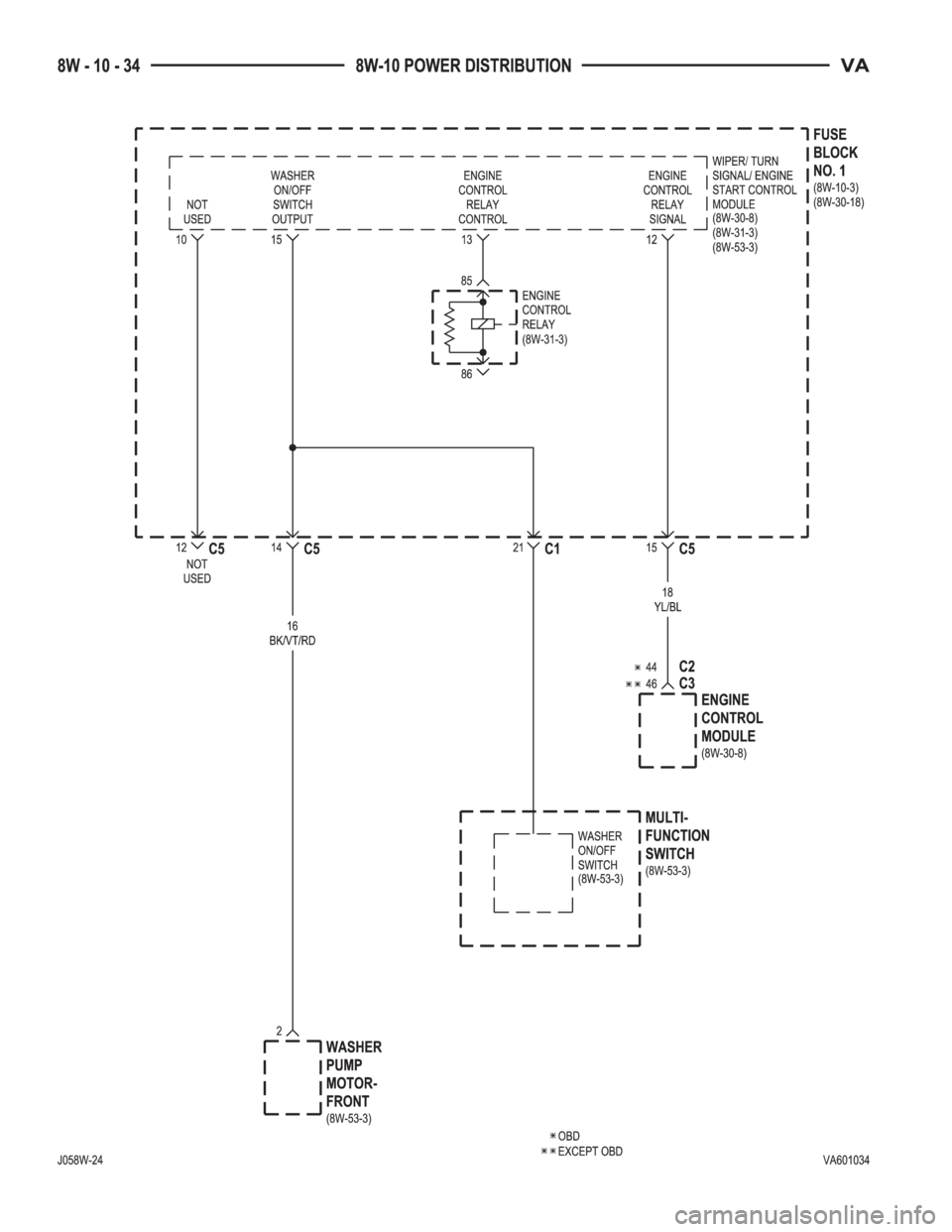

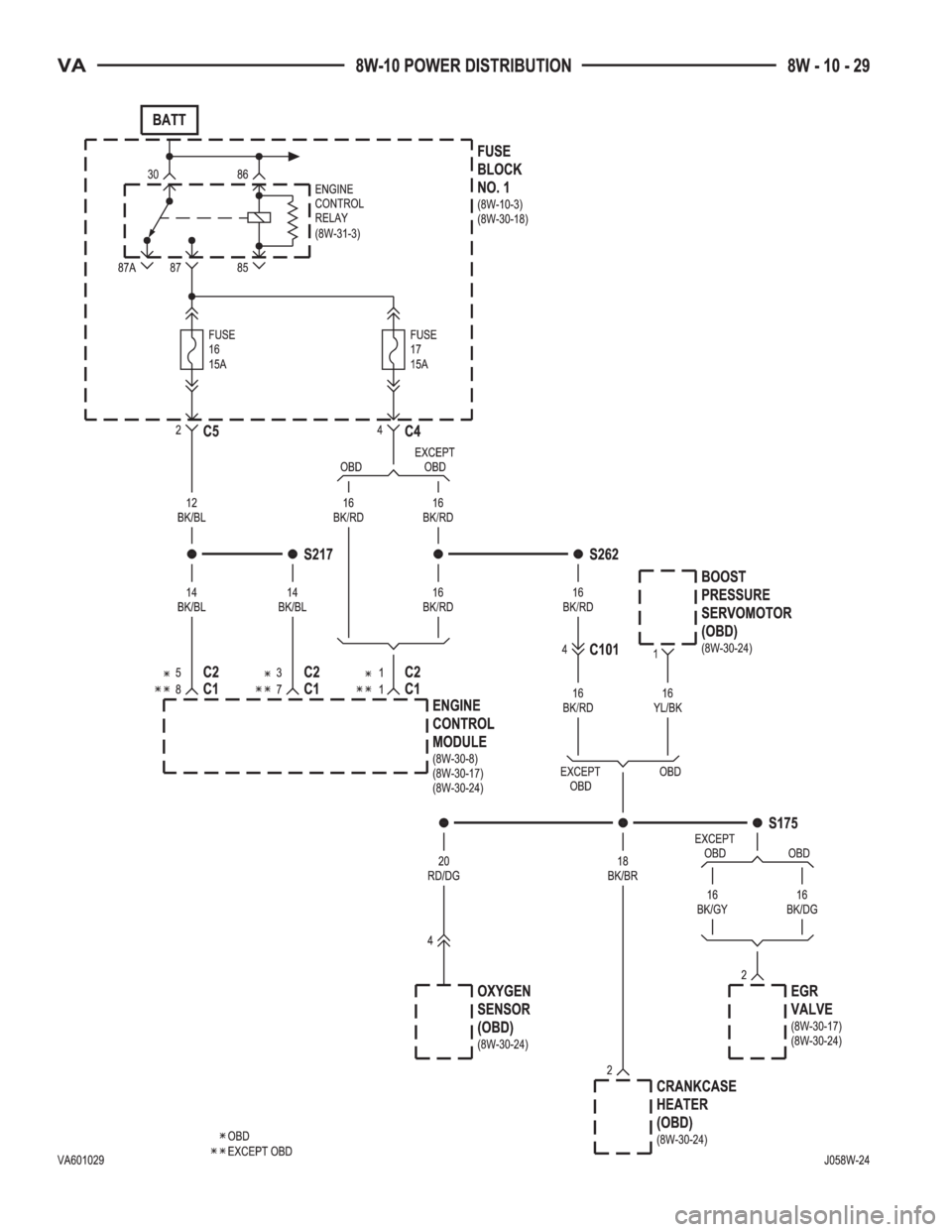

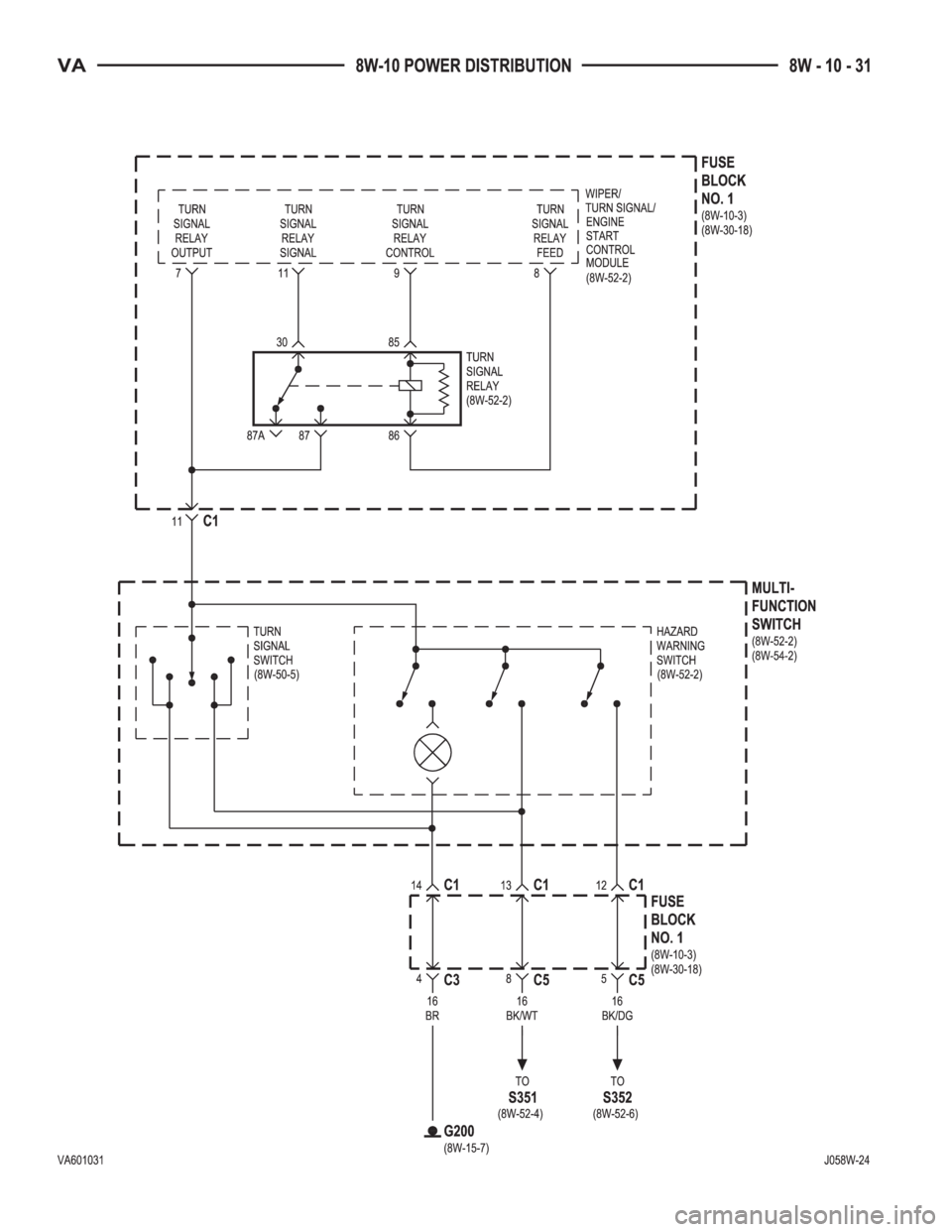

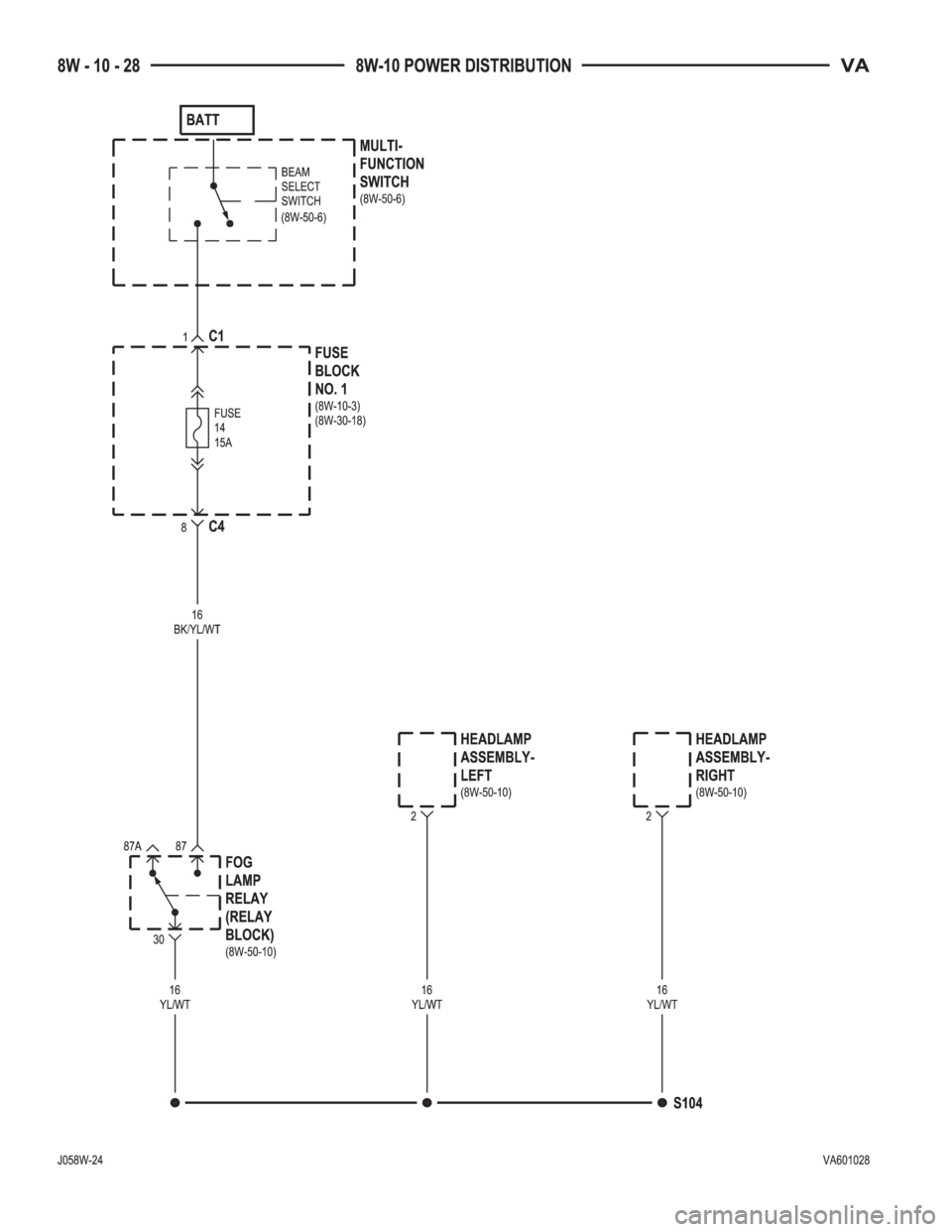

Fuse Block No. 1................ 8W-11-26, 33, 39
Fuse Block No. 2.............. 8W-11-4, 15, 17, 18,
25, 26, 28, 30, 31, 34, 38, 39
Fuse Block No. 3......... 8W-11-5, 16, 20, 21, 22, 24,
30, 31, 32, 33, 34, 36
Fuse/Relay Block......... 8W-11-2, 19, 20, 21, 23, 33
Fused Ignition Switch Run-Start Relay.... 8W-11-28, 39
G202................. 8W-11-16, 25, 33, 34, 38, 39
Headlamp Adjust Switch................ 8W-11-27
Headlamp Assembly-Left............. 8W-11-15, 25
Headlamp Assembly-Right............ 8W-11-15, 25
Headlamp Switch..................... 8W-11-26
Heated Seat Switch-Driver............ 8W-11-27, 32
Heated Seat Switch-Passenger.......... 8W-11-27, 32
Heater Timer-Auxiliary................. 8W-11-20
High Idle Switch................... 8W-11-27, 33
Component Page
Instrument Cluster................. 8W-11-18, 25
Instrument Panel Socket................ 8W-11-25
Interior Light Switch................ 8W-11-22, 27
Interior Light Switch-Driver.............. 8W-11-22
Interior Light Switch-Passenger........... 8W-11-22
Interior Light Switch-Rear............... 8W-11-22
Interior Lighting Connector.............. 8W-11-22
Intrusion Sensor No. 1.................. 8W-11-37
Intrusion Sensor No. 2.................. 8W-11-37
Intrusion Sensor No. 3.................. 8W-11-37
Lamp Relay-Left................... 8W-11-16, 17
Lamp Relay-Right.................. 8W-11-16, 17
License Plate Lamp No. 1............... 8W-11-25
License Plate Lamp No. 2............... 8W-11-25
Locker Switch No. 1................. 8W-11-27, 33
Locker Switch No. 2................... 8W-11-33
Map/Reading Lamp Switch............ 8W-11-22, 27
Master Door Lock Switch................ 8W-11-27
Multi-Function Switch.................. 8W-11-26
Optional Equipment Relay . . 8W-11-29, 30, 31, 32, 33, 34
Panic Alarm Switch.................... 8W-11-27
Power Distribution Center . . 8W-11-13, 17, 18, 19, 20, 21,
22, 23, 24, 25, 28, 29, 30, 31, 33, 36
Power Mirror Motor-Driver.............. 8W-11-35
Power Mirror Motor-Passenger............ 8W-11-35
Power Mirror Switch................... 8W-11-35
Power Window Switch-Driver............. 8W-11-30
Power Window Switch-Master............ 8W-11-31
Power Window Switch-Passenger.......... 8W-11-31
Radio.............................. 8W-11-27
Rear Window Defogger Relay............. 8W-11-19
Relay Block . . 8W-11-3, 14, 15, 16, 17, 19, 23, 24, 25, 28,
29, 30, 31, 32, 33, 34
Rollover Switch Assembly............. 8W-11-21, 34
Roof A/C Control Module................ 8W-11-20
Roof A/C Switch.................... 8W-11-16, 27
Roof A/C Temperature Setting Control....... 8W-11-27
Roof Fan Switch................... 8W-11-27, 31
Security System Module........... 8W-11-30, 36, 37
Sentry Key Remote Entry Module.......... 8W-11-23
Shifter Assembly...................... 8W-11-27
Siren.............................. 8W-11-37
Steering Angle Sensor.................. 8W-11-33
TCS Switch......................... 8W-11-27
Time Delay Relay..................... 8W-11-22
Towing/Intrusion Sensor On/Off Switch...... 8W-11-27
Trailer Tow Connector.................. 8W-11-24
Trailer Tow Control Module.............. 8W-11-24
Transmission Relay.................... 8W-11-17
Turn Signal/Anti-Theft Alarm Relay-Left..... 8W-11-23
Turn Signal/Anti-Theft Alarm Relay-Right.... 8W-11-23
Warm Air Auxiliary Heater Assembly....... 8W-11-20
Window Defogger Module-Rear......... 8W-11-16, 19
Window Defogger Switch-Rear............ 8W-11-27
VA8W-11 FUSE BLOCK 8W - 11 - 1
