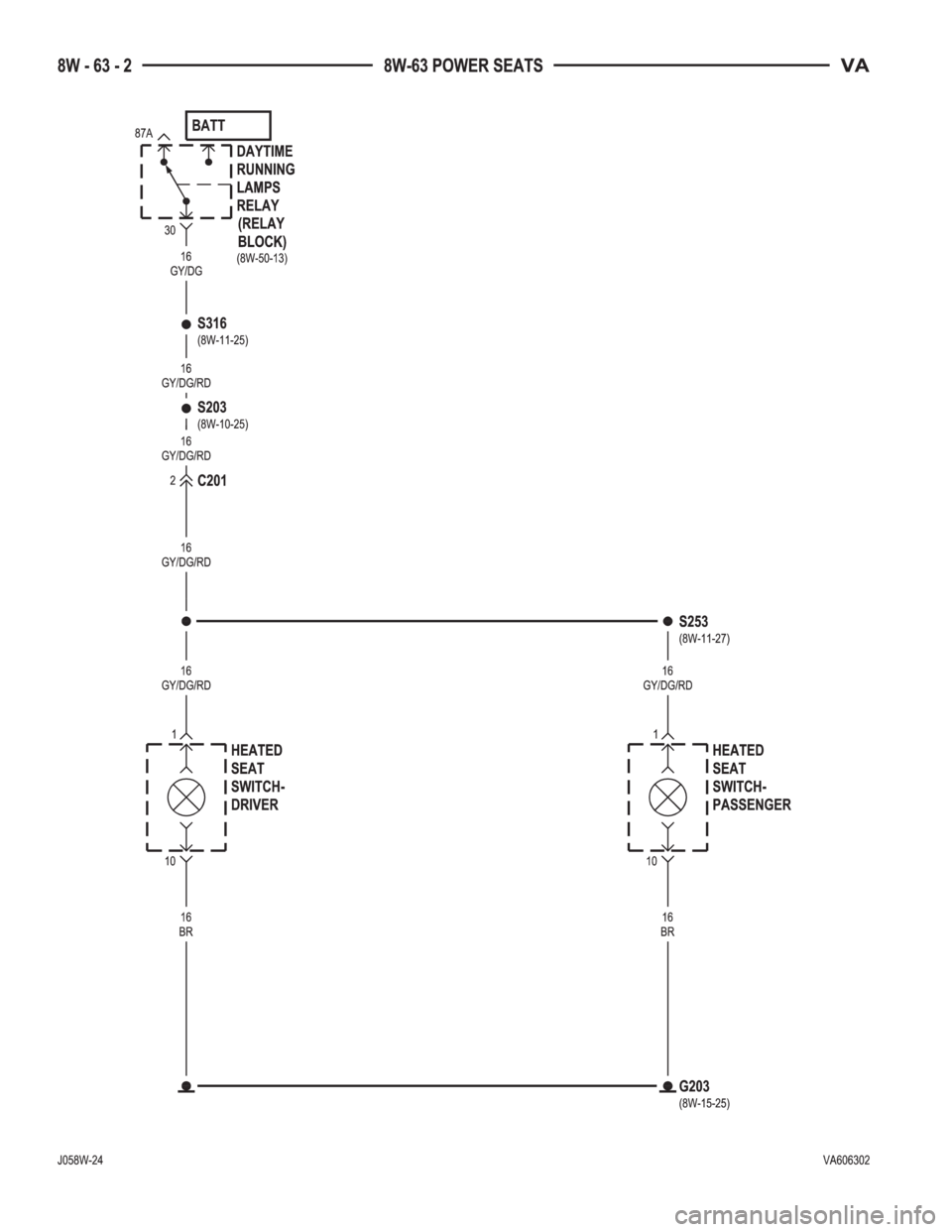

MERCEDES-BENZ SPRINTER 2006 Service Manual 8W-63 POWER SEATS
Component Page
Daytime Running Lamps Relay......... 8W-63-2
Fuse 15............................ 8W-63-3
Fuse Block No. 3.................... 8W-63-3
G202.............................

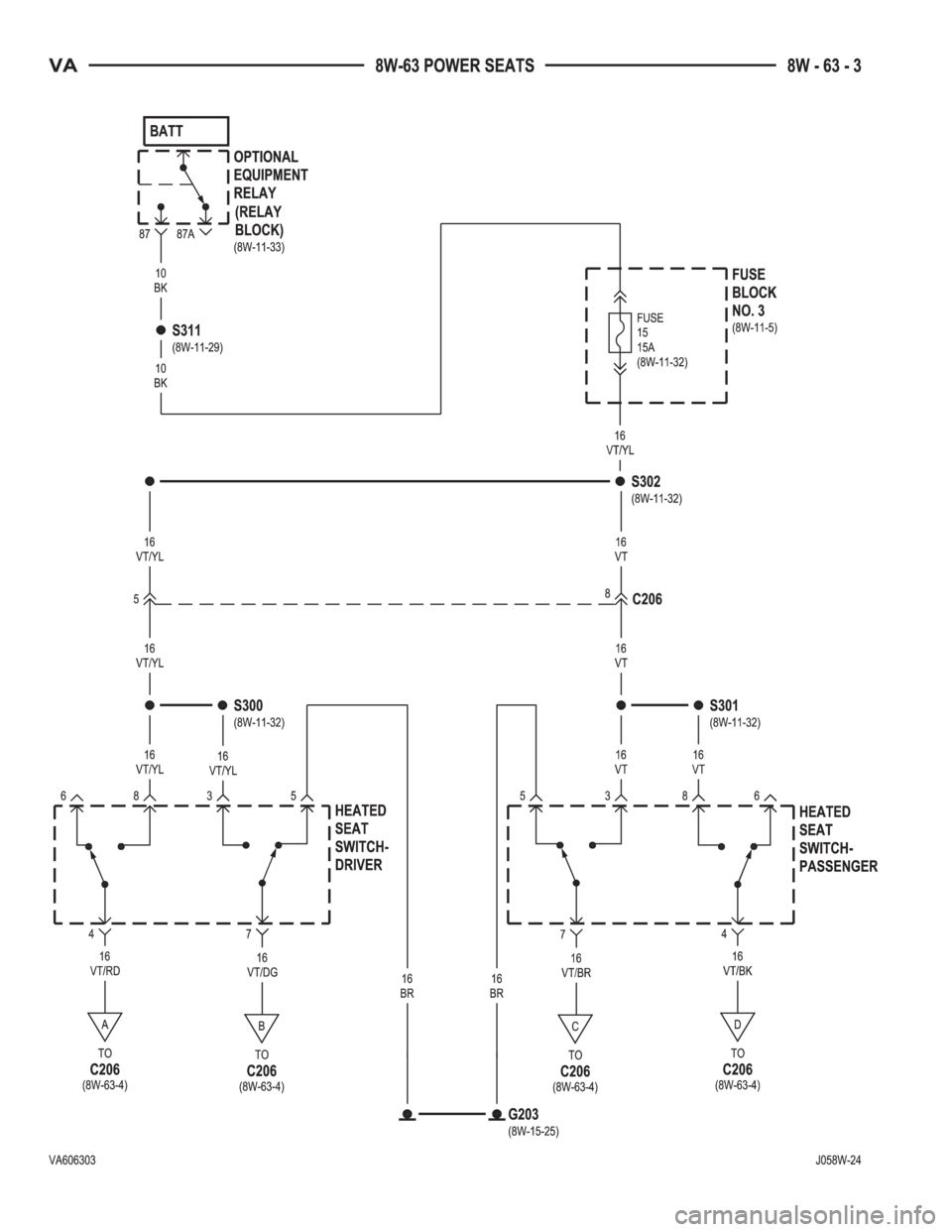

Page 1413 of 2305

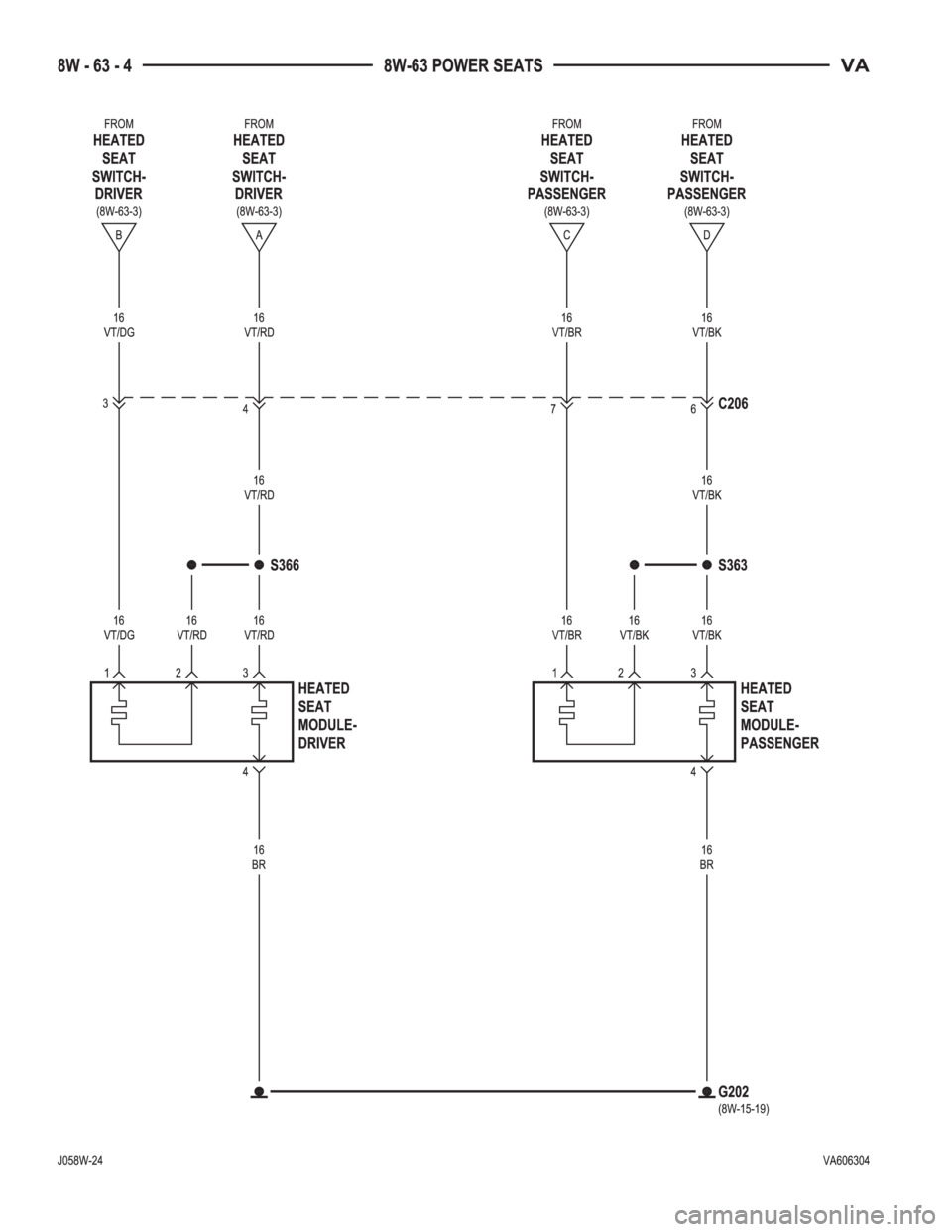

Page 1414 of 2305

Page 1415 of 2305

Page 1416 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual 8W-70 SPLICE INFORMATION
Component Page
S100............................... 8W-10-8
S101.............................. 8W-10-11
S102.............................. 8W-11-28
S103........................

8W-70 SPLICE INFORMATION
Component Page
S100............................... 8W-10-8
S101.............................. 8W-10-11
S102.............................. 8W-11-28
S103.............................. 8W-10-11
S104.............................. 8W-10-28
S105............................... 8W-50-9
S106.............................. 8W-30-24
S107............................... 8W-30-2
S108.............................. 8W-30-18
S175.............................. 8W-10-29
S176.............................. 8W-30-16
S177.............................. 8W-30-15
S178.............................. 8W-30-17
S200.............................. 8W-10-19
S201.............................. 8W-42-17
S202.............................. 8W-11-35
S203.............................. 8W-10-25
S204.............................. 8W-10-20
S205.............................. 8W-10-27
S206.............................. 8W-10-22
S208............................... 8W-44-5
S209............................... 8W-42-5
S210.............................. 8W-10-16
S211 .............................. 8W-15-24
S212.............................. 8W-11-37
S213............................... 8W-39-2
S214.............................. 8W-11-37
S215............................... 8W-18-6
S216.............................. 8W-11-17
S217.............................. 8W-10-29
S218............................... 8W-42-4
S219.............................. 8W-10-15
S220............................... 8W-30-9
S221............................... 8W-18-4
S222............................... 8W-18-4
S223.............................. 8W-10-30
S224............................... 8W-18-6
S225.............................. 8W-10-18
S226.............................. 8W-11-23
S227.............................. 8W-11-23
S228............................... 8W-40-8
S229............................... 8W-18-3
S230............................... 8W-40-8
S231............................... 8W-18-6
S232............................... 8W-18-6
S234.............................. 8W-42-23
S250.............................. 8W-10-23
S251............................... 8W-35-3
S252.............................. 8W-10-23
S253.............................. 8W-11-27
S254............................... 8W-44-6
S255.............................. 8W-10-16
S256.............................. 8W-11-16
S257............................... 8W-18-5
S258............................... 8W-31-7
S259............................... 8W-18-6
S260............................... 8W-18-6
S261.............................. 8W-11-18Component Page
S262.............................. 8W-10-29
S300.............................. 8W-11-32
S301.............................. 8W-11-32
S302.............................. 8W-11-32
S303.............................. 8W-15-23
S304.............................. 8W-15-23
S305.............................. 8W-11-35
S306.............................. 8W-11-33
S307.............................. 8W-11-33
S308............................... 8W-15-5
S309............................... 8W-15-6
S310.............................. 8W-11-16
S311 .............................. 8W-11-29
S312............................... 8W-35-6
S313............................... 8W-35-6
S314............................... 8W-35-6
S315............................... 8W-35-6
S316.............................. 8W-11-25
S317.............................. 8W-50-11
S318............................... 8W-51-3
S319............................... 8W-35-3
S320............................... 8W-31-9
S321.............................. 8W-11-31
S322............................... 8W-40-5
S323............................... 8W-40-5
S324............................... 8W-44-6
S325.............................. 8W-11-22
S326............................... 8W-40-6
S327............................... 8W-42-8
S328............................... 8W-45-6
S329............................... 8W-45-6
S330............................... 8W-48-4
S331............................... 8W-48-4
S332.............................. 8W-15-28
S333.............................. 8W-10-17
S334.............................. 8W-42-24
S350.............................. 8W-10-10
S351............................... 8W-52-4
S352............................... 8W-52-6
S353.............................. 8W-10-24
S354............................... 8W-70-2
S355.............................. 8W-11-19
S356.............................. 8W-10-26
S357............................... 8W-61-4
S358.............................. 8W-11-24
S359............................... 8W-44-4
S360.............................. 8W-11-22
S361.............................. 8W-11-22
S362.............................. 8W-11-34
S363............................... 8W-63-4
S364.............................. 8W-11-30
S365.............................. 8W-11-31
S366............................... 8W-63-4
S375............................... 8W-61-4
S376.............................. 8W-15-31
S377.............................. 8W-15-31
VA8W-70 SPLICE INFORMATION 8W - 70 - 1
