Page 609 of 2305

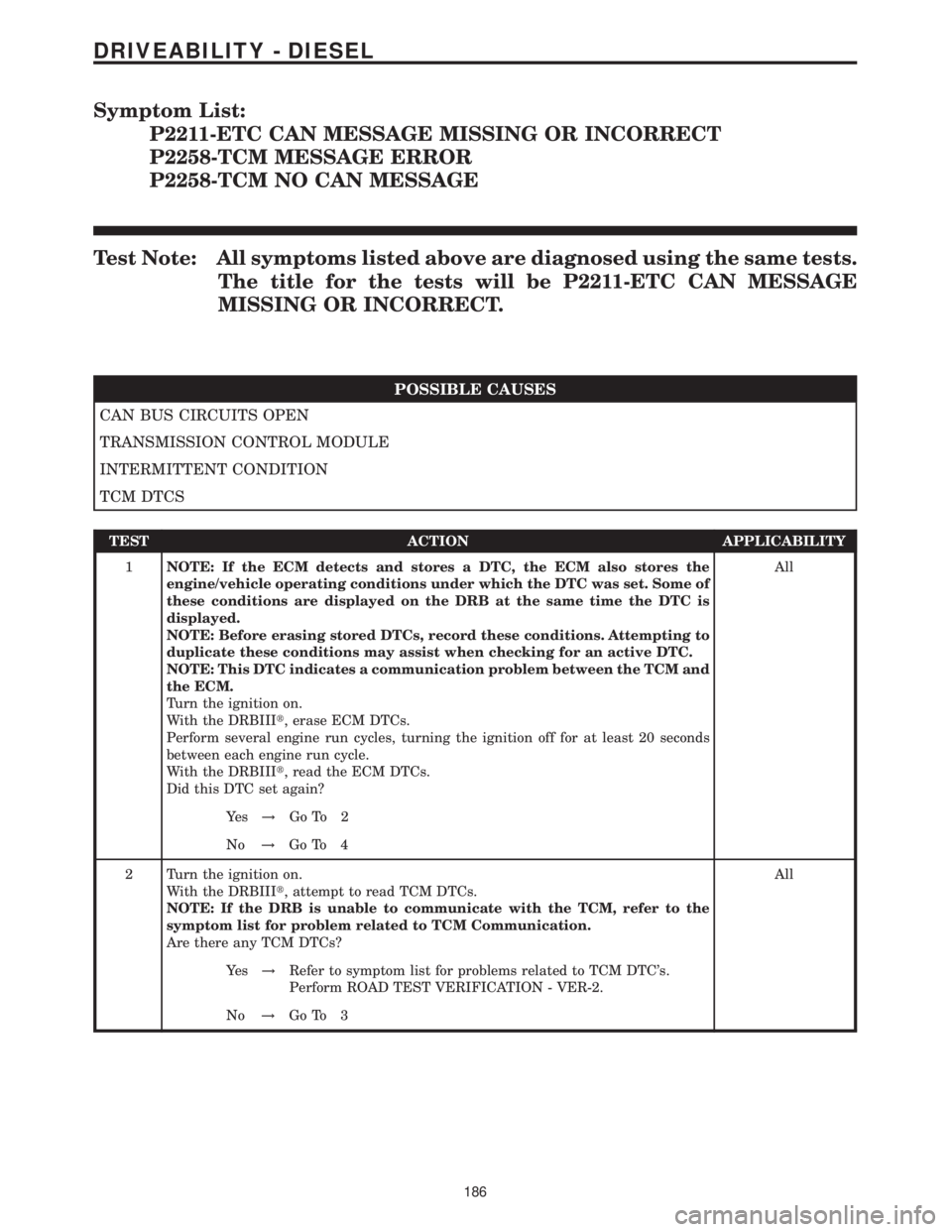

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom List: P2211-ETC CAN MESSAGE MISSING OR INCORRECT P2258-TCM MESSAGE ERROR P2258-TCM NO CAN MESSAGE Test Note: All symptoms listed above are diagnosed using the same tests. The title for the tes

Page 610 of 2305

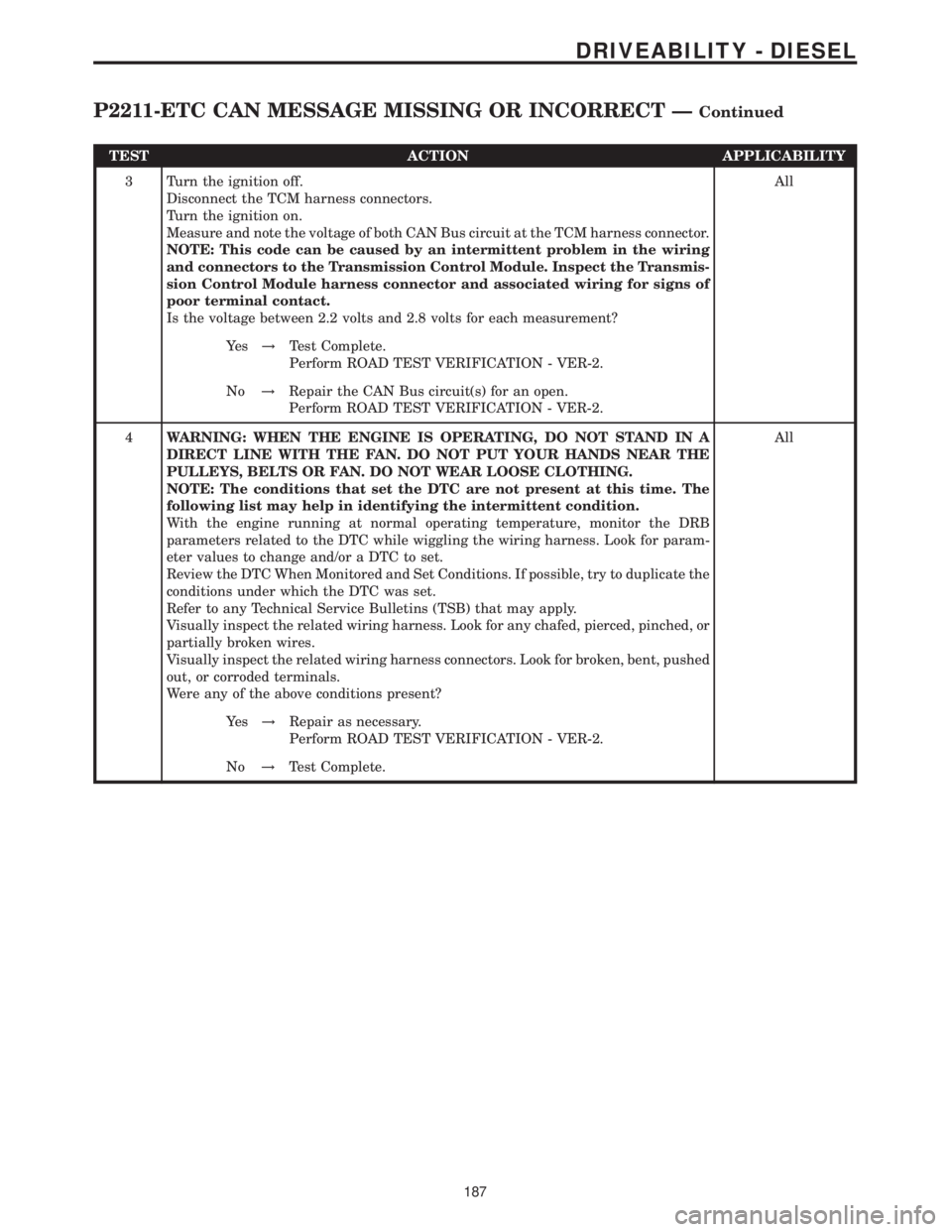

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY 3 Turn the ignition off. Disconnect the TCM harness connectors. Turn the ignition on. Measure and note the voltage of both CAN Bus circuit at the TCM harness connector. NOTE:

Page 611 of 2305

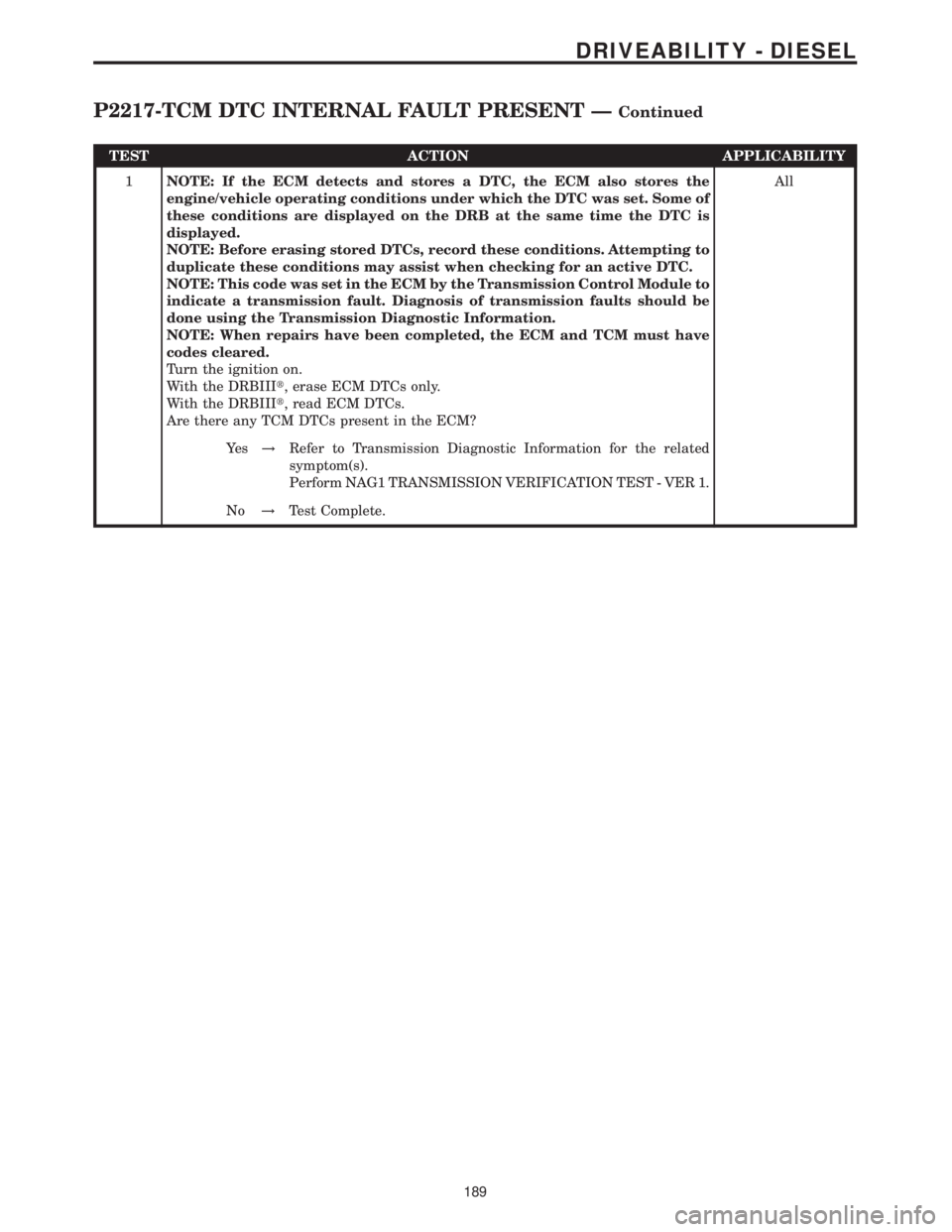

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom List: P2217-TCM DTC INTERNAL FAULT PRESENT P2218-TCM DTC 1-2 AND 4-5 SHIFT SOLENOID FAULT PRESENT P2219-TCM DTC 2-3 SHIFT SOLENOID FAULT PRESENT P2220-TCM DTC 3-4 SHIFT SOLENOID FAULT PRESENT

Page 612 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY 1NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions under which the DTC was set. Some of these conditions are displayed on

Page 613 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom List: P2240-ABS STEERING ANGLE SENSOR CAN MESSAGE IMPLAUSI- BLE 1 P2240-ABS STEERING ANGLE SENSOR CAN MESSAGE IMPLAUSI- BLE 2 Test Note: All symptoms listed above are diagnosed using the same

Page 614 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY 3WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING. NOTE: Th

Page 615 of 2305

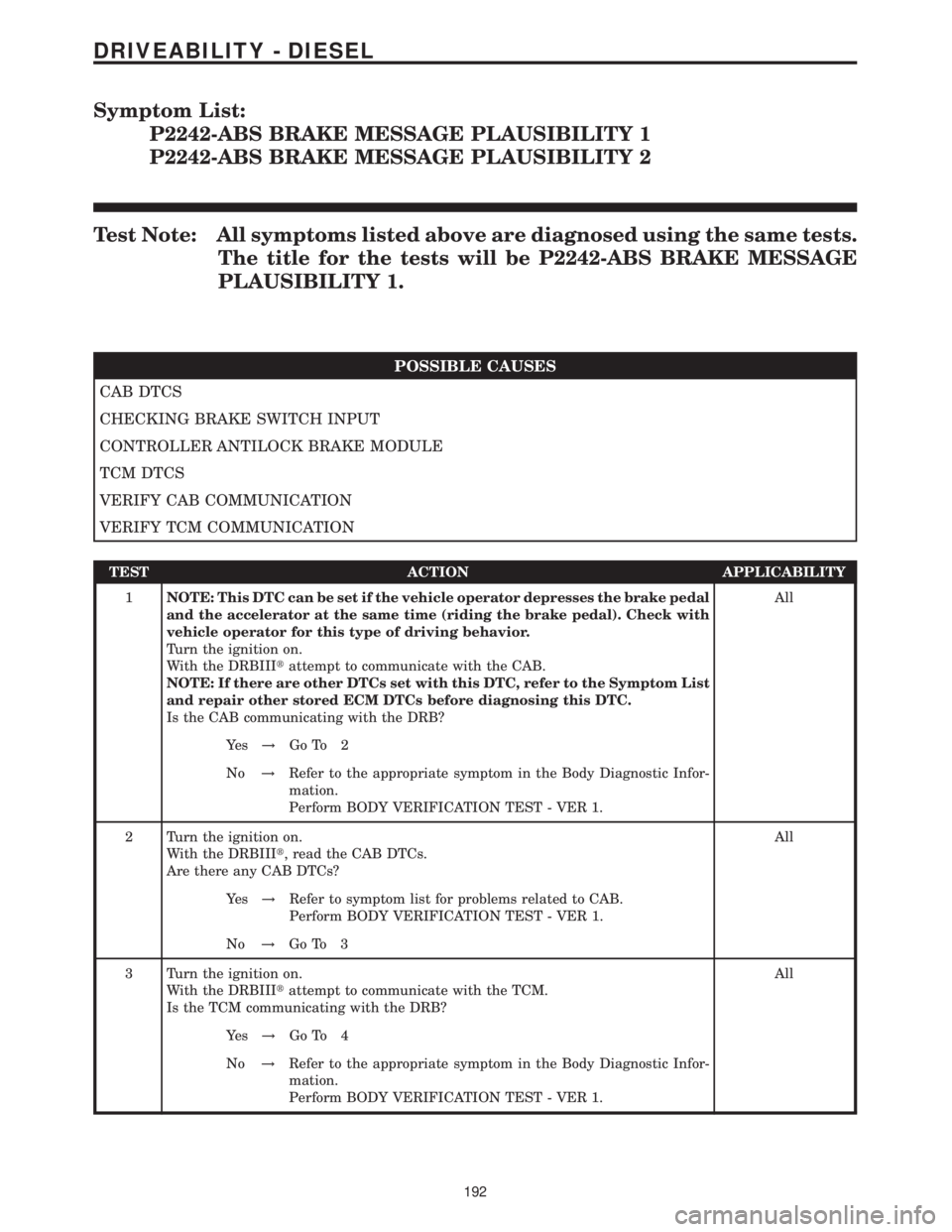

MERCEDES-BENZ SPRINTER 2006 Service Manual Symptom List: P2242-ABS BRAKE MESSAGE PLAUSIBILITY 1 P2242-ABS BRAKE MESSAGE PLAUSIBILITY 2 Test Note: All symptoms listed above are diagnosed using the same tests. The title for the tests will be P22

Page 616 of 2305

MERCEDES-BENZ SPRINTER 2006 Service Manual TEST ACTION APPLICABILITY 4 Turn the ignition on. With the DRBIIIt, read the CAB DTCs. Are there any CAB DTCs?All Ye s!Refer to symptom list for problems related to TCM Perform BODY VERIFICATION TEST
