MERCEDES-BENZ SPRINTER 2006  Service Manual Fig. 8 2 PIECE PROPELLER SHAFT
1 - FLANGE BOLT 6 - NUT
2 - BEARING 7 - BRACKET
3 - PROPELLER SHAFT 8 - RETAINING BRACKET
4 - REAR AXLE 9 - COLLARED BOLT
5 - CABLE BRACKET 10 - TRANSMISSION
3 - 8 PROPE

Page 754 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual (6) Remove shaft from the vehicle.
INSTALLATION
(1) Install propeller shaft intermediate bearing/
bearings to support and tighten nuts to 105 N´m (77
ft. lbs.).
(2) Install propeller shaft intermedia

Page 755 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual (4) Pull apart propeller shaft.
(5) Remove snap-ring (Fig. 12).
NOTE: If center bearing is equipped with a round
flange remove bolt from the middle of the flange.
(6) Pull off center bearing with a Be

Page 756 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual NOTE: If center bearing is equipped with a round
flange install new bolt in middle of the flange and
tighten to 95 N´m (70 ft. bls.).
(2) Install snap-ring.
(3) Coat propeller shaft spline with unive

Page 757 of 2305

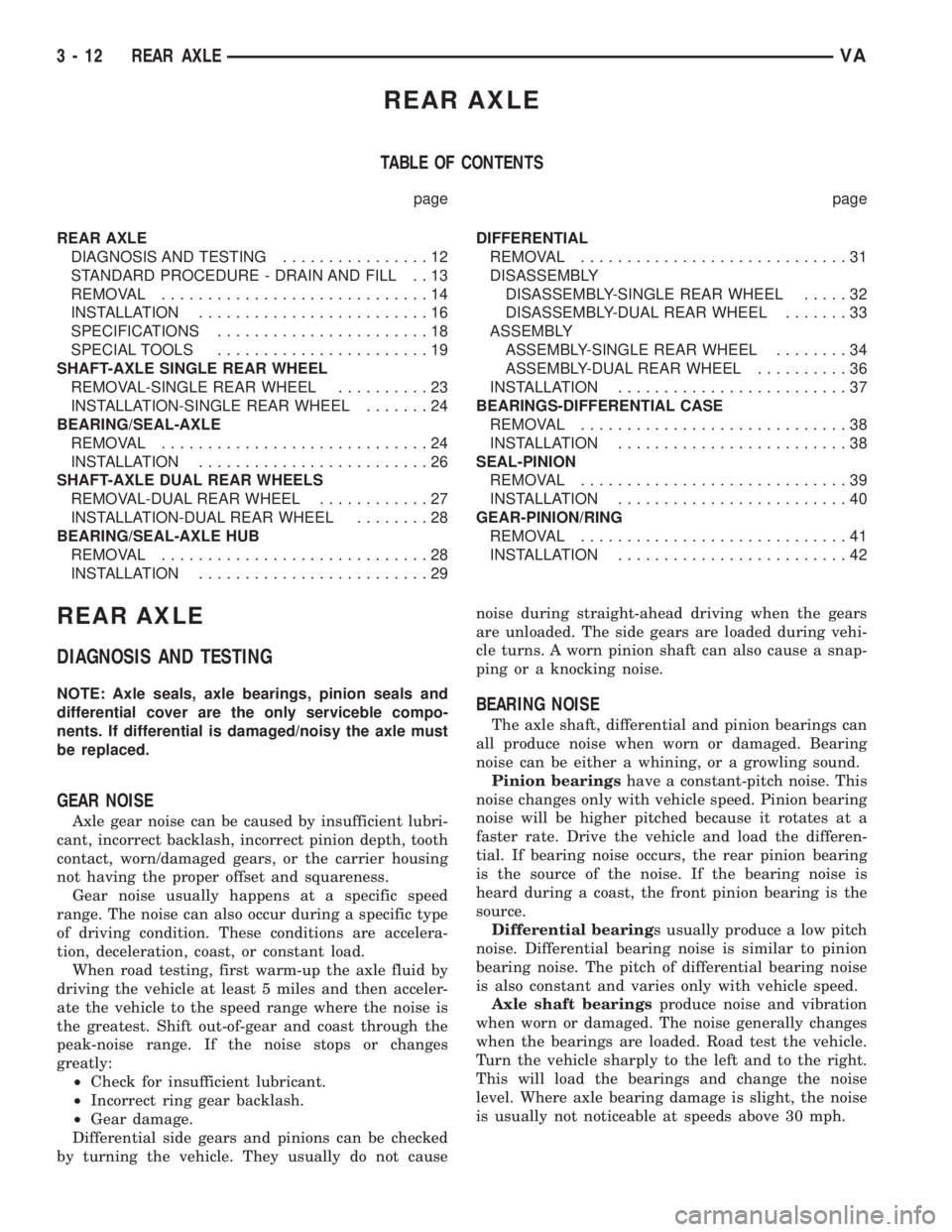

MERCEDES-BENZ SPRINTER 2006  Service Manual REAR AXLE
TABLE OF CONTENTS
page page
REAR AXLE
DIAGNOSIS AND TESTING................12
STANDARD PROCEDURE - DRAIN AND FILL . . 13
REMOVAL.............................14
INSTALLATION..................

Page 758 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual LOW SPEED KNOCK
Low speed knock is generally caused by a worn
U-joint or by worn side-gear thrust washers. A worn
pinion shaft bore will also cause low speed knock.
VIBRATION
Vibration at the rear of

Page 759 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual REMOVAL
Fig. 2 SINGLE REAR WHEEL AXLE
1 - REAR SPRING 12 - WEAR INDICATOR CONNECTOR
2 - U-BRACKET 13 - BRAKE HOSE
3 - PLATE 14 - WHEEL BOLT
4 - NUT 15 - BOLT
5 - BRAKE CABLE 16 - NUT
6 - REAR AXLE 17

Page 760 of 2305

MERCEDES-BENZ SPRINTER 2006  Service Manual (1) Raise and support the vehicle.
(2) Position a suitable lifting device under the axle
and secure axle to device.
(3) Remove wheels and tires.
(4) Unplug wear indicator cable (Fig. 2) and (Fig.
3).
