SEATS

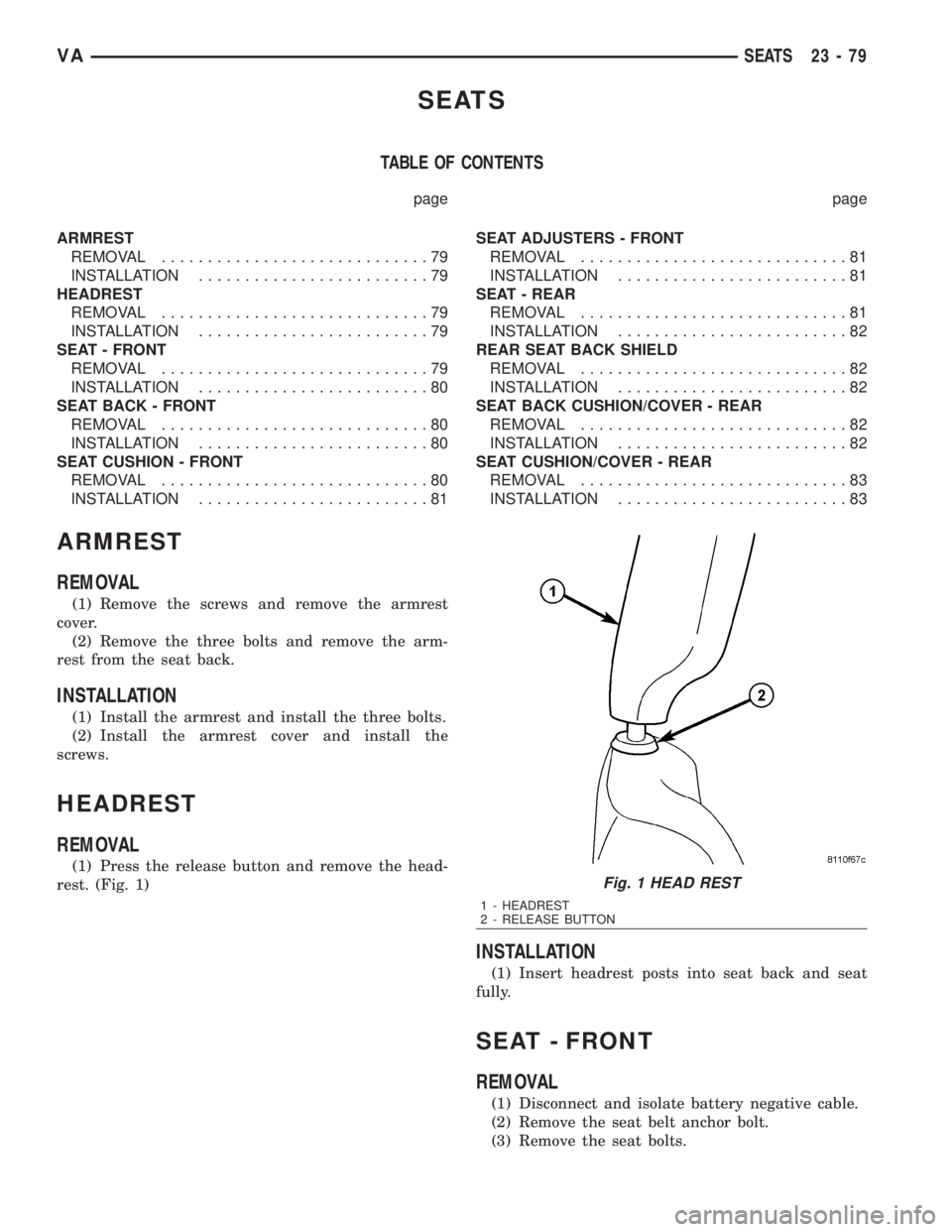

TABLE OF CONTENTS
page page
ARMREST
REMOVAL.............................79
INSTALLATION.........................79
HEADREST
REMOVAL.............................79
INSTALLATION.........................79
SEAT - FRONT
REMOVAL.............................79
INSTALLATION.........................80
SEAT BACK - FRONT
REMOVAL.............................80
INSTALLATION.........................80
SEAT CUSHION - FRONT
REMOVAL.............................80
INSTALLATION.........................81SEAT ADJUSTERS - FRONT
REMOVAL.............................81
INSTALLATION.........................81
SEAT - REAR
REMOVAL.............................81
INSTALLATION.........................82
REAR SEAT BACK SHIELD
REMOVAL.............................82
INSTALLATION.........................82
SEAT BACK CUSHION/COVER - REAR
REMOVAL.............................82
INSTALLATION.........................82
SEAT CUSHION/COVER - REAR
REMOVAL.............................83
INSTALLATION.........................83
ARMREST
REMOVAL
(1) Remove the screws and remove the armrest
cover.
(2) Remove the three bolts and remove the arm-
rest from the seat back.
INSTALLATION
(1) Install the armrest and install the three bolts.
(2) Install the armrest cover and install the
screws.
HEADREST
REMOVAL
(1) Press the release button and remove the head-
rest. (Fig. 1)
INSTALLATION
(1) Insert headrest posts into seat back and seat
fully.
SEAT - FRONT
REMOVAL
(1) Disconnect and isolate battery negative cable.
(2) Remove the seat belt anchor bolt.
(3) Remove the seat bolts.
Fig. 1 HEAD REST
1 - HEADREST
2 - RELEASE BUTTON
VASEATS 23 - 79

INSTALLATION
(1) With seat facing forward, insert mounting legs
into the respective mounting cups.
(2) Slide seat forwards with some force as far as it
will go, until the release levers are heard to engage
and all release levers are parallel to the vehicle floor.
REAR SEAT BACK SHIELD
REMOVAL
(1) Remove the screws and remove the panel. (Fig.
8)
INSTALLATION
(1) Install the panel and install the screws.
SEAT BACK CUSHION / COV-
ER - REAR
REMOVAL
(1) Remove seat. (Refer to 23 - BODY/SEATS/
SEAT - REAR - REMOVAL)
(2) Remove seat back shield. (Refer to 23 - BODY/
SEATS/REAR SEAT BACK SHIELD - REMOVAL)
(3) Remove seat belts as necessary to remove
cover. (Refer to 8 - ELECTRICAL/RESTRAINTS/
REAR SEAT BELT & RETRACTOR - REMOVAL)
(4) Remove seat belt buckles as necessary. (Refer
to 8 - ELECTRICAL/RESTRAINTS/REAR SEAT
BELT BUCKLE - REMOVAL)
(5) Remove the headrests. (Refer to 23 - BODY/
SEATS/HEADREST - REMOVAL)
(6) Remove the headrest sleeves.
(7) Partially de-trim upper seat back.
(8) Remove the retaining covers at seat belt
guides.
(9) Route belts through guides.
(10) Separate j-straps at seat back cover and
remove cover/cushion.
INSTALLATION
(1) Install seat back cushion and cover.
(2) Connect j-straps.
(3) Route belts through guides.
(4) Install retaining covers at seat belt guides.
(5) Position upper seat back cover back into place.

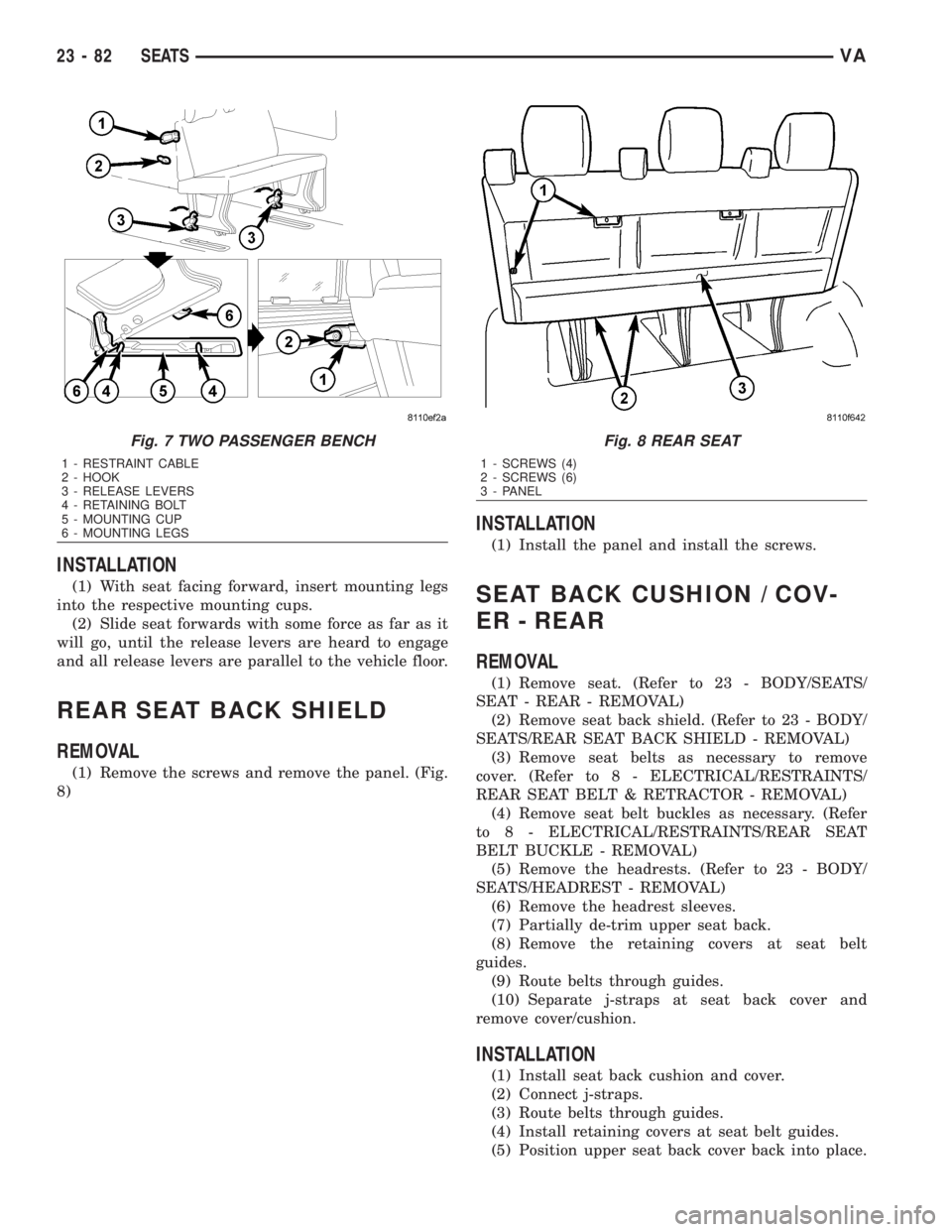

Fig. 7 TWO PASSENGER BENCH
1 - RESTRAINT CABLE
2 - HOOK
3 - RELEASE LEVERS
4 - RETAINING BOLT
5 - MOUNTING CUP
6 - MOUNTING LEGS
Fig. 8 REAR SEAT
1 - SCREWS (4)
2 - SCREWS (6)
3 - PANEL
23 - 82 SEATSVA

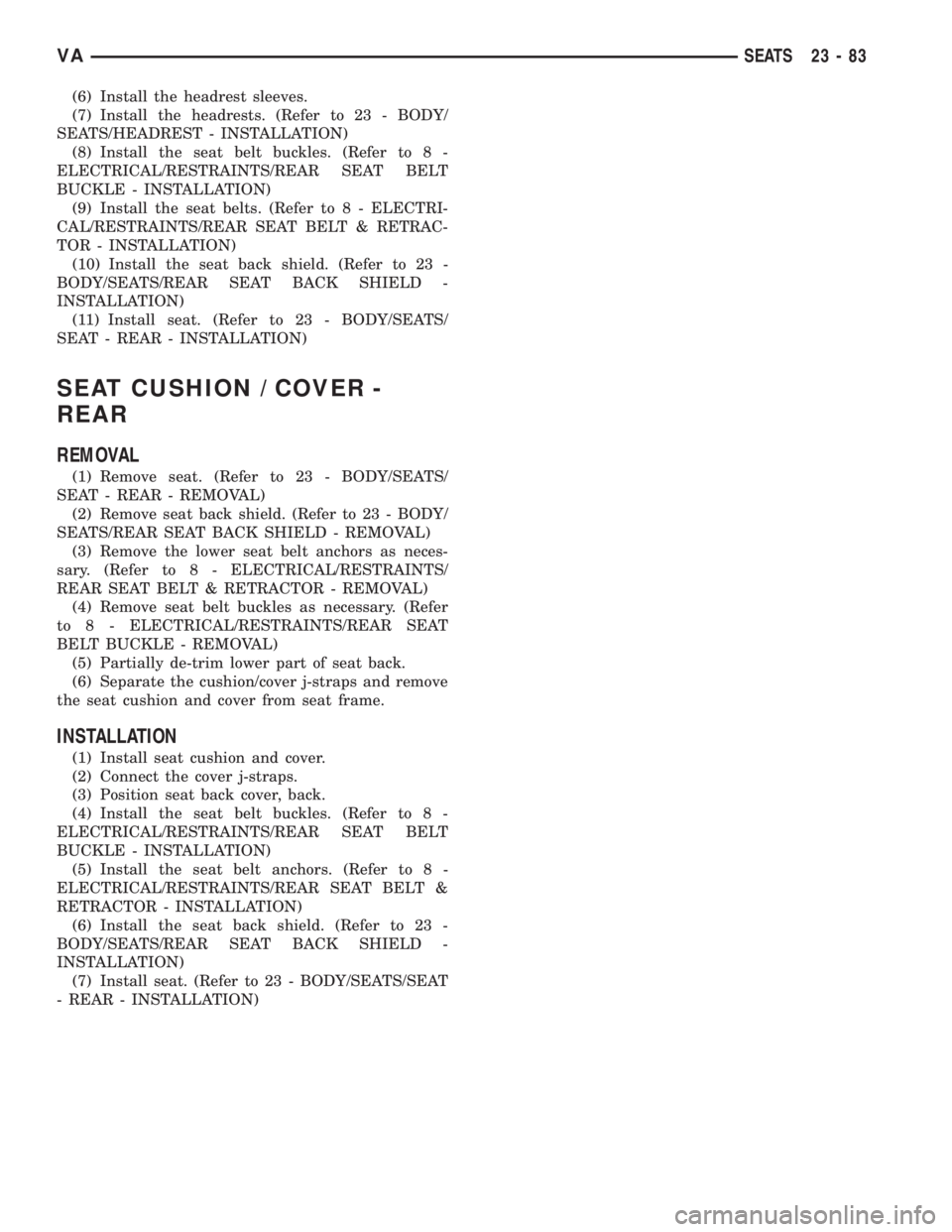

(6) Install the headrest sleeves.
(7) Install the headrests. (Refer to 23 - BODY/
SEATS/HEADREST - INSTALLATION)
(8) Install the seat belt buckles. (Refer to 8 -
ELECTRICAL/RESTRAINTS/REAR SEAT BELT
BUCKLE - INSTALLATION)
(9) Install the seat belts. (Refer to 8 - ELECTRI-
CAL/RESTRAINTS/REAR SEAT BELT & RETRAC-
TOR - INSTALLATION)
(10) Install the seat back shield. (Refer to 23 -
BODY/SEATS/REAR SEAT BACK SHIELD -
INSTALLATION)
(11) Install seat. (Refer to 23 - BODY/SEATS/
SEAT - REAR - INSTALLATION)
SEAT CUSHION / COVER -
REAR
REMOVAL
(1) Remove seat. (Refer to 23 - BODY/SEATS/
SEAT - REAR - REMOVAL)
(2) Remove seat back shield. (Refer to 23 - BODY/
SEATS/REAR SEAT BACK SHIELD - REMOVAL)
(3) Remove the lower seat belt anchors as neces-
sary. (Refer to 8 - ELECTRICAL/RESTRAINTS/
REAR SEAT BELT & RETRACTOR - REMOVAL)
(4) Remove seat belt buckles as necessary. (Refer
to 8 - ELECTRICAL/RESTRAINTS/REAR SEAT
BELT BUCKLE - REMOVAL)
(5) Partially de-trim lower part of seat back.
(6) Separate the cushion/cover j-straps and remove
the seat cushion and cover from seat frame.
INSTALLATION
(1) Install seat cushion and cover.
(2) Connect the cover j-straps.
(3) Position seat back cover, back.
(4) Install the seat belt buckles. (Refer to 8 -
ELECTRICAL/RESTRAINTS/REAR SEAT BELT
BUCKLE - INSTALLATION)
(5) Install the seat belt anchors. (Refer to 8 -
ELECTRICAL/RESTRAINTS/REAR SEAT BELT &
RETRACTOR - INSTALLATION)
(6) Install the seat back shield. (Refer to 23 -
BODY/SEATS/REAR SEAT BACK SHIELD -
INSTALLATION)
(7) Install seat. (Refer to 23 - BODY/SEATS/SEAT
- REAR - INSTALLATION)
VASEATS 23 - 83
